8F–88

BODY STRUCTURE

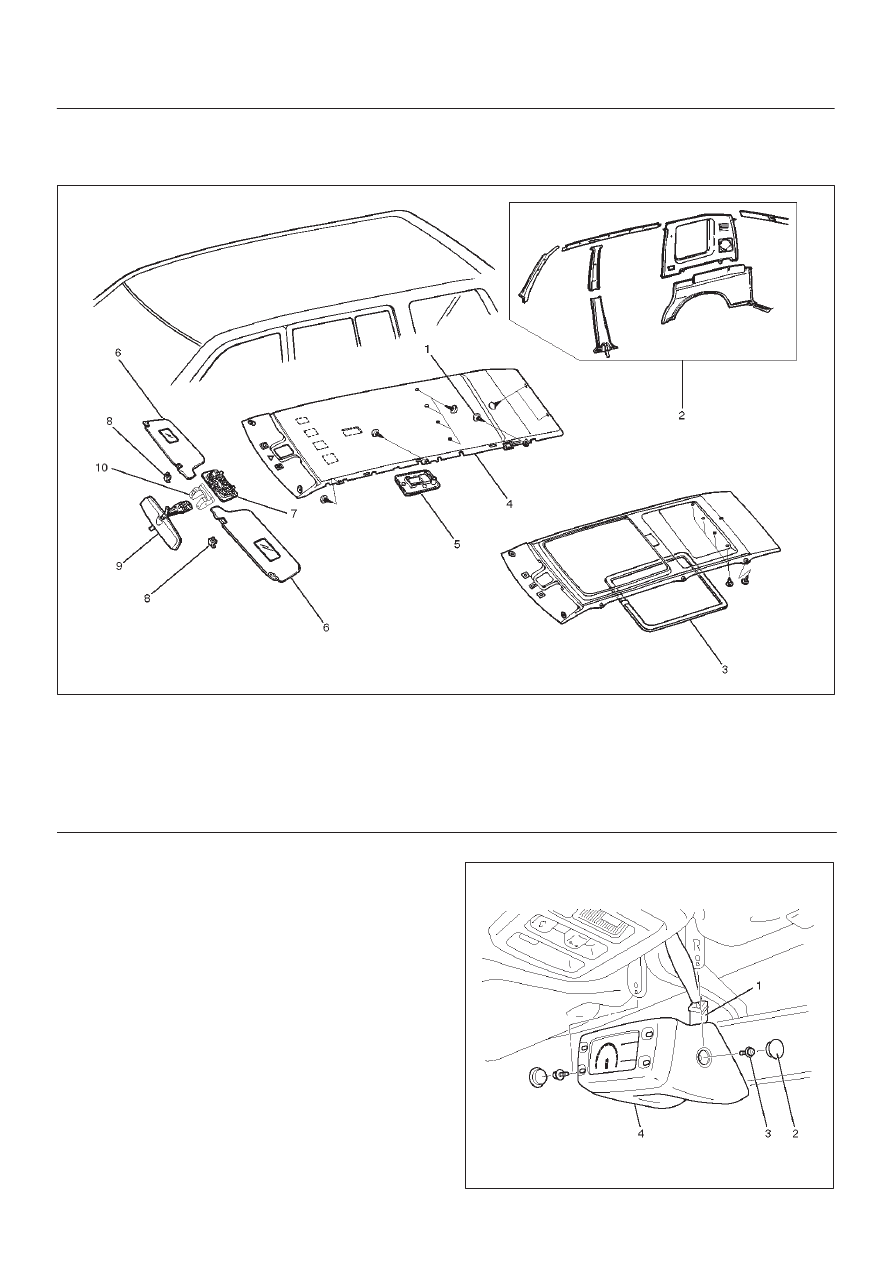

Headlining

Parts Location

666RW003

Legend

(1) Clip
(2) Interior Trim Panels
(3) Sun Roof Finisher (W/Sun Roof)
(4) Headlining
(5) Dome Light

(6) Sunvisors
(7) Map Light
(8) Sunvisor Holder
(9) Rear View Mirror

(10) Multi Meter

Removal

1. Disconnect the battery ground cable.
2. Remove interior trim panels.

D

Refer to the Exterior / Interior Trim section.

3. Remove dome light.

D

Remove the dome light lens and the fixing screws.

D

Disconnect the dome light connectors.

4. Remove multi meter (4) (If so equipped).

D

Remove two caps (2), two screws (3)  and
disconnect the connector (1).

821RW241

8F–89

BODY STRUCTURE

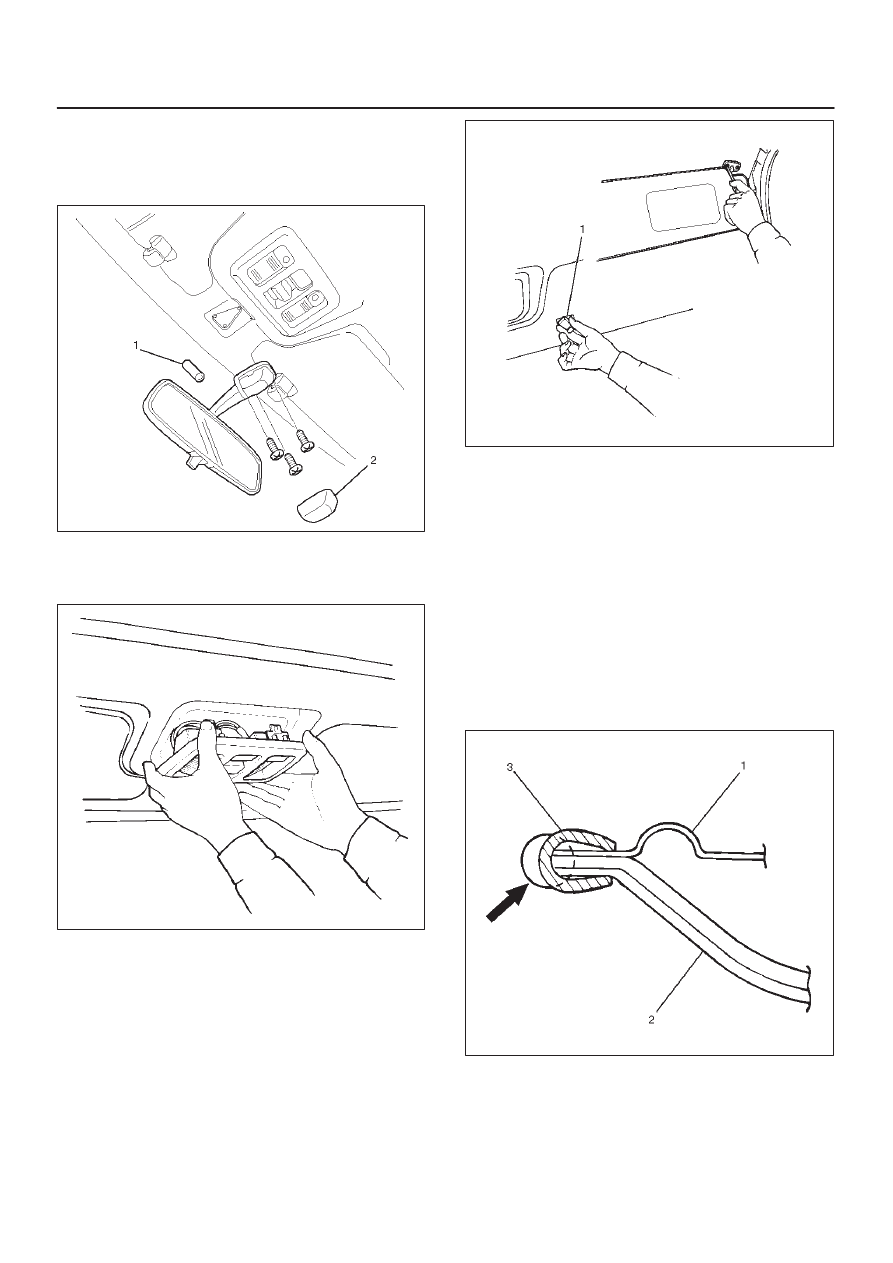

5. Remove rear view mirror.

D

Remove the rubber stopper (1).

D

Pry off the mirror stay cover (2) and remove 3
screws.

720RW004

6. Remove map light/sun roof switch.

D

Pry the map light clip free from the map light/sun
roof switch bracket and disconnect the connector.

805RS001

7. Remove sunvisors.

D

Remove the fixing screw and turn the sunvisor
holder (1) to remove it.

D

Disconnect the vanity mirror illumination connector.

743RW008

8. Remove sun roof finisher (W/Sun roof).
9. Remove headlining.

D

Remove the headlining fixing clips.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the headlining so that the fixing clips will not

come off.

2. To install the sun roof finisher (3), first fit in at one

place with the head lining (2) close to the sun roof
frame complete (1), then install the entire finisher
tightly by hitting it with a plastic hammer, not allowing
it to move up.

665RS001

8F–90

BODY STRUCTURE

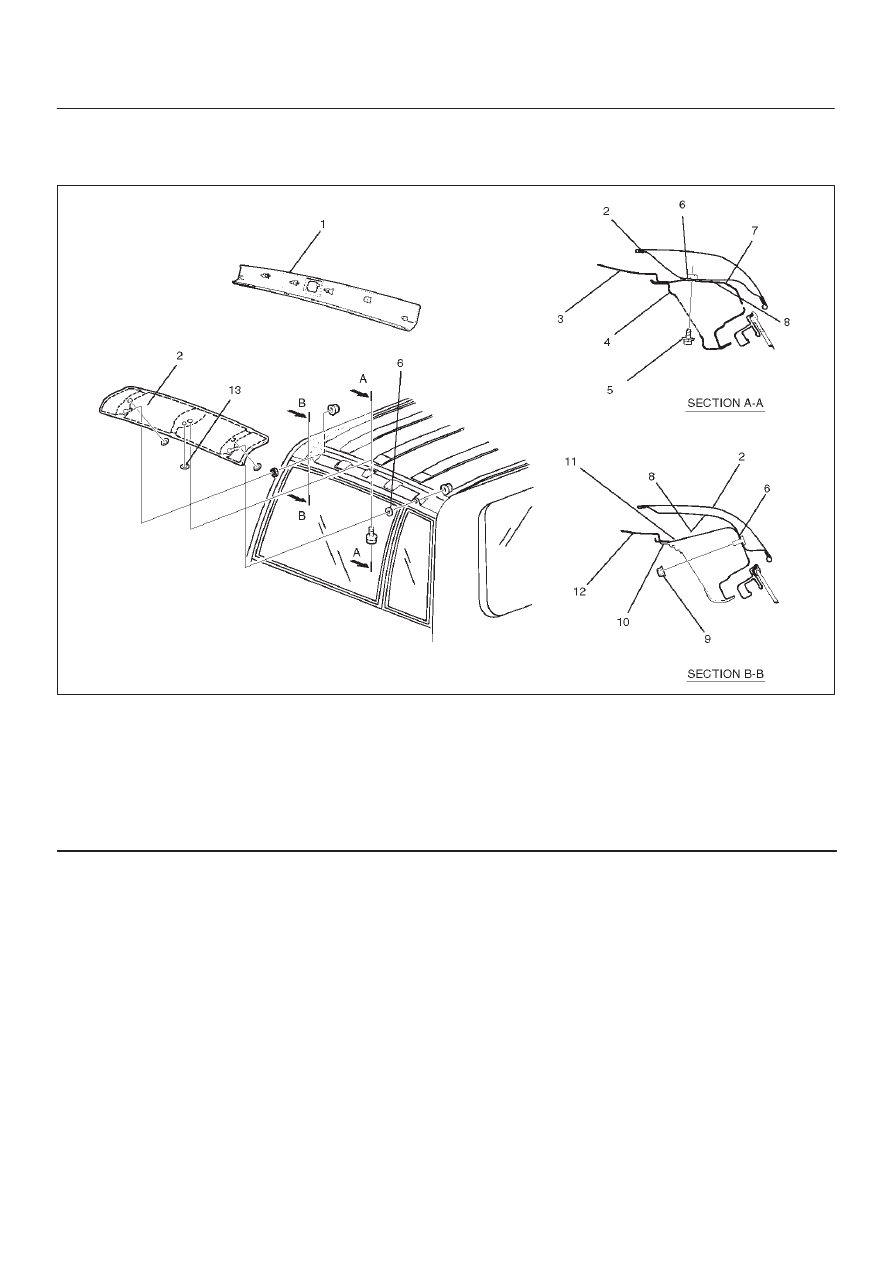

Rear Air Deflector

Parts Location

667RW001

Legend

(1) Rear Roof Trim Cover
(2) Rear Air Deflector
(3) Roof Rail
(4) Rear Inner Roof Rail
(5) Fixing Bolt
(6) Nylon Washer

(7) Rear Outer Roof Panel
(8) Grommet
(9) Fixing Nut

(10) Rear Pillar Upper Reinforcement

(11) Rear Outer Roof Rail

(12) Roof Panel
(13) Grommet

Removal

1. Disconnect the battery ground cable
2. Remove rear roof trim cover.

D

Refer to Luggage Side and Quarter Upper Trim
Cover in Exterior / Interior section.

3. Remove rear air deflector.

D

Take notice of the grommet and the nylon washer.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

8F–91

BODY STRUCTURE

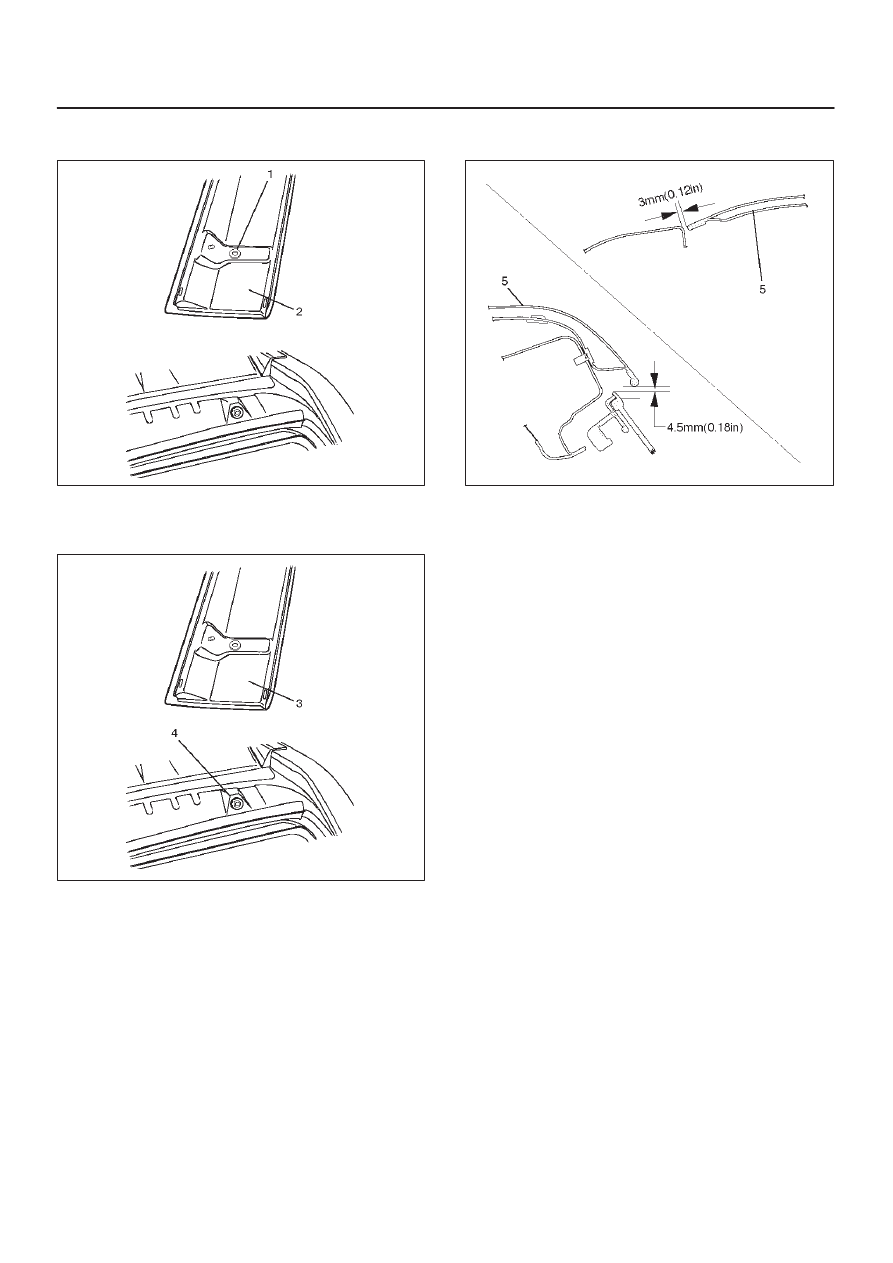

1. Install the grommet (1) to the air deflector (2) drain

hole.

667RW002

2. Use a new nylon washer (4). Peel off the adhesive

tape of the washer to install the nylon washer to the air
deflector (3).

667RW004

3. Install the air deflector (5) to the roof by referring to the

specified values shown in the illustration.

667RW003

4. Tighten the deflector fixing to the specified torque.

Bolt Torque : 6 N

•

m (0.6kg·m/52  lb in)

Nut Torque : 8 N

•

m (0.8kg·m/69  lb in)
