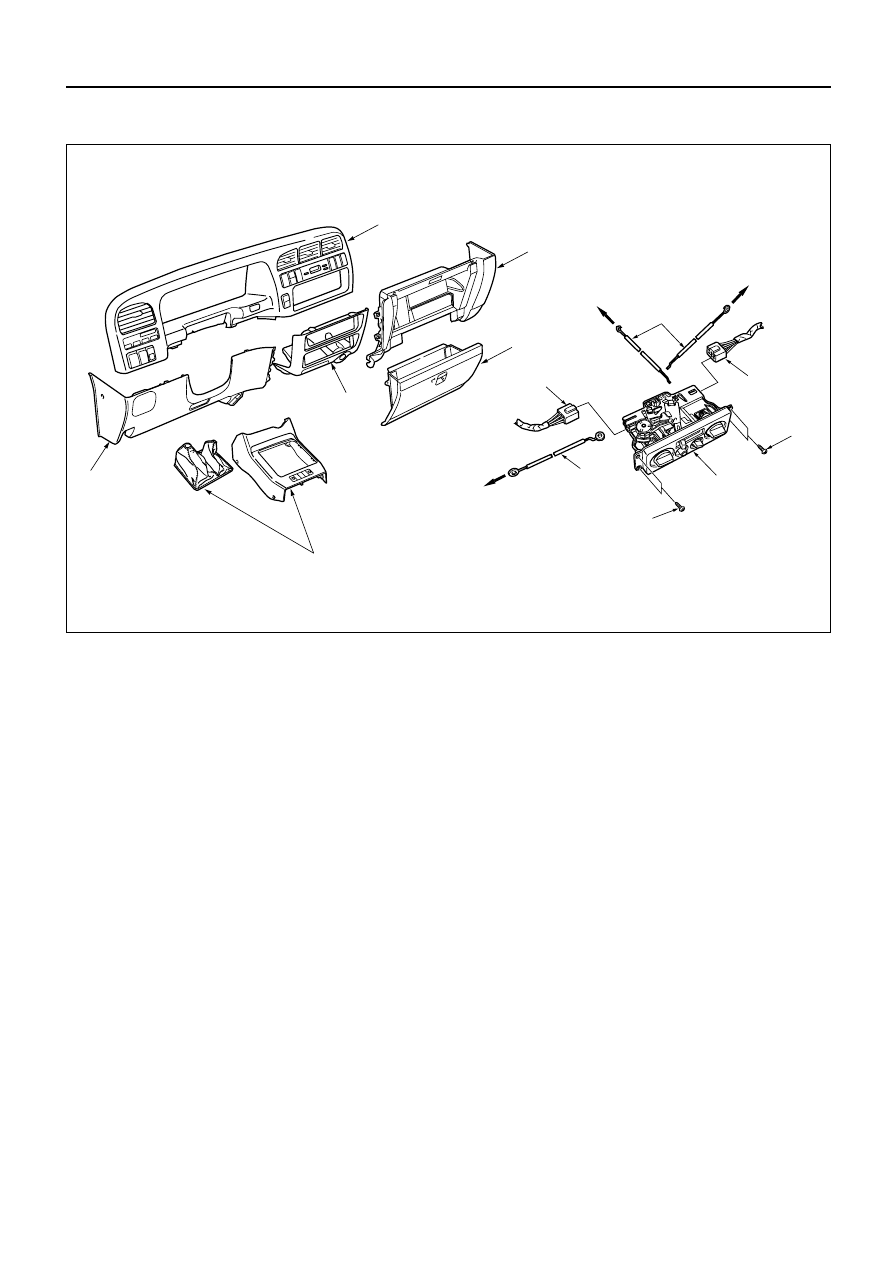

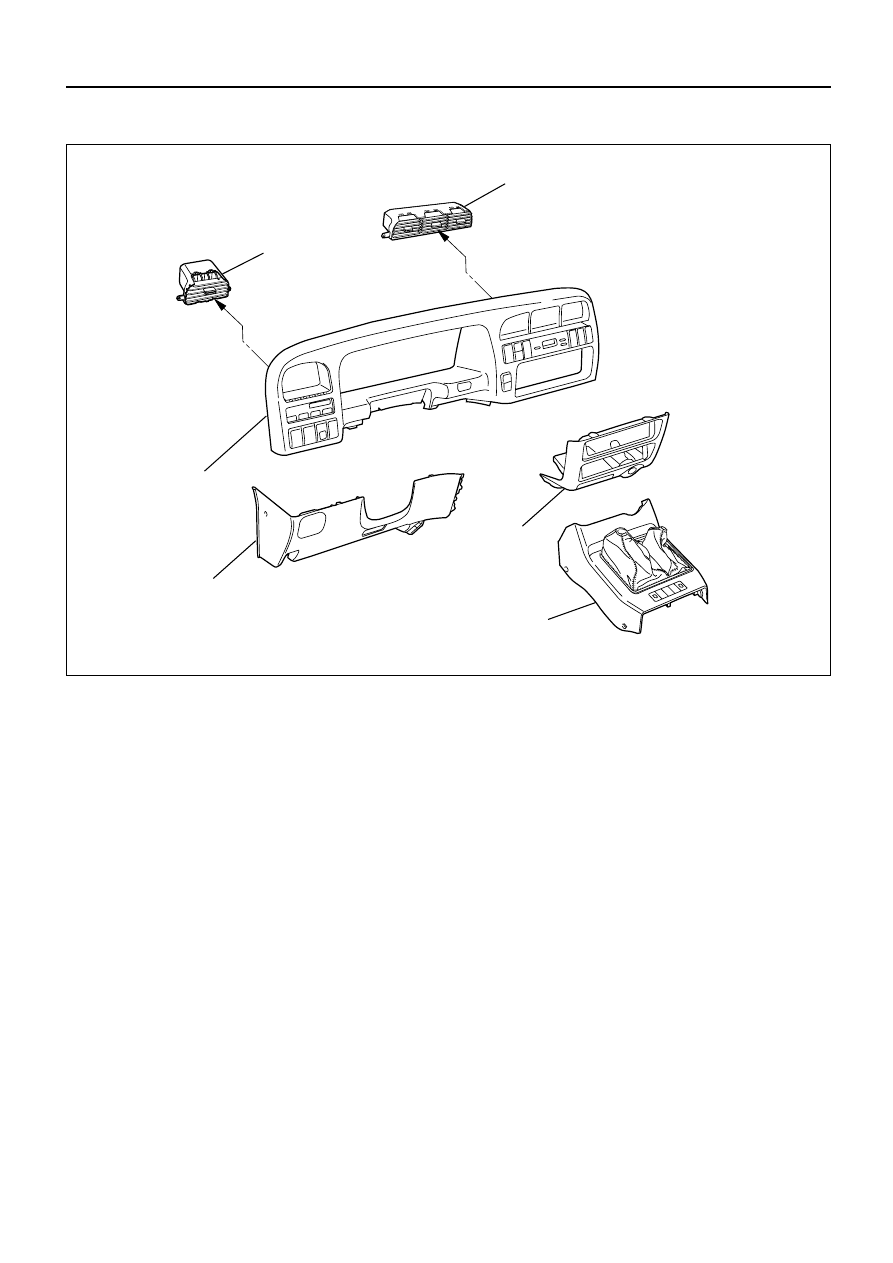

HEATING AND VENTILATION 1A – 21 INSTALLATION To install, follow the removal steps in the reverse order, 1. Connect each duct and nozzle securely leaving no clearance between them and making no improper REMOVAL Preparation: Disconnect the battery ground cable 1. Instrument panel assembly • Refer to Section 10 “BODY” for INSTRUMENT 2. Center ventilation upper duct 3. Side ventilation duct 4. Center ventilation lower duct 5. Driver lap duct 6. Center console 7. Rear heater duct • Refer to Section 10 “BODY” for CONSOLES 8. Cross beam assembly • Refer to Section 10 “BODY” for CROSS BEAM 9. Side defroster nozzle 10. Center defroster nozzle |
