HSA (HILL START AID) 5A5-23

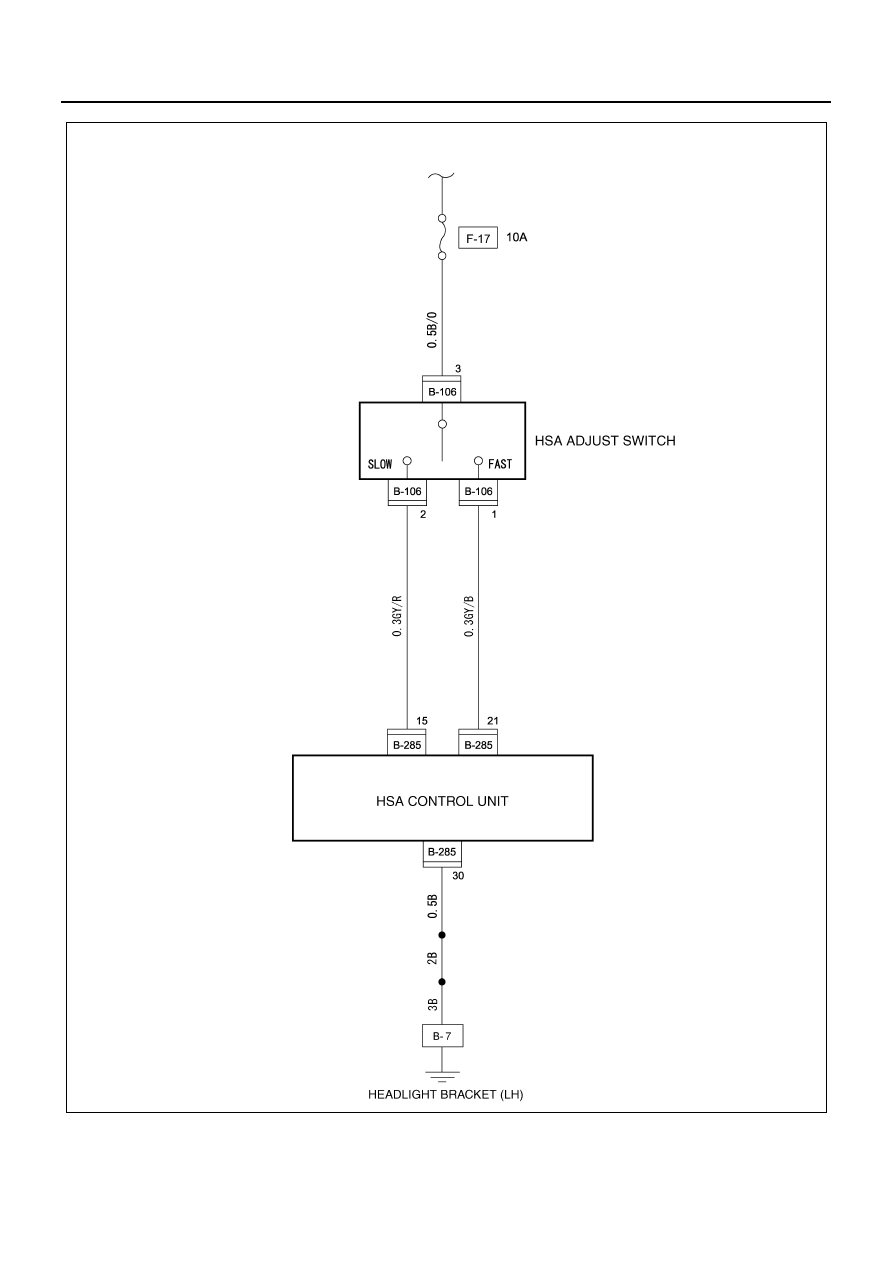

DTC 19 Adjust Switch “FAST” or “SLOW” Remain ON

Step

Action

Value

YES

NO

1

Is the battery voltage applied between the
HSA adjust switch connector terminal 3 “B-
106” and the body ground (connector discon-
nected)?

20 V or more

Go to Step2

Go to Step3

2

Is the continuity (resistance) of the HSA adjust
switch normal?

—

Go to Step4

Go to Step5

3

Repair the open circuit between the fuse “F-
17” and 3 “B-106”.

Has the open circuit corrected?

—

Go to Step4

Go to Step3

4

Connect the connector of the HSA adjust
switch.

Measure the voltages between the HSA con-
trol unit connector terminals 15 “B-285”, 21
“B-285” and the body ground. Are the volt-
ages 20V or more with adjust switch operat-
ing, and 0V not operating (with the HSA
control unit connector disconnected)?

20V with

switch oper-

ated 0V with

not operated

Go to Step6

Go to Step7

5

Repair or replace the switch.

Is the repair completed?

—

Go to Step6

Go to Step5

6

Replace the HSA control unit.

Is the replacement completed?

—

Go to Step7

Go to Step6

7

Repair the open circuit between the HSA
adjust switch connector terminals and the
HSA control unit connector terminals 2 “B-
106” — 15 “B-285”, 1 “B-106” — 21 “B-285”.

Is the repair completed?

—

Go to Step8

Go to Step7

8

After HSA repair, make sure no trouble is
found during self-diagnosis.

Is this step completed?

—

—

Go to Step8

5A5-24 HSA (HILL START AID)

N5A3023E

HSA (HILL START AID) 5A5-25

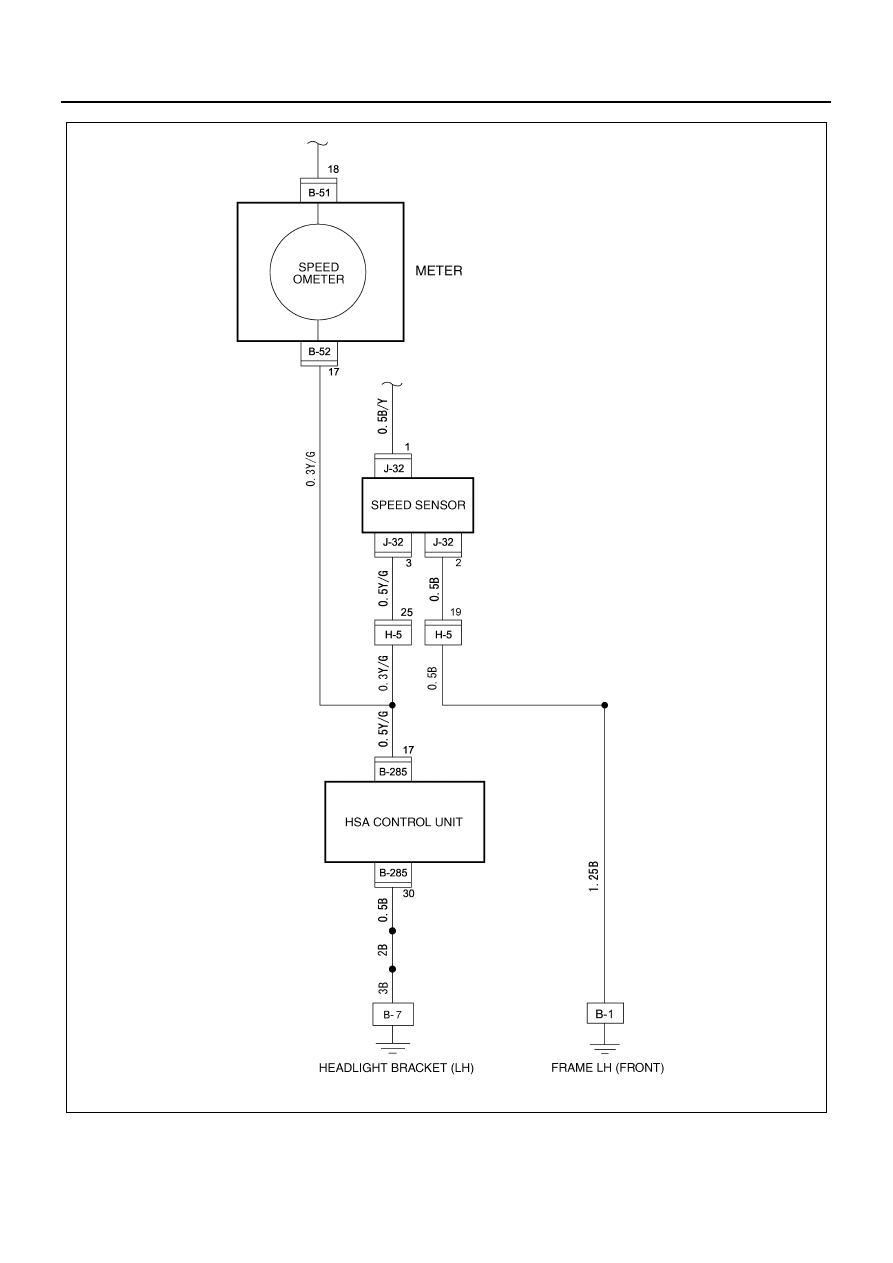

DTC 25 Vehicle Speed Sensor Output Voltage Fault
