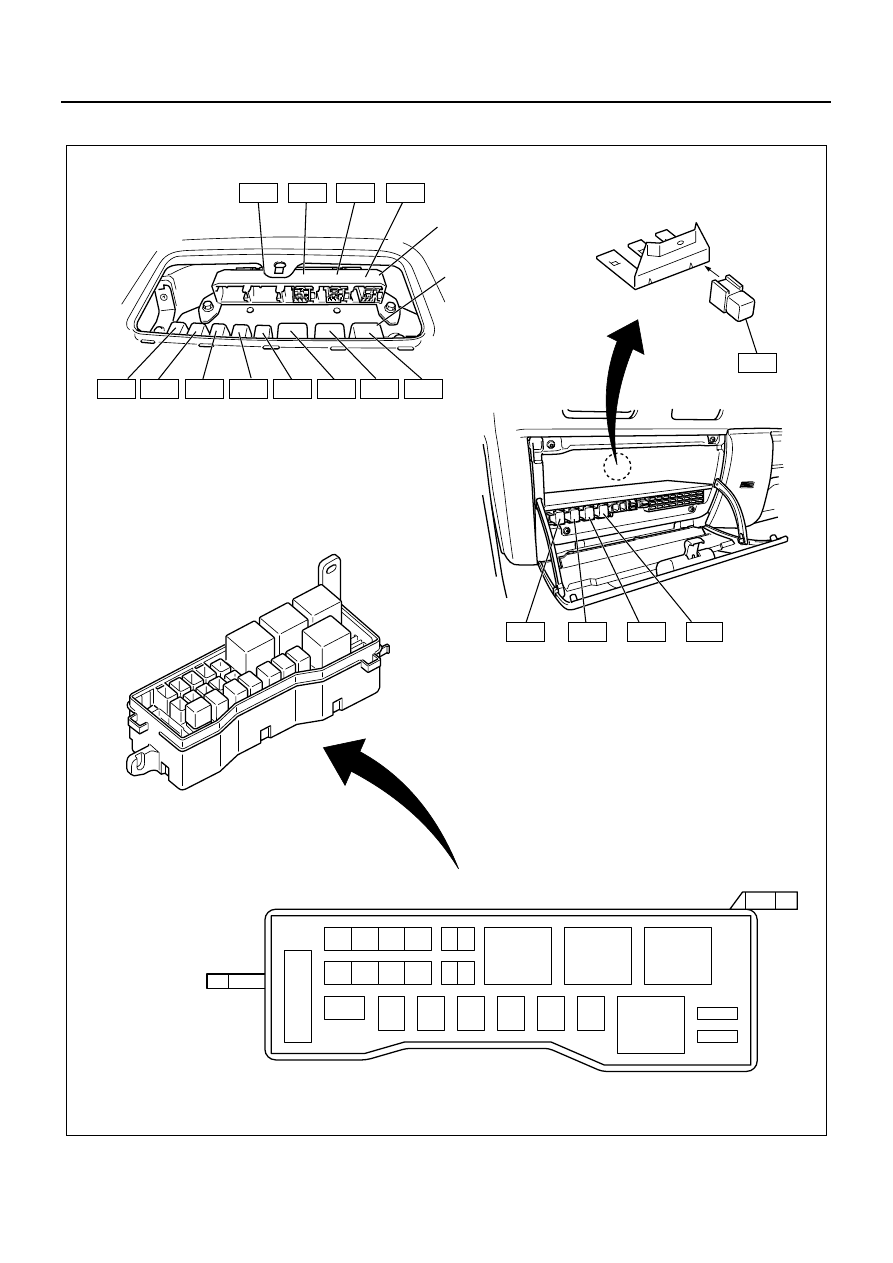

8-40 CAB AND CHASSIS ELECTRICAL
24 Volt 4HK1 Engine
F-27
10 A
RR FOG
Rear fog light switch, Rear fog light relay
F-28
—
—
—
Fuse No.
Capacity
Indication on label
Main parts (Load)
F-1
15 A
HEATER, AIR CON
Blower motor, Blower resistor, Fan switch, A/C switch, A/C
thermo relay, Pressure switch, VSV: FICD, Electronic thermo-
stat, A/C compressor, A/C thermo relay, Condenser fan, ECM
(A/C compressor SIG.)
F-2
10 A
FUEL HEATER
Exhaust brake magnetic valve, Clutch switch, Accel switch,
Fuel heater, VSV: Intake throttle, ABS (Exhaust brake SIG.),
Ceramic heater relay
F-3
15 A
REAR HEATER
Rear heater, Rear heater switch
F-4
15 A
AUDIO (B), DOOR
LOCK
Radio & clock, Dome light switch, Dome light, Door switch
(RH & LH), Door lock switch, Door lock actuator, Door lock
controller, Speedometer, Key cylinder switch, Key remind
buzzer, Side turn signal light(s)
F-5
10 A
STOP LIGHT
Stoplight switch, Stoplight, ABS (Stop on SIG.), ECM (brake
on SIG.)
F-6
20 A
POWER WINDOW
Power window
F-7
10 A
TAIL LIGHT
Tail relay, Illumination light(s), Clearance light(s), Tail light(s),
Roof marker light, License light(s), Marker light relay
F-8
10 A
FRT FOG LIGHT
Fog light switch, Fog light, Lighting switch, Cornering light
relay, Cornering light, Cornering light switch
F-9
10 A
ENG. (IG)
ECM (IG SIG.), Starter cut relay, ECM (Exhaust brake SIG.),
Exhaust brake indicator, ECM (brake off SIG.), ECM (clutch on
SIG.), ALDL connector
F-10
15 A
FRONT WIPER &
WASHER
Wiper & Washer switch, Wiper motor, Washer motor, Intermit-
tent relay
F-11
10 A
TURN LIGHT
Flasher unit, Front turn signal light, Rear turn signal light, Turn
signal light switch, Hazard warning switch, Side turn signal
light relay
F-12
10 A
H/LAMP LEVEL
Headlight leveling switch, Headlight leveling motor (actuator)
F-13
10 A
NEES (B)
Smoother
F-14
—
—
—
F-15
15 A
AUDIO (IG), CIGAR
LIGHTER
Radio, Cigar lighter, Digital clock
F-16
10 A
METER
CSD Relay, Key remind buzzer, Backup light switch, Backup
light, Neutral switch, Starter relay, QOS-II controller, Glow
relay, Glow indicator (Meter), Coolant temperature gauge,
Thermo unit, Vehicle speed sensor (Installed on the meter
assembly & Transmission), Meter assembly, Power window
relay, Cornering light relay, Backup buzzer, ABS indicator
relay, Charge relay, Heater A/C relay, VSV: 2WD (4WD), VSV:
4WD (4WD), 4WD relay
F-17
10 A
NEES (IG)
Smoother (IGN SIG.)
HSA
HSA
F-18
10 A
SRS
SRS
Fuse No.
Capacity
Indication on label
Main parts (Load)
