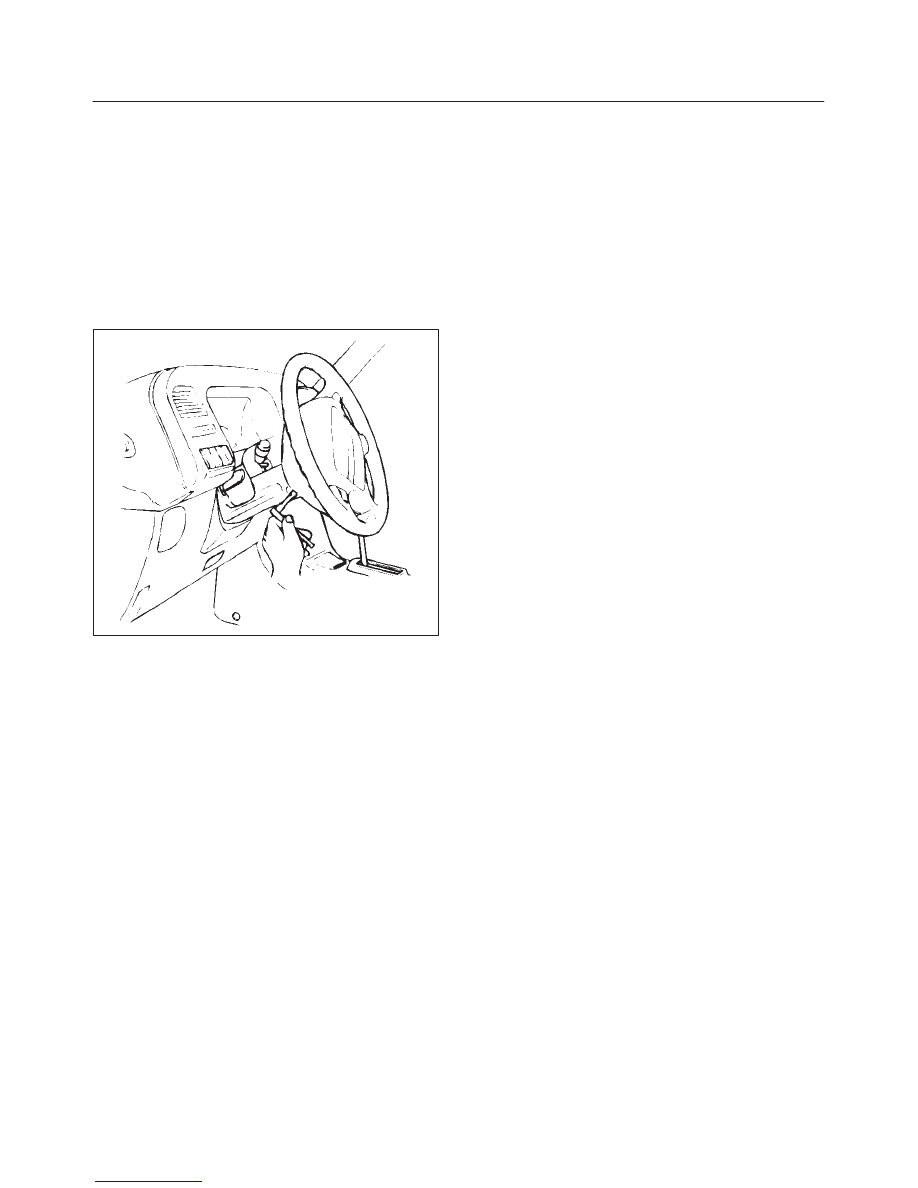

Isuzu Trooper (2000 year). Manual - part 524

SUPPLEMENTAL RESTRAINT SYSTEM

9J–33

5. Install air bag into steering wheel and tighten bolts to

specified sequence as show in figure.

Torque: 8 N·m (69 lb in)

CAUTION: Never use the air bag assembly from
another vehicle and difference model year air bag
assembly.
The air bag assembly has identification colors on the
bar code label from ’00 model as follows.
Yellow color for driver air bag assembly.
White color for passenger air bag assembly.
Use only new air bag assembly proper to the Trooper
which is being repaired.

827RT008

6. Enable the SRS (Refer to “Enabling the SRS” in this

section).

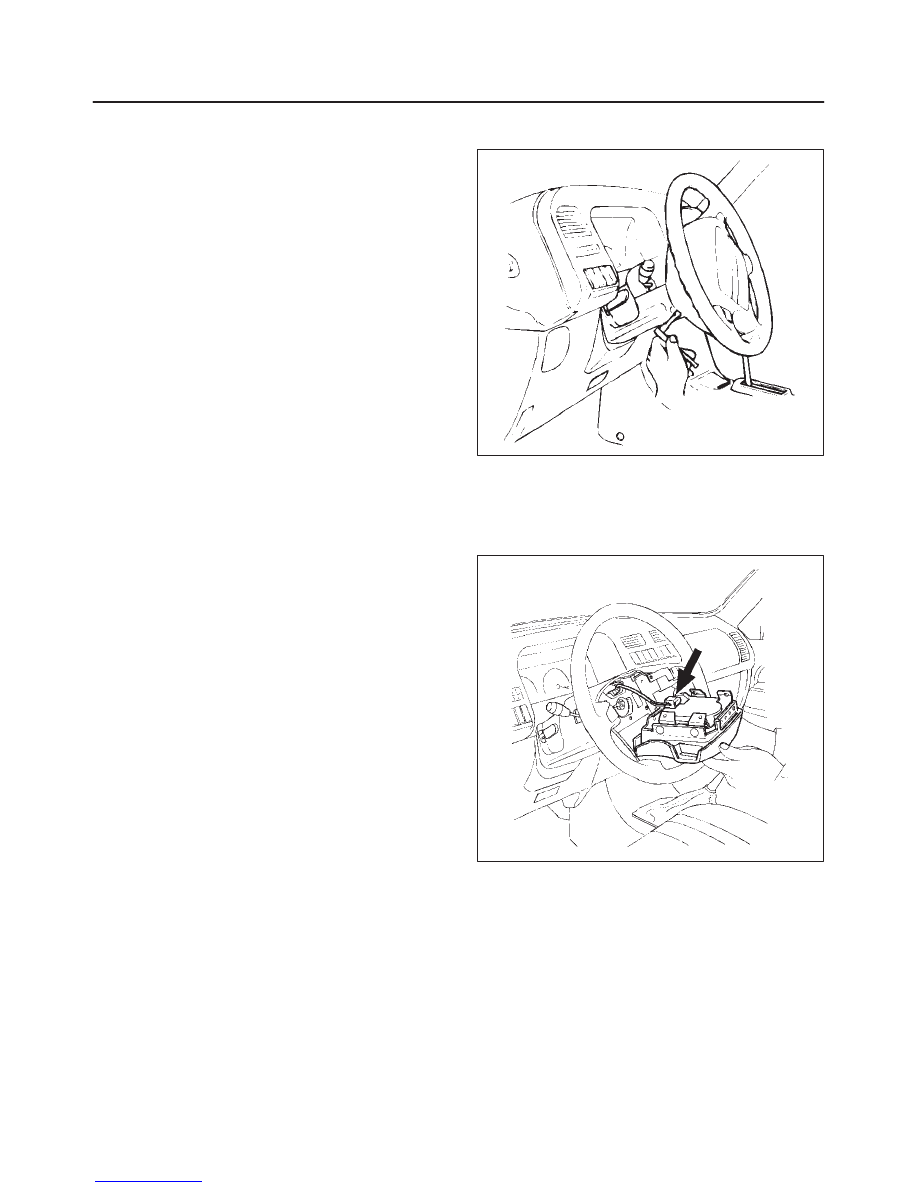

SUPPLEMENTAL RESTRAINT SYSTEM

9J–34

SRS Coil Assembly

Service Precautions

WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY–PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING ALIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND RIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE: In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the SRS (Refer to “Disabling the SRS” in this

section).

2. Loosen the air bag assembly fixing bolts from behind

the steering wheel assembly using a TORX



 driver or

equivalent until the air bag assembly can be released
from steering wheel.

827RT008

3. Disconnect the yellow 2–pin connector located

behind the air bag assembly and remove air bag
assembly.Refer to “SRS Connectors” in this section
for removal and installation.

4. Disconnect horn lead connector.

827RT009

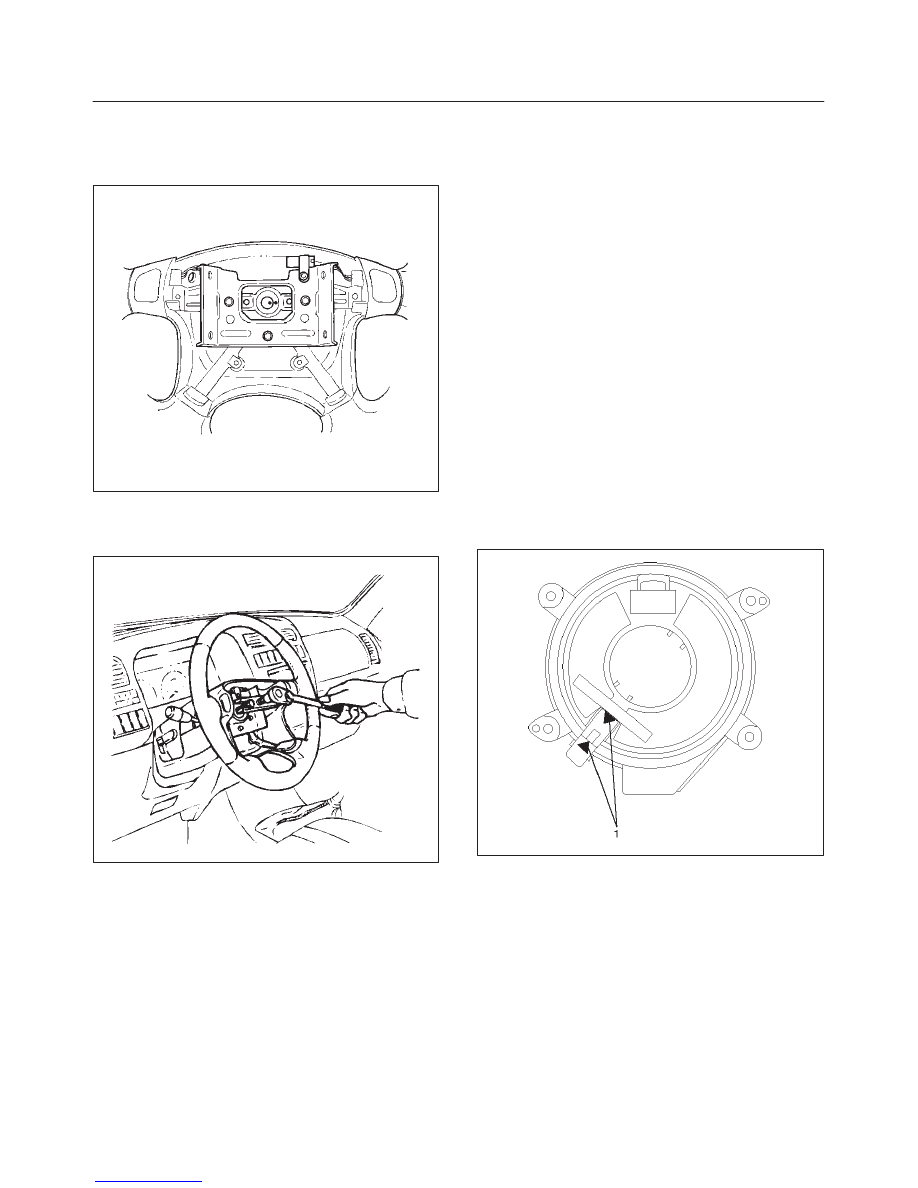

SUPPLEMENTAL RESTRAINT SYSTEM

9J–35

5. Remove the steering wheel attachment nut.
6. Apply a setting mark across the steering wheel and

shaft so parts can be  reassembled in their original
position.

430RS004

7. Move the tires to the straight ahead position before

removing the steering wheel and remove wheel with
J–29752.

430RT009

8. Feed wiring though the wheel and remove wheel.
9. Remove the steering lower cover and engine hood

opening lever.

10. Remove the driver knee bolster assembly.

11. Remove the steering column cover.

12. Remove air conditioning lower duct.
13. Disconnect the 2–pin wiring harness connectors

located at the base of steering column.

CAUTION: Never apply force to the steering wheel
in the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.

14. Remove the combination switch assembly  with SRS

coil.

NOTE: SRS coil is a part of combination switch
assembly, which cannot be replaced separately.
Therefore, be sure not to remove the SRS coil from the
combination switch assembly.

Installation

1. Install  the combination switch assembly with SRS

coil.

2. Turn the SRS coil counterclockwise to full, return

about 3 turns and align the neutral mark (1).

CAUTION: When turning the SRS coil
counterclockwise to full, stop turning if resistance is
felt.  Forced further turning may damage the cable in
the SRS coil.

826RW014

3. Connect the wiring harness connectors located at the

base of steering column.

4. Install the air conditioning lower duct.
5. Install the steering column cover.

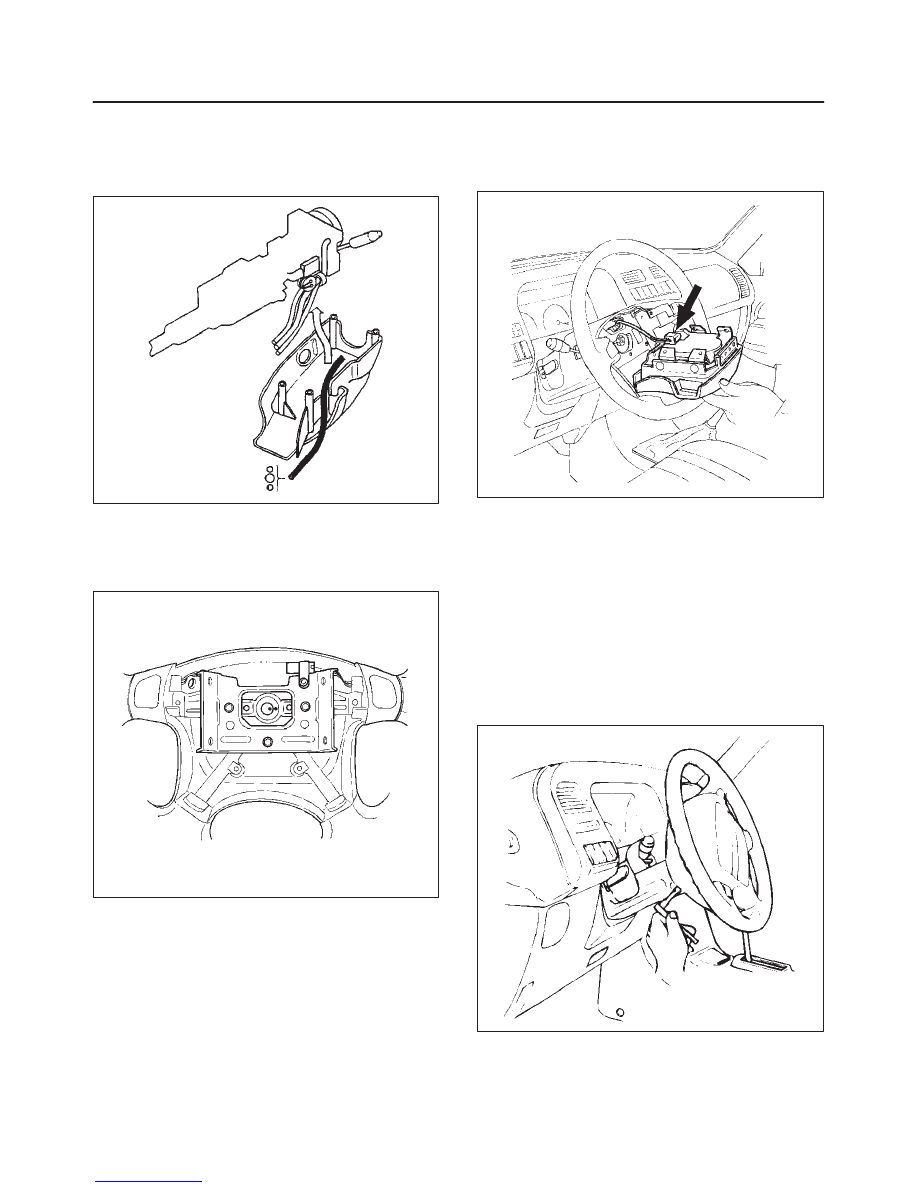

SUPPLEMENTAL RESTRAINT SYSTEM

9J–36

CAUTION: When installing the steering column
cover, be sure to wire (through each harness) as
illustrated so that the harness starter switch,
combination switch and SRS coil may not catch
wiring.

825RS048

6. Install the driver knee bolster assembly.
7. Install the steering lower cover and engine hood

opening lever.

8. Install the steering wheel and align the setting marks.

430RS004

9. Tighten the steering  wheel fixing nut to the specified

torque.

Torque: 34 N·m (25 lb·ft)

10. Connect horn lead.

11. Connect air bag to wiring harness connector.

NOTE: Pass the lead wire through the tabs on the plastic
cover (wire protector) of air to prevent lead wire from
being pinches.

827RT009

12. Install air bag into steering wheel and tighten bolts to

specified sequence as shown in figure.

Torque: 8 N·m (69 lb in)

CAUTION: Never use the air bag assembly from
another vehicle and difference model year air bag
assembly.
The air bag assembly has identification colors on the
bar code label from ’00 model as follows.
Yellow color for driver air bag assembly.
White color for passenger air bag assembly.
Use only new air bag assembly proper to the Trooper
which is being repaired.

827RT0008

13. Enable the SRS (Refer to “Enabling the SRS” in this

section).
