8J–16

EXTERIOR/INTERIOR TRIM

687RS002

6. Remove the luggage room light.

D

Remove the luggage room light lens and the fixing
screws.

D

Disconnect the luggage room light connector.

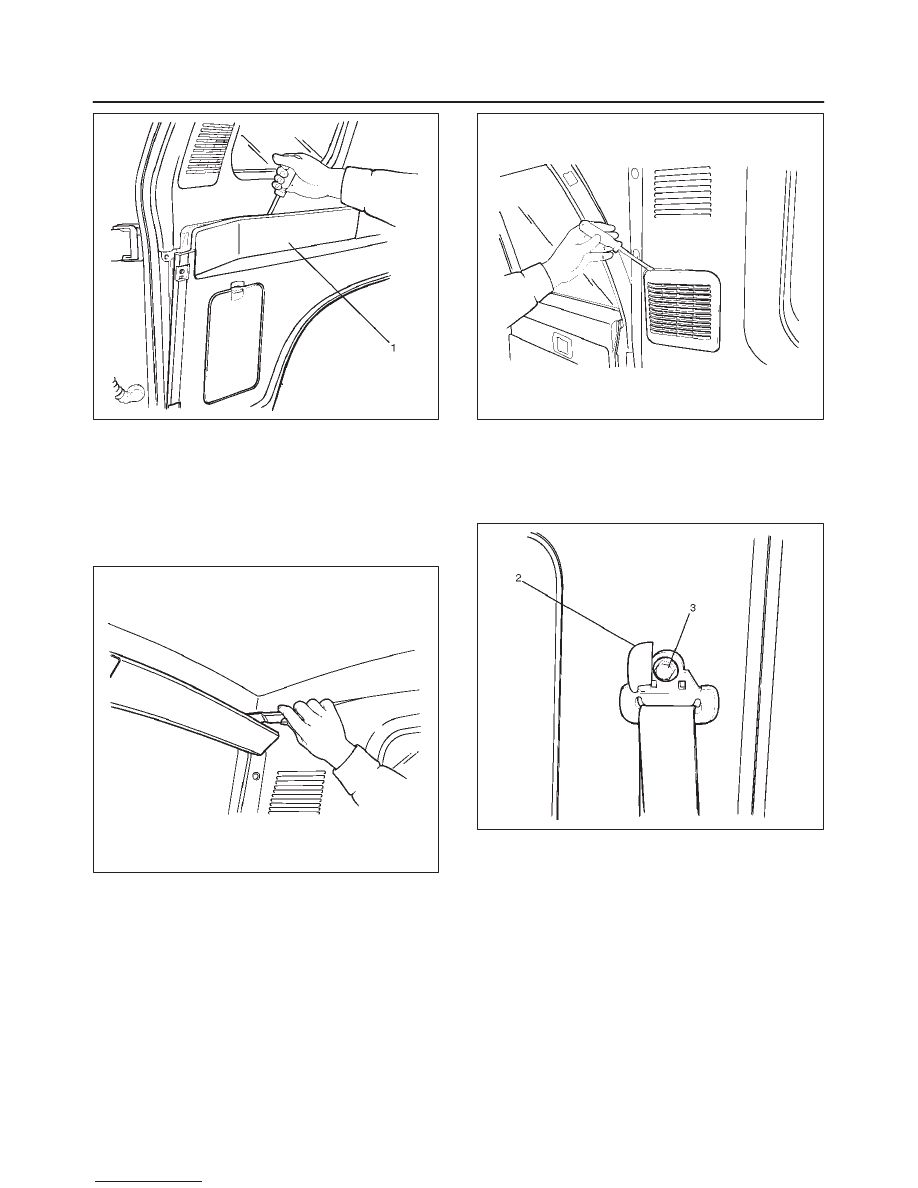

7. Remove the rear roof trim cover.

D

Pry the trim cover retainers free from the body
panel.

666RS001

8. Remove the speaker grille.

687RS003

9. Remove the rear speaker.

D

Remove the rear speaker fixing screws and
disconnect the connector.

10. Remove the rear seat belt anchor bolt cover (2) and

the anchor bolt (3).

760RW005

11. Remove the quarter upper trim cover.

D

Remove the rear side clips of the trim cover and pry
the quarter upper trim cover retainers free from the
body panel.

EXTERIOR/INTERIOR TRIM

8J–17

687RS004

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat belt anchor bolt to the specified

torque.

Torque: 39 N·m (29 lb ft)

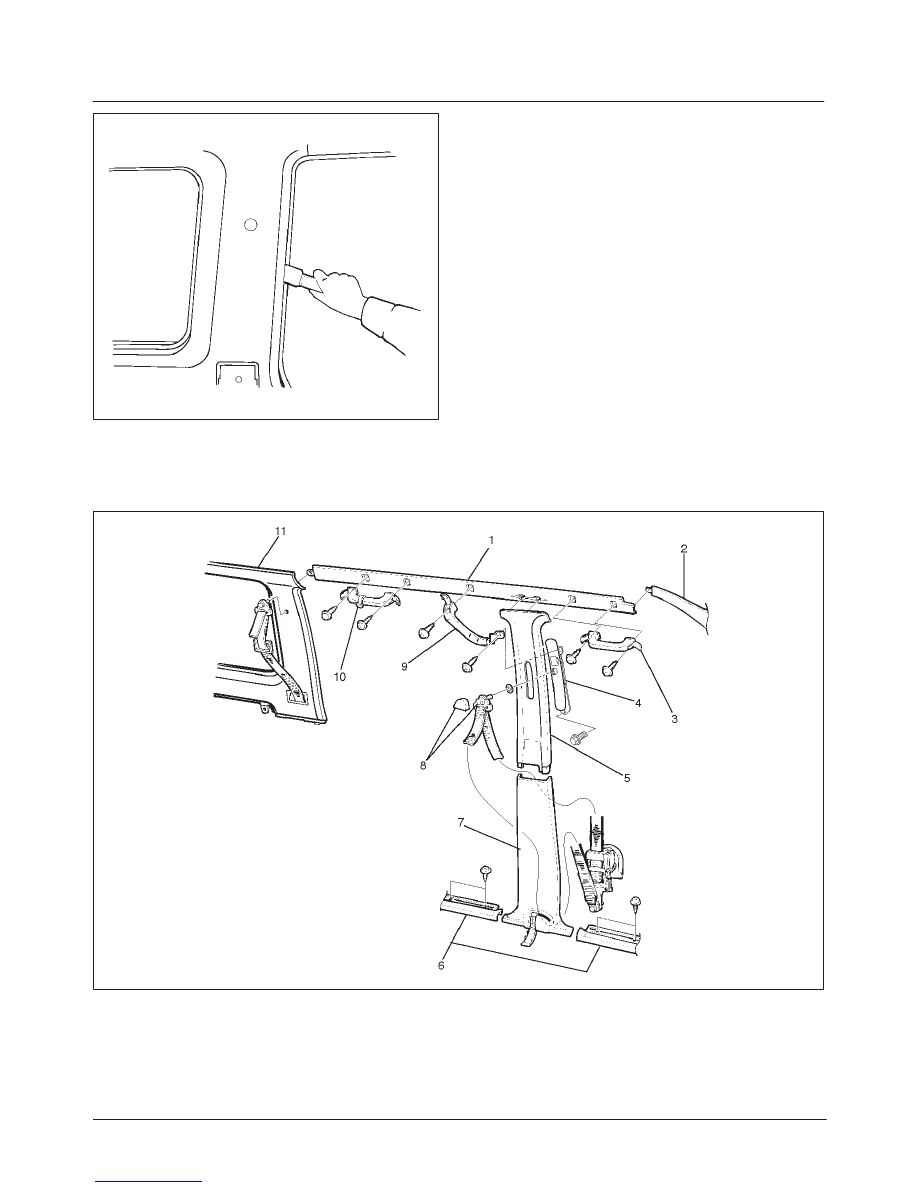

Center Pillar and Roof Side Trim Cover

Center Pillar, Roof Side Trim Cover and Associated Parts

643RW003

Legend

(1) Roof Side Trim Cover
(2) Front Pillar Trim Cover
(3) Assist Grip (RH only)
(4) Adjust Shoulder Anchor Assembly
(5) Center Pillar Upper Trim Plate

(6) Door Sill Plate (Front and Rear)
(7) Center Pillar Lower Trim Cover
(8) Front Seat Anchor Bolt Cover and Anchor Bolt
(9) Center Pillar Assist Grip

(10) Assist Grip

(11) Rear Quarter Upper Trim Cover

8J–18

EXTERIOR/INTERIOR TRIM

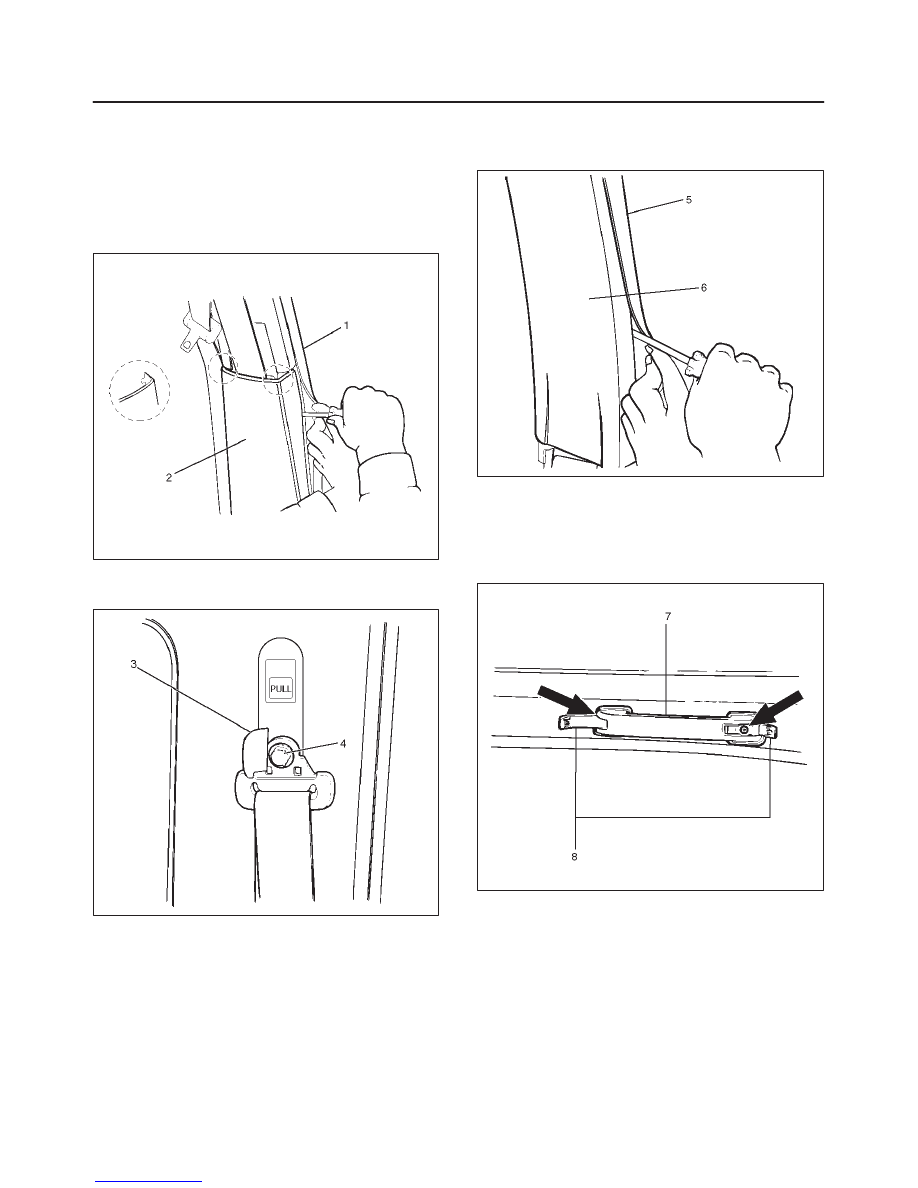

Removal

1. Disconnect the battery ground cable.
2. Remove the door sill plate (front and rear).
3. Remove the center pillar lower trim cover (2).

D

Turn up the finisher (1) and pry the trim cover
retainers free from the body panel, then slide the
trim cover downward.

643RS003

4. Remove the front seat belt anchor bolt cover (3) and

the anchor bolt (4).

760RW006

5. Remove the center pillar upper trim cover (6).

D

Turn up the finisher (5) and pry the trim cover
retainers free from the body panel.

643RS004

6. Remove the center pillar assist grip.
7. Remove the seat belt anchor plate.
8. Remove the assist grip (7).

D

Open the both side of the assist grip cover (8) and
remove two fixing screws.

743RW004

EXTERIOR/INTERIOR TRIM

8J–19

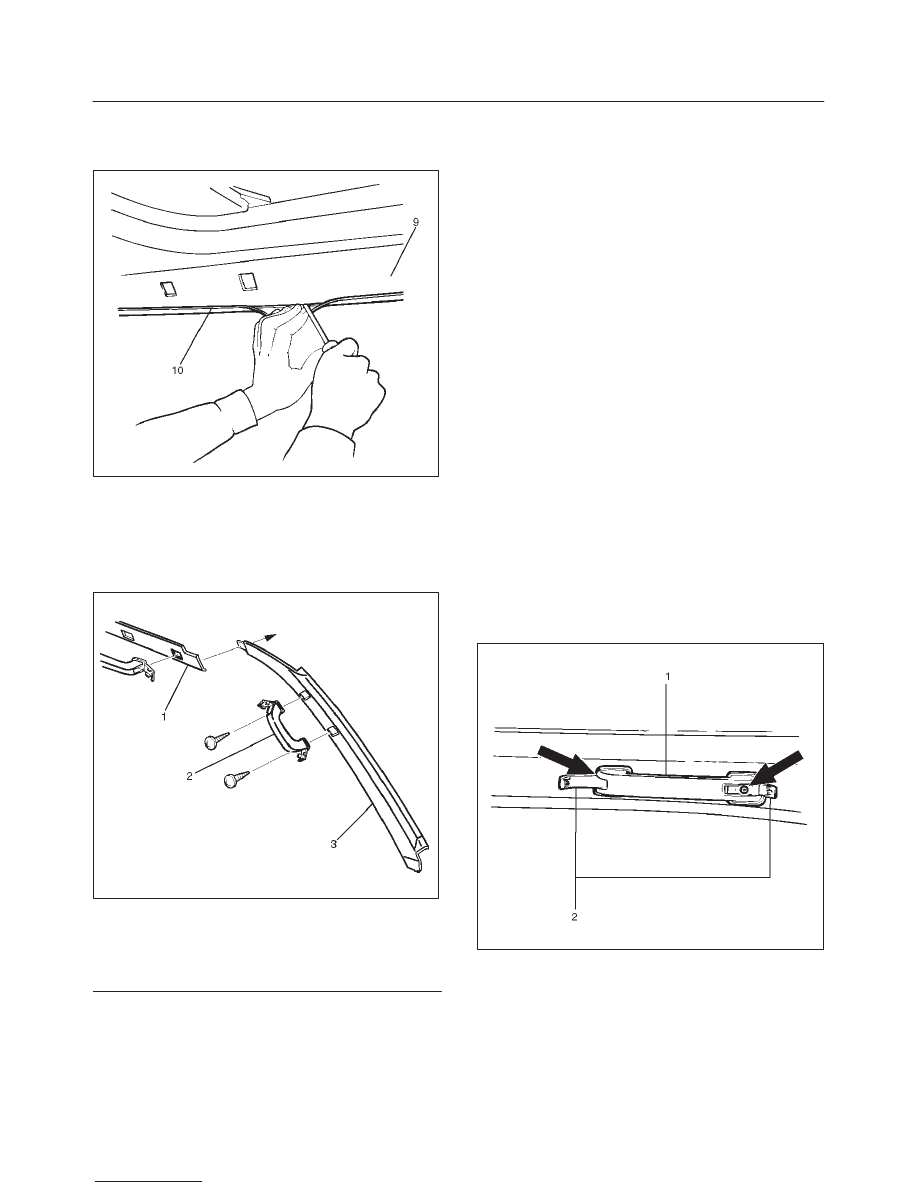

9. Remove the roof side trim cover (9).

D

Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.

643RS005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Install the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (29 lb ft)

Front Pillar Trim Cover

Front Pillar Trim Cover and
Associated Parts

743RS003

Legend

(1) Roof Side Trim Panel
(2) Assist Grip (RH only)
(3) Front Pillar Trim Panel

Removal

1. Remove the front pillar assist grip(1).

D

Open the both sides of the assist grip cover (2) and
remove the fixing screws and the front pillar assist
grip.

743RW003
