8H–16 SECURITY AND LOCKS

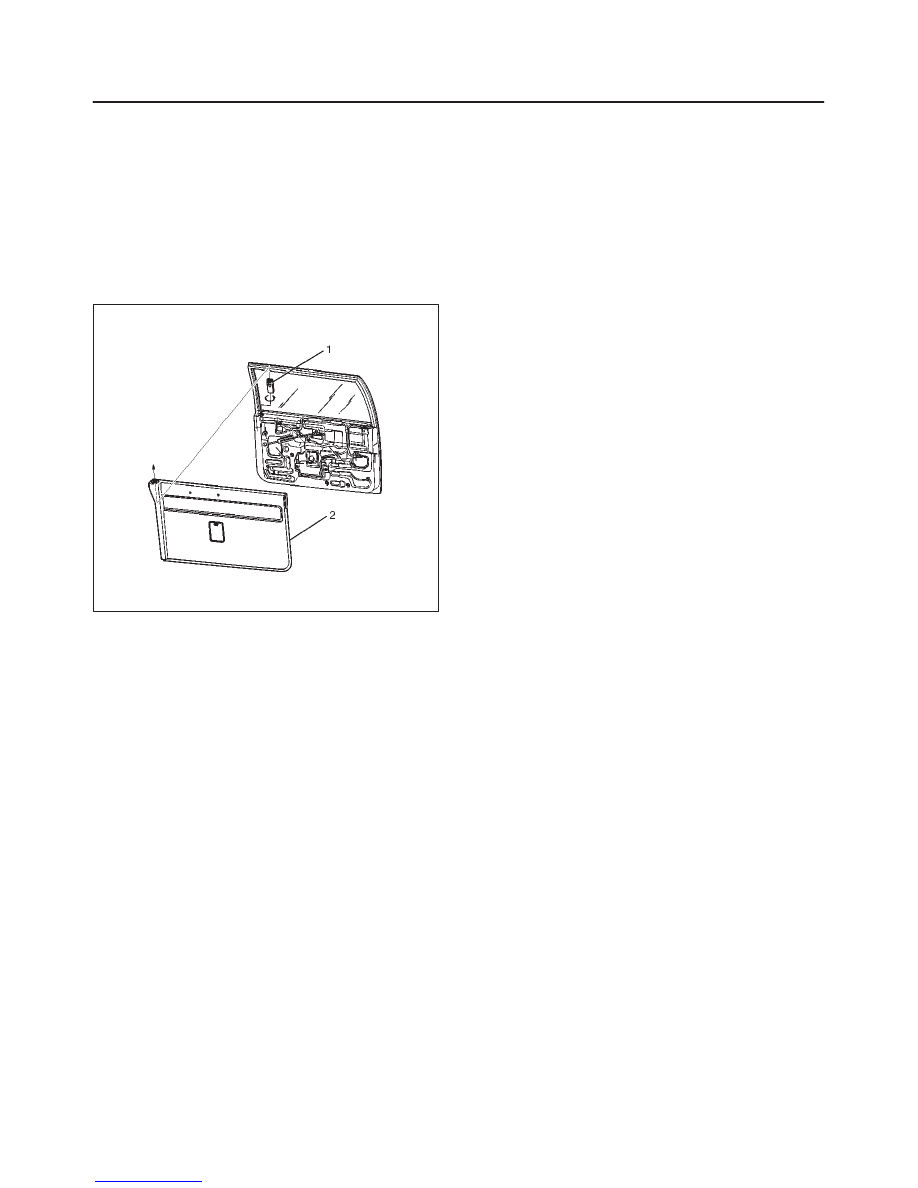

Tailgate Inside Lock Knob

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (LH)(2).

D

Refer to the Tailgate Trim Panel (LH) in
Exterior/Interior Trim section.

3. Take care of cushion to turn the lock knob

counterclockwise and then remove the tailgate inside
lock knob(1).

683RW007

Installation

To install, follow the removal steps in the reverse order.

SECURITY AND LOCKS

8H–17

Tailgate Outside Handle and/or Tailgate Lock Cylinder

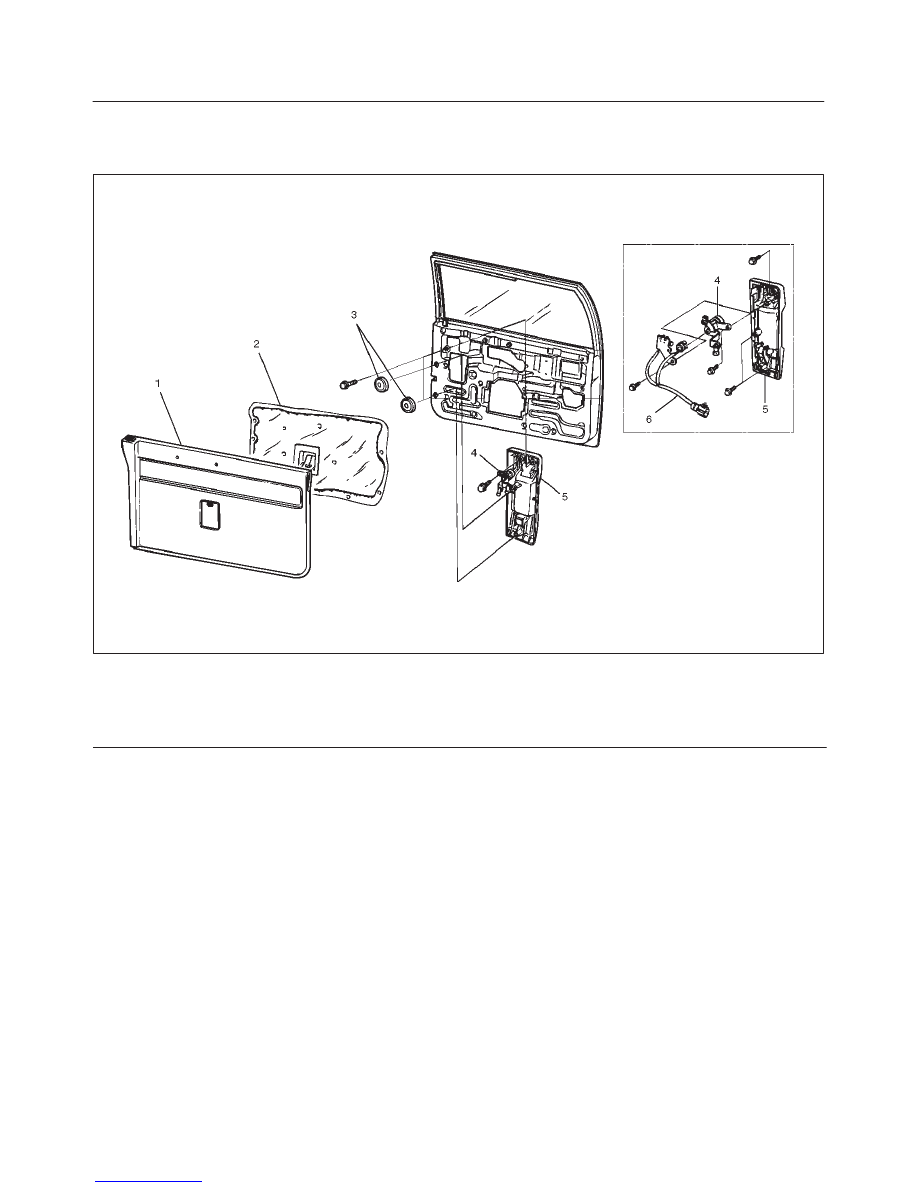

Tailgate Outside Handle and/or Tailgate Lock Cylinder and Associated Parts

684RW003

Legend

(1) Tailgate Trim Panel (LH)
(2) Waterproof Sheet
(3) Grommet

(4) Tailgate Lock Cylinder
(5) Tailgate Outside Handle
(6) Key Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel.
3. Remove the waterproof sheet.

D

Refer to the Tailgate Lock Assembly (LH) in this
section.

4. Remove the grommet.

8H–18 SECURITY AND LOCKS

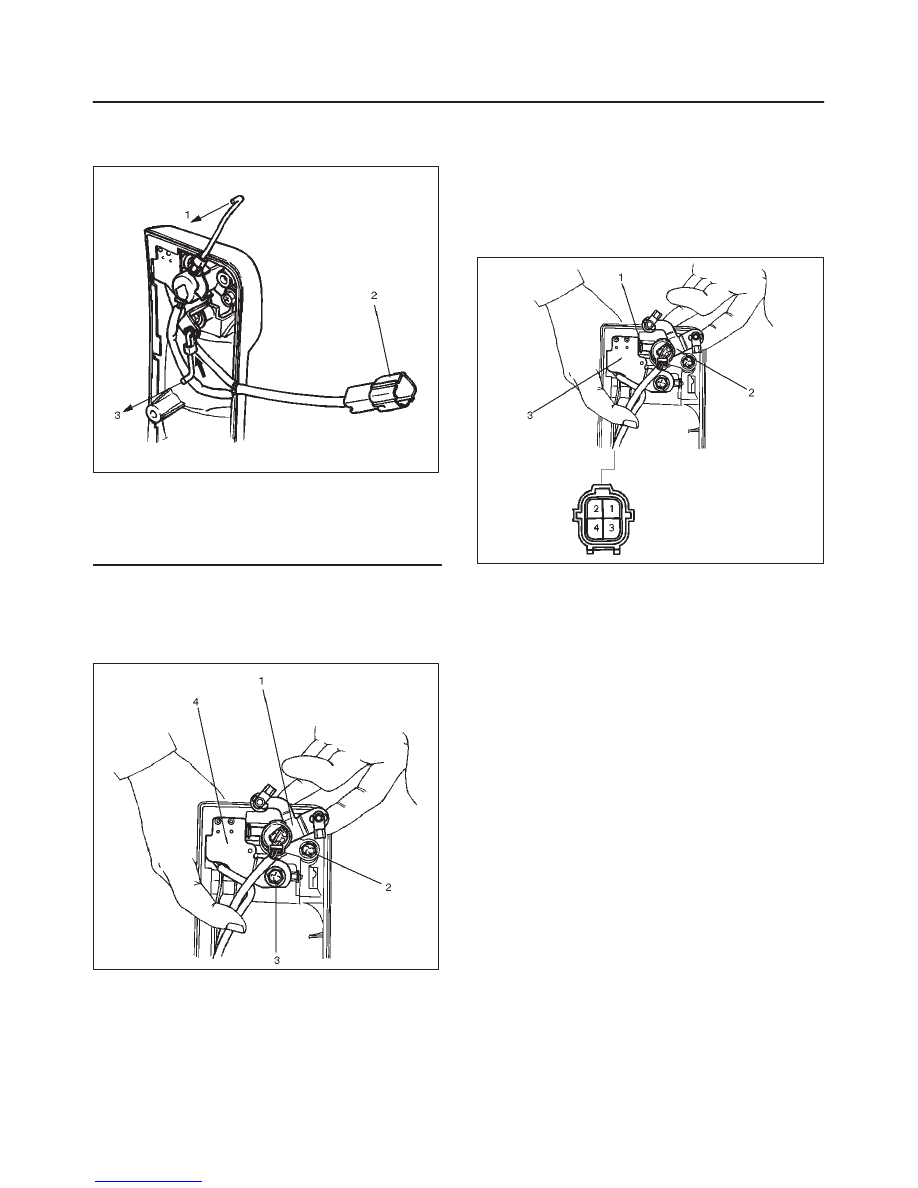

5. Disconnect the locking links (arrow marks positions),

key switch connector (w/anti-theft) and remove three
fixing bolts to remove the tailgate outside handle.

683RS007

Legend

(1) To Actuator
(2) Key Switch Connector
(3) To Lock Assembly

6. Remove the key switch fixing bolt(3) to remove the

key switch(4) from the tailgate lock cylinder
(w/anti-theft)(1).
And remove the tailgate lock cylinder fixing bolt(2) to
remove the tailgate lock cylinder.

683RS008

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. For the anti-theft system, install the push rod(1) of the

key switch(3) to the key cylinder(2) while pressing it
so that there is not continuity between the key switch
side connector terminals No. G5–2 and G5–4 as
shown in the figure.

683RS009

2. Tighten the outside handle and key cylinder fixing

bolts to the specified torque.

Torque: 9 N·m (78 lb in)

3. Check that the outside handle and key cylinder

operate correctly after installing them.

SECURITY AND LOCKS

8H–19

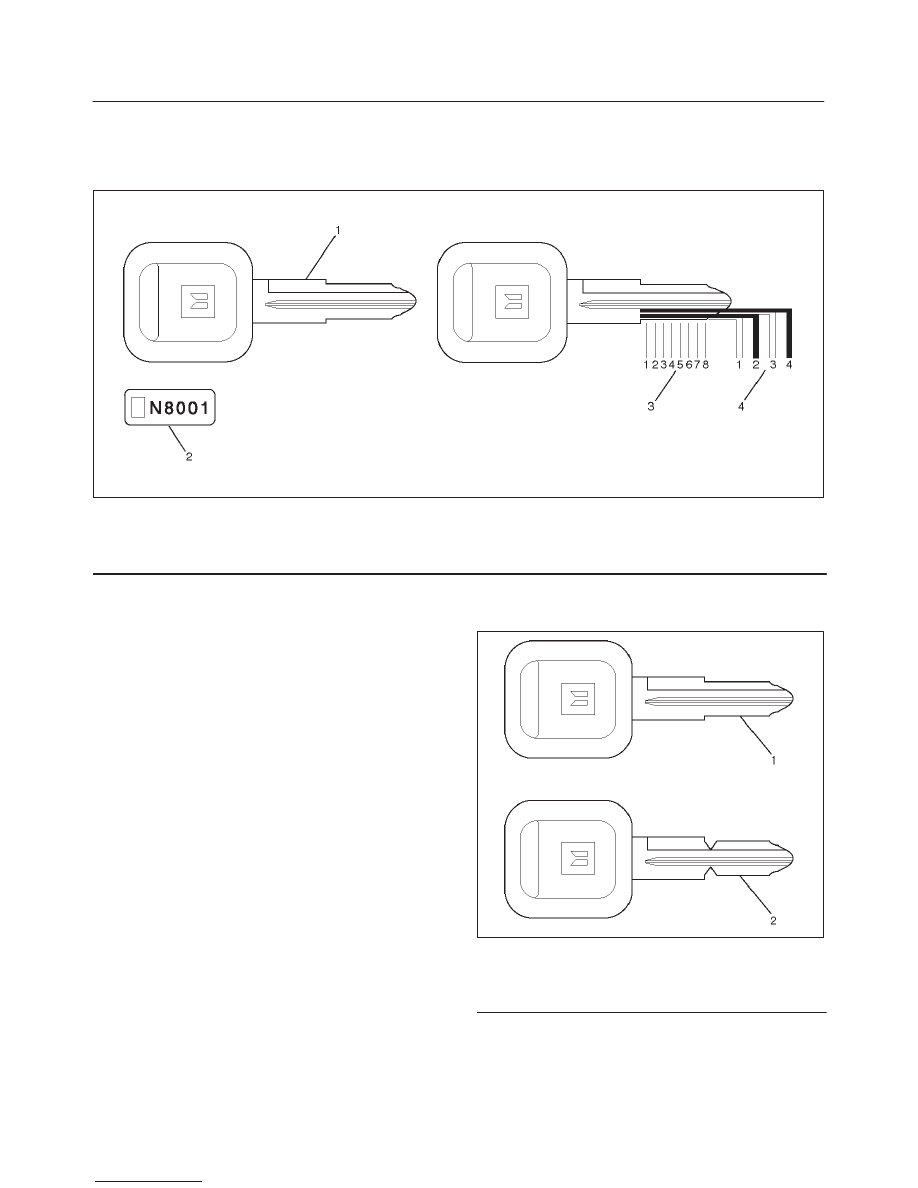

Key

Key Coding

730RW001

Legend

(1) Key(Actual Size)
(2) Key Code Tag

(3) Position
(4) Level

One key is used for the ignition, door, and tailgate lock
cylinders. The keys are cut on both edges to make them
reversible.
Key identification is obtained from the five character key
code stamped on the key code tag.  From this key code,
the key code cutting combination can be determined from
a code list (available to owners of key cutting equipment
from suppliers).
If key codes are not available from records or tags, the
key code can be obtained from the right hand door lock
cylinder (if lock has not been replaced).  Lock cylinders
supplied by the factory as service parts are unmarked.
If the original key is available, the key code cutting
combination can be determined by laying the key on the
diagram shown in the figure.

Key Styles

730RY00001

Legend

(1) Blank Key Style “A”
(2) Blank Key Style “B”

The keys come in styles A or B depending on the key code
cutting combination.  When the first position in the
combination is a 1, 2 or 3, Style A is used.  When the first
position is a 4, Style B (factory pre-cut key) is used.
