8F–7

BODY STRUCTURE

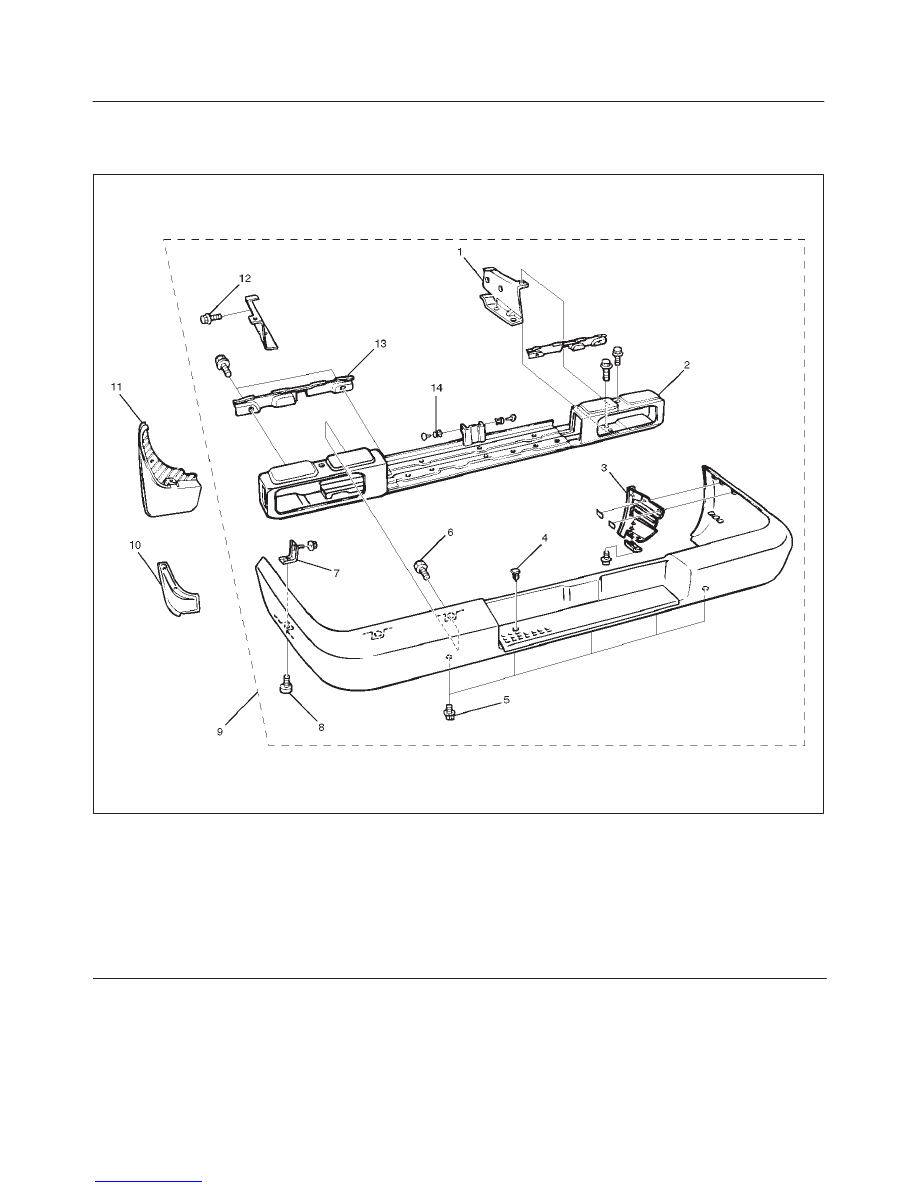

Rear Bumper

Parts Location

690RW001

Legend

(1) Back Bars
(2) Reinforce Assembly
(3) Rear Bumper Slider Brackets
(4) Rear Step Clips
(5) Reinforce Lower Bolts
(6) Reinforce Upper Bolts
(7) Rear Bumper Fascia Brackets

(8) Rear Bumper Fascia Bracket Screws
(9) Rear Bumper Assembly

(10) Rear Bumper Side Covers

(11) Mud Flaps

(12) Rear Bumper Assembly Fixing Bolts
(13) Rear Bumper Retainers
(14) Clips

Removal

1. Remove rear bumper side covers.

2. Remove mud flaps.

D

Remove three screws.

3. Remove bumper fascia bracket screws.

8F–8

BODY STRUCTURE

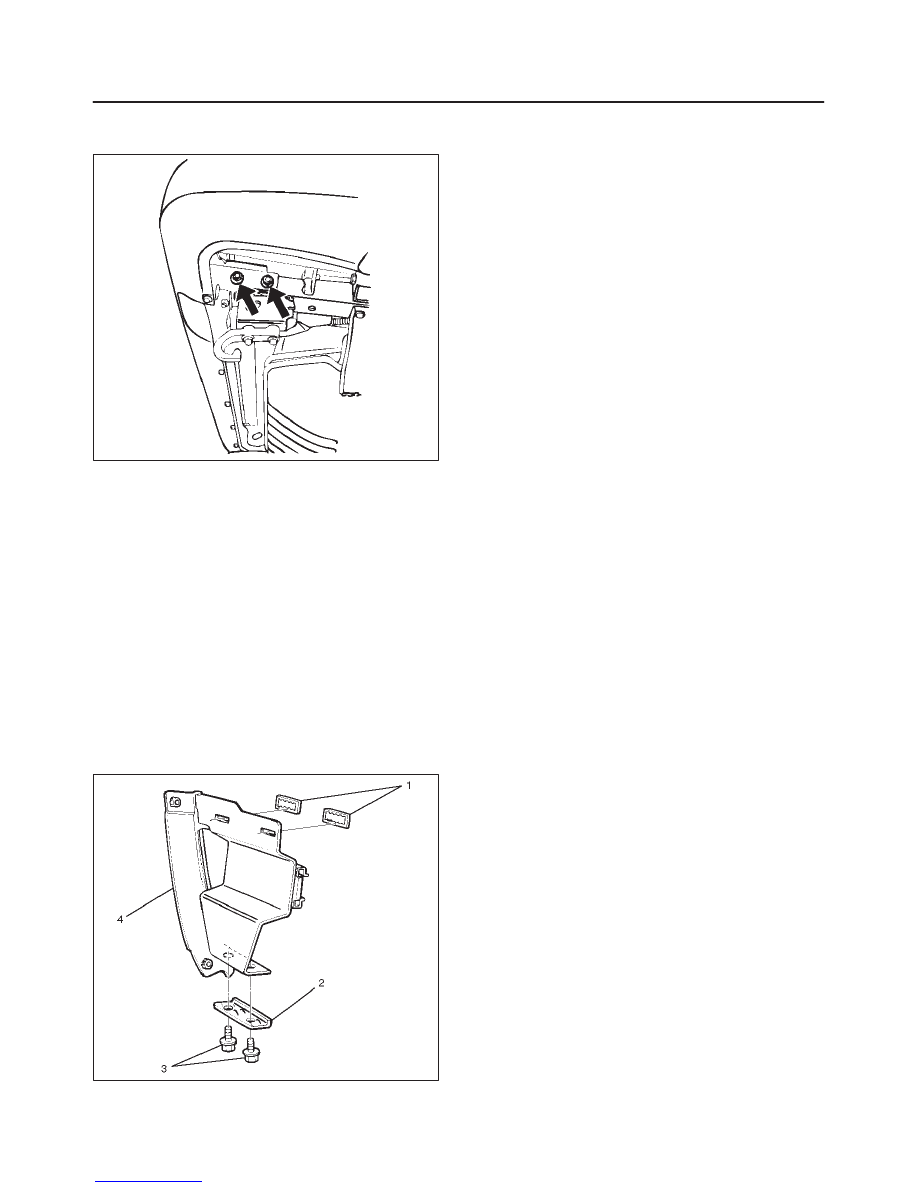

4. Remove rear bumper assembly fixing bolts.

D

Remove two bolts from each side.

690RW002

5. Remove rear bumper assembly.
6. Remove rear bumper retainers.
7. Remove reinforce upper bolts.

D

Remove the rear bumper retainer from each side,
and then remove two upper bolts.

8. Remove reinforce lower screws.
9. Remove clips.

10. Remove rear step clips.

11. Remove reinforce assembly.

D

Pull out both ends of the bumper fascia and take out
the reinforce assembly.

12. Remove backbars.

D

Remove the three bolts from each backbar.

13. Remove rear bumper slider brackets(4).

D

Remove the two clips(1) and two screws(3), and
then remove claw caught in the washer(2).

690RS003

14. Remove bumper fascia brackets.

D

Remove the fixing nut on the back side of the fender
panel.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the front bumper assembly fixing bolts to the

specified torque.

Torque: 132 N

•

m (98 lb ft)

2. Apply chassis grease to the slider and the slider

bracket moving surface.

8F–9

BODY STRUCTURE

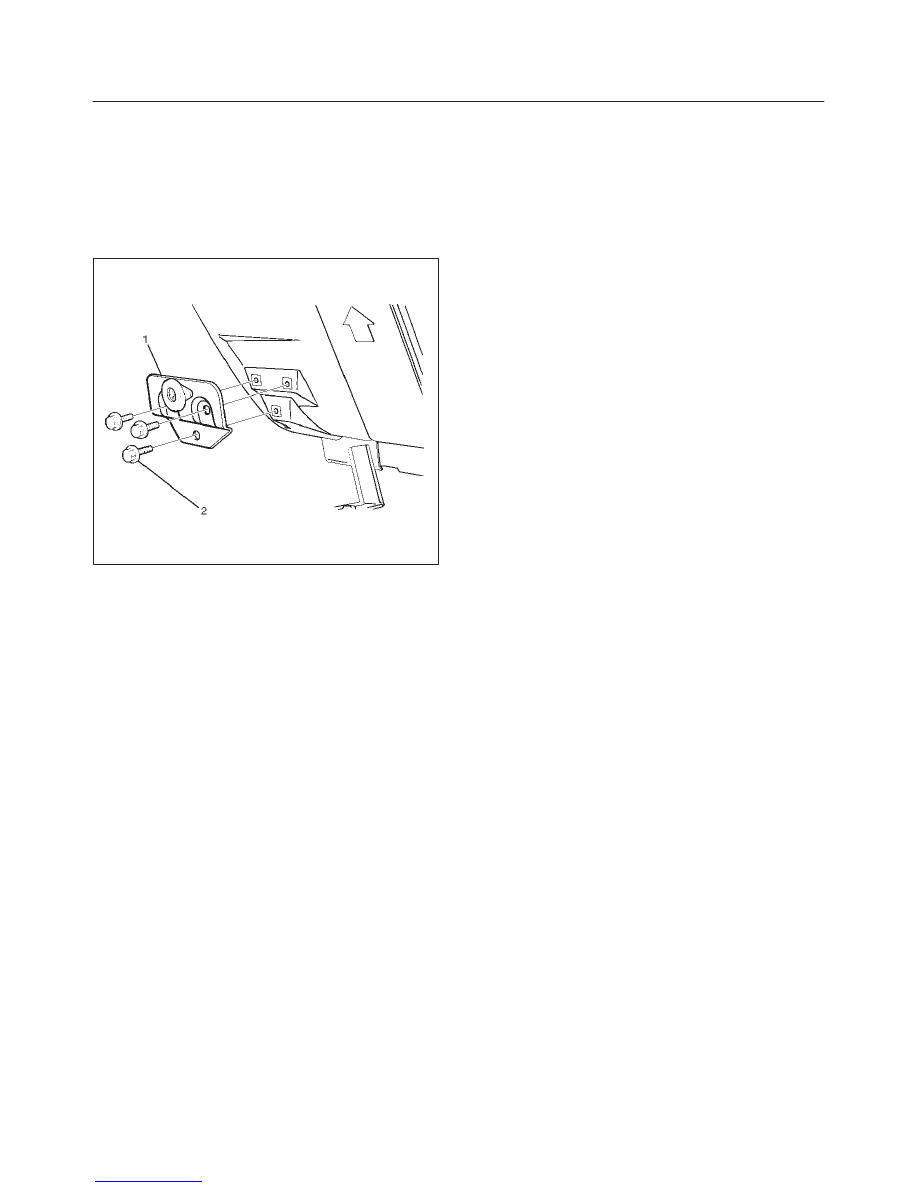

Rear Bumper Slider

Removal

1. Remove the rear bumper.

D

Refer to Rear Bumper in this section.

2. Remove the three bolts (2).
3. Remove rear bumper slider (1).

690RS004

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Apply chassis grease to the slider and the slider

bracket moving surface.

8F–10

BODY STRUCTURE

General Description

This section includes items of front end sheet metal that
are attached by bolts, screws or clips and related
accessory components.

Anti-corrosion materials have been applied to the interior
surfaces of some metal panels to provide rust resistance.
When servicing these panels, areas on which this
material has been disturbed should be properly recoated
with service-type anti-corrosion material.

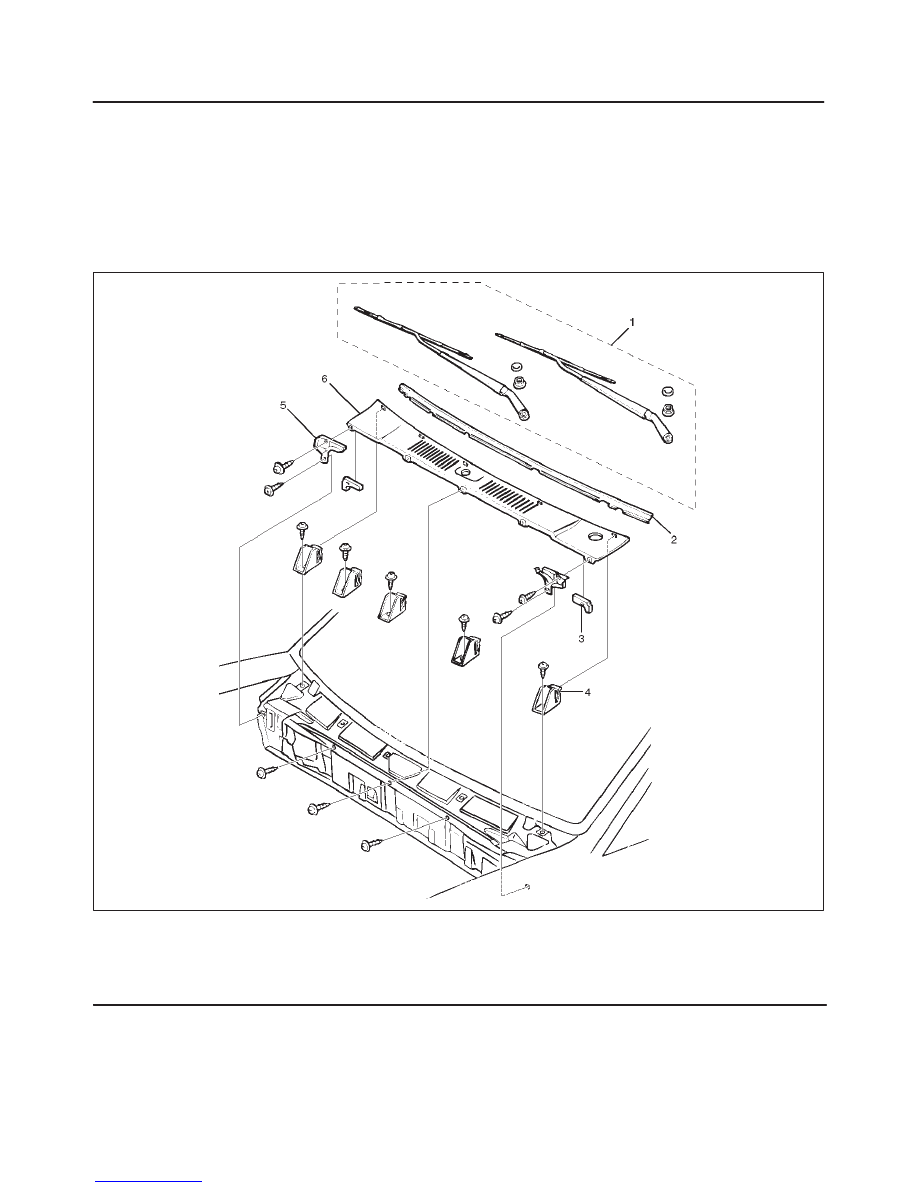

Cowl Cover

Parts Location

605RW003

Legend

(1) Front Wiper Arms
(2) Front Window Lower Molding
(3) Cowl Cover Seals

(4) Cowl Cover Stoppers
(5) Cowl Cover Brackets
(6) Cowl Cover

Removal

1. Open the hood.
2. Support the hood.

3. Remove front wiper arms.

D

Refer to Windshield Wiper Arm/Blade in
Wiper/Washer System section.

4. Remove front window lower molding.
