8E–4

METER AND GAUGE

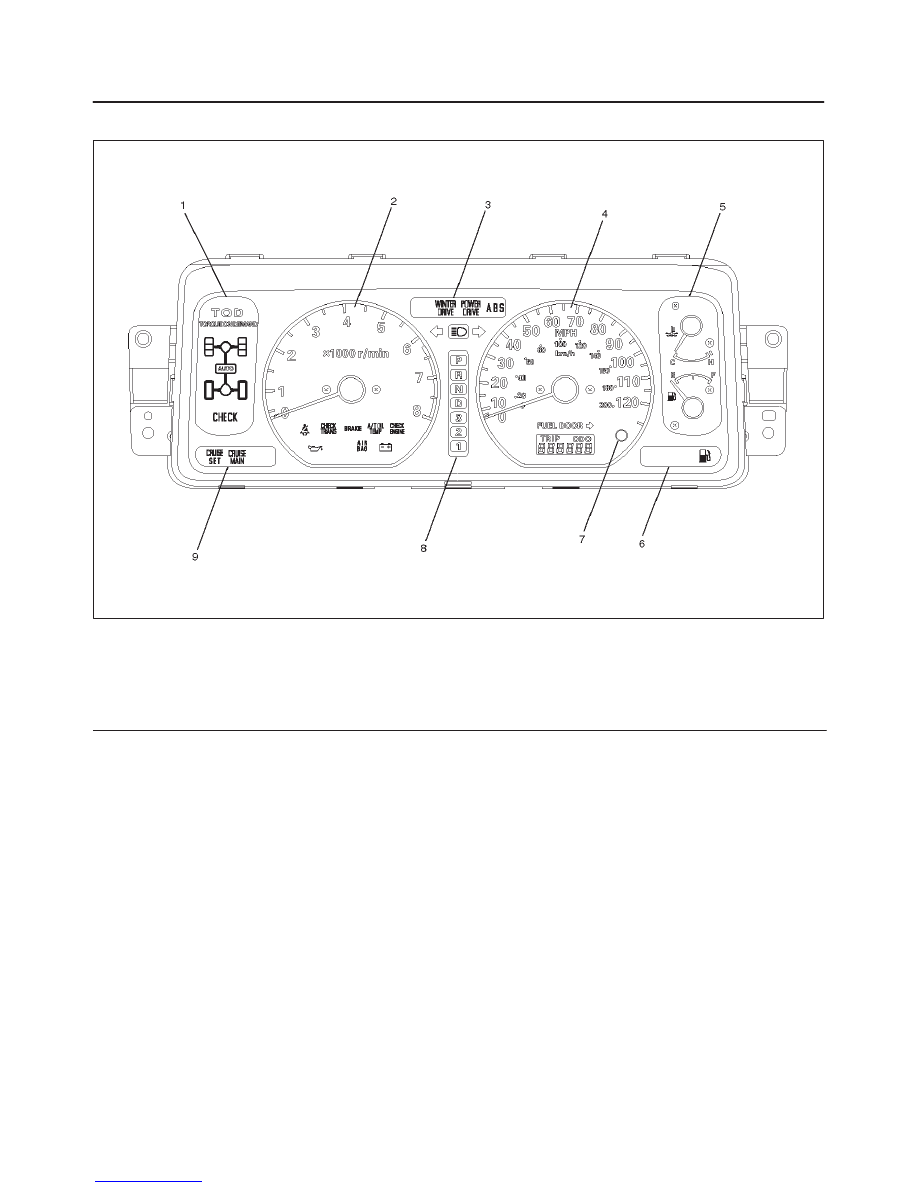

Meter Assembly W/TOD (Front View)

825RW034

Legend

(1) TOD Indicator
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Coolant Temperature Gauge & Fuel Gauge
(6) Warning Light Lens
(7) Reset Knob
(8) A/T Shift Indicator
(9) Warning Light Lens

METER AND GAUGE

8E–5

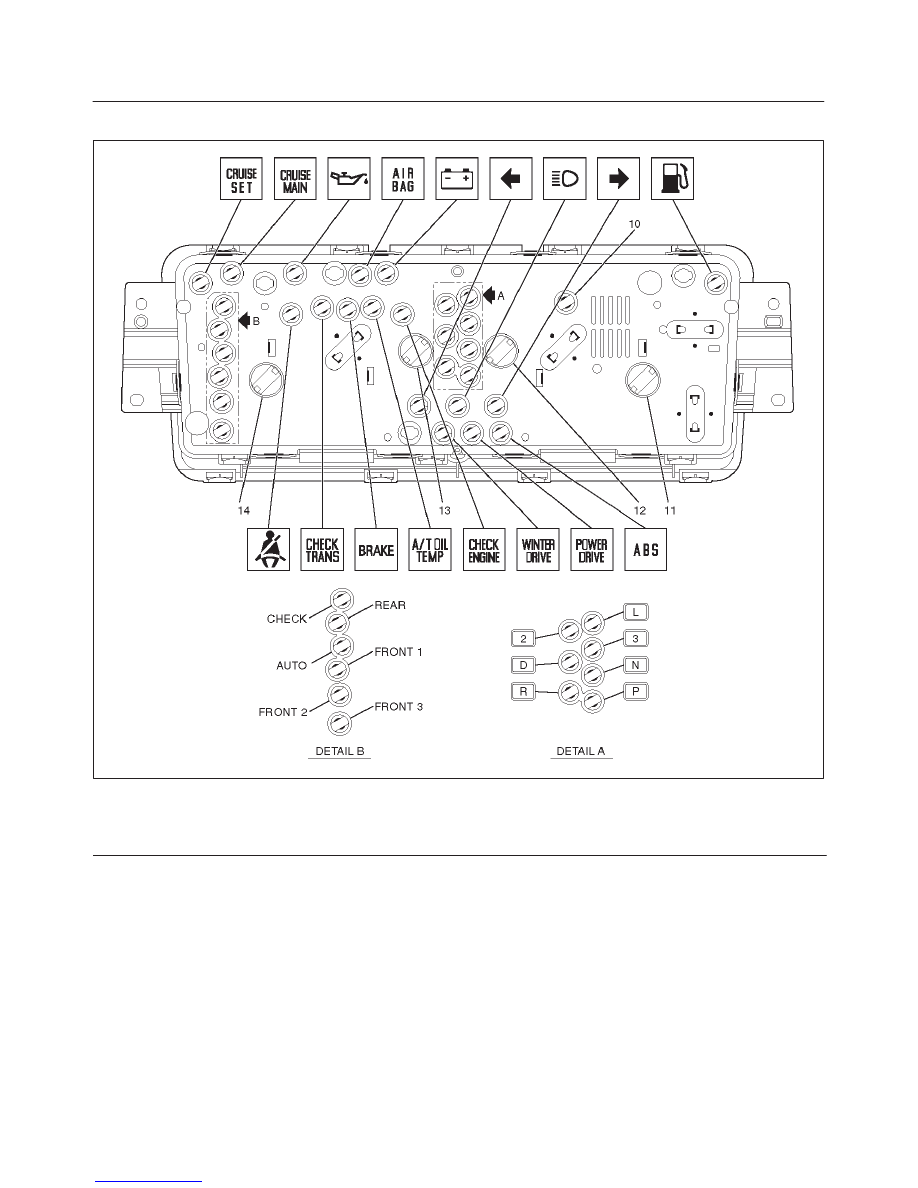

Meter Assembly W/TOD (Rear View)

825RW036

Legend

(10) LCD Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
(14) Illumination Light

8E–6

METER AND GAUGE

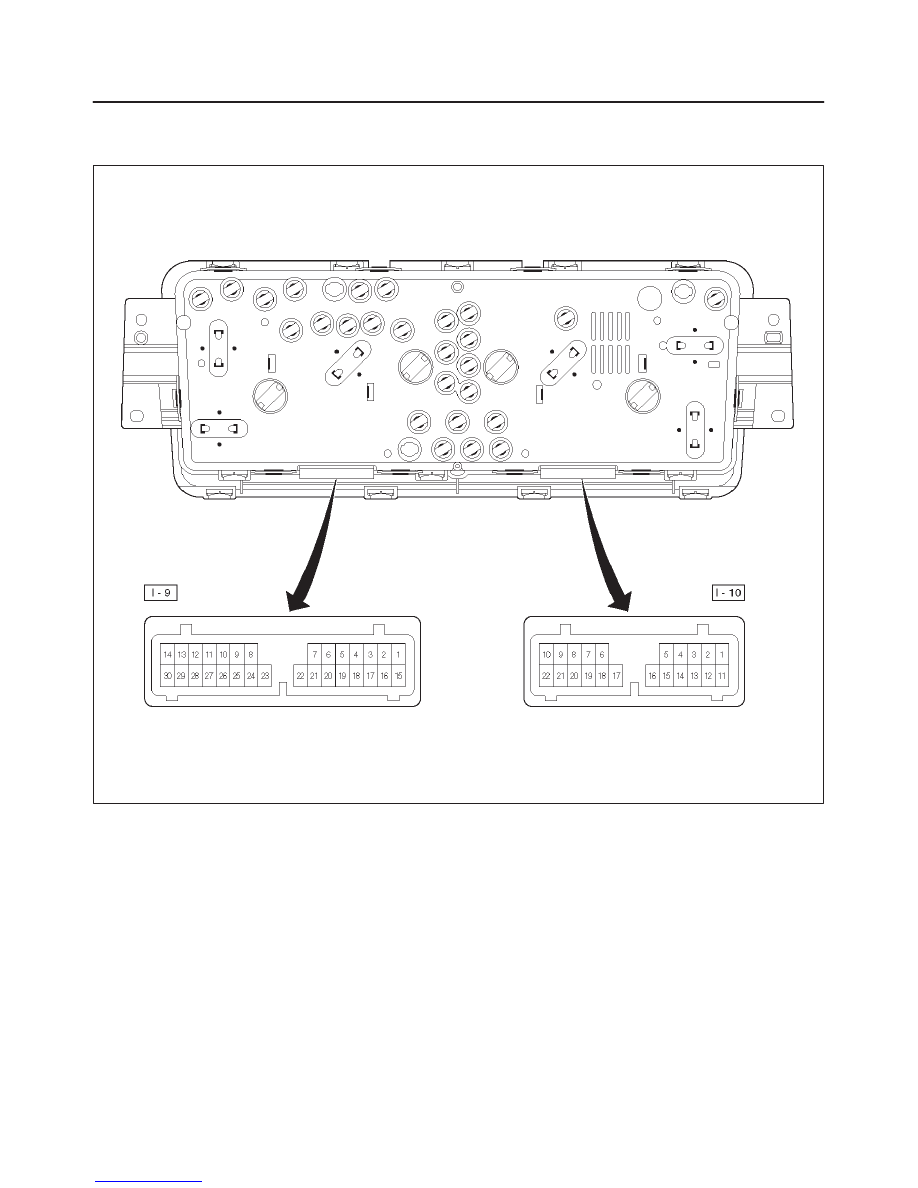

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly W/O TOD–1

825RW037

METER AND GAUGE

8E–7

Meter Assembly W/O TOD–2

Connector No. I–9

Terminal

Function

1

A/T oil temp warning light

2

Seat belt warning light

3

Check trans warning light

4

Brake warning light

5

Check engine warning light

6

Charge warning light

7

Lighting switch

8

Illumination controller

9

Tachometer

10

D position (A/T)

11

—

12

A/T shift indicator control unit

13

—

14

2 position (A/T)

15

Starter switch

16

Cruise set indicator light

17

Cruise main indicator light

18

4WD indicator light

19

Ground (Gauge)

20

—

21

Winter drive indicator light

22

Oil pressure warning light

23

—

24

Air bag warning light

25

Power drive indicator light

26

—

27

Up shift indicator light (–)

28

Turn signal indicator light (Left)

29

Up shift indicator light (+)

30

Ground (Warning)

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Engine coolant temperature gauge

5

Speedometer

6

—

7

—

8

Battery (+)

9

—

10

—

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High-beam indicator light (–)

15

High-beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

Oil pressure gauge

20

Fuel gauge

21

—

22

—
