Isuzu Trooper (2000 year). Manual - part 220

6E–9

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (3 of 7)

D06RY00042

6E–10

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (4 of 7)

D06RY00044

6E–11

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Wiring Diagram (5 of 7)

D06RY00149

6E–12

TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

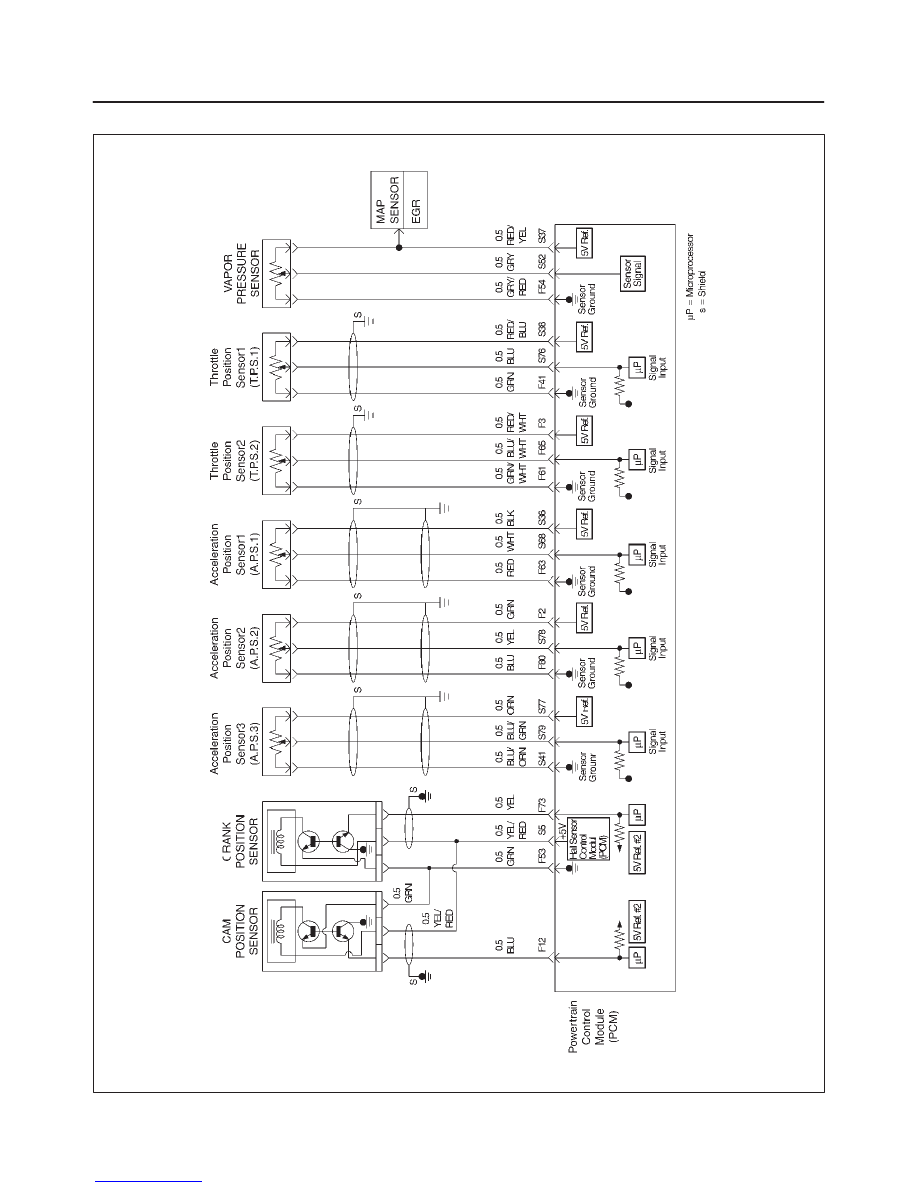

PCM Wiring Diagram (6 of 7)

D06RY00115
