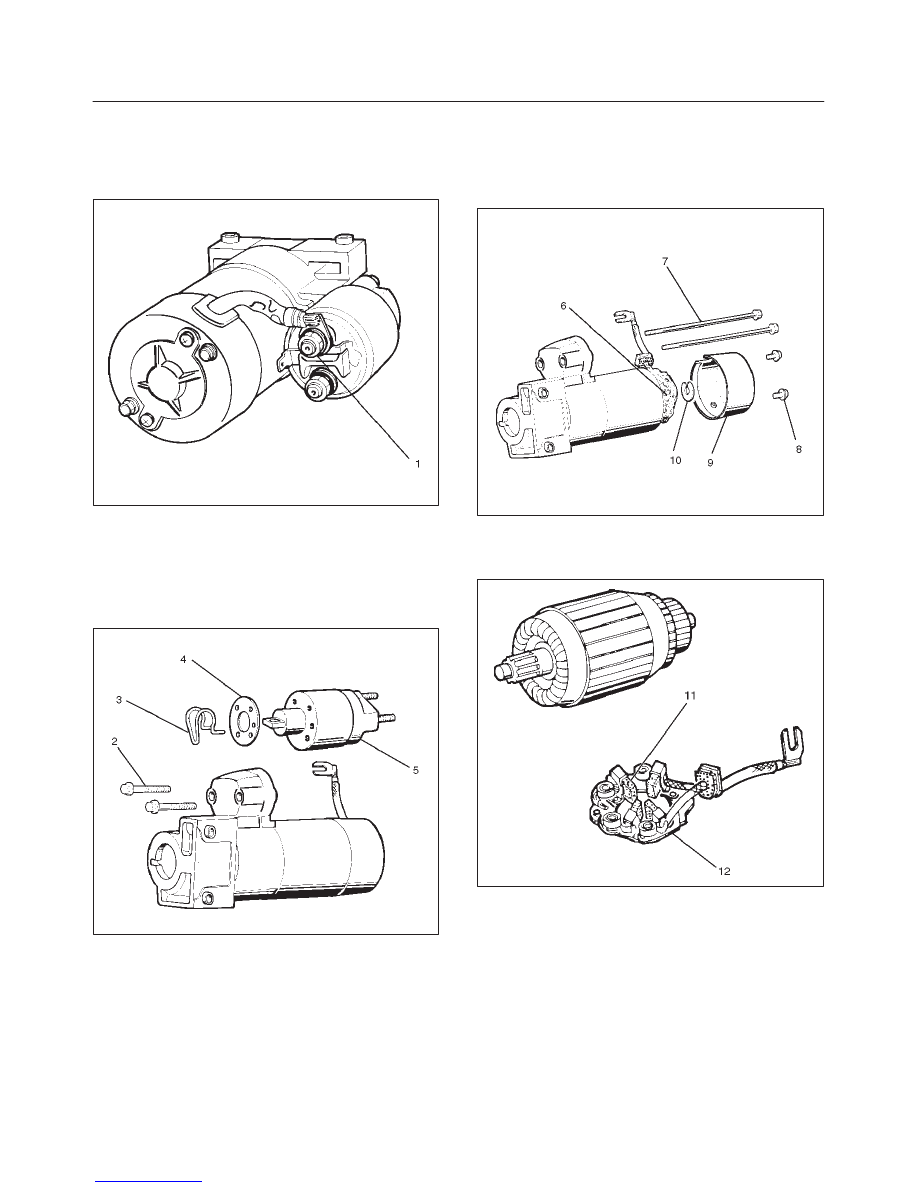

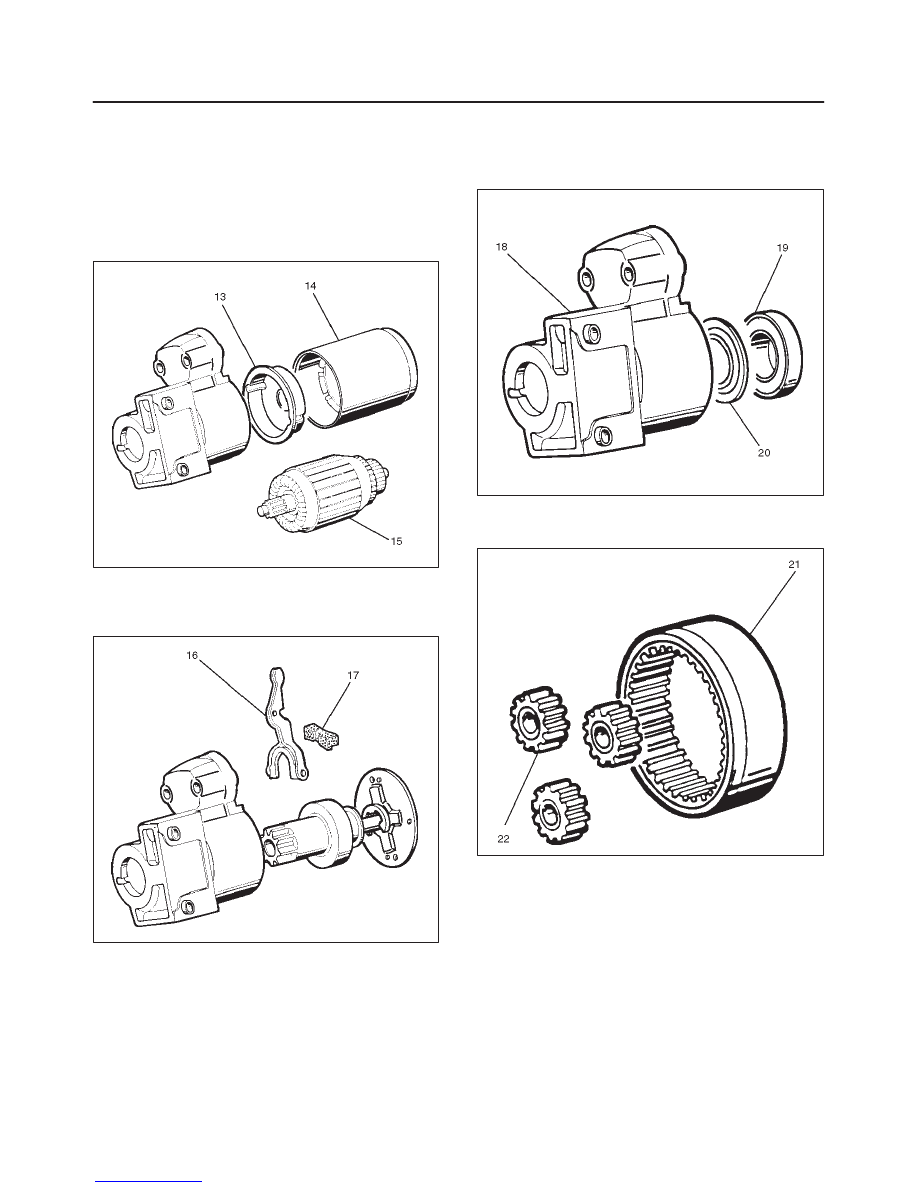

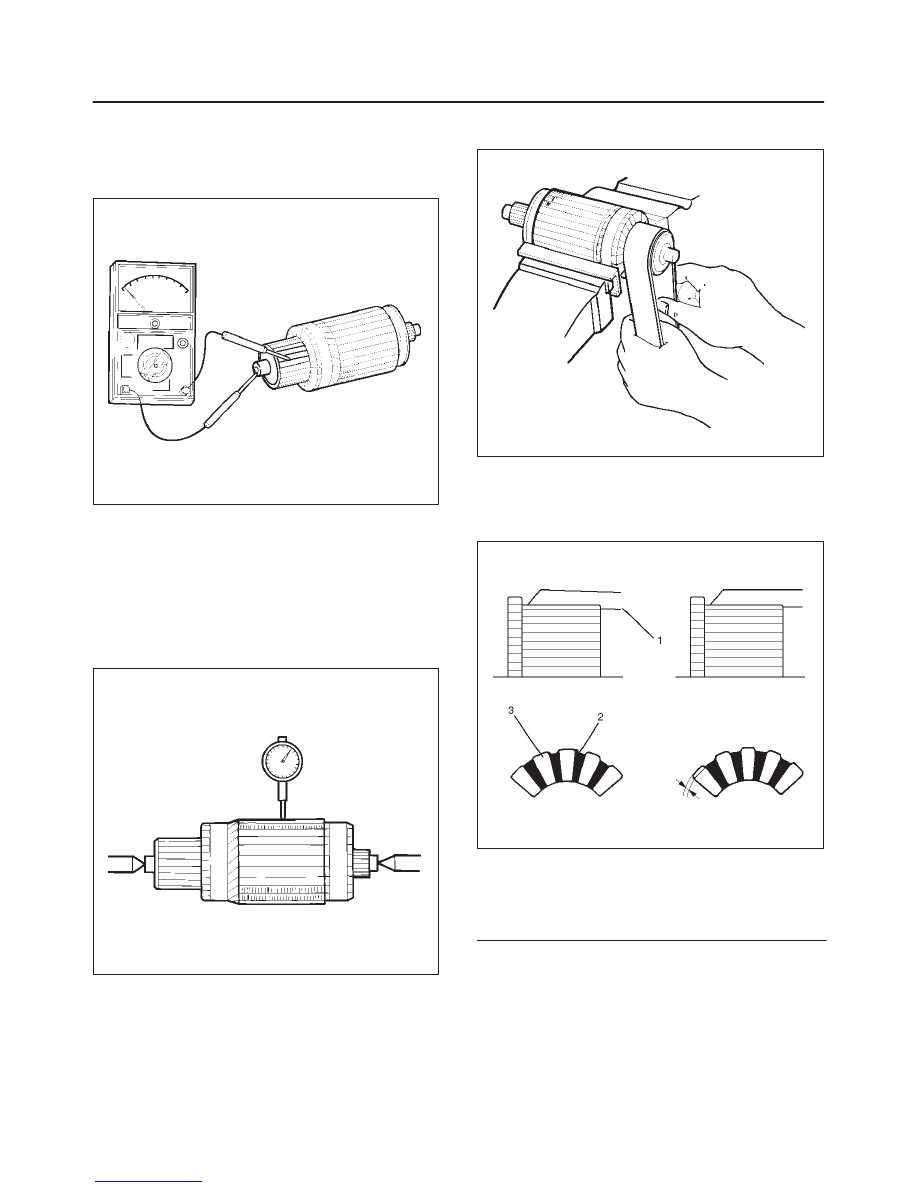

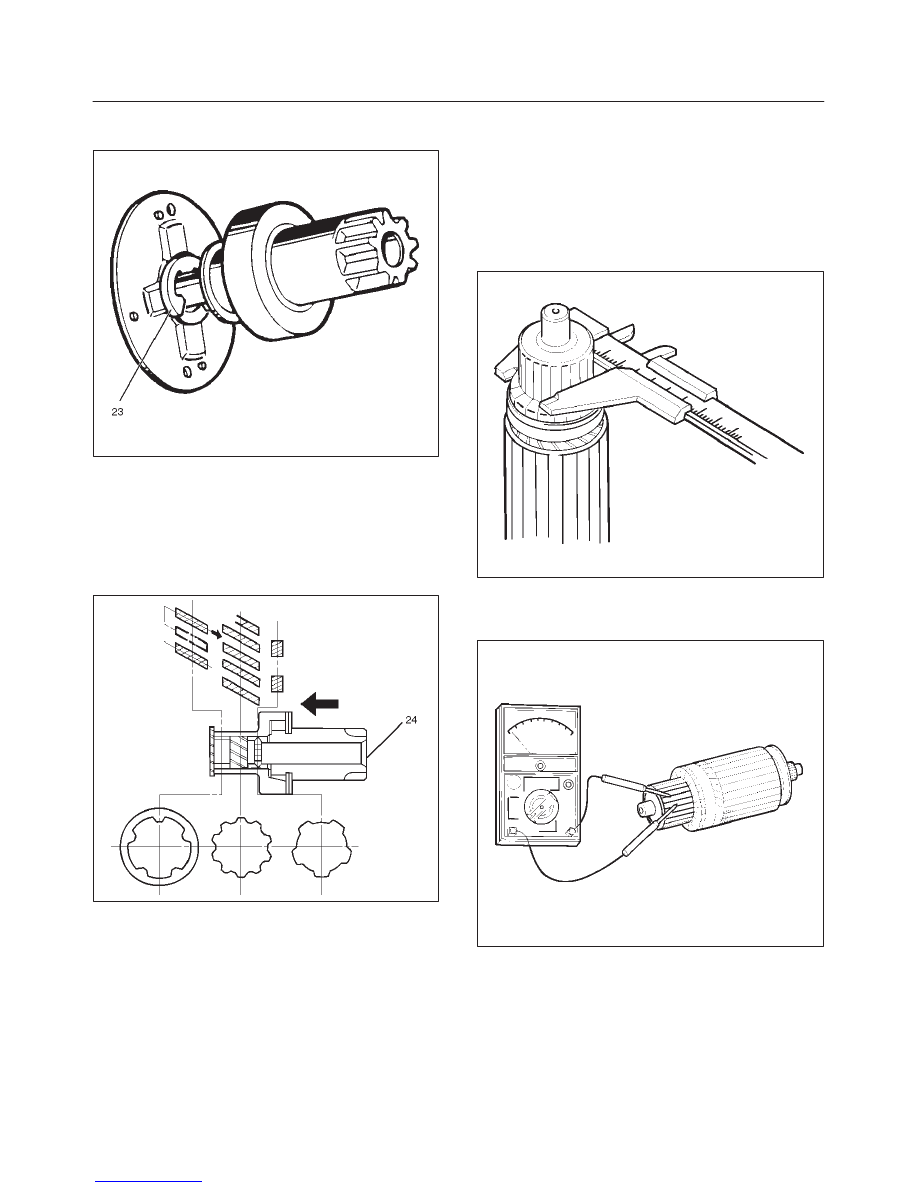

6D3–7 STARTING AND CHARGING SYSTEM Disassembly 1. Loosen the nut(1) on terminal “M” of magnetic switch and disconnect the connector cable. 2. Remove bolt (2 pcs) (2). 065RW003 3. Remove magnetic switch(5). switch assembly. 6. Remove torsion spring(3) from magnetic switch assembly(5). 065RW004 7. Remove screw (2 pcs) (8). cover(9) then remove thrust washer(10). 10. Remove brush holder(6). 065RW005 11. Raise a brush spring to detach brushes (4 pcs) from the commutator face and pull off the brush holder(12) 065RW006 |
