5C–40 POWER ASSISTED BRAKE SYSTEM
Front Disc Brake Caliper

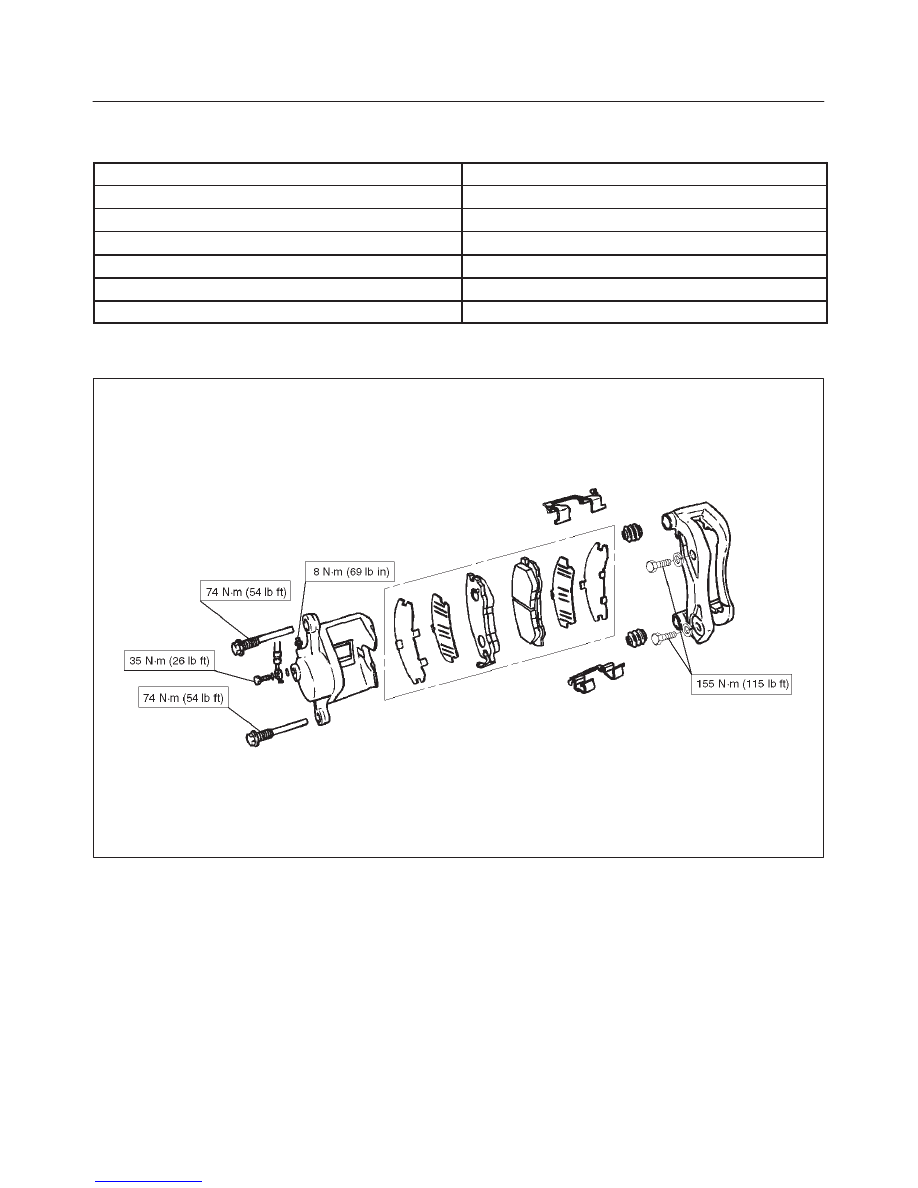

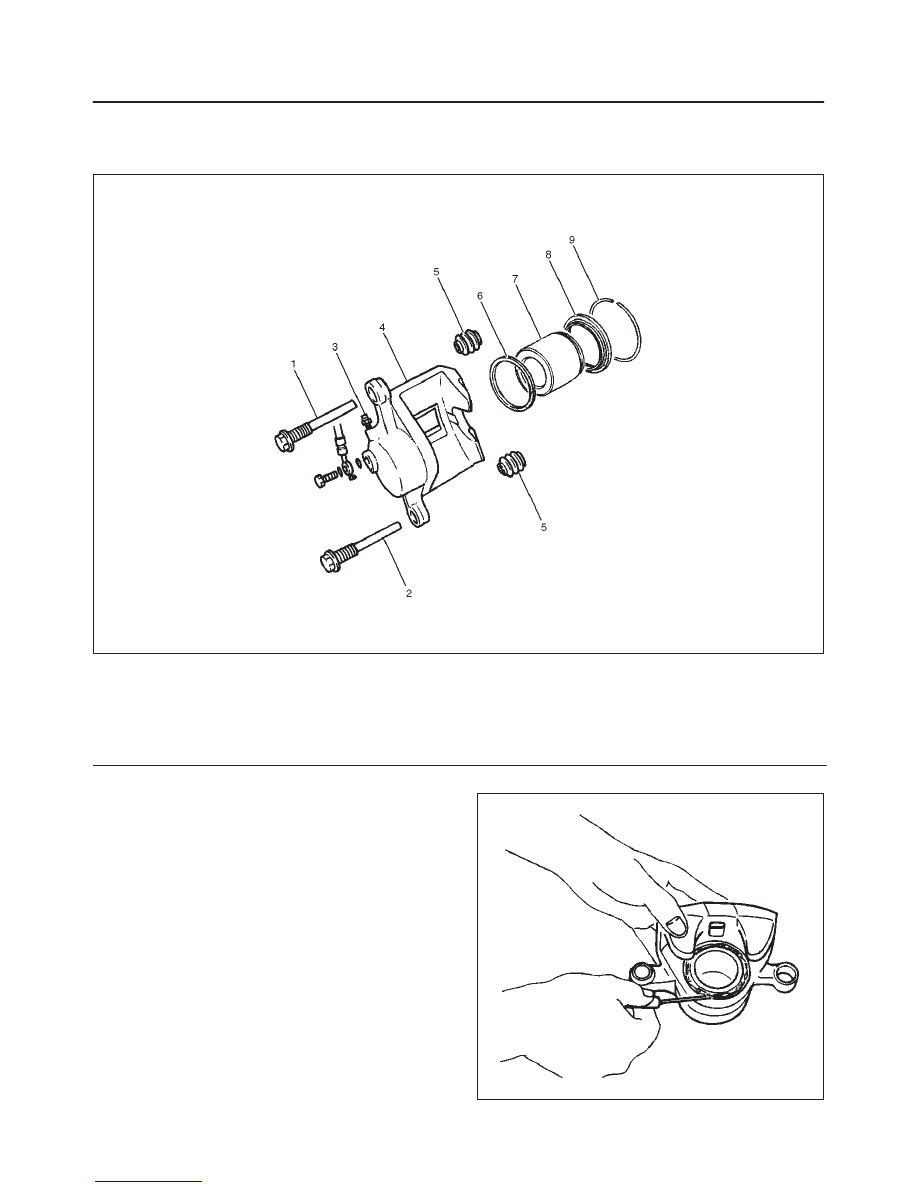

Front Disc Brake Caliper Disassembled View
302RW015
Legend
(1) Guide Bolt(2) Lock Bolt(3) Bleeder with Cap(4) Caliper Body
(5) Dust Boot: Guide Bolt and Lock Bolt(6) Piston Seal(7) Piston(8) Dust Boot: Piston(9) Dust Boot Ring

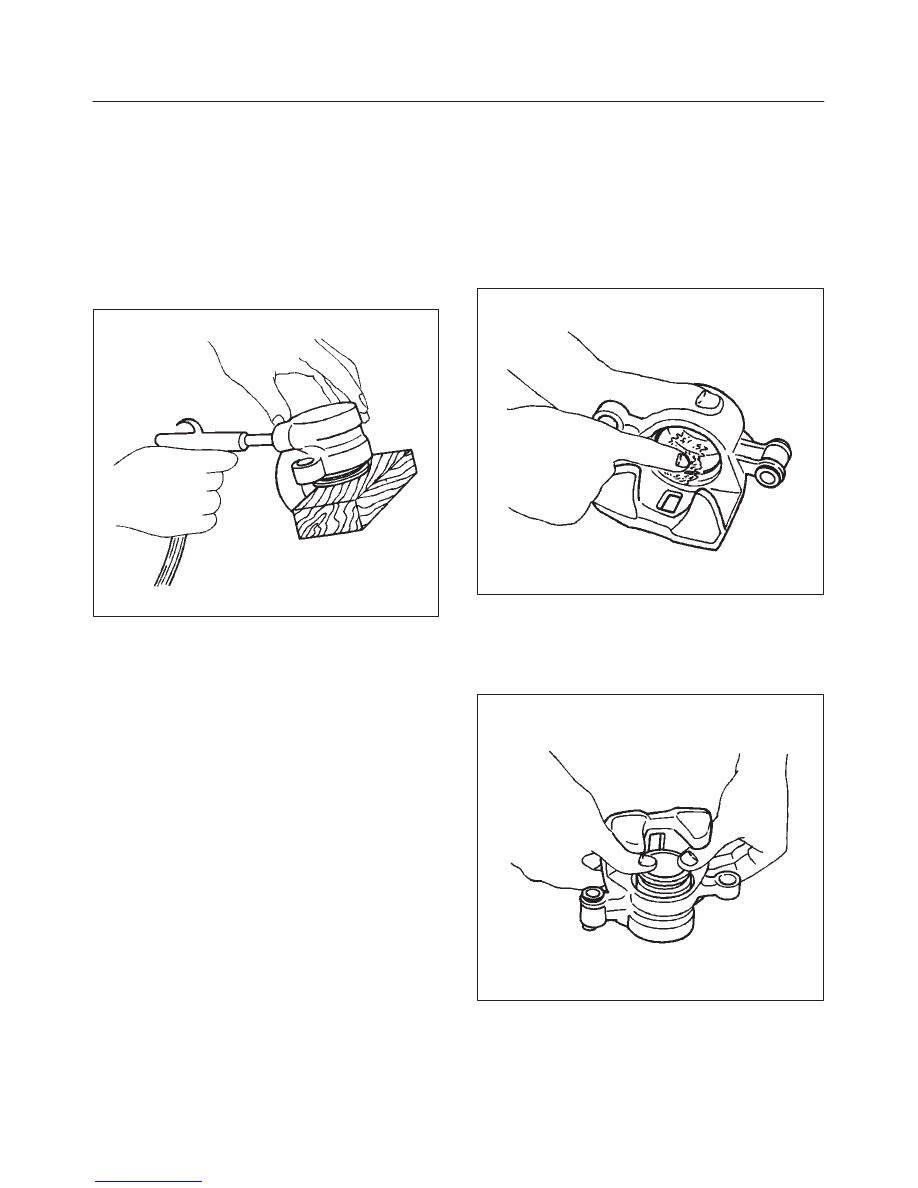

Disassembly

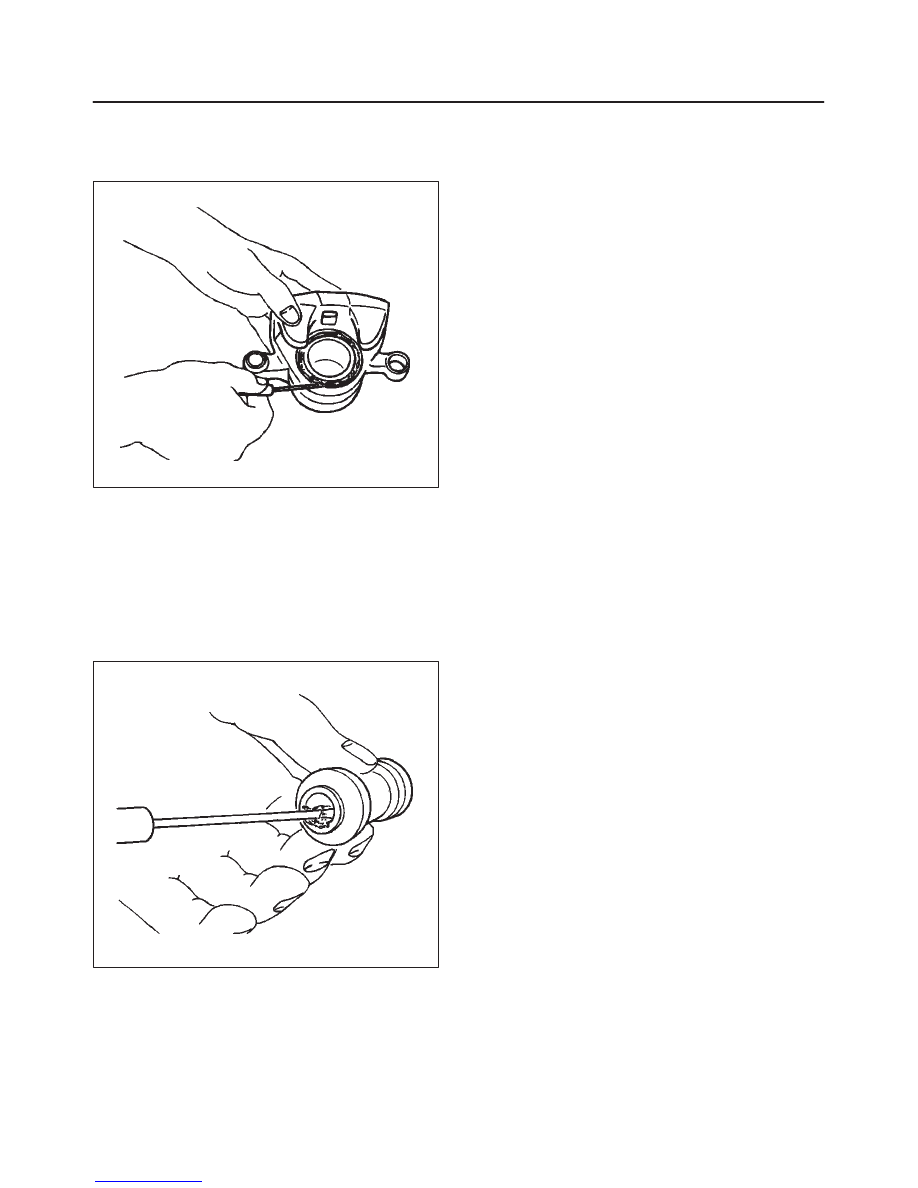

1. Remove guide bolt.2. Remove lock bolt.3. Remove dust boot: guide bolt and lock bolt.4. Remove dust boot ring, using a small screwdriver,
remove the dust boot ring.
302RS016
