POWER ASSISTED BRAKE SYSTEM
5. The torque values specified are for dry, unlubricated
fasteners.
6. Perform the service operation on a clean bench free
from all mineral oil materials.
Operation

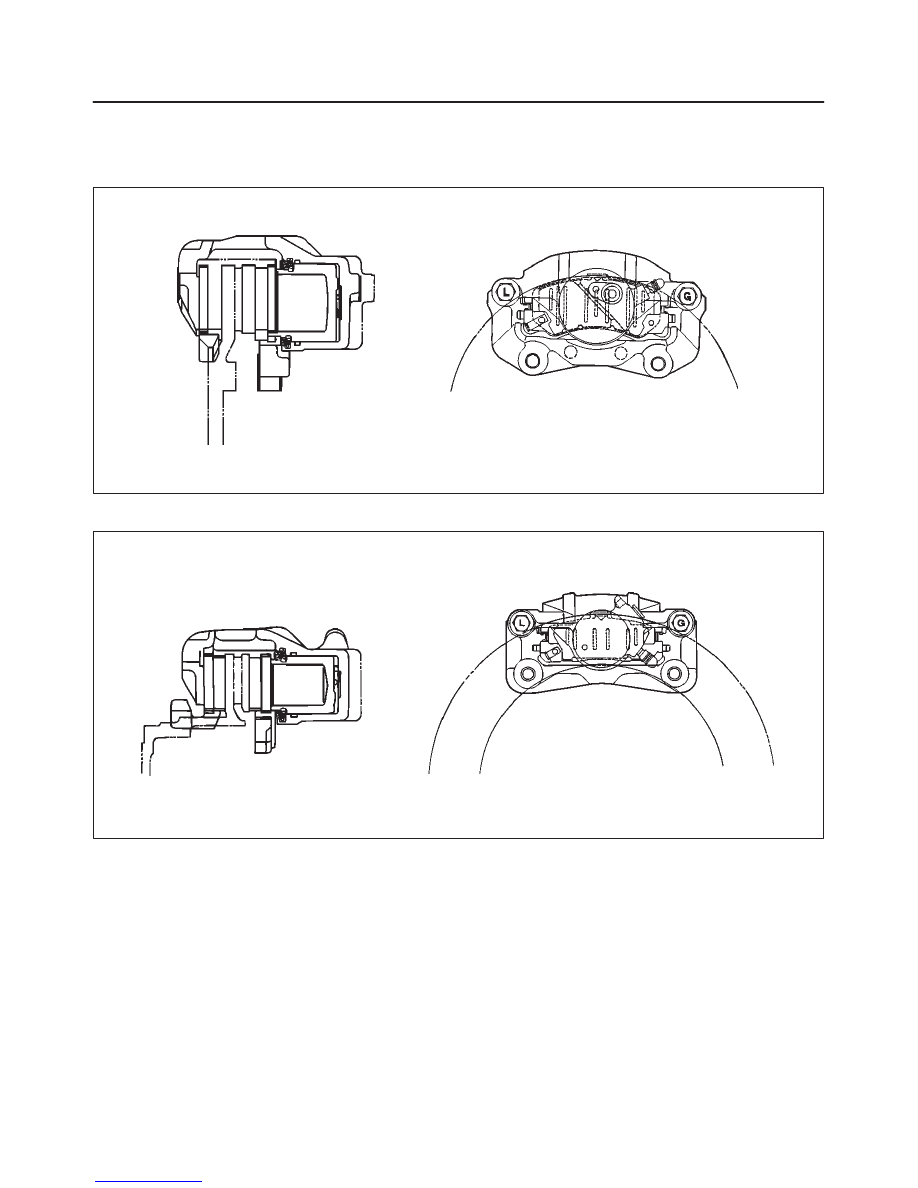

Front Disc Brake
A05RW001
Rear Disc Brake
A05RW002
Hydraulic pressure, created by applying the brake pedal,
is converted by the caliper to a stopping force. This force
acts equally against the piston and the bottom of the
caliper bore to move the piston outward and to move
(slide) the caliper inward resulting in a clamping action on
the rotor. This clamping action forces the linings against
the rotor, creating friction to stop the vehicle.
