DRIVE LINE CONTROL SYSTEM (TOD)

4B2–20

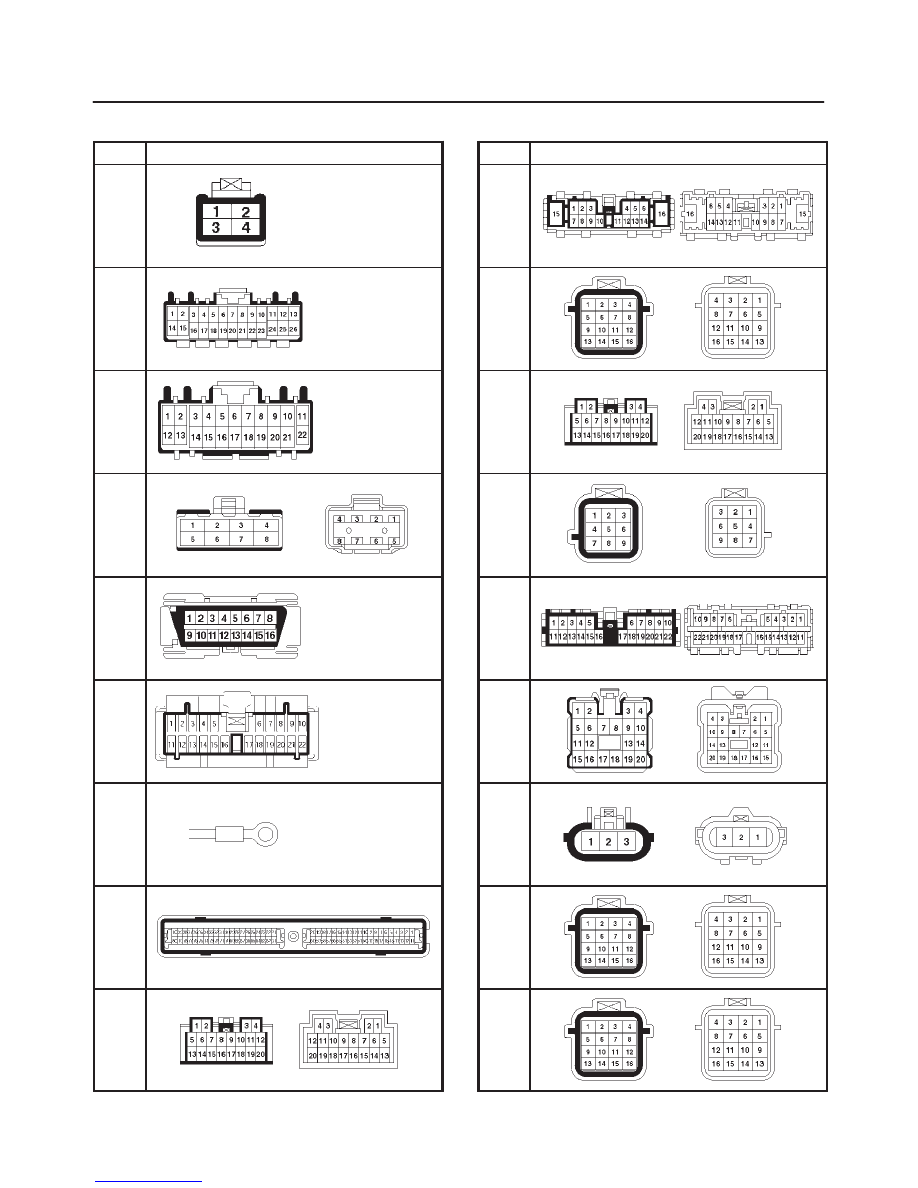

Connector List

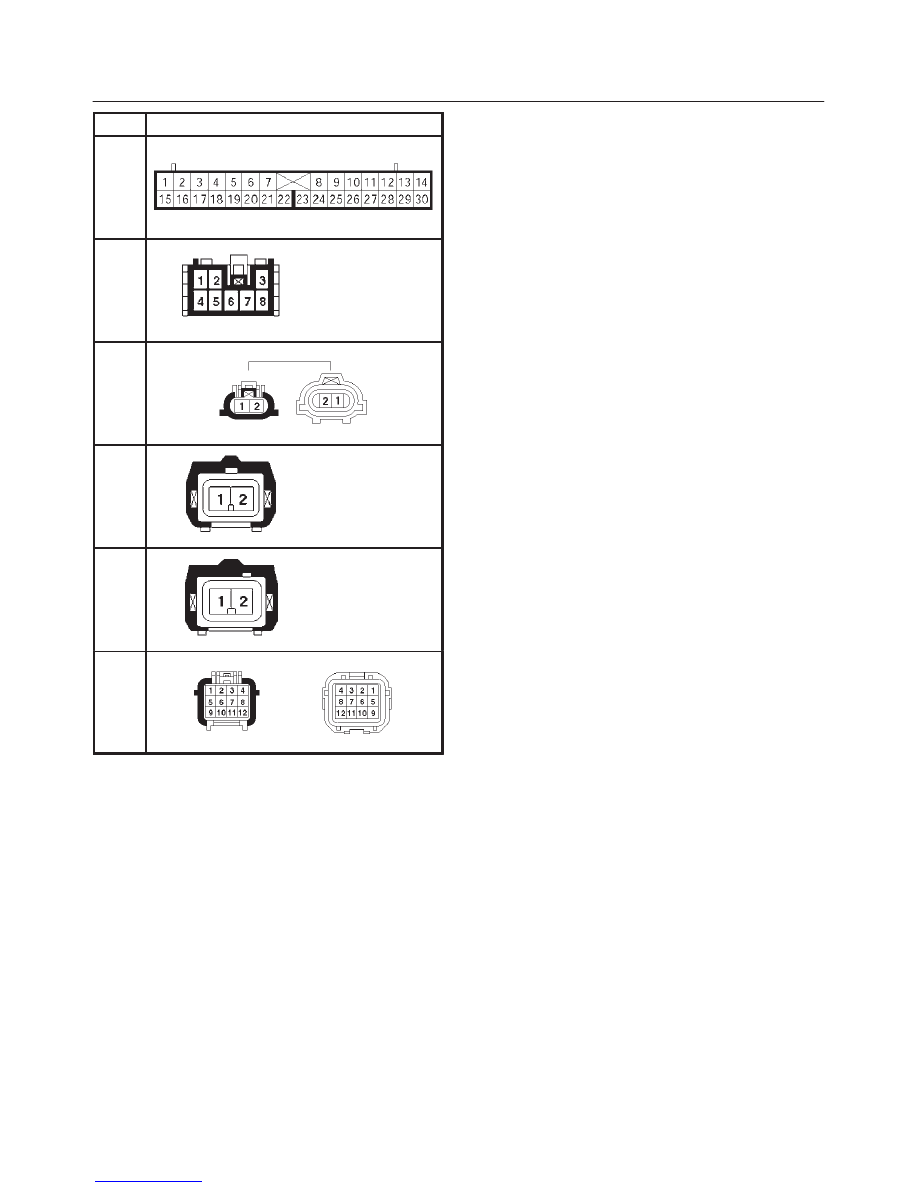

No.

Connector face

B-13

B-48

B-49

C-16

C-63

C-94

E-29

E-54

H-7

No.

Connector face

H-8

H-10

H-12

H-17

H-25

H-33

H-36

H-55

H-57

4B2–21

DRIVE LINE CONTROL SYSTEM (TOD)

No.

Connector face

I-9

I-12

M-22

M-23

M-24

M-27

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–22

Checking Failed Pin

Connector Pin Assignment

D

ECU pin assignment

D04RY00011

No.

NAME

CONTENTS

1

N.C

Not used

2

N.C

Not used

3

N.C

Not used

4

D–G MAP

Gas/Diesel

5

N.C

Not used

6

IND. b

Display Front–B

7

N.C

Not used

8

IND. Rr

Display Rear–E

9

N.C

Not used

10

N.C

Not used

11

SOL (+)

EMC

12

Ref

Speed Reference

13

COM (–)

Speed Return

14

VIG

Ignition

15

TPS

TPS (PWM)

16

TECH 2

TECH–2

17

IND. a

Display Front–A

18

IND. c

Display Front–C

19

IND. AUTO

Display Auto–D

20

CHECK

Check T/F

21

N.C

Not used

22

P–GND

Power Ground

23

ADC (+)

Axle Disconnect Output

24

N.C

Not used

25

N.C

Not used

4B2–23

DRIVE LINE CONTROL SYSTEM (TOD)

No.

CONTENTS

NAME

26

N.C

Not used

27

N.C

Not used

28

N.C

Not used

29

DIAG

Diagnostic Input

30

TOD SW

TOD Switch

31

4H SW

4H Switch Input

32

Frt. Sig

Front Speed Signal

33

ABS IN

ABS In

34

VIG

Ignition

35

N.C

Not used

36

4WD OUT

4WD Signal Output

37

BRAKE

Brake Switch Input

38

N.C

Not used

39

N.C

Not used

40

LIGHTING SW

Lighting Switch Input

41

N.C

Not used

42

AXLE SW

Axle Switch Input

43

N.C

Not used

44

4L SW

4L Switch Input

45

Rr. Sig

Rear Speed Signal

46

GND

ECU Ground 1

47

GND. 2

ECU Ground 2

48

N.C

Not used
