8F–53

BODY STRUCTURE

Rear Quarter Glass

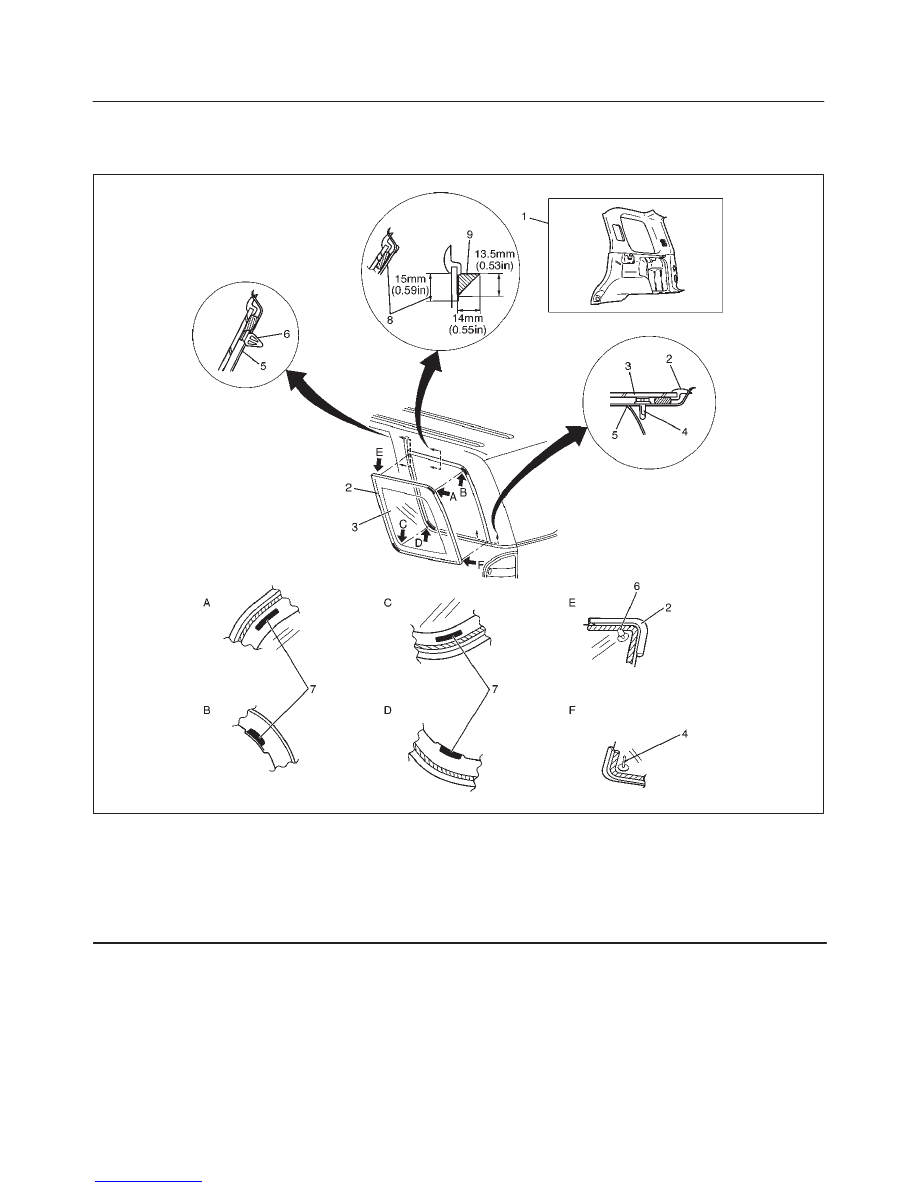

Parts Location

641RX004

Legend

(1) Quarter Trim Panel
(2) Rear Quarter Glass Moulding
(3) Rear Quarter Glass
(4) Clip
(5) Body Panel

(6) Clip
(7) Velcro Fastener
(8) Primer applying range (Glass side & Body

side)

(9) Sealant

8F–54

BODY STRUCTURE

Removal

1. Disconnect the battery ground cable.
2. Remove rear quarter trim panel.

Refer to Exterior/Interior Trim in this section.

3. Remove rear quarter glass.

Refer to Windshield removal procedure in this
section.

Installation

1. Rear quarter glass.

Clean the bonding surfaces of both the glass and
the body panel.

Be absolutely sure to apply glass primer to the side
glass.

Be absolutely sure to apply body primer fully to the
body.

NOTE: Immediately wipe off the primer left on the body
or extruded sealant.

Attach the fastener to the indicated position of body
with sealant as shown in the figure.

Apply sealant to the circumference of glass as
shown in the figure.

Insert the location pins on glass into the panel, push
the glass against the panel, and bond them.

Attach the molding to the body with sealant.

Cure the bonding at a temperature of 20

C – 30

(68

F – 86

F) for 24 hours.

Check that the rear quarter glass does not leak
water.

2. Install rear quarter trim panel.

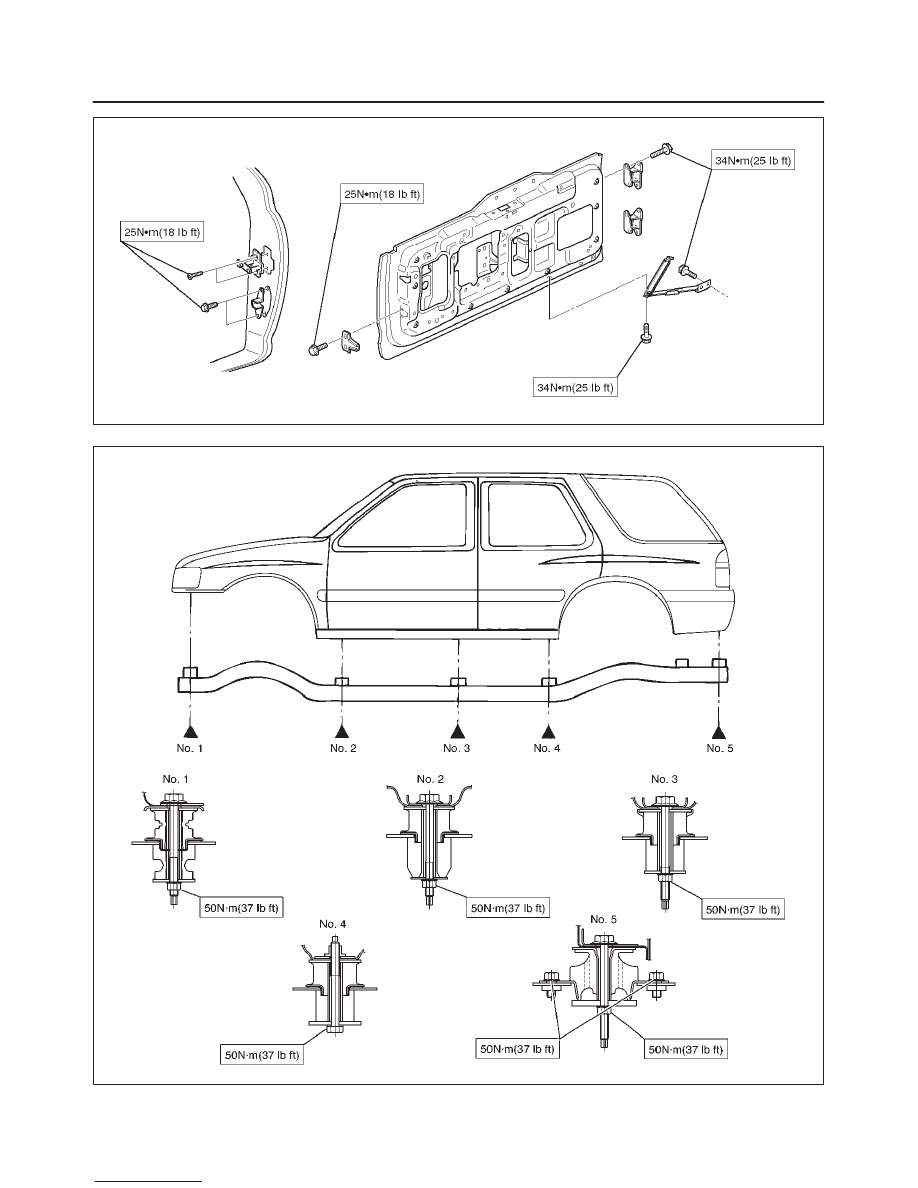

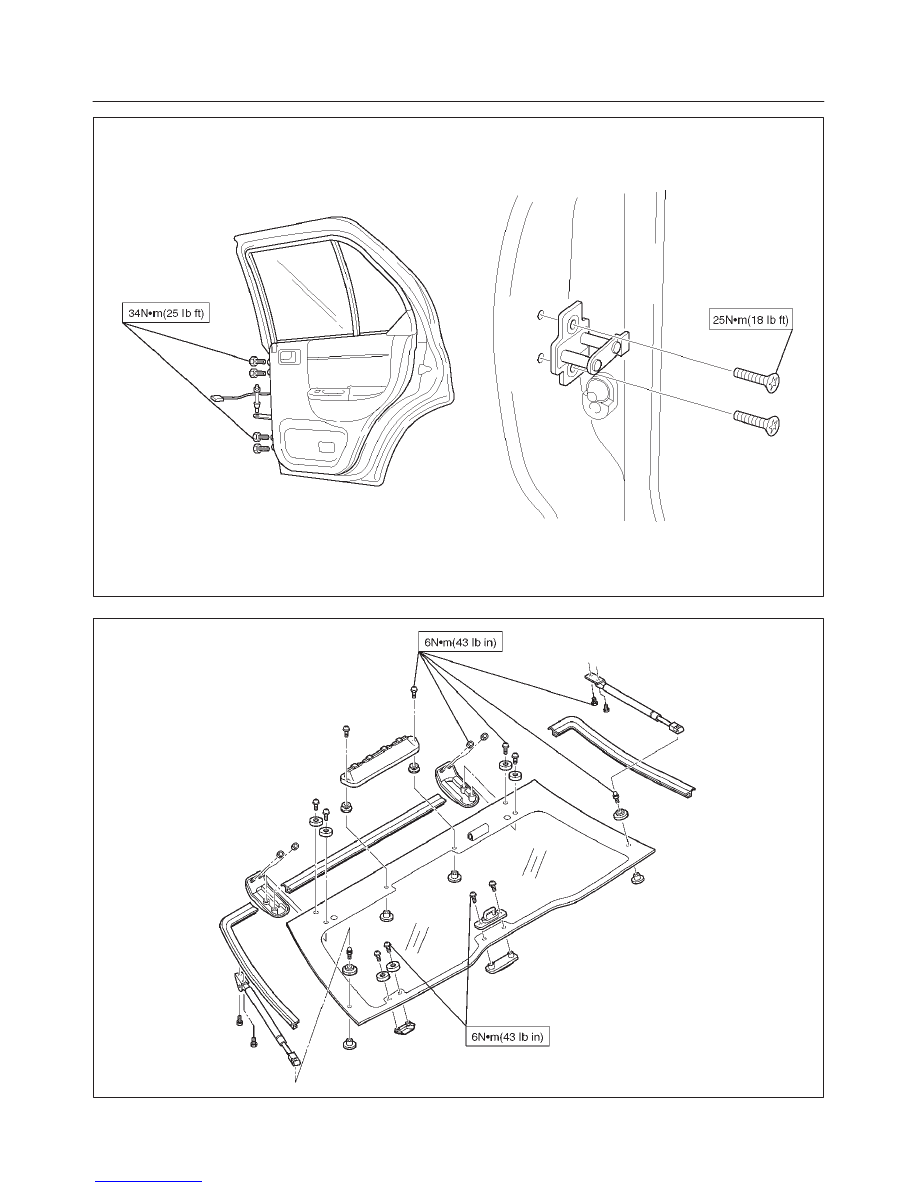

Main Data and Specifications
