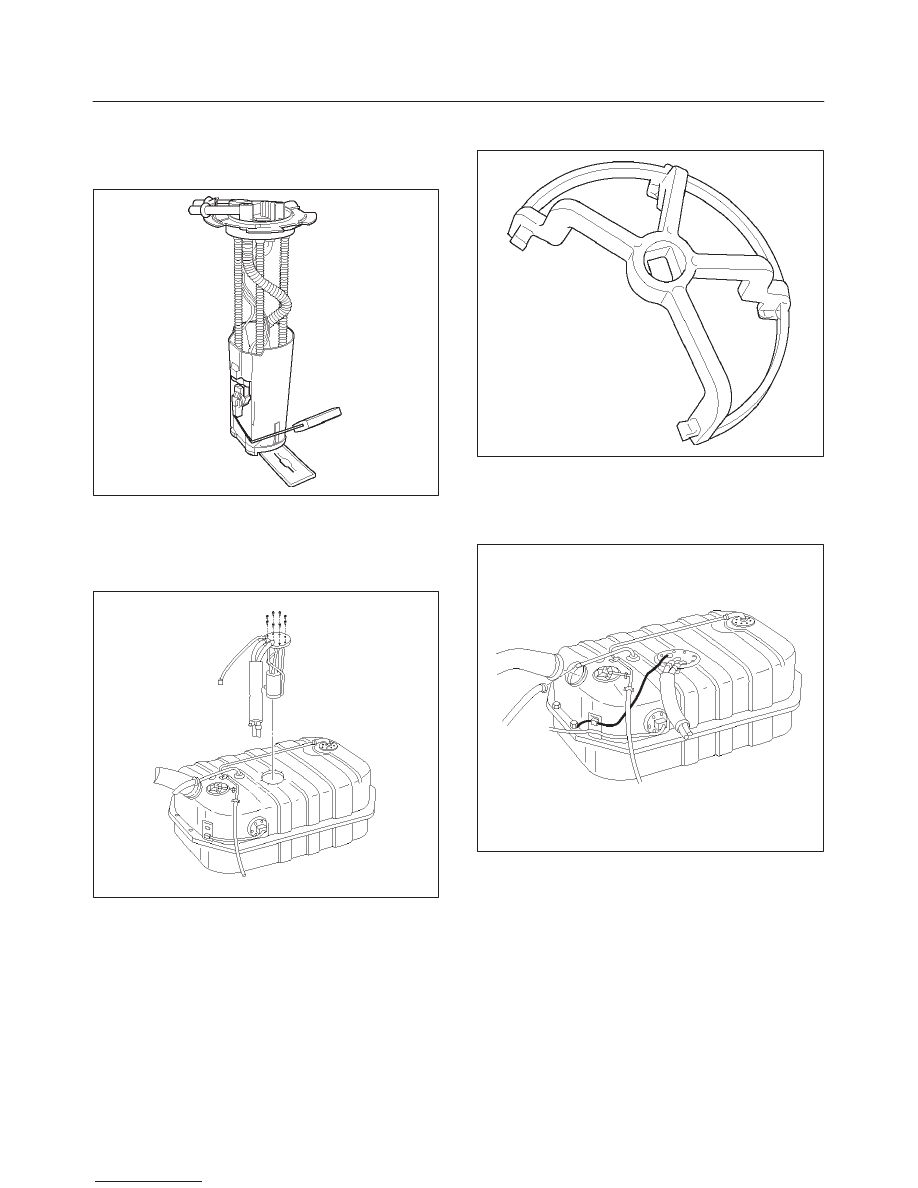

6E1–407 RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION Inspection Procedure Inspect in–tank fuel filter for tears, damage or evidence of 041RX003 Installation Procedure 1. Insert the fuel pump assembly into fuel tank and place them at its position. 041RX002 2. Using J–39763, twist fuel pump assembly clock wise into the lock. 901RX036 3. Install the fuel tank. Refer to Fuel Tank Installation Procedure. 4. Install the fuel pump relay. 041RX004 |
