Engine Management – V6 – Service Operations

Page 6C1-3–56



3

Reinstall the throttle body bolts and tighten to the correct torque specification.

Throttle body assembly attaching bolt
torque specification ...................................8.0 – 12.0 Nm



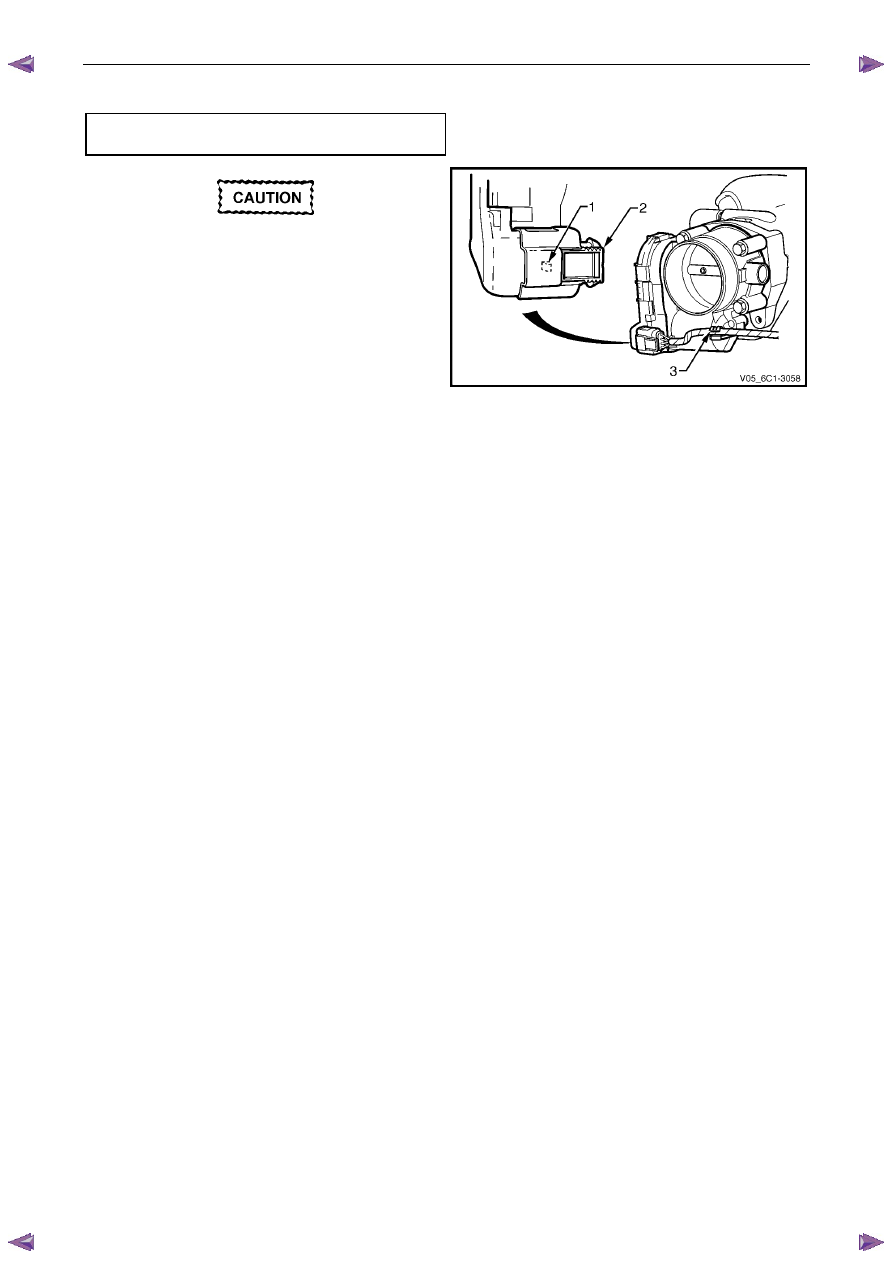

After reinstalling the wiring harness
connector, ensure the connector latch (1) and
connector lock (2) have fully engaged.

4

Reinstall the wiring harness connector to the throttle
body, ensuring the connector latch and connector slide
have fully engaged.

5

Ensure the wiring harness is correctly routed and
attached securely in the throttle body harness
retaining clip (3).

Figure 6C1-3 – 74

6

Road test the vehicle and check for correct operation, taking particular note that no air leaks are evident.

Engine Management – V6 – Service Operations

Page 6C1-3–57



3 Specifications

Accelerator Pedal Position Sensor 1


Type .....................................................Three wire potentiometer



Accelerator pedal at rest .................................. Less than 1.25 V



Accelerator pedal fully depressed .......................5.0 V maximum

Accelerator Pedal Position Sensor 2


Type .....................................................Three wire potentiometer



Accelerator pedal at rest .................................. Less than 1.25 V



Accelerator pedal fully depressed .......................5.0 V maximum

Camshaft Position (CMP) Sensor


Type ................................... Hall effect, interrupted ring triggered



Air gap ................................................................... 0.1 – 1.8 mm



Air gap adjustment ............................................... No adjustment

Crankshaft Position (CKP) Sensor


Type .......................................................Inductive magnetic type



Coil resistance @ 20°C..........................................850 – 1040

Ω



Air gap ................................................................... 0.1 – 1.5 mm



Air gap adjustment ............................................... No adjustment

Engine Coolant Temperature Sensor
 Type .......................................................... Negative

temperature

 ................................................................... coefficient

thermistor

Engine Coolant Temperature Vs Resistance

Temperature °C

Resistance – Ohms (

Ω)

-40

40490 – 50136

-20

14096 – 16827

-10

8642 – 10152

0

5466 – 6326

20

2351 – 2649

25

1941 – 2173

40

1118 – 1231

60

573 – 618

80

313 – 332

100

182 – 191

120

109 – 116

140

68 – 74

Engine Management – V6 – Service Operations

Page 6C1-3–58



Engine Oil Level and Temperature Sensor


Level sensor type.......................................Magnetic reed switch



Temperature sensor type .......................... Negative temperature

 ................................................................... coefficient

thermistor



Engine Oil Temperature Vs Resistance

Temperature °C

Resistance – Ohms (

Ω)

0

7570 – 8000

20

2351 – 2649

30

2225 – 2375

40

1118 – 1231

50

1050 – 1150

80

380 – 470

100

270 – 290



Evaporative Emission (EVAP) Canister Purge Valve
 Type .............................................................................. Solenoid


Resistance @ 20°C......................................................24 – 28

Ω



Operating voltage................................................... 12.0 – 16.0 V

Engine Firing Order ..................................................................... 1, 2, 3, 4, 5, 6

Fuel Injector
 Type .............................................................................. Solenoid


Fuel Injector Resistance @ 20°C ...........................11.4 – 12.6

Ω

Heated Oxygen Sensor (HO2S) – Four wire


Type ......................................................Four wire, planar sensor



Operating range (greater than 360°C) .................. 10 – 1000 mV



Closed loop operating range ................................. 300 – 600 mV



Heater resistance @ 20°C .......................................8.0 – 10.0

Ω

Heated Oxygen Sensor (HO2S) – Six Wire


Type ....................................... Six wire, wide band planar sensor



Heater resistance @ 20°C .......................................8.0 – 10.0

Ω

Intake Air Temperature (IAT) Sensor
 Type .......................................................... Negative

temperature

 .................................................................. Coefficient

thermistor

Intake Air Temperature Vs Resistance

Temperature °C

Resistance – Ohms (

Ω)

-40

35140 – 43760

-20

12660 – 15120

-10

7943 – 9307

0

5119 – 5892

20

2290 – 2551

25 1900

–2100

40 1096

–1238

60

565 – 654

80

312 – 370

100

184 – 222

120 114

–141

Engine Management – V6 – Service Operations

Page 6C1-3–59



Intake Air Temperature Vs Resistance

Temperature °C

Resistance – Ohms (

Ω)

140 74

–93

Knock Sensor


Type ........................................................ Piezo ceramic element

Mass Air Flow Sensor


Type ......................................................Hot film air-mass sensor

Spark Plug

 Type ....................................................................................J

gap



Gap ........................................................................ 1.1 – 1.2 mm

 Adjustment ........................................................... No

adjustment

Throttle Position Sensor 1


Type .....................................................Three wire potentiometer



Closed throttle.................................................  Less than 1.25 V



Wide open throttle...............................................5.0 V maximum

Throttle Position Sensor 2


Type .....................................................Three wire potentiometer



Closed throttle.................................................  Less than 1.25 V



Wide open throttle...............................................5.0 V maximum
