Engine Mechanical – V6 Page 6A1–257

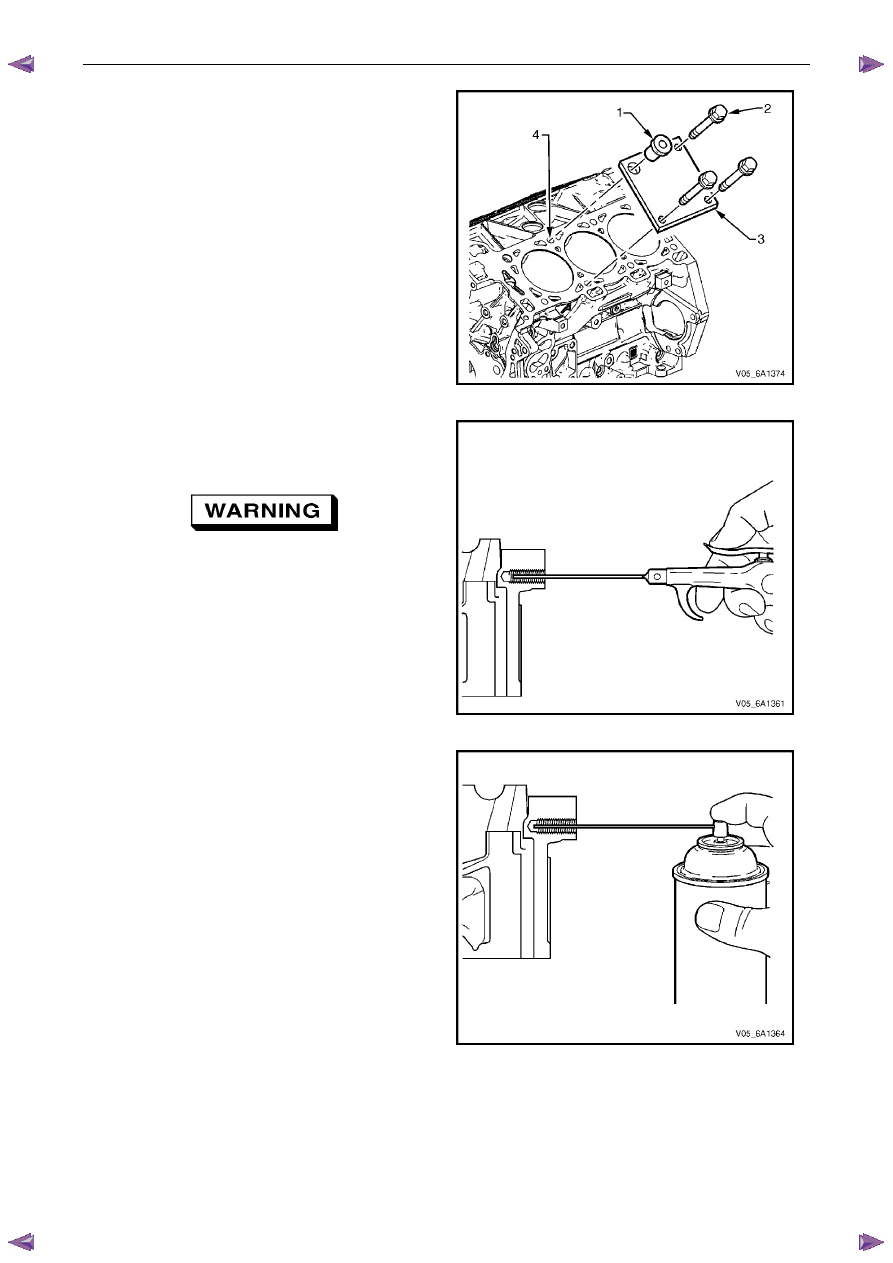

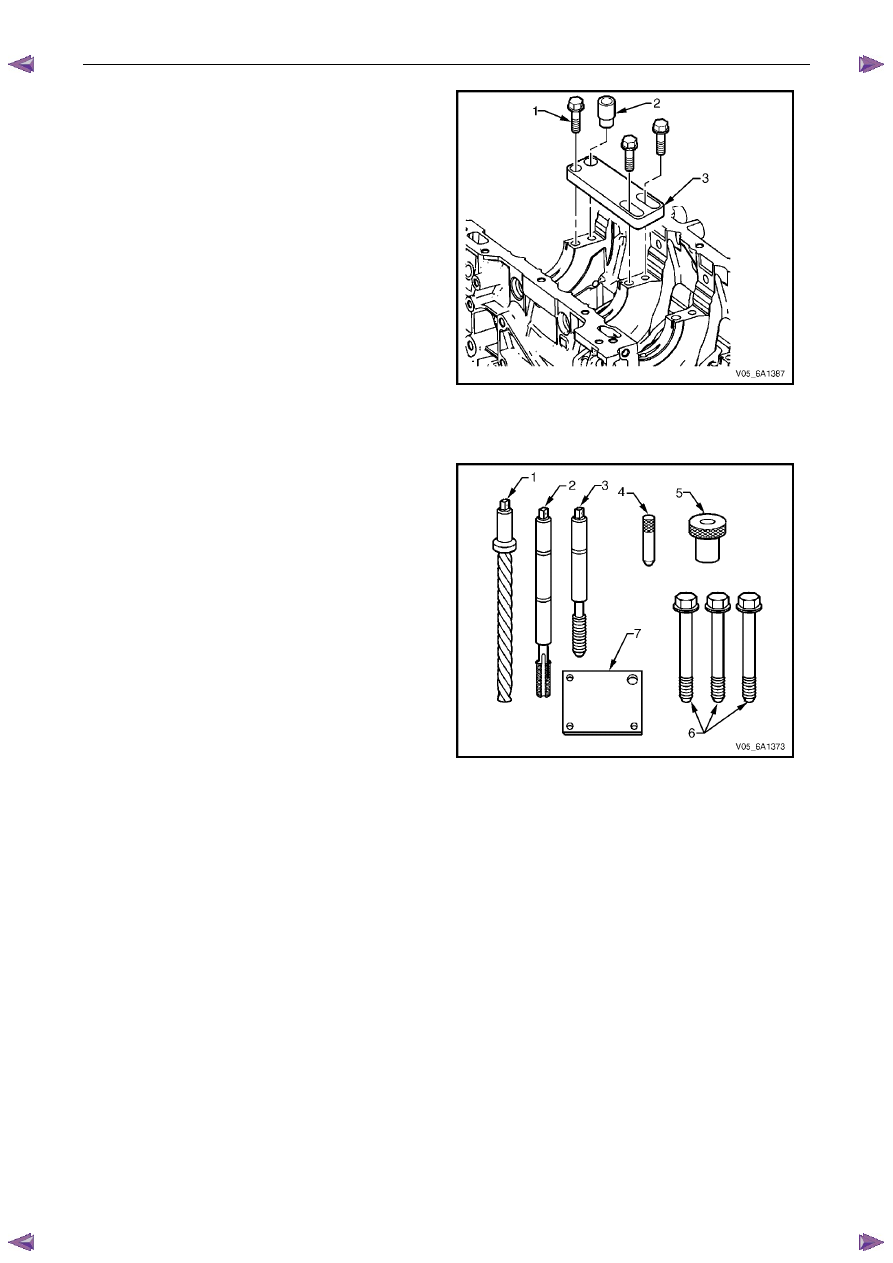

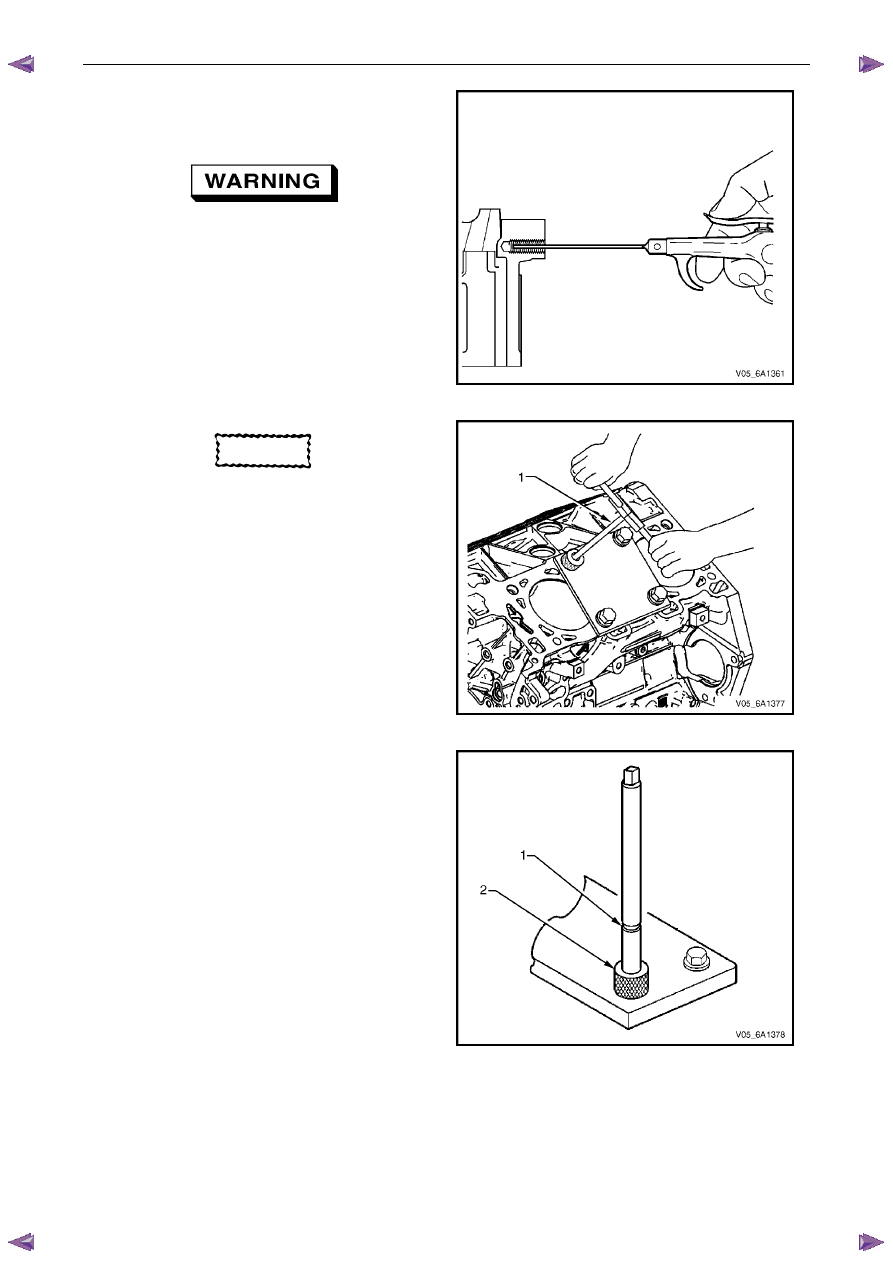

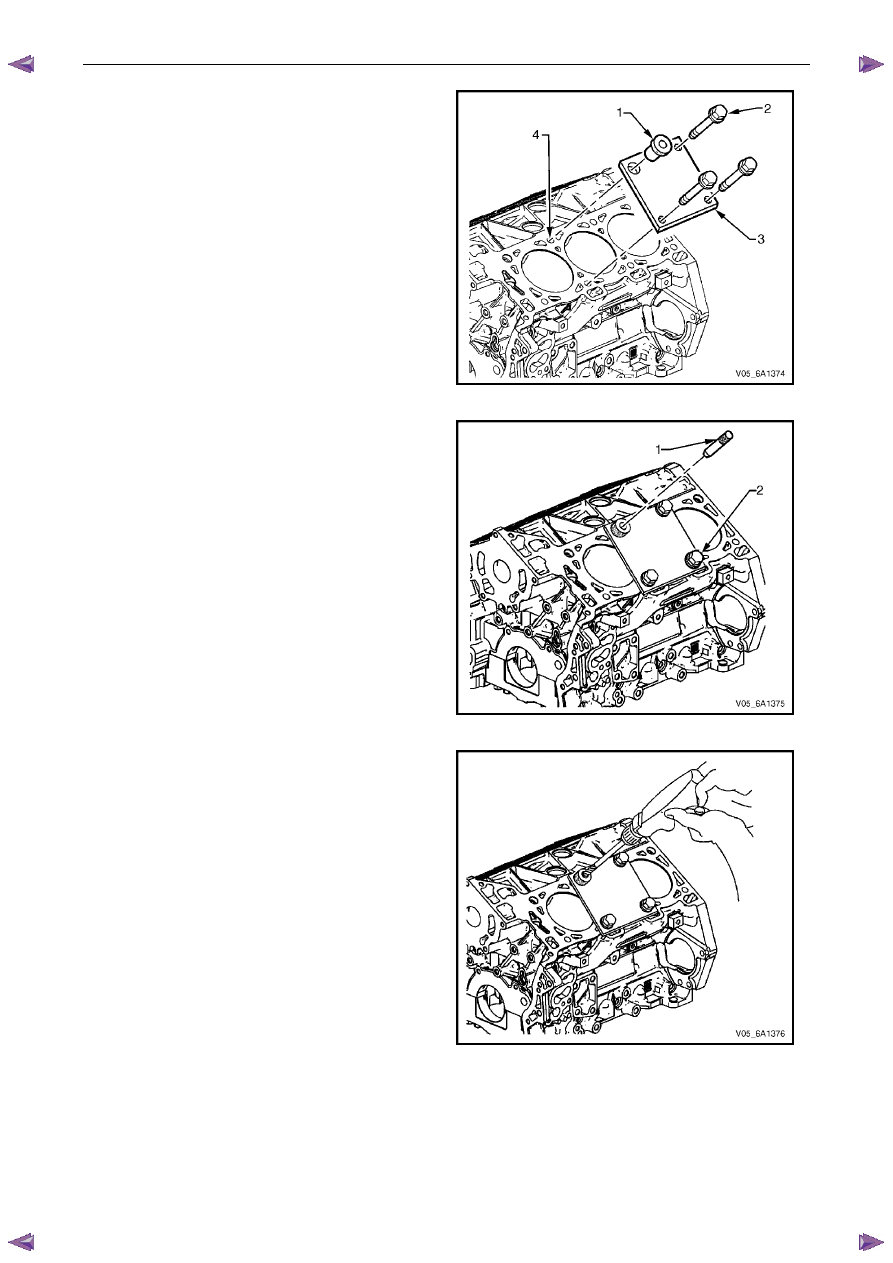

22 Remove the fixture plate bolts (1), bushing (2) and Figure 6A1 – 497 Cylinder Head Bolt Hole Thread Repair The cylinder head bolt hole thread repair tools are in Tool Drill (1) J 42385-723 • Tap (2) J 42385-724 • Installation driver (3) J 42385-725 • Alignment pin (4) J 42385-303 • Bushing (5) J 42385-302 • Bolts (6) J 42385-733 • Fixture plate (7) J 42385-401 Figure 6A1 – 498 N O T E • Ensure the fixture plate is installed during the machining and installation processes of the • The use of a cutting type fluid such as WD 40® or equivalent is recommended when • When installed to the correct depth, the flange of the insert will be seated against the counter |
