Engine Mechanical – V6

Page 6A1–149



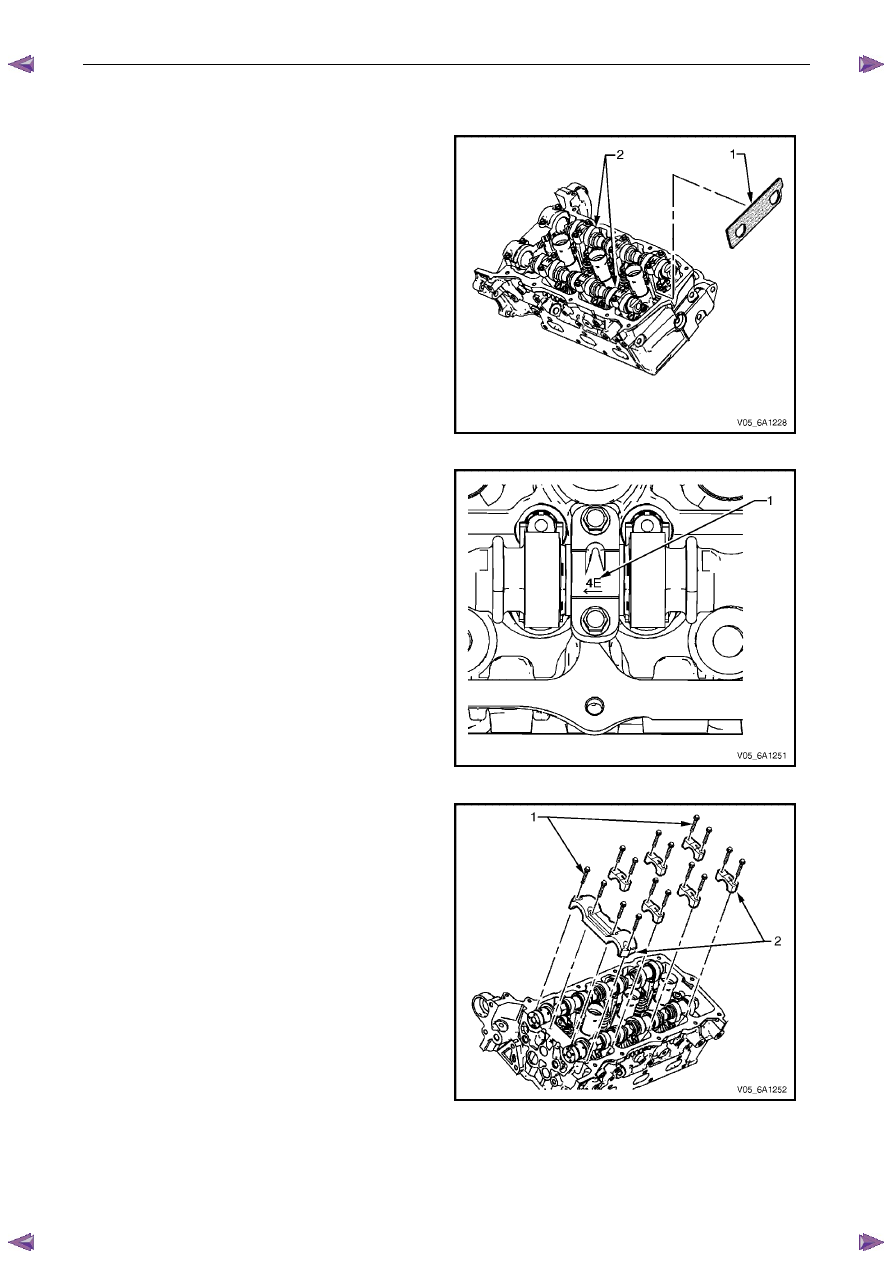

Left-hand Side

1

Remove the left-hand cylinder head camshaft position actuators, refer to 3.18

Camshaft Sprocket.

2

Remove Tool No. EN-46105 – 1 (1) from the left-hand
camshafts.





N O T E

Tool No. EN-46105 was installed as part of the
left-hand cylinder head camshaft position
actuator removal procedure.



Figure 6A1 – 242

3

Observe the markings (1) on the bearing caps. Each
bearing cap is marked in order to identify its location.
The markings have the following meanings:
•

The raised feature must always be oriented
toward the centre of the cylinder head.

•

An I indicates the intake camshaft.

•

An E indicates the exhaust camshaft.

•

The number indicates the journal position from
the front of the engine.



Figure 6A1 – 243

4

Remove the camshaft bearing cap bolts (1) and
caps (2).

Figure 6A1 – 244

Engine Mechanical – V6

Page 6A1–150



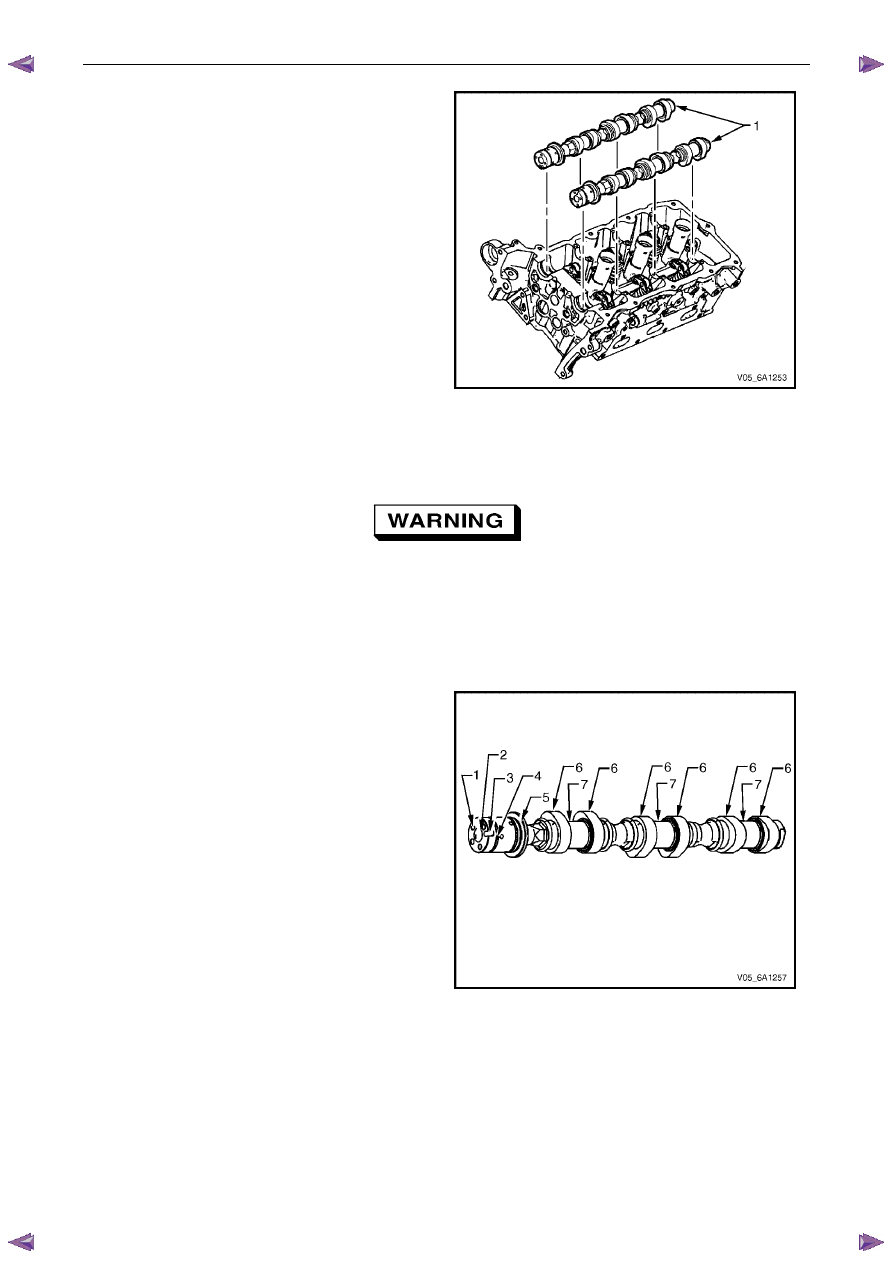

5

Remove the camshafts (1).



Figure 6A1 – 245

Clean

1

Clean the camshaft in solvent.



Safety glasses must be worn when using
compressed air.

2

Dry the camshaft with compressed air.

Inspect

Camshaft Visual Inspection

1

Inspect the threaded hole (2) for damage.

2

Inspect the camshaft sprocket locating notch (3) for
damage or wear.

3

Inspect the camshaft sealing grooves (4) for damage.

4

Inspect the camshaft thrust surface (5) for damage.

5

Inspect the camshaft lobes (6) and journals (7) for the
following conditions:
•

Excessive scoring or pitting

•

Discoloration from overheating

•

Deformation from excessive wear, especially
the camshaft lobes

6

If any of the above conditions exist on the camshaft,
replace the camshaft.

Figure 6A1 – 246

Engine Mechanical – V6

Page 6A1–151



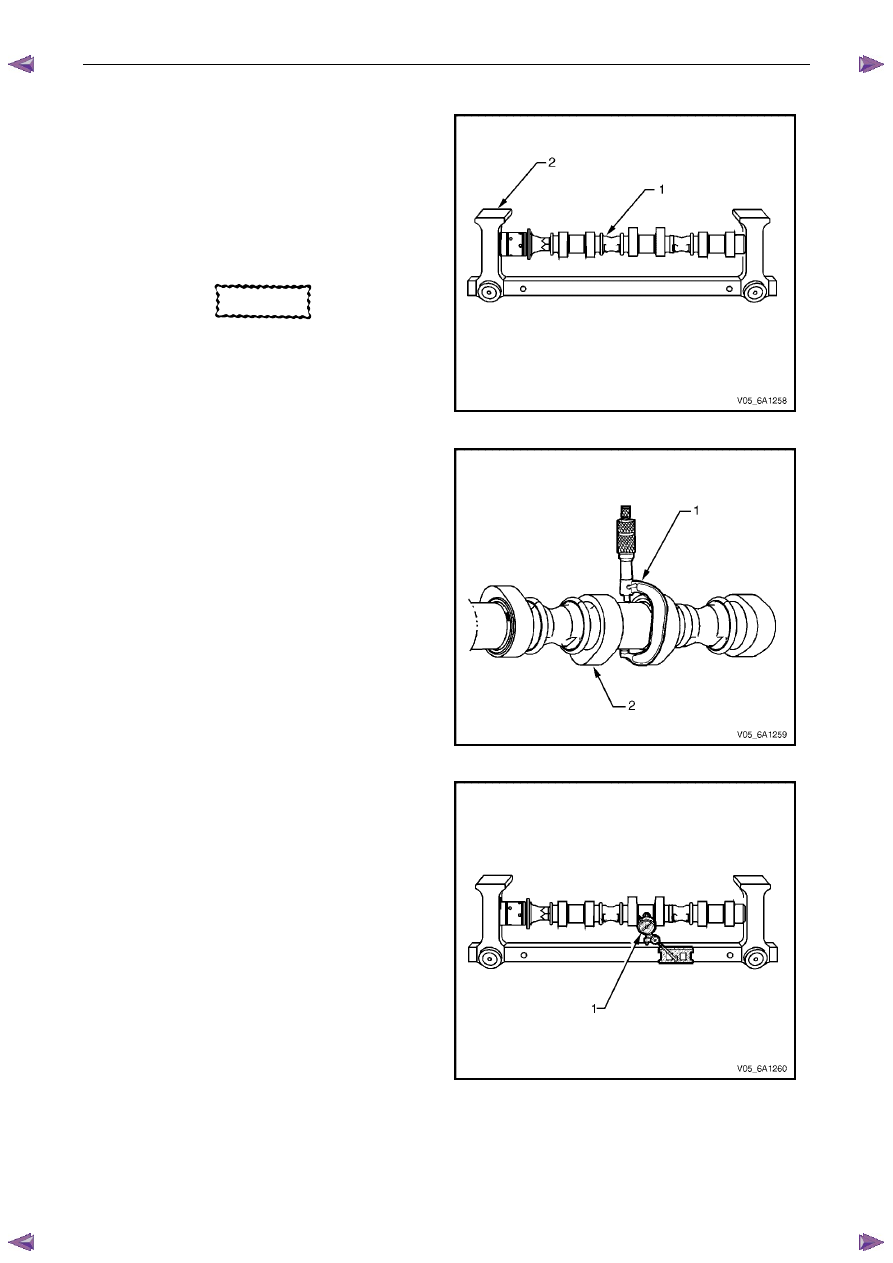

Camshaft Measurement

1

With the camshaft (1) in a suitable fixture (2),
measure the camshaft for wear.

2

For camshaft measurement, refer to the following
specifications, 5

Specifications.



N O T E

If the camshaft measures outside the specified
range, replace the camshaft.

CAUTION



No machining of the camshaft is allowed.

Figure 6A1 – 247

3

Measure the camshaft (2) journals for diameter and
out-of-round using an outside micrometer (1).



Figure 6A1 – 248

4

Measure the camshaft runout using a dial
indicator (1).



Figure 6A1 – 249

Engine Mechanical – V6

Page 6A1–152



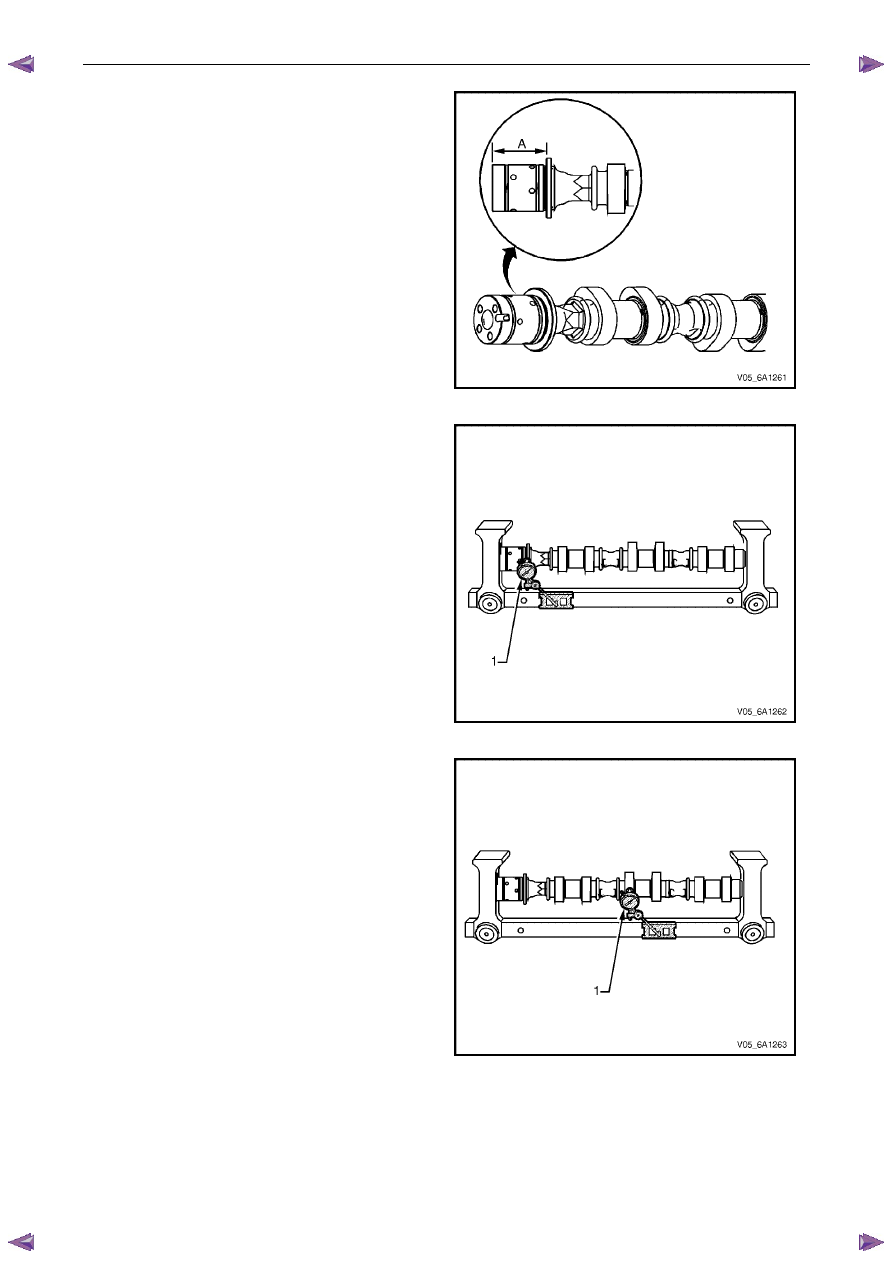

5

Measure the camshaft thrust width for wear using a
depth micrometer (A).



Figure 6A1 – 250

6

Measure the camshaft thrust wall surface for runout
using a dial indicator (1).



Figure 6A1 – 251

7

Measure the camshaft lobes for wear using a dial
indicator (1).



Figure 6A1 – 252
