6A-140 ENGINE MECHANICAL (4JK1/4JJ1) Lubrication System Service Precautions • During each disassembly, remove the old gasket adhering to each part and mating part completely using a scraper at the location, where the fluid gasket is to be used, clean the traces of oil, moisture, and dirt completely using waste cotton and apply the specified new fluid gasket at each location.

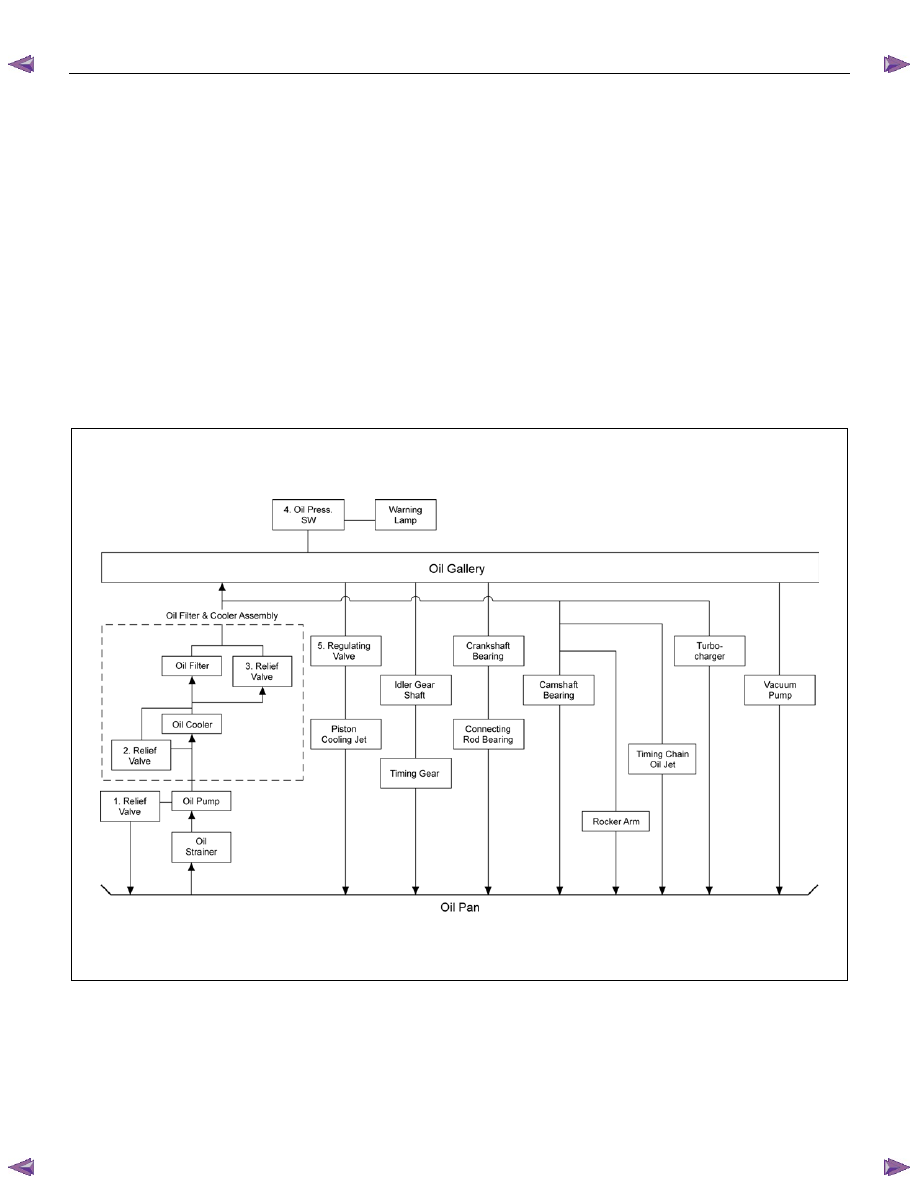

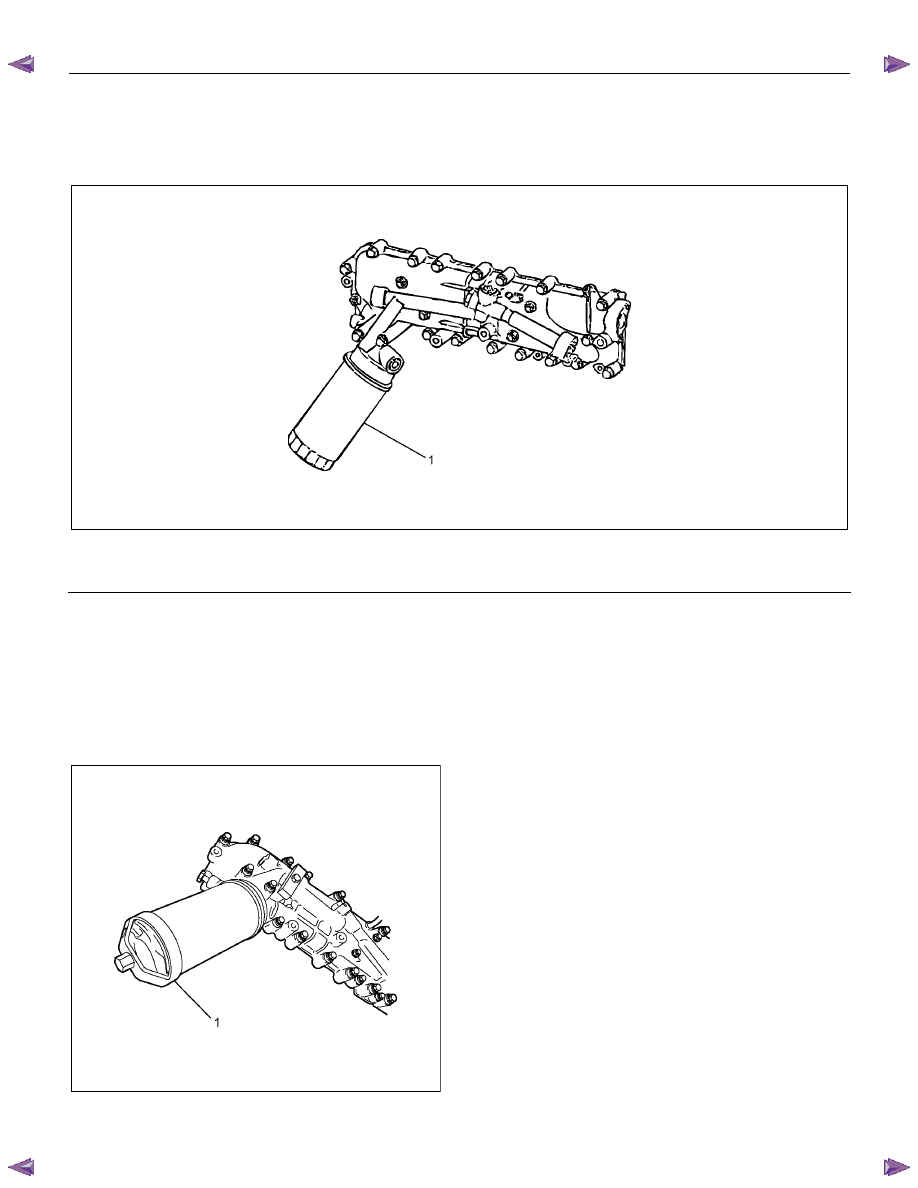

• Avoid excessive or insufficient coating volume. Note that seizure may occur in case of excessive coating due to clogging of the oil gallery and oil jet, and oil and water leakage may occur if the coating is insufficient. • Always, the start and end of the application should be overlapped. Explanations on functions and operation The lubrication system uses the filter element combined Lubricating system diagram
LNW76ALF000201

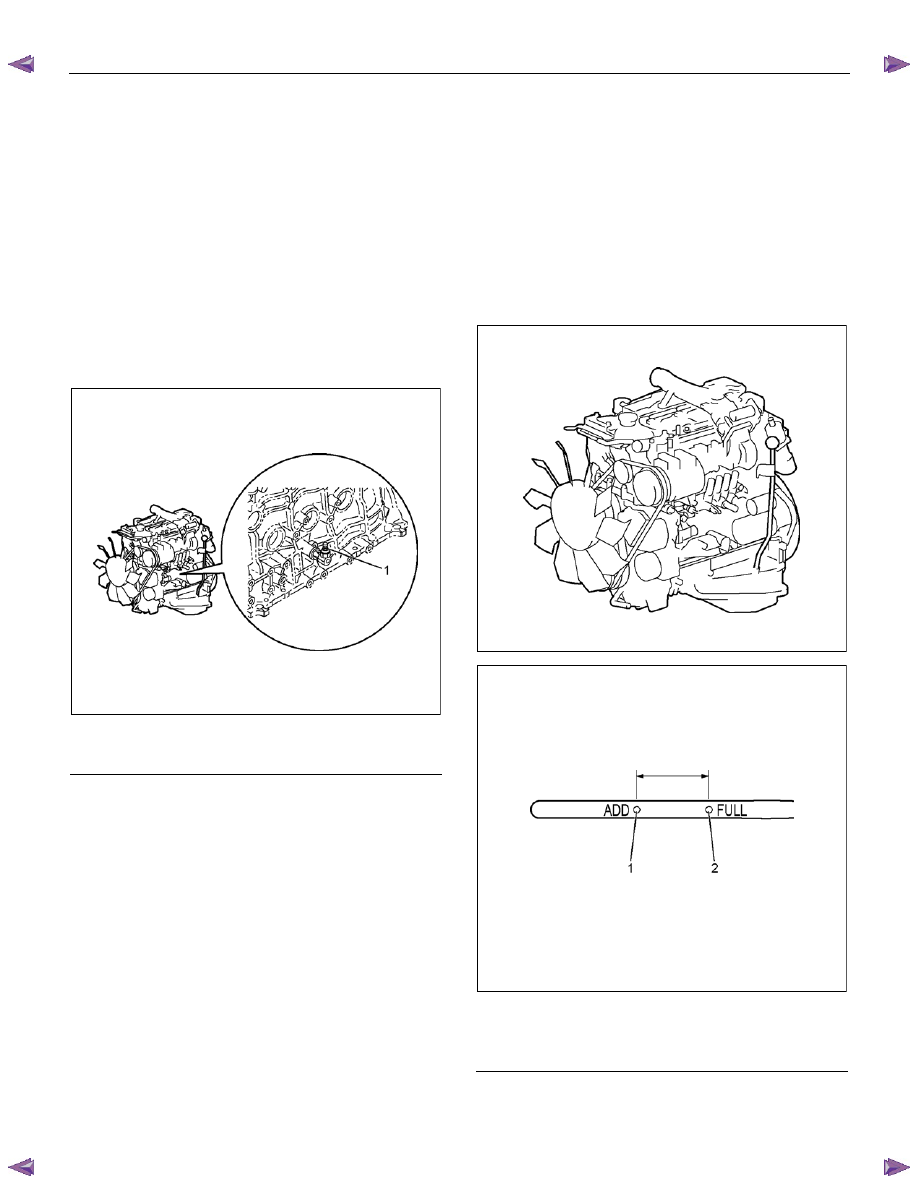

1. Oil Pump Relief Valve Operating Pressure: 490 – 686 kPa (5.0 – 7.0 kg/cm 2 / 71 – 100 psi) 2. Oil Cooler Relief Valve Opening Pressure: 176 – 216 kPa (1.8 – 2.2 kg/cm 2 / 26 – 31 psi) 3. Oil Filter Relief Valve Opening Pressure: 80 – 120 kPa (0.8 – 1.2 kg/cm 2 / 11 – 17 psi) 4. Oil Pressure Switch Operating Pressure: 29.4 – 49.0 kPa (0.3 – 0.5 kg/cm 2 / 4.3 – 7.1 psi) 5. Regulating Valve: 176 – 216 kPa (1.8 – 2.2 kg/cm 2 / 26 – 31 psi)
|
