10-62 CAB

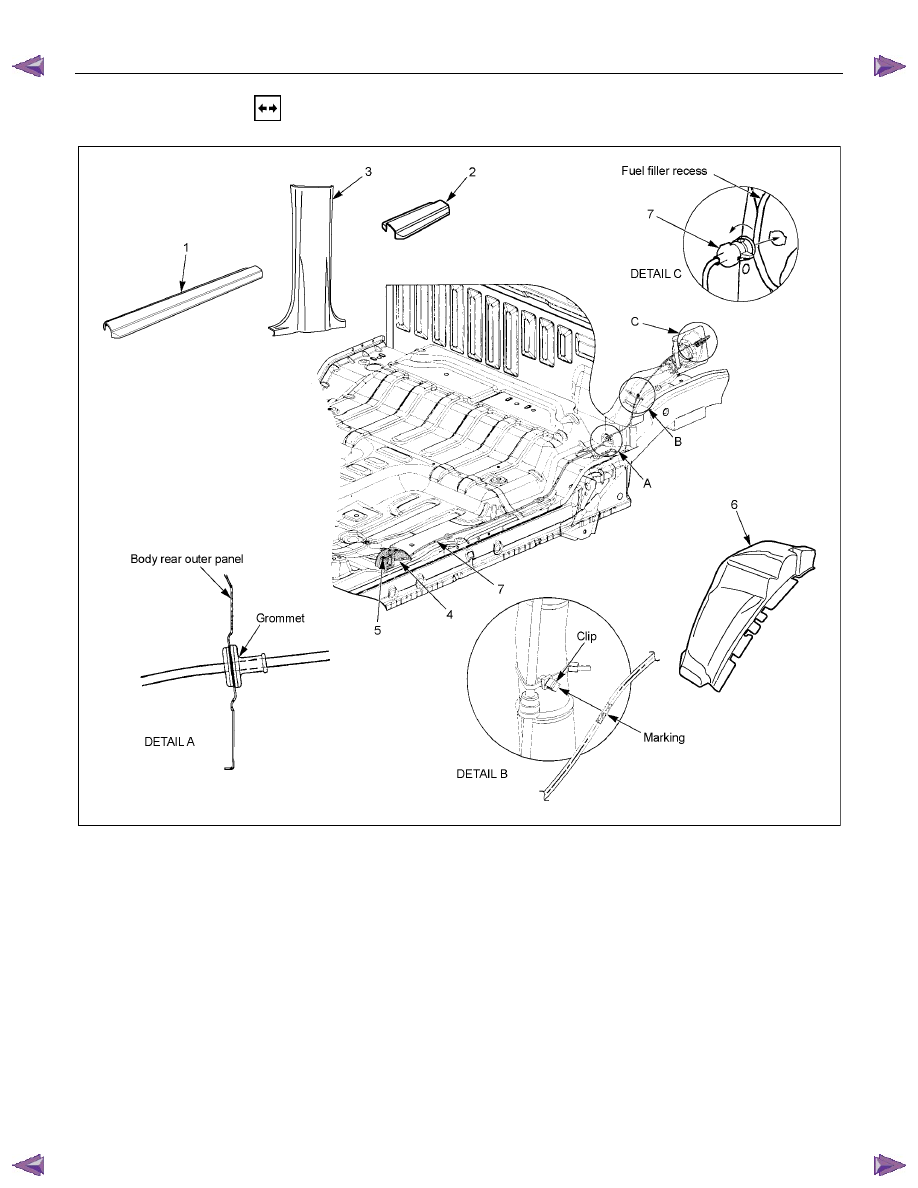

REMOVAL (CREW CAB LHD MODEL)

RTW4A0LF000301

Removal Steps

▲ 1. Front sill plate
▲ 2. Rear sill plate

3. Center pillar lower trim cover

▲ 4. Fuel filler lid opener cover
▲ 5. Fuel filler lid opener lever

6. Rear wheel housing extension panel

▲ 7. Fuel filler lid cable assembly

CAB 10-63

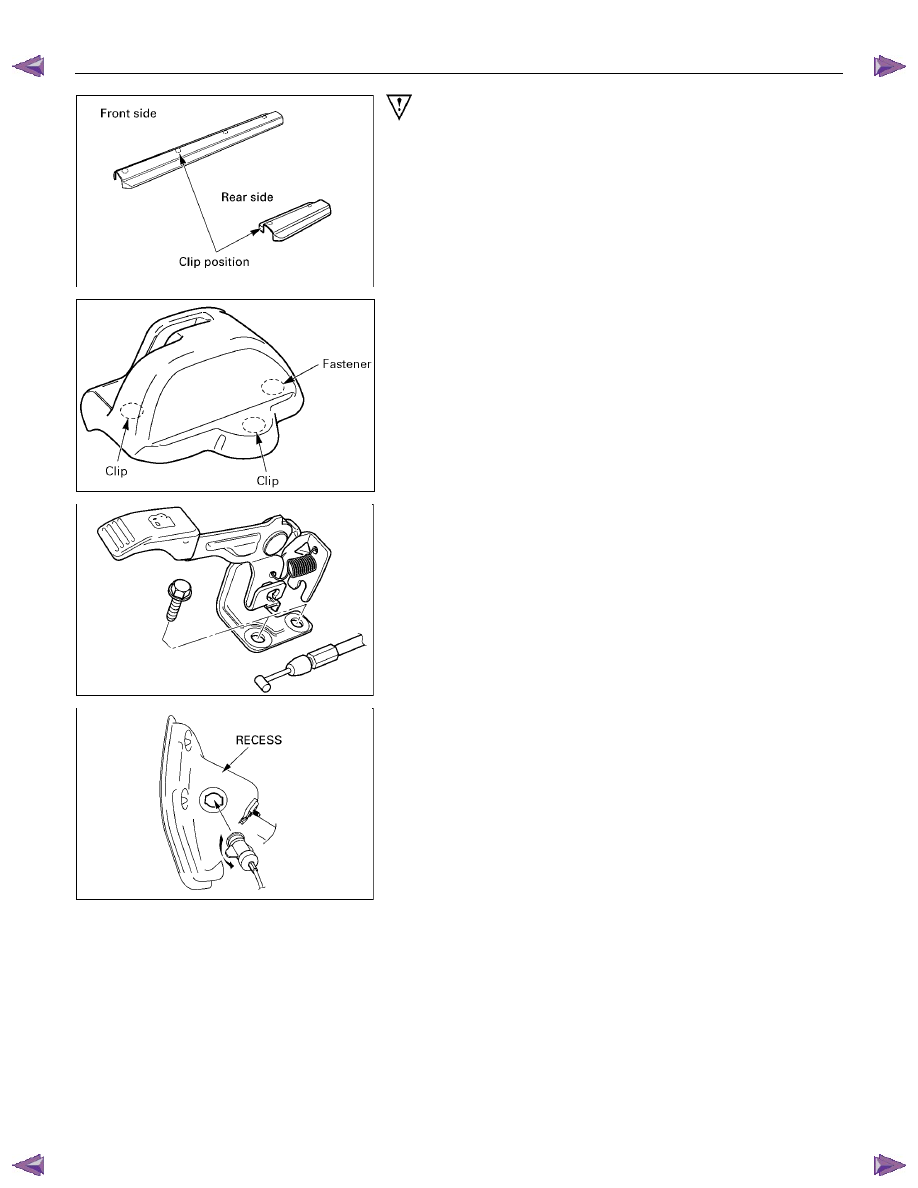

Important Operations - Removal

1. Front Sill Plate

• Pull out the 4 clip positions.

2. Rear Sill Plate

• Pull out the 2 clip positions.

4. Fuel Filler Lid Opener Cover

• Pull out the 3 clip positions.

5. Fuel Filler Lid Opener Lever

• Remove the 2 opener fixing bolts and disconnect the

cable.

7. Fuel Filler Lid Cable Assembly

• Remove some fixing clips, turn the cable holder on the

side of the recess at 90

° counterclockwise and remove it

from the recess. Pull out the grommet in the direction of

the front of the vehicle and remove the cable assembly.

10-64 CAB

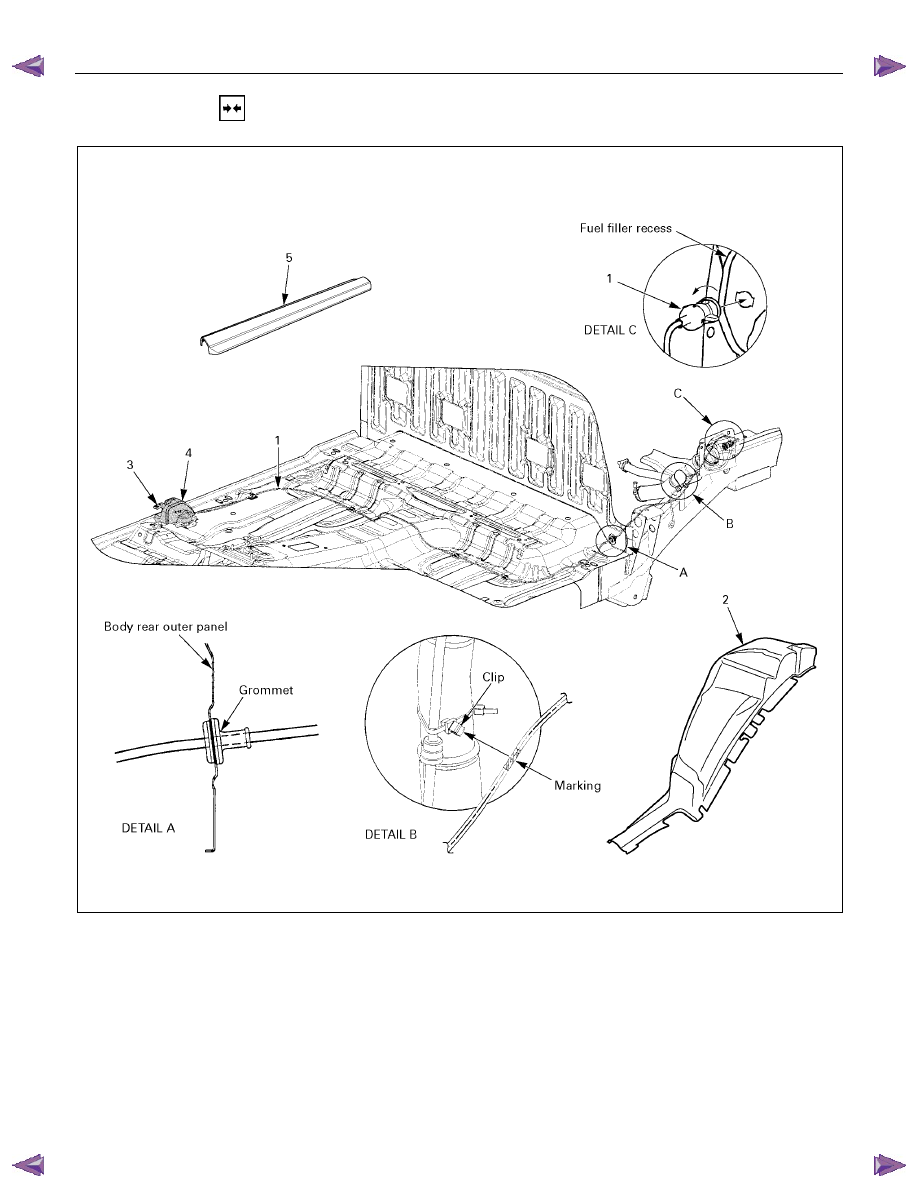

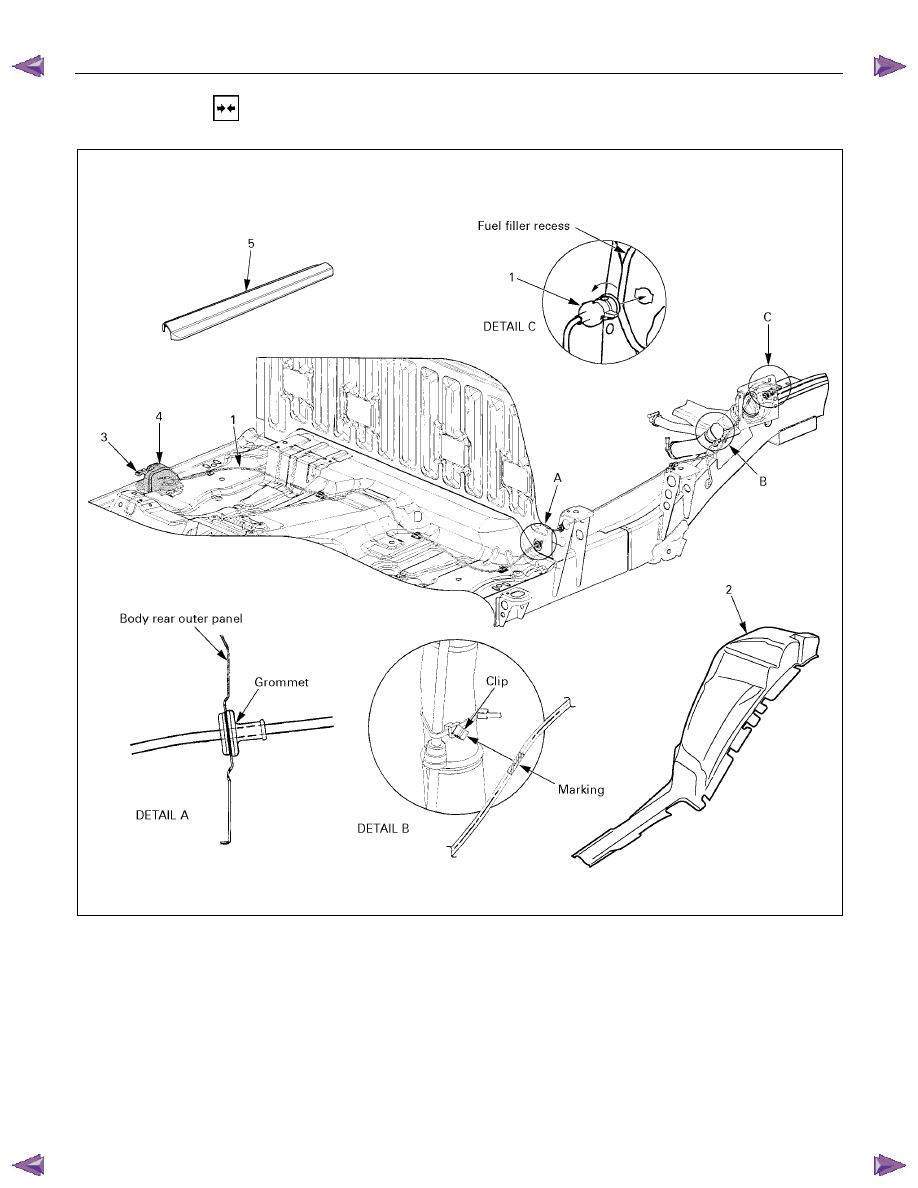

INSTALLATION (REGULAR CAB RHD MODEL)

686R300017

Installation Steps

▲ 1. Fuel filler lid cable assembly

2. Rear wheel housing extension panel

3. Fuel filler lid opener lever

4. Fuel filler lid opener cover

5. Front sill plate

CAB 10-65
