10-30  CAB





RUW5A0SH002701




12. Instrument Panel Assembly & Cross Beam

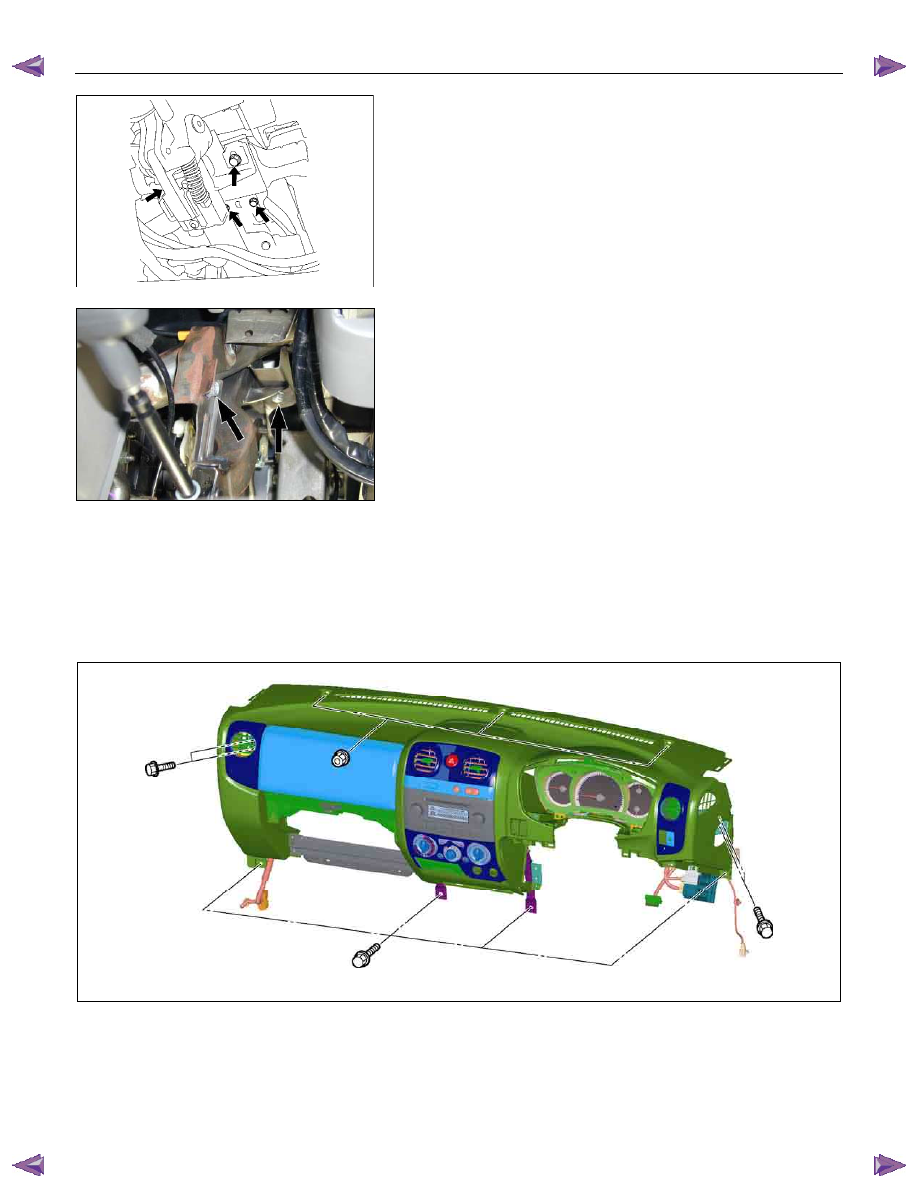

1)  Remove the two bolts fixing the steering column to the

cross beam and the two bolts fixing the brake pedal

bracket to the cross beam.





2)  Remove the two bolts fixing the parking brake bracket to

the cross beam (Stick type parking brake only).







3)  Disconnect the control cables at the blower unit and vent

unit.

4) Remove the fasteners fixing the instrument panel and

cross beam assembly and the body panel.

5)  Disconnect the instrument harness connectors.







This illustration is based on RHD model

RTW7A0SF000201

CAB  10-31







RTW7A0SH000301






13.Ashtray Case

•  Pull out the ashtray case.

14. Center Cluster Assembly

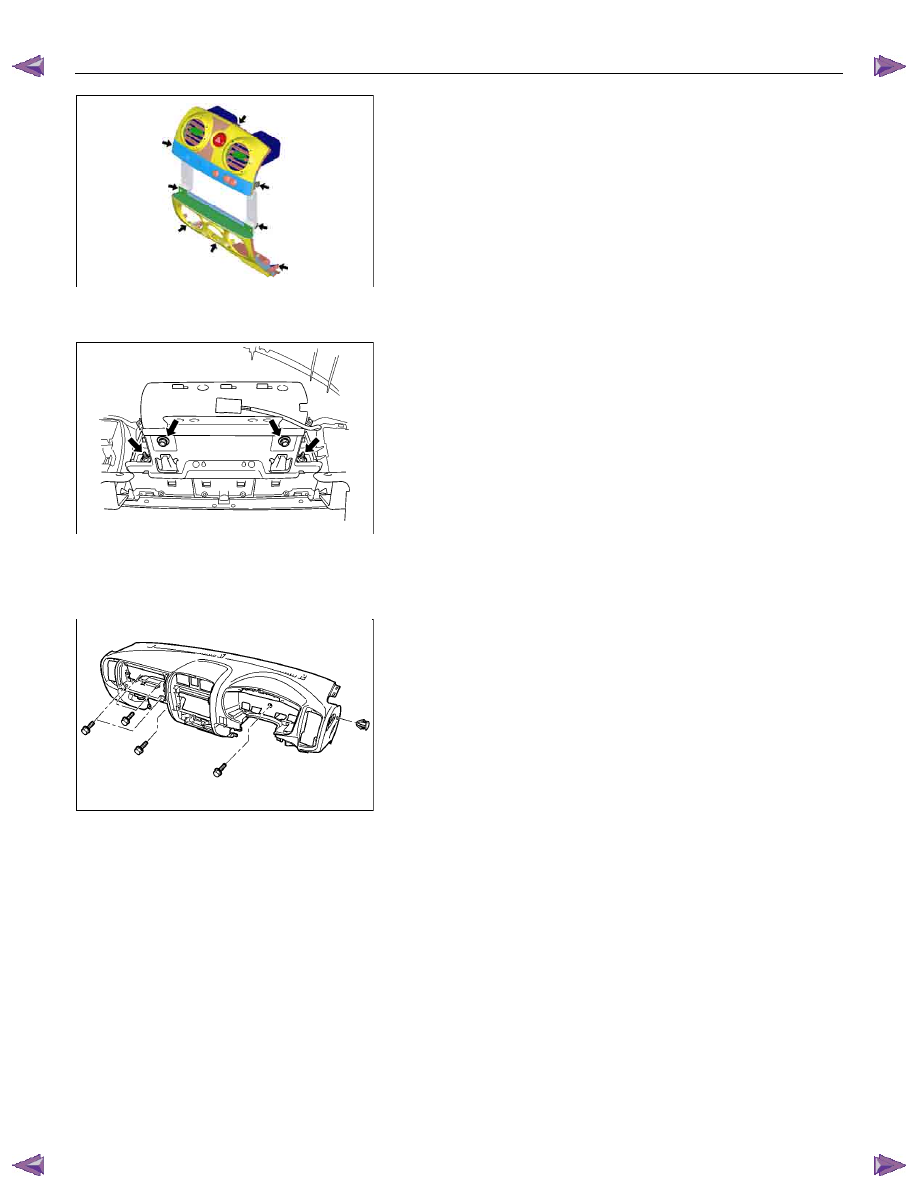

1)  Pull out the cluster at the 8 clip positions.

2) Disconnect the cigarette lighter, accessory socket,

hazard switch, clock and 4WD switch connectors.

16. Control Lever Assembly

•  Remove the 2 fixing screws.

18.Ashtray Bracket

•  Remove the 3 fixing screws and illumination connector.







RTW6A0SH000301





Caution:

For precautions on installation or removal of the SRS-air
bag system, refer to section 9 "Supplemental Restraint
System (SRS) - AIR BAG".

23. Passenger Air Bag

•  Remove 2 fixing bolts, 2 fixing nuts and connector.

24. Side Ventilation Grille.

•  Pull out the grilles and disconnect the switch connector

(Driver’s side).

25. Vent Duct Assembly/Defroster Nozzle Assembly

•  Refer to section 1 “HVAC” for the defroster nozzle and

ventilation duct removal steps.







27. Instrument Panel Assembly

•  Remove the clip and 6 fixing bolts.





10-32  CAB

  INSTALLATION






18

19

19

19

18

24

23

1

3

2

20

21

27

8

22

25

26

17

9

6

5

5

7

28

14

10

11

15

13

16

12

4

This illustration is based on RHD model



RTW7A0LF001401



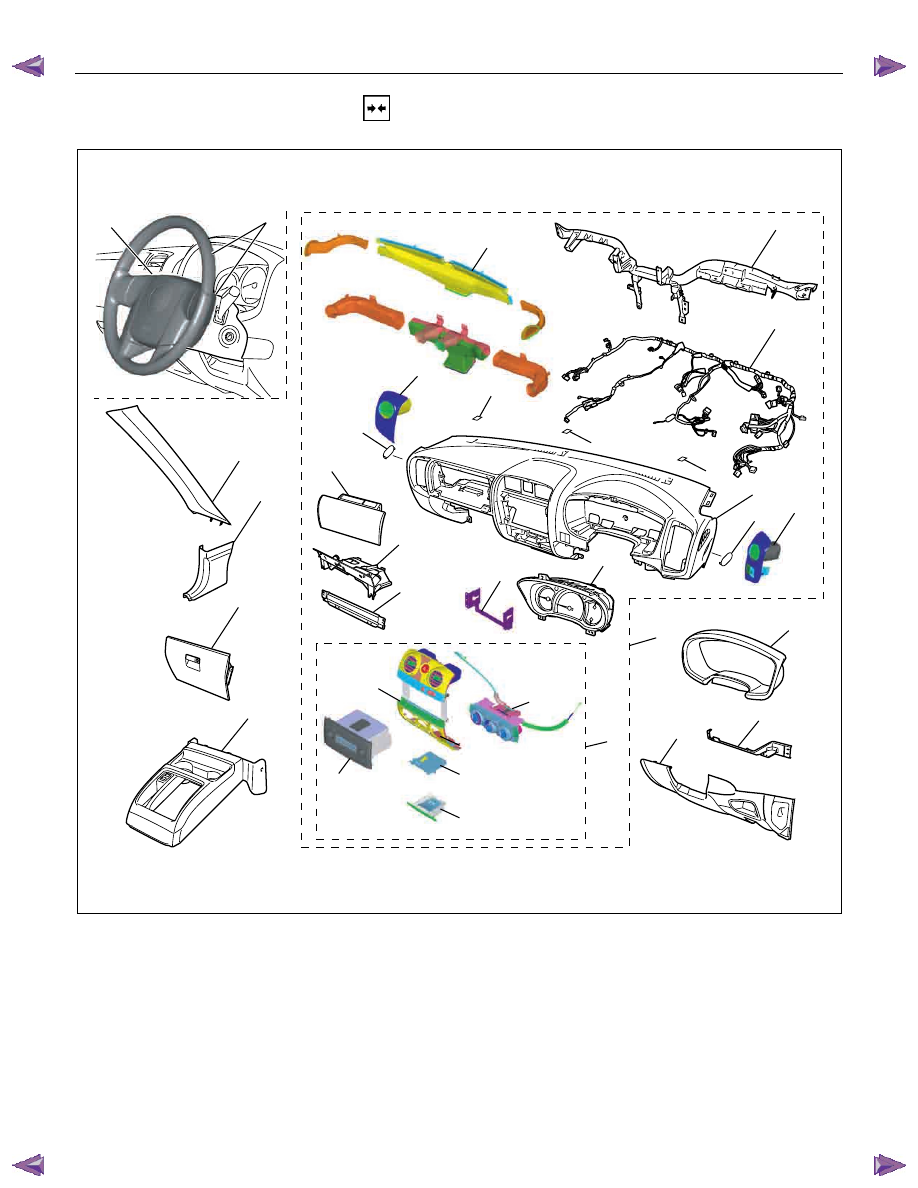

Installation Steps



1. Cross beam



2. Instrument panel assembly



3. Instrument harness assembly



4. Vent duct assembly/Defroster nozzle

assembly



5. Side ventilation grille



6. Passenger air bag



7. Glove box cover



8. Passenger lower bracket



9. Meter assembly







10. Center cluster



11. Ashtray bracket



12. Audio assembly



13. Control lever assembly



14. Audio bracket



15. Center cluster assembly



16. Ashtray case

▲ 17. Instrument panel assembly & Cross

beam



18. Side cover

CAB  10-33



19. Front cover



20. Front pillar trim cover



21. Dash side trim cover



22. Meter cluster assembly

▲ 23. Steering wheel/Steering cowl


24. Driver air bag







25. Driver knee bolster assembly



26. Instrument panel driver lower cover

assembly



27. Glove box



28. Front console assembly
