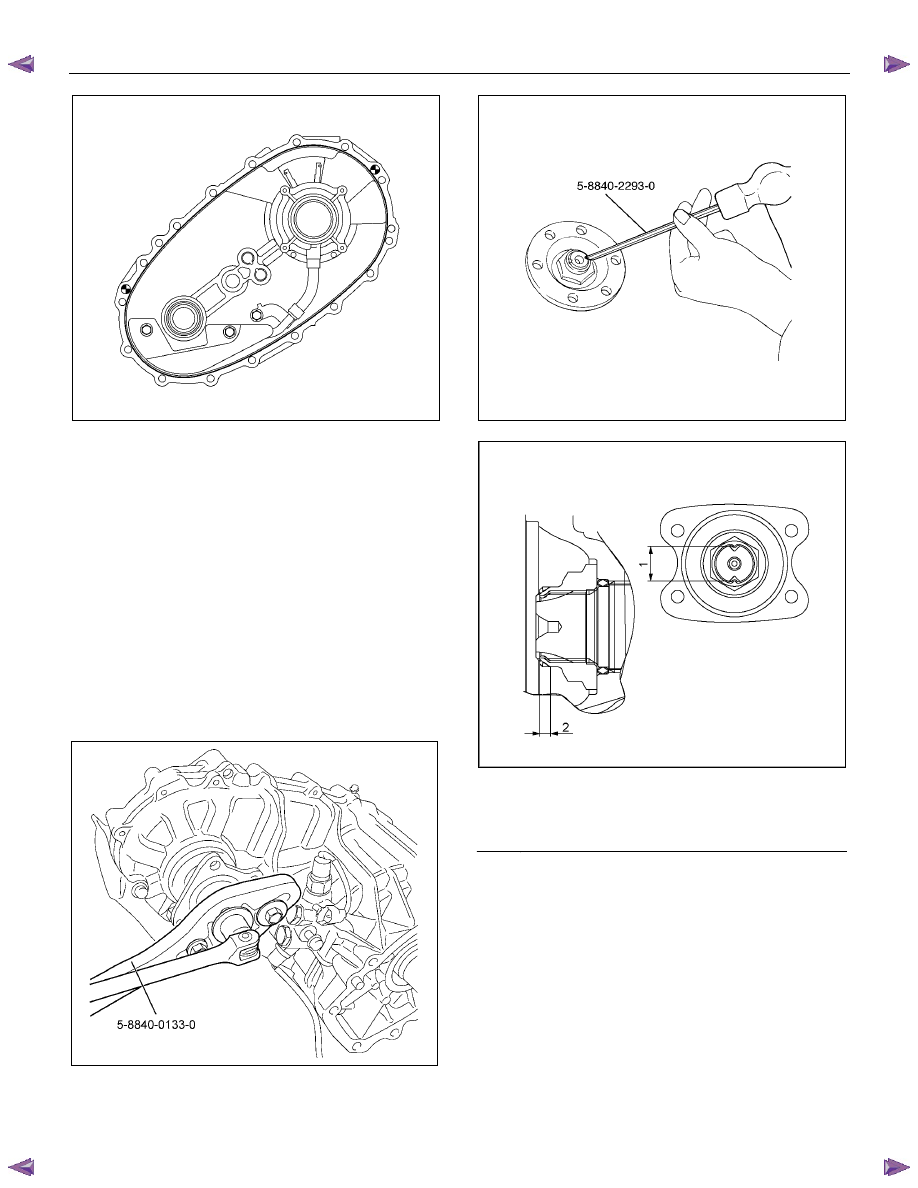

7D-38 TRANSFER CASE 226R300011 36. Install the rear cover to the transfer case and tighten the bolts to the specified torque. Rear cover and transfer case bolt torque: 22 N·m (2.2 kgf·m/16 lb·ft) 37. Apply engine oil to the companion flange O-ring. 38. Install the O-ring to the front output shaft. 39. Secure the front companion flange with a flange holder (5-8840-0133-0). 40. Install the end nuts and tighten them to the specified torque.

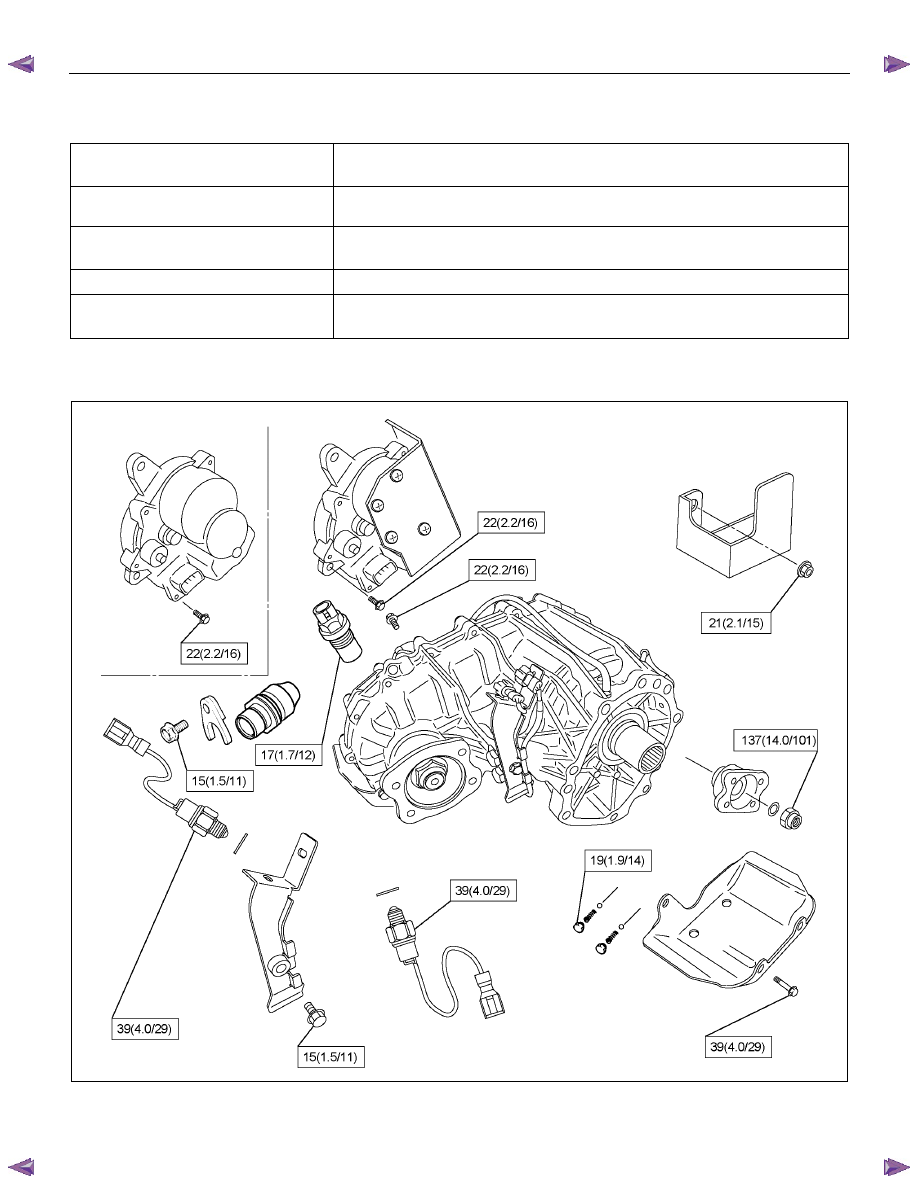

Front companion flange end nut torque: 137 N·m (14.0 kgf·m/101 lb·ft)

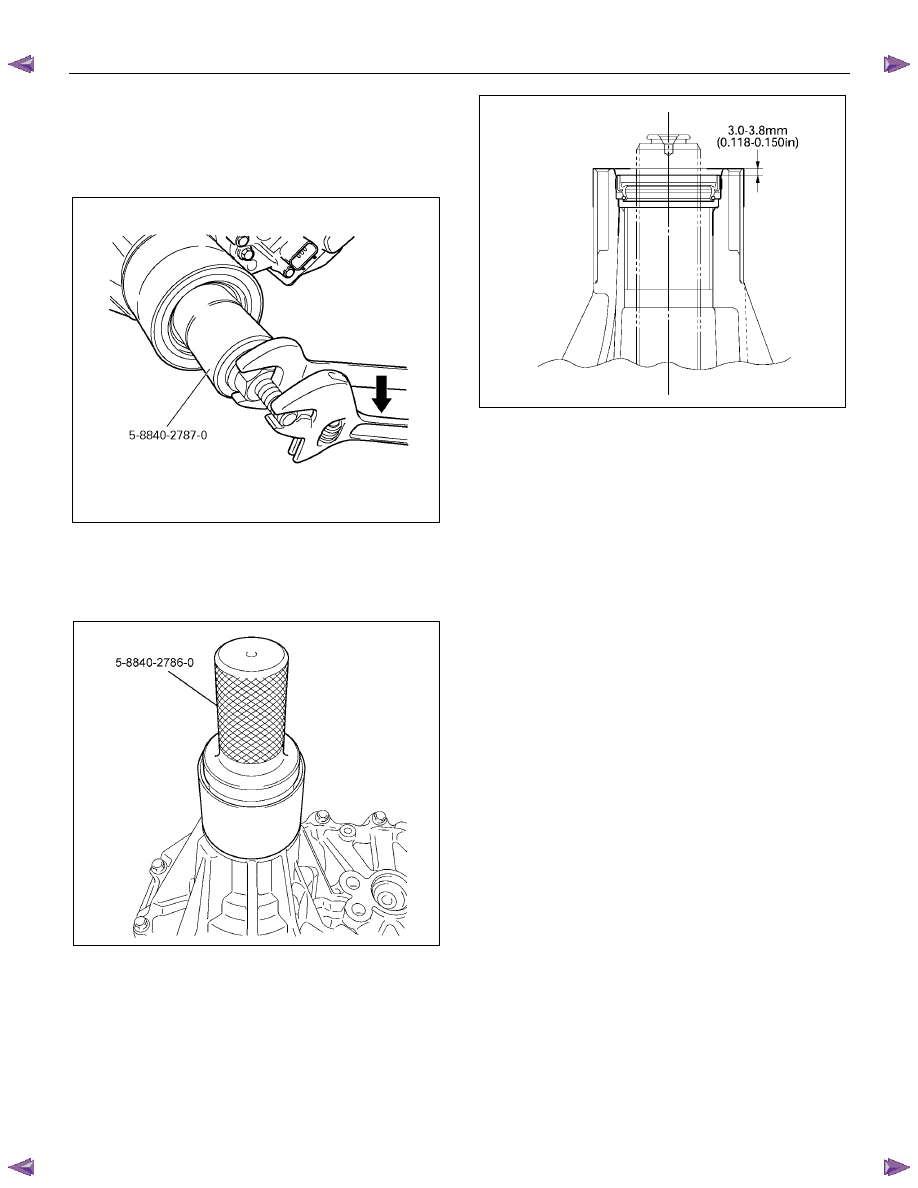

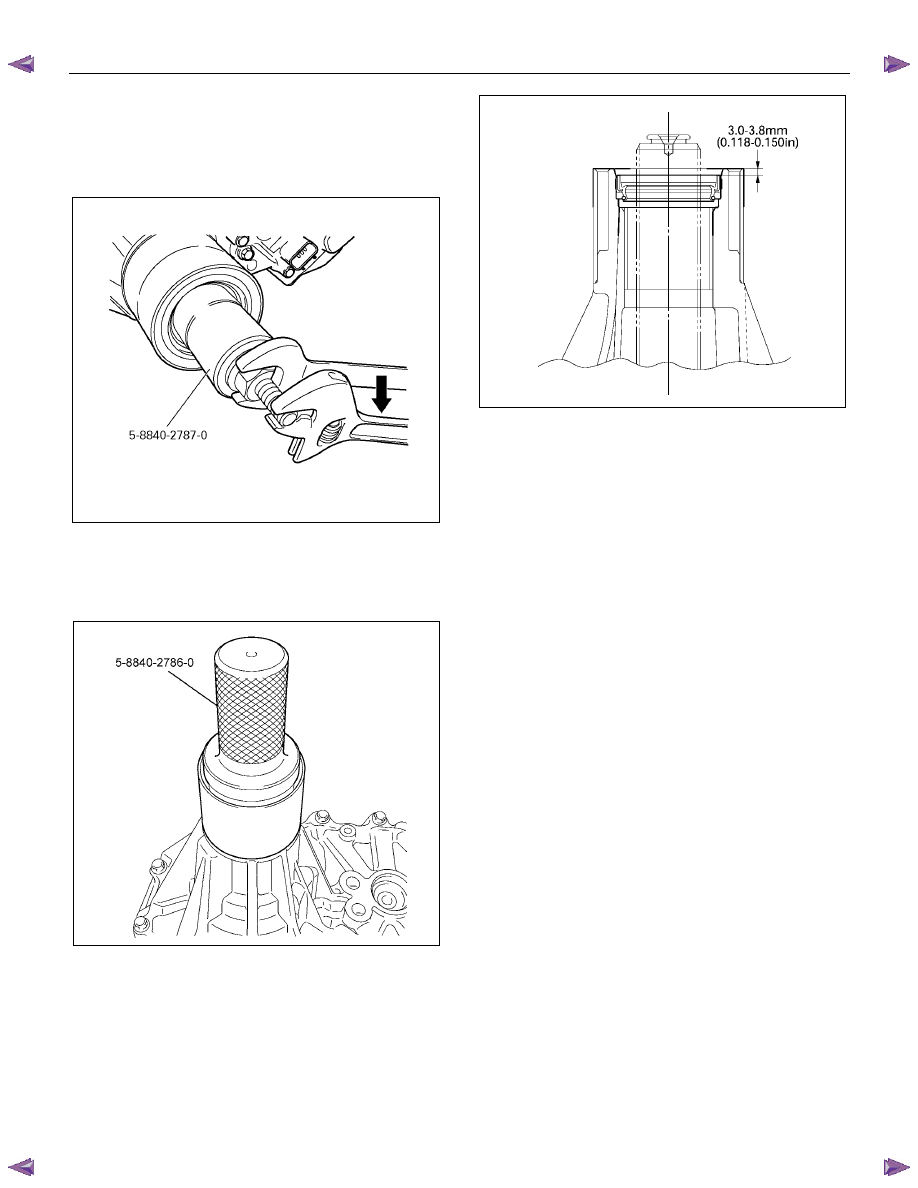

RTW77DSH000201 companion flange end nut.
226R300012 RUW34DSH000301
Legend (1) MAX 26mm (1.02 in) (2) MIN 4mm (0.16 in) detente plugs.
|
