1-34  HEATER AND AIR CONDITIONING




REFRIGERANT RECYCLING

Recycle the refrigerant recovered by ACR

4

 or equivalent.

For the details of the actual operation, follow the steps in the

ACR

4

 Manufacturer's Instructions.

ACR

4

 (115V 60Hz)  :5-8840-0629-0 (J-39500-A)

ACR

4

 (220-240V 50/60Hz)



: 5-8840-0630-0 (J-39500-220A)

ACR

4

 (220-240V 50/60Hz Australian model)



: 5-8840-0631-0 (J-39500-220ANZ)



F06R300014






EVACUATION OF THE REFRIGERANT

SYSTEM

NOTE:
Explained below is a method using a vacuum pump. Refer

to the ACR

4

 (or equivalent) Manufacturer's Instructions

when evacuating the system with ACR

4

 (or equivalent).



Air and moisture in the refrigerant will cause problems in the air

conditioning system.

Therefore, before charging the refrigerant, be sure to evacuate

air and moisture thoroughly from the system.

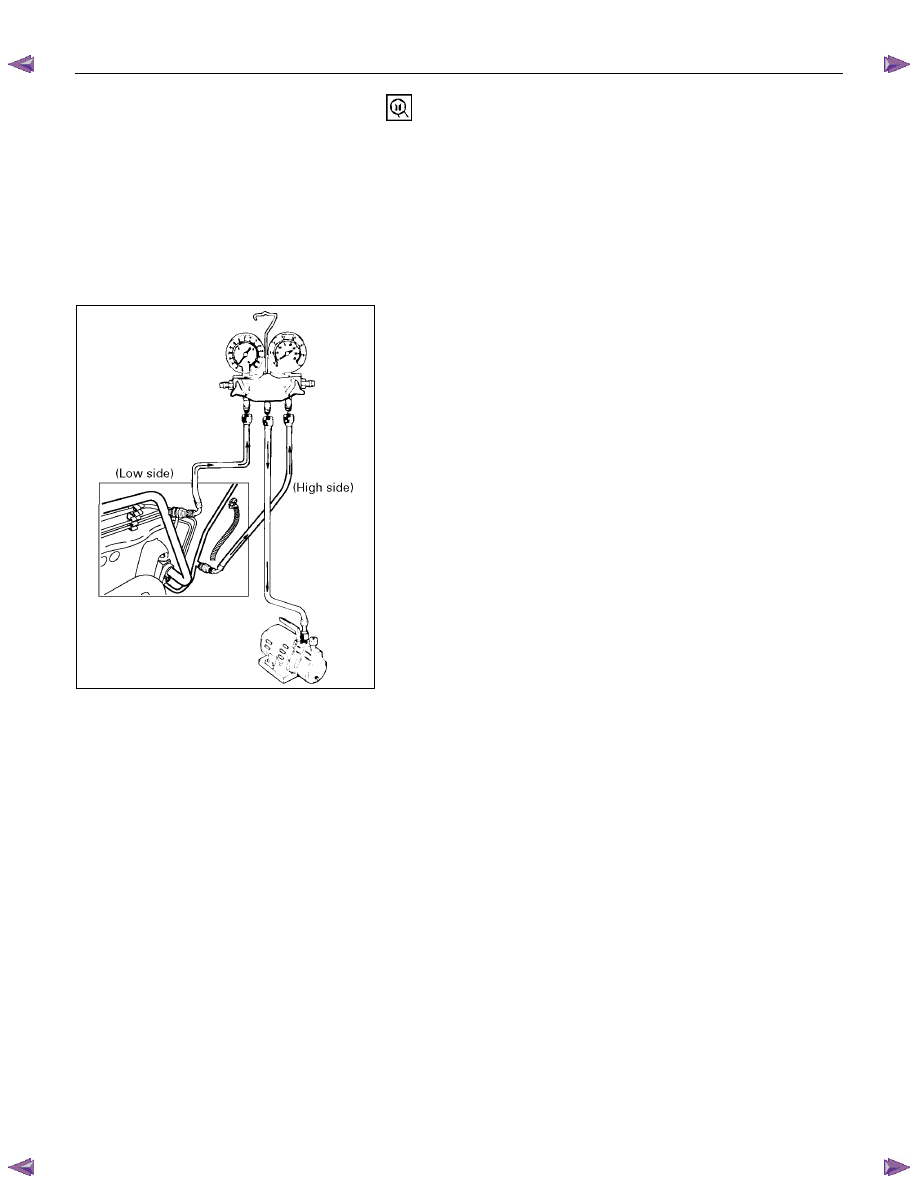

1)  Connect the gauge manifold.

••••  High-pressure valve (HI) - Discharge-side
••••  Low-pressure valve (LOW) - Suction-side

2)  Discharge and recover the refrigerant.

3)  Connect the center hose of the gauge manifold set to the

vacuum pump inlet.

4)  Operate the vacuum pump, open shutoff valve and then

open both hand valves.

5)   When the low-pressure gauge indicates approx.  100kPa

(750 mmHg/30 inHg), continue the evacuation for 5 minutes

or more.

6)  Close both hand valves and stop the vacuum pump.






7)  Check to ensure that the pressure does not change after 10

minutes or more.
••••  If the pressure changes, check the system for leaks.
••••  If leaks occur, retighten the refrigerant line connections

and repeat the evacuation steps.

8)  If no leaks are found, again operate the vacuum pump for

20 minutes or more. After confirming that the gauge

manifold pressure is at 100 kPa (750 mmHg/30 inHg), close

both hand valves.

9)  Close positive shutoff valve.



Stop the vacuum pump and disconnect the center hose

from the vacuum pump.



HEATER AND AIR CONDITIONING  1-35

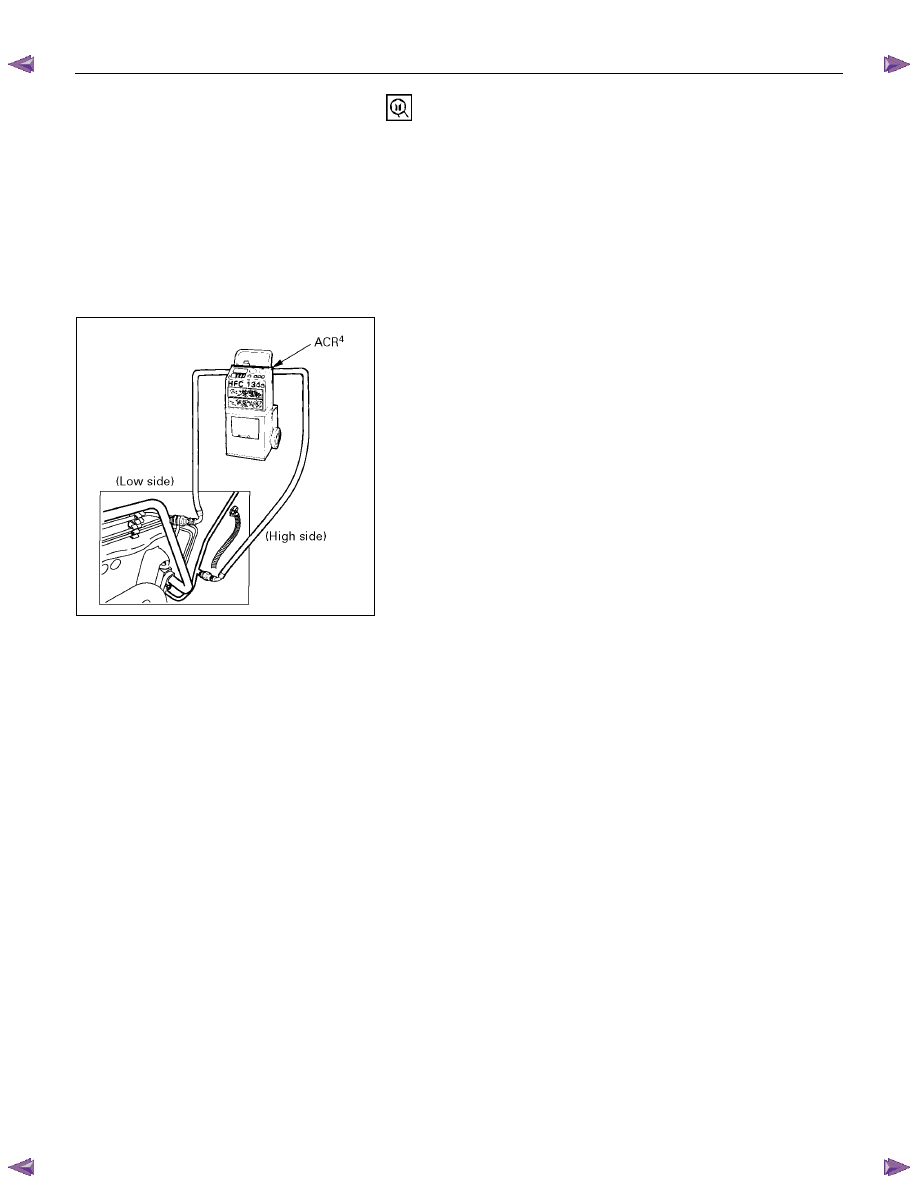

CHARGING THE REFRIGERANT SYSTEM

There are various methods of charging refrigerant into the air
conditioning system.
These include using the ACR

4

 (HFC-134a Refrigerant

Recovery/ Recycling/Recharging/System) or equivalent and
direct charging with a manifold gauge charging station.
ACR

4

 (115V 60Hz) : 5-8840-0629-0 (J-39500-A)

ACR

4

 (220-240V 50/60Hz)

  :

5-8840-0630-0

(J-39500-220A)

ACR

4

 (220-240V 50/60Hz Australian model)

  :

5-8840-0631-0

(J-39500-220ANZ)

F06R300012



Charging procedure

•••• ACR

4

 (or equivalent) method

For the charging of refrigerant recovered by ACR

4

, follow the

Manufacturer's Instruction.


1-36  HEATER AND AIR CONDITIONING



F06R300013

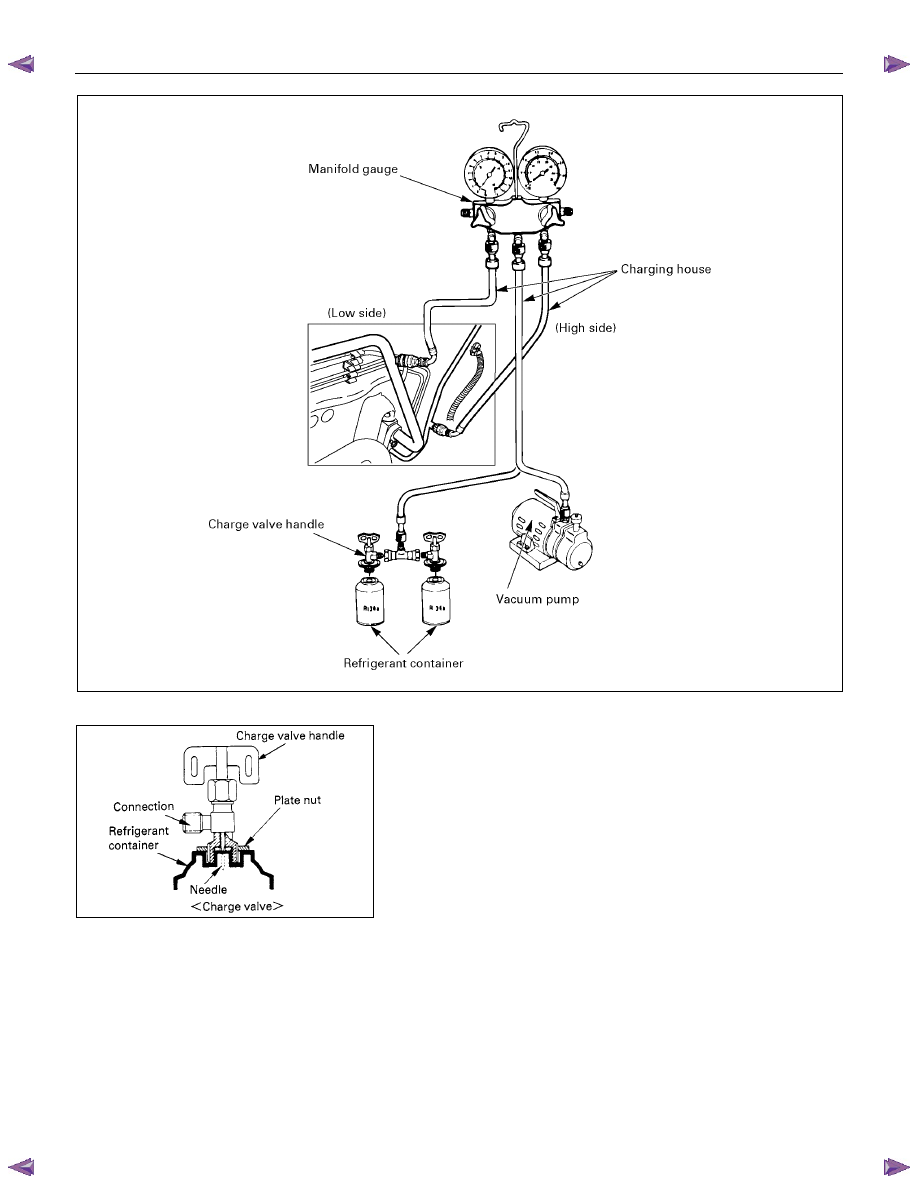

••••  Direct charging with a manifold gauge charging

station method.

Handling the charging valve handle when installing refrigerant

container.

1)  Before attaching the charge valve to the refrigerant

container, turn the charge valve handle counterclockwise

until the needle is fully retracted.

2)  Turn the plate nut counterclockwise until it reaches its

highest position relative to the charge valve.

3)  Install the charge valve onto the refrigerant container.

4)  Turn the plate nut clockwise and connect the center hose of

the manifold gauge to the charge valve.

5)  Tighten the plate nut sufficiently by hand. Then turn the

charge valve handle clockwise to lower the needle and bore

a hole in the refrigerant container.

6)  Turn the charge valve handle counterclockwise to raise the

needle.  The refrigerant in the refrigerant container is

charged into the air conditioning system by the operation of

the manifold gauge.

••••  Be absolutely sure not to reuse the emptied

HEATER AND AIR CONDITIONING  1-37

refrigerant container.






1)  Make sure the evacuation process is correctly completed.

2)  Connect the center-hose of the manifold gauge to the

refrigerant container.
••••  Turn the charge valve handle counterclockwise to purge

to the charging line and purge any air exiting in the

center-hose of the manifold gauge.

3)  Open the low-pressure hand valve and charge the

refrigerant about 200 g (0.44 lbs.).
••••  Make sure the high-pressure hand valve is closed.
••••  Avoid charging the refrigerant by turning the refrigerant

container upside down.

4)  Close the low-pressure hand valve of the manifold gauge.

••••  Check to ensure that the degree of pressure does not

change.

5)  Check the refrigerant leaks by using a HFC-134a leak

detector.
••••  If a leak occurs, repair the leak connection, and start all

over again from the first step of evacuation.

6)  If no leaks are found, open the low-pressure hand valve of

the manifold gauge. Then continue charging refrigerant to

the system.
••••  When charging the system becomes difficult:

(1) Run the engine at Idling and close the all vehicle

doors.

(2) A/C switch is "ON".

(3) Set the fan control knob (fan switch) to its highest

position.

(4) Set air source selector lever to “RECIRC”






WARNING
BE ABSOLUTELY SURE NOT TO OPEN THE HIGH-

PRESSURE HAND VALVE.  SHOULD THE HIGH-

PRESSURE HAND VALVE BE OPENED, THE HIGH-

PRESSURE REFRIGERANT GAS WOULD FLOW

BACKWARD, AND THIS MAY CAUSE THE REFRIGERANT

CONTAINER TO BURST.

7)  When the refrigerant container is emptied, use the following

procedure to replace it with a new refrigerant container.

(1) Close the low-pressure hand valve.

(2) Raise the needle upward and remove the charge valve.

(3) Reinstall the charge valve to the new refrigerant

container.

(4) Purge any air existing in the center hose of the manifold

gauge.
