PROPELLER SHAFT  4A-15

CENTER BEARING



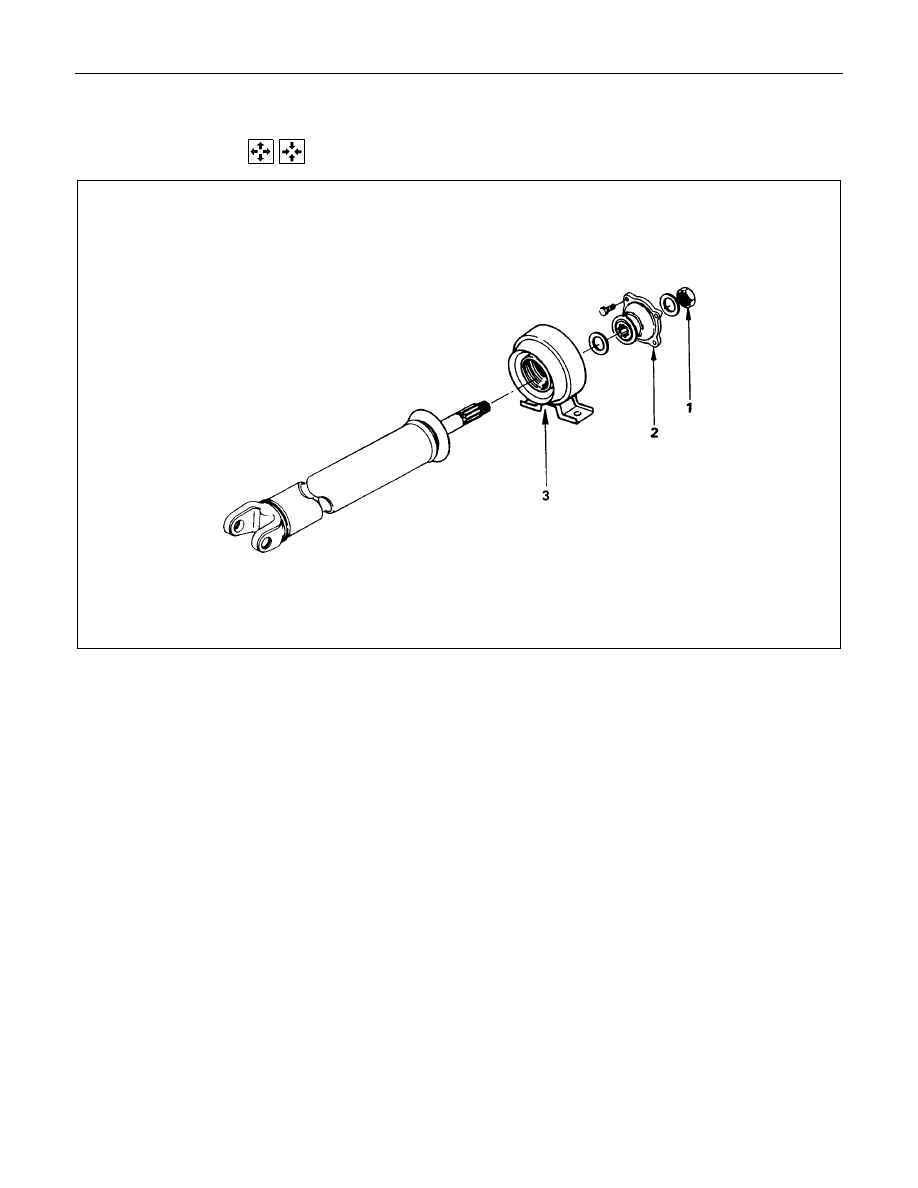

  DISASSEMBLY AND REASSEMBLY

Disassembly Steps

1. Lock nut

▲

2. Flange
3. Bearing assembly

Reassembly Steps

▲

3. Bearing assembly

▲

2. Flange

▲

1. Lock nut

4A-16  PROPELLER SHAFT

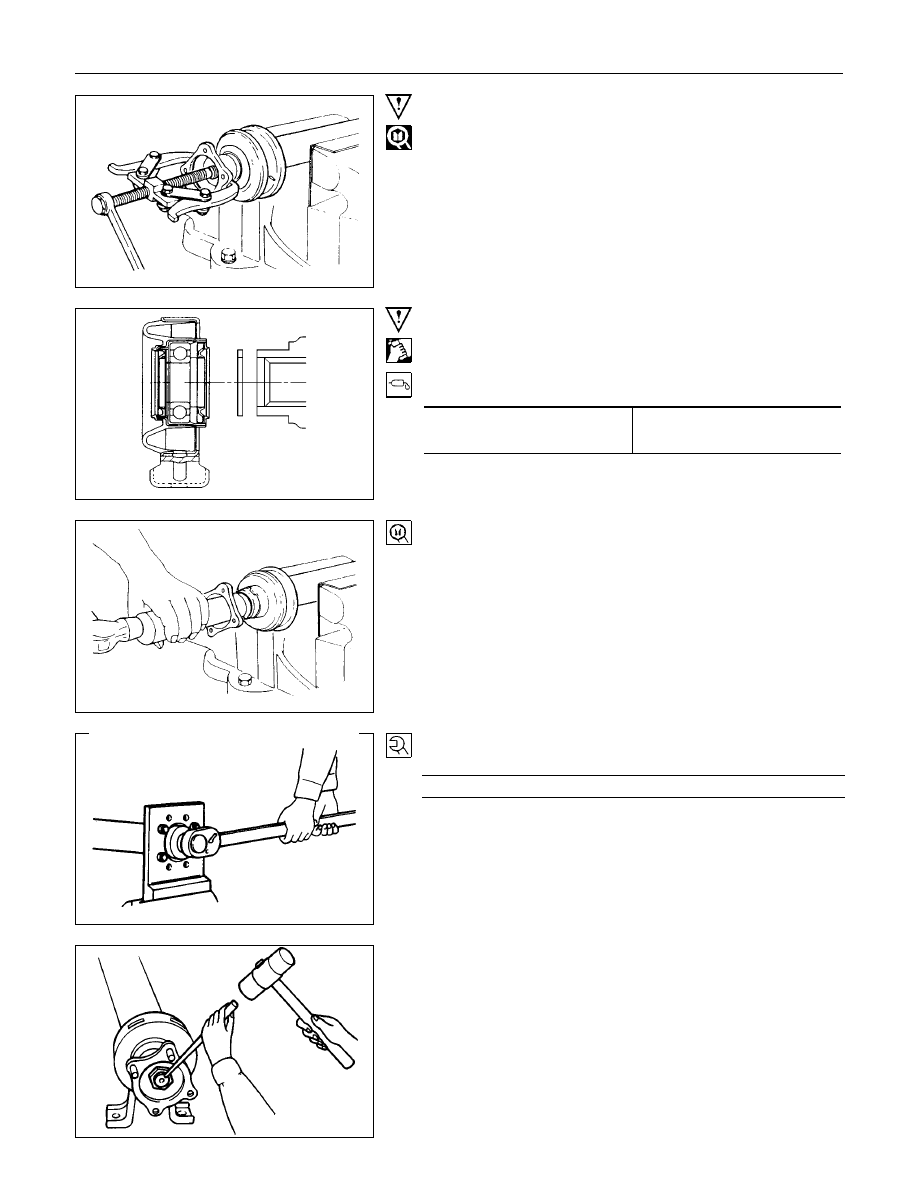

Important Operations - Disassembly

2. Flange
Use a suitable remover.

Important Operations - Reassembly

3. Bearing assembly
Clean the bearing fitting face.
Repack the grease and apply a grease to the both sides of
washer.

Amount of grease

required

g(oz)

Approx. 12 (0.42)

2. Flange
Installer : 58522-0034-0

(J-6403-C)

1. Lock nut

Lock nut Torque

N

⋅

m (kgf

⋅

m/lb

⋅

ft)

117.7 (12/86.8)

(1) Discard the flange nut and install a new one.

(2) Stake the outer face of the flange nut against the slot in the

shaft.

PROPELLER SHAFT  4A-17

SPECIAL SERVICE TOOL

ITEM NO.

ILLUSTRATION

PART NO.

PART NAME

PSL-1

5-8522-0034-0

(J-6403-C)

Pinion flange installer
