6E–9

3.2L ENGINE DRIVEABILITY AND EMISSIONS

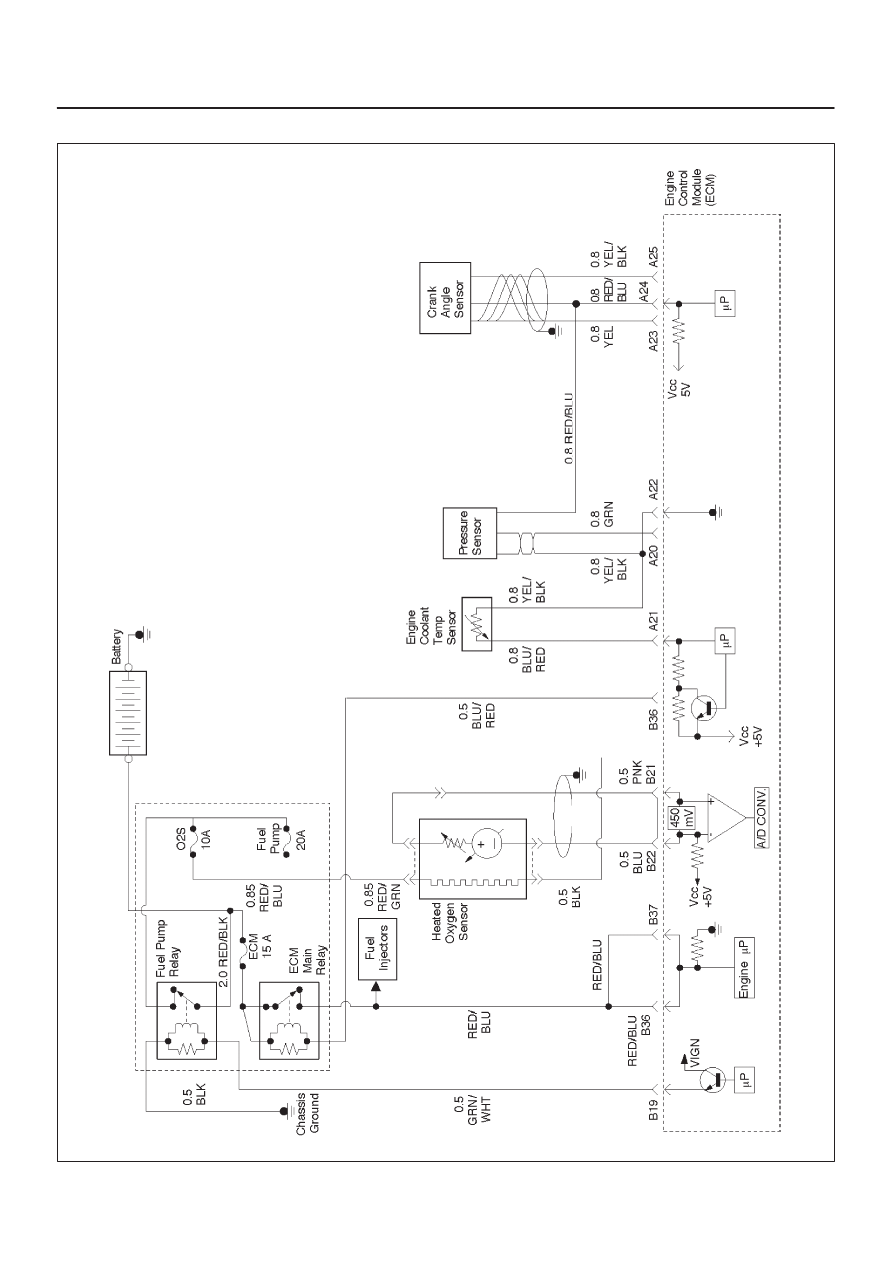

ECM Wiring Diagram (5 of 6)

060RW040

6E–10

3.2L ENGINE DRIVEABILITY AND EMISSIONS

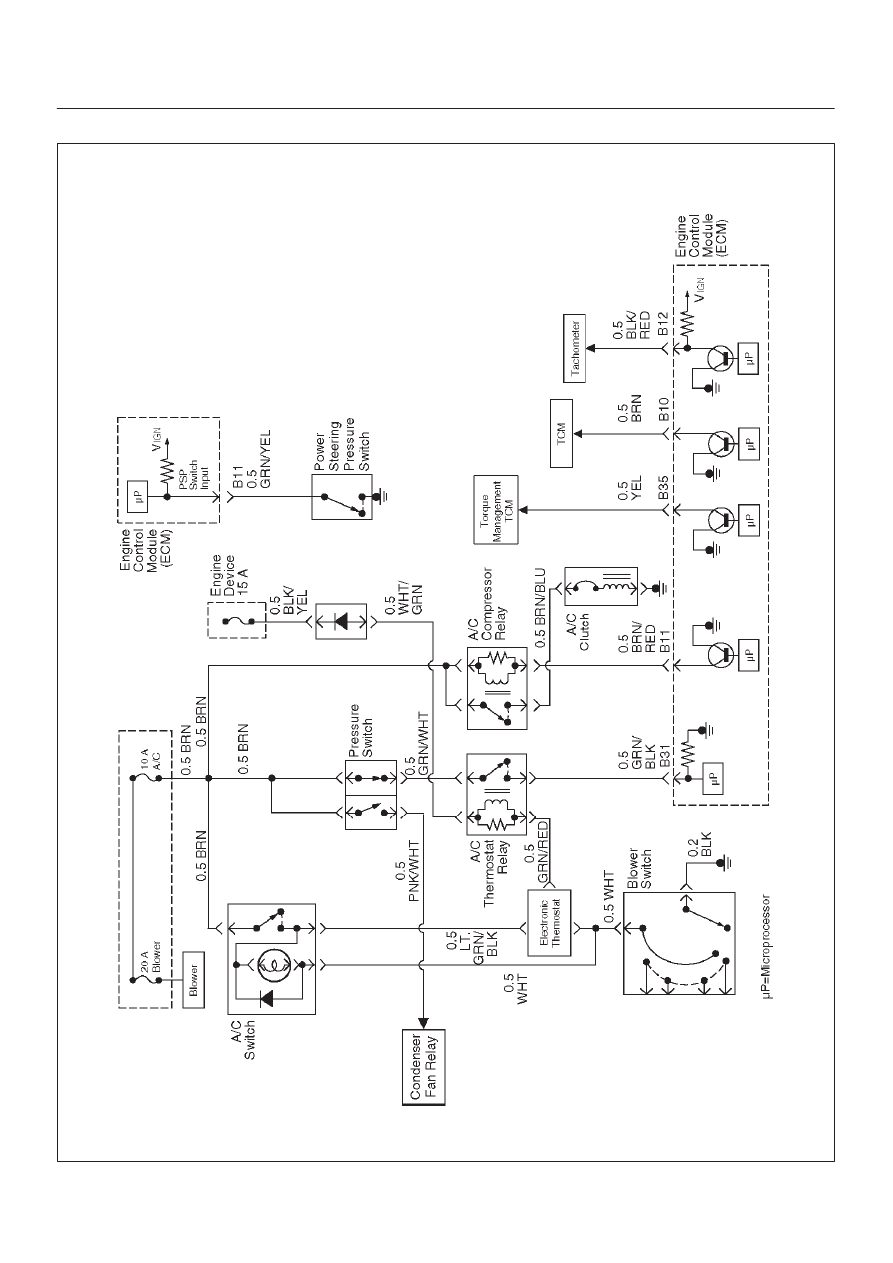

ECM Wiring Diagram (6 of 6)

060RW041

6E–11

3.2L ENGINE DRIVEABILITY AND EMISSIONS

ECM Pinouts

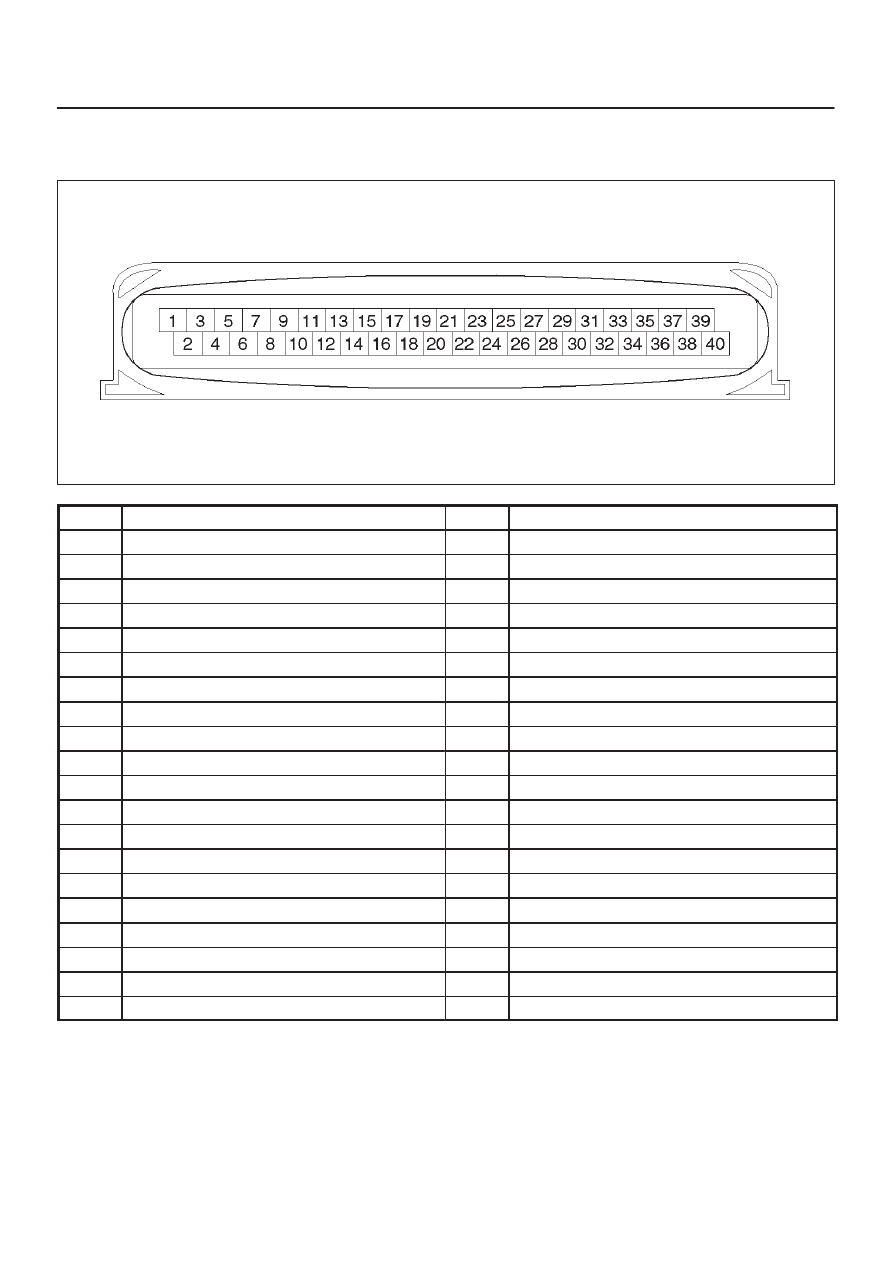

ECM Pinout Table, 40-Way Connector – “A”

060RW043

PIN

PIN Function

PIN

PIN Function

A1

—

A21

Engine coolant temp sensor

A2

—

A22

Ground

A3

—

A23

Crank Angle Sensor

A4

Ground (Case)

A24

Power Supply

A5

—

A25

Ground (CA)

A6

—

A26

—

A7

Ground (Ecu)

A27

—

A8

Ground (Ecu)

A28

Self Shut Off

A9

—

A29

—

A10

—

A30

Ignition Coil 5

A11

—

A31

Ignition Coil 3

A12

—

A32

Ignition Coil 1

A13

—

A33

Ground (Power)

A14

—

A34

Fuel Infector 5

A15

—

A35

Fuel Infector 3

A16

—

A36

Fuel Infector 1

A17

—

A37

Ground (Case)

A18

—

A38

—

A19

Intake Air Temp Sensor

A39

—

A20

Barometric Pressure Sensor

A40

—

6E–12

3.2L ENGINE DRIVEABILITY AND EMISSIONS

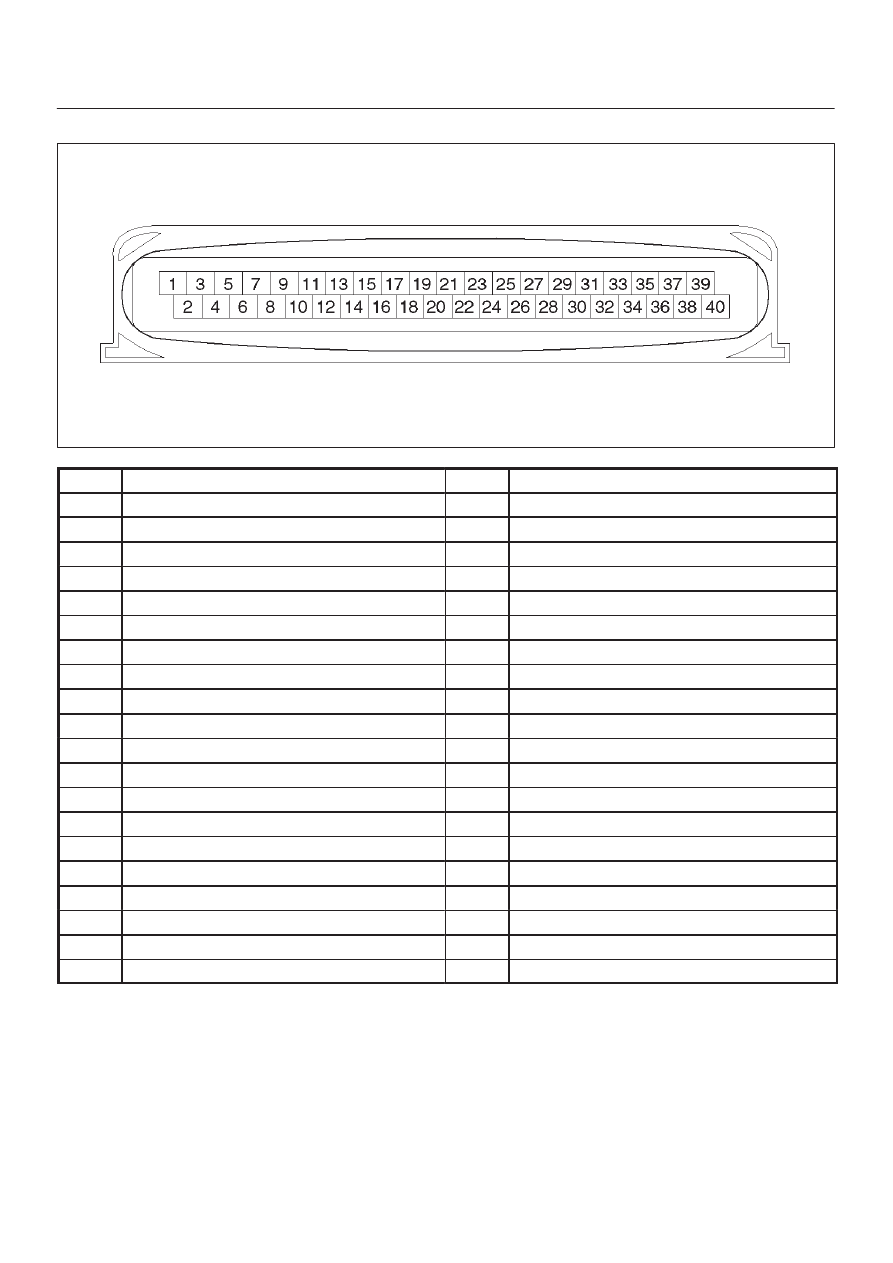

ECM Pinout Table, 40-Way Connector – “B”

060RW043

PIN

PIN Function

PIN

PIN Function

B1

—

B21

Oxygen Sensor (O2 Sensor)

B2

—

B22

Ground (For IGM, LAO only)

B3

Fuel Infector 2

B23

—

B4

Fuel Infector 4

B24

—

B5

Fuel Infector 6

B25

Diag

B6

Ground (Power)

B26

Throttle Position Sensor (TPS)

B7

Ignition Coil 2

B27

CAM/TPS/Power Supply

B8

Ignition Coil 4

B28

Cam Angle Sensor

B9

Ignition Coil 6

B29

INH

B10

TW70

B30

P/St Pressure Switch

B11

A/C Clutch Relay

B31

A/C Request

B12

Tachcmeter Signal

B32

Vehicle Speed Sensor

B13

Idle Air Control Motor 1

B33

Ignition Swich

B14

Idle Air Control Motor 2

B34

Back Up Power Supply

B15

Canister Purge Solenoid (For IGM, LAO only)

B35

Torque Management

B16

Idle Air Control Motor 3

B36

Power Supply

B17

Idle Air Control Motor 4

B37

Power Supply

B18

MIL Lamp

B38

J1850

B19

Fuel Pump Relay

B39

Ground (CAM/TPS/MAF)

B20

MAF (Air Flow Sensor)

B40

—
