3E-8  WHEELS AND TIRES

TIRE PRESSURE LABEL (LOCATION : DRIVERS DOOR OR FRAME OF DRIVERS DOOR)
C22, C20 Series Engine Model

2WD

SEE OWNER’S AND
DRIVERS MANUAL FOR
ADDITIONAL INFORMATION.

TIRE PRESSURE :

kg

/

cm

2

(PSI)

TIRE

UNLOADED

FRONT REAR FRONT REAR

LOADED

6 . 0 0 - 1 4 - 6
6 . 5 0 - 1 4 - 8
1 8 5 R 1 4 - 6
1 8 5 R 1 4 - 8
1 8 5 R 1 4 C 8
1 9 5 R 1 4 C 8
2 1 5 R 1 5 - 6

205R16 104QorS

205/80R16 104QorS

2.0(28)

2.0(28)

1.8(26)
1.8(26)
1.8(26)
1.8(26)
2.5(36)
1.8(26)

2.7(38)

4.25(60)

4.5(64)
4.5(64)
4.5(64)
2.8(40)

2.0(28)

2.0(28)

1.8(26)
1.8(26)
1.8(26)
1.8(26)
2.5(36)
1.8(26)

2.7(38)

4.25(60)

4.5(64)
4.5(64)
4.5(64)
2.8(40)

P. NO. 8973020850

4WD

SEE OWNER’S AND
DRIVERS MANUAL FOR
ADDITIONAL INFORMATION.

TIRE PRESSURE :

kg

/

cm

2

(PSI)

TIRE

UNLOADED

FRONT REAR FRONT REAR

LOADED

6 . 5 0 - 1 5 - 6

6 . 5 0 - 1 5 - 8
2 1 5 R 1 5 - 6

205R16 104QorS
205/80R16 104QorT

2.0(28)

2.0(28)

2.0(28)
1.8(26)

2.7(38)

4.25(60)
2.8(40)

2.0(28)

2.0(28)

2.0(28)
1.8(26)

2.7(38)

4.25(60)
2.8(40)

P225/75R15 1.8(26) 1.8(26) 1.8(26) 1.8(26)

P. NO. 897148-6800

Note :

••••

The air pressure of the tire should be maintained as indicated in the label instruction on the driver's

door or frame of driver's door.

Lower pressure can cause burst and adverse vehicle handling.

On the other hand, higher pressure can cause shock-burst and reduce gripping effect.

WHEELS AND TIRES  3E-9

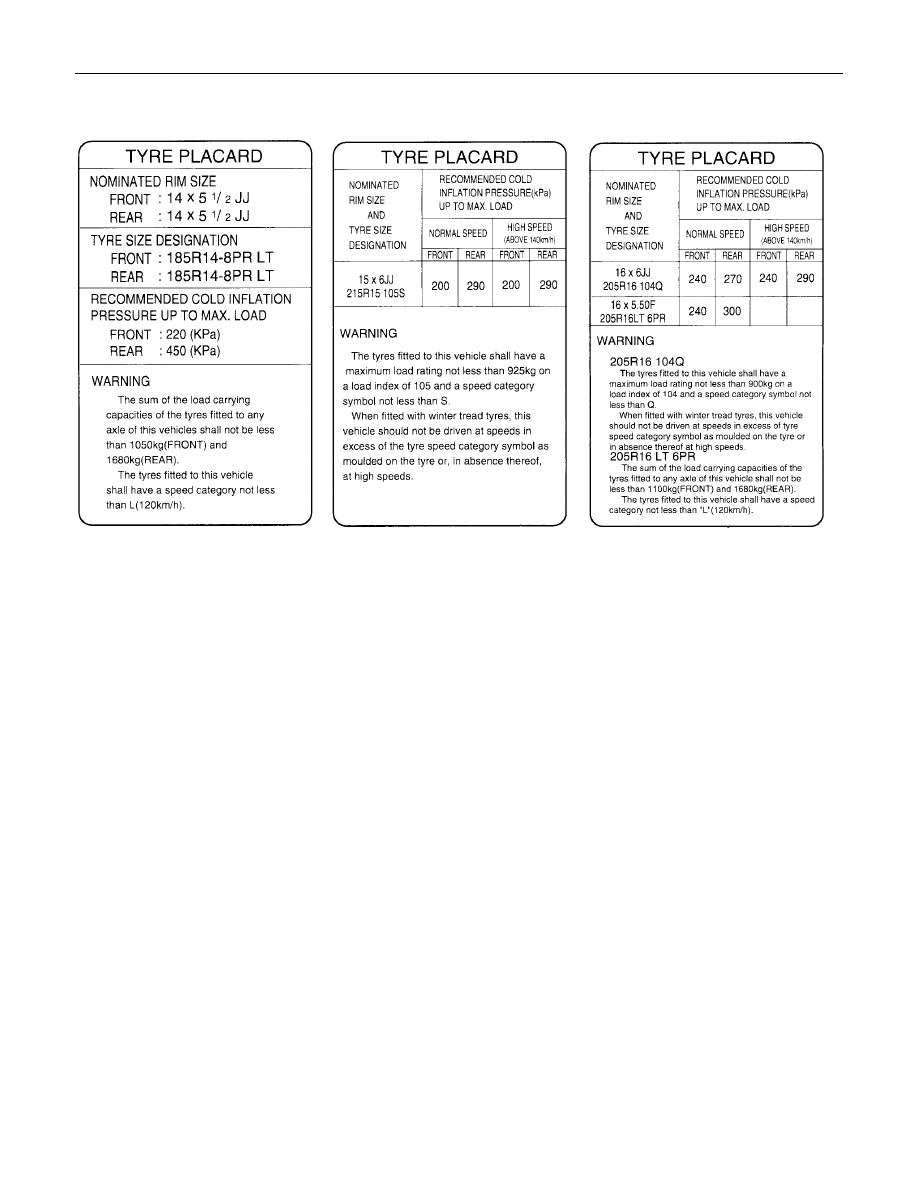

For Australia (2WD)

For Australia (2WD Sporty)

For Australia (4WD)

Note :

••••

The air pressure of the tire should be maintained as indicated in the label instruction on the driver's

door or frame of driver's door.

Lower pressure can cause burst and adverse vehicle handling.

On the other hand, higher pressure can cause shock-burst and reduce gripping effect.

3E-10  WHEELS AND TIRES

SERVICING

Servicing refers to general maintenance procedures to be performed by qualified service personnel.

WHEEL NUT TORQUES

Wheel Nut Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

117.7

±

 9.8 (12.0

±

 1.0 / 86.8

±

 7.2)

TIRE ROTATION

When the front tire size and the rear size are different,
interchange front wheels and rotate the rear wheels as shown
in the figure.

When the front and rear tires are the same size, rotate the
wheels as shown in the figure.

For of radial tires, interchange the front and the rear wheels on
the same side as shown in the figure.

WHEELS AND TIRES  3E-11

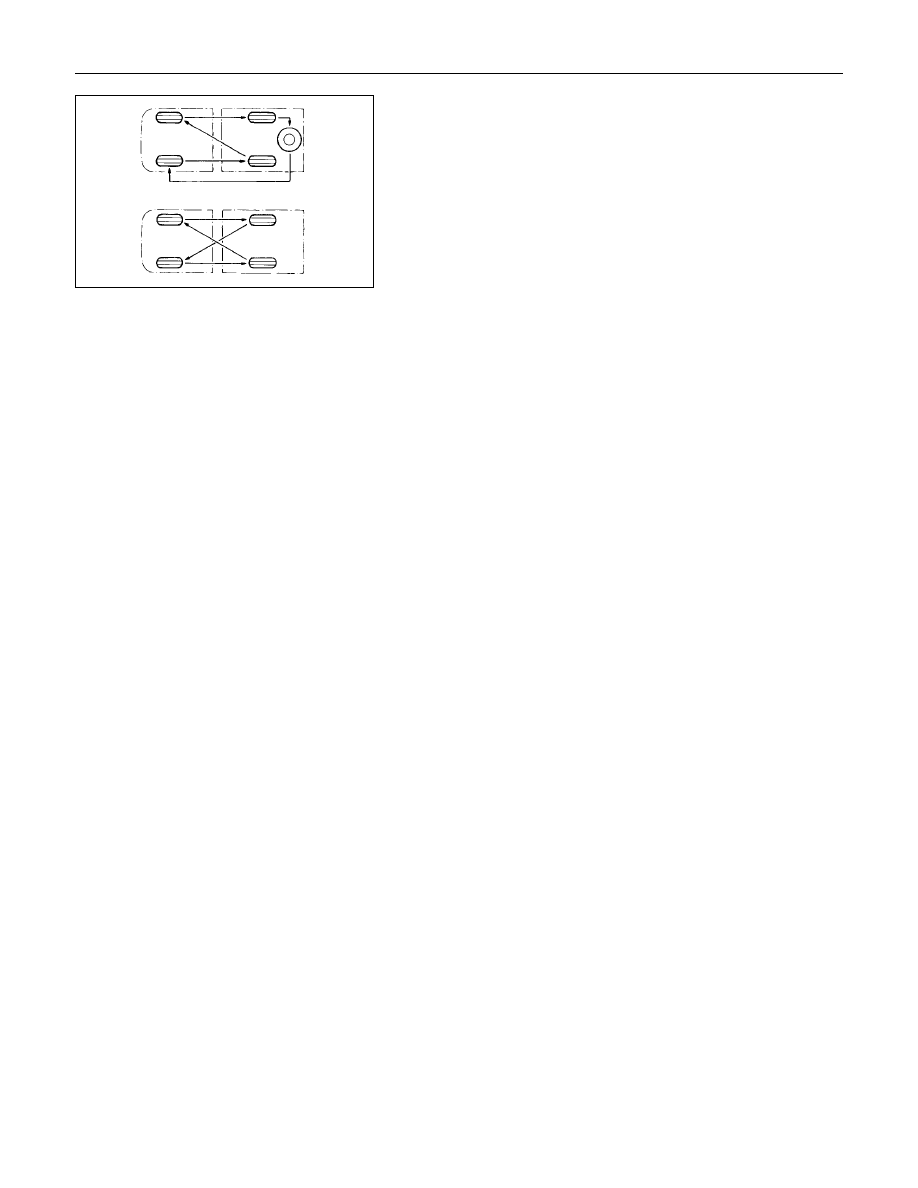

If one-sided tire wear appears on radial tires, rotate the wheels
as shown in the figure.

Note:
After rotation, adjust the front and rear tire pressure and
be sure to check wheel nut tightness.
