8-104  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-105

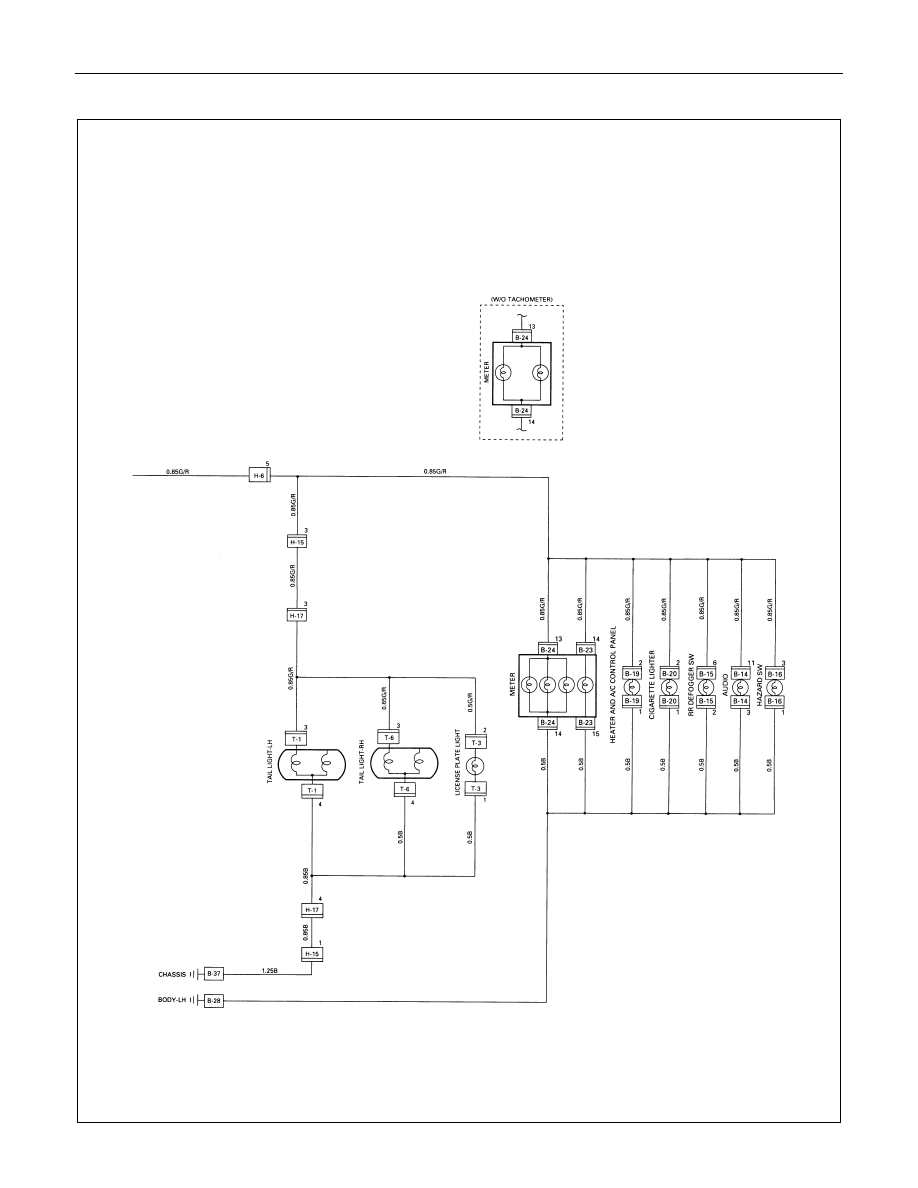

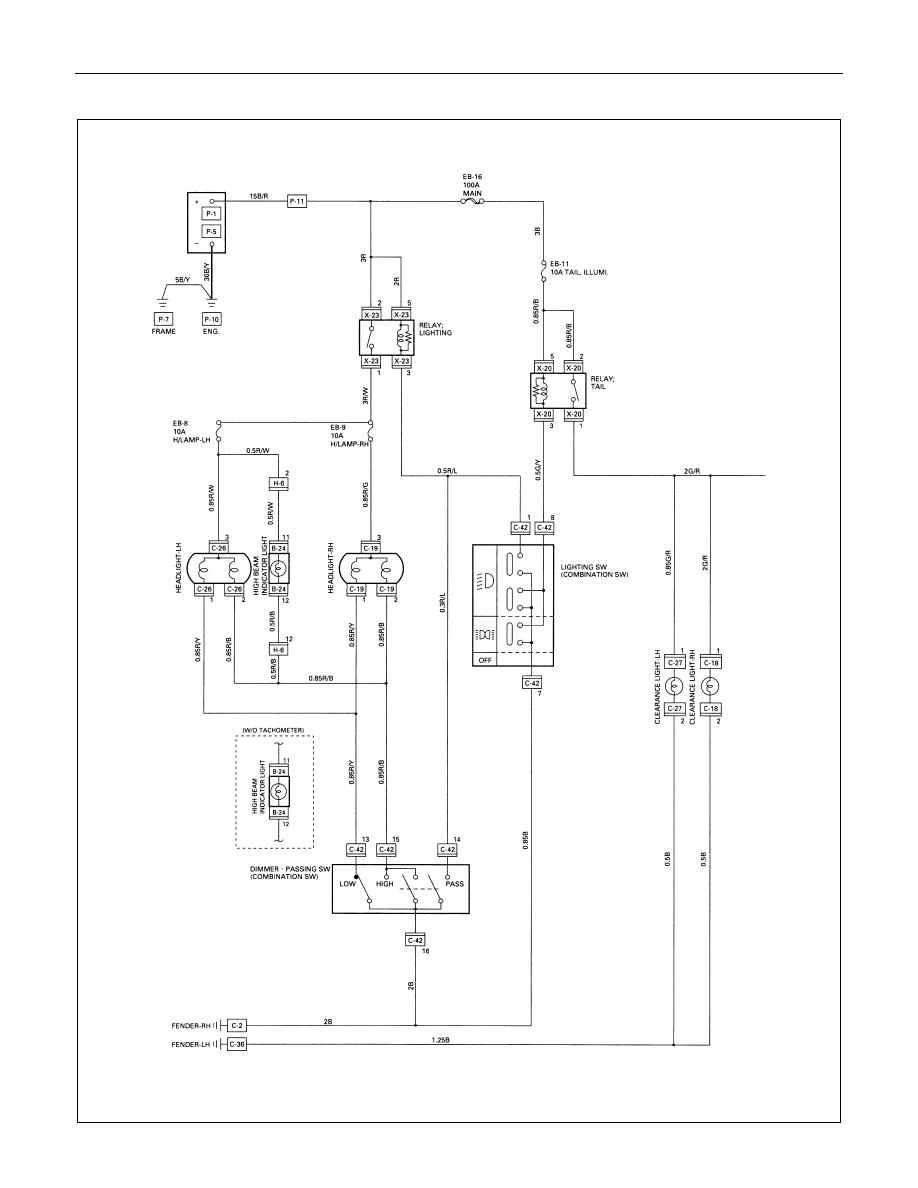

CIRCUIT DIAGRAM (6VD1-LHD)

8-106  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-107

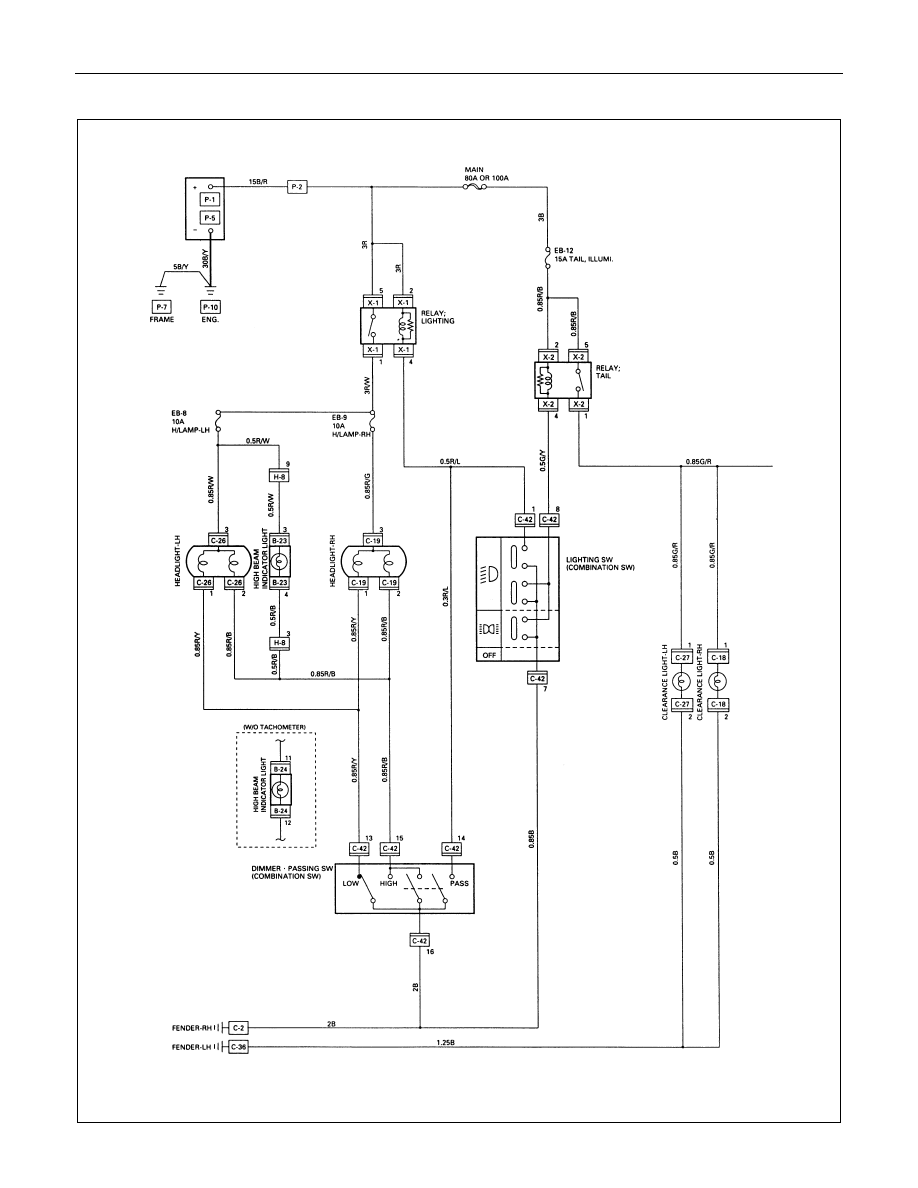

CIRCUIT DIAGRAM (RHD EXCEPT UK)
