Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1017

CAB  10-13

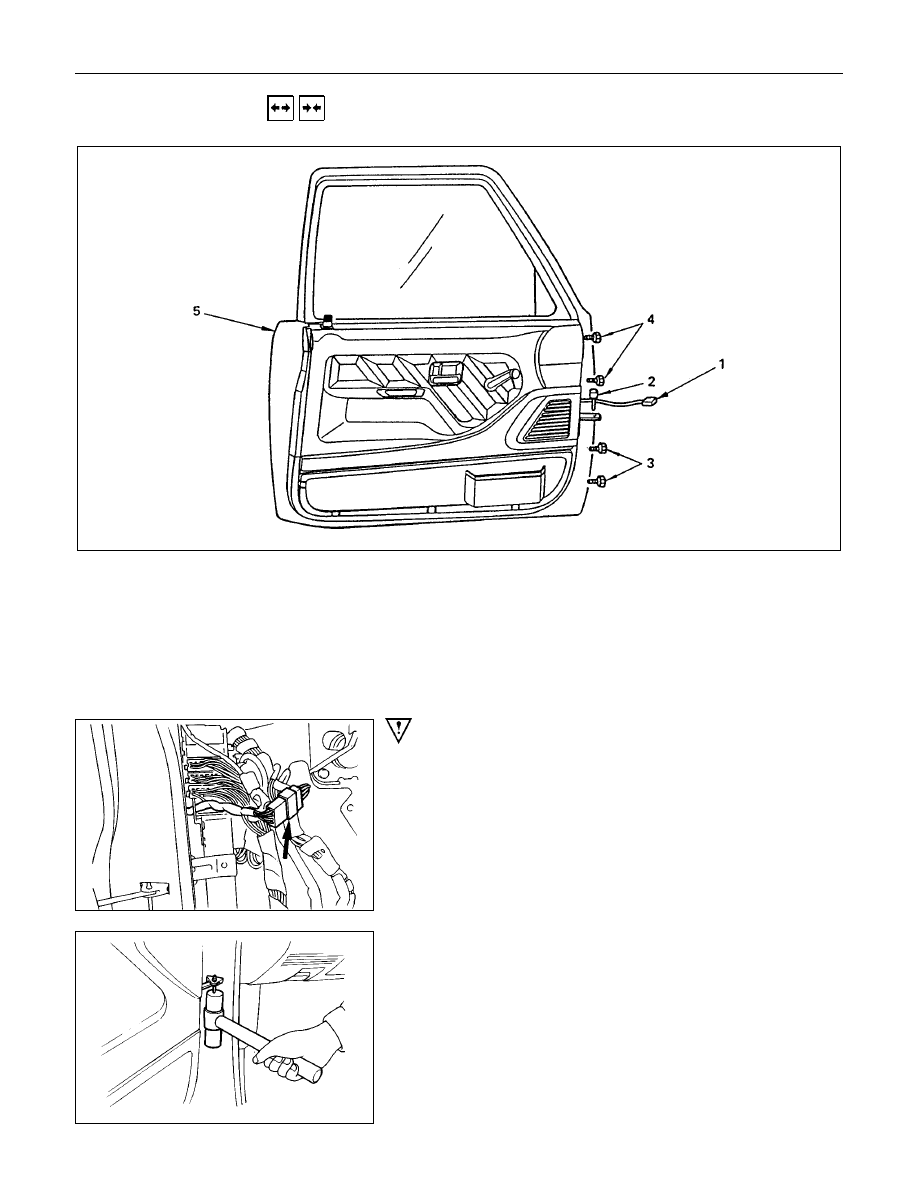

  REMOVAL AND INSTALLATION

Removal Steps

1. Door harness
2. Checker pin
3. Lower hinge
4. Upper hinge
5. Door assembly

Installation Steps

5. Door assembly
4. Upper hinge
3. Lower hinge
2. Checker pin
1. Door harness

Important Operation - Removal

1. Door Harness

Disconnect the door harness.

2. Checker Pin

10-14  CAB

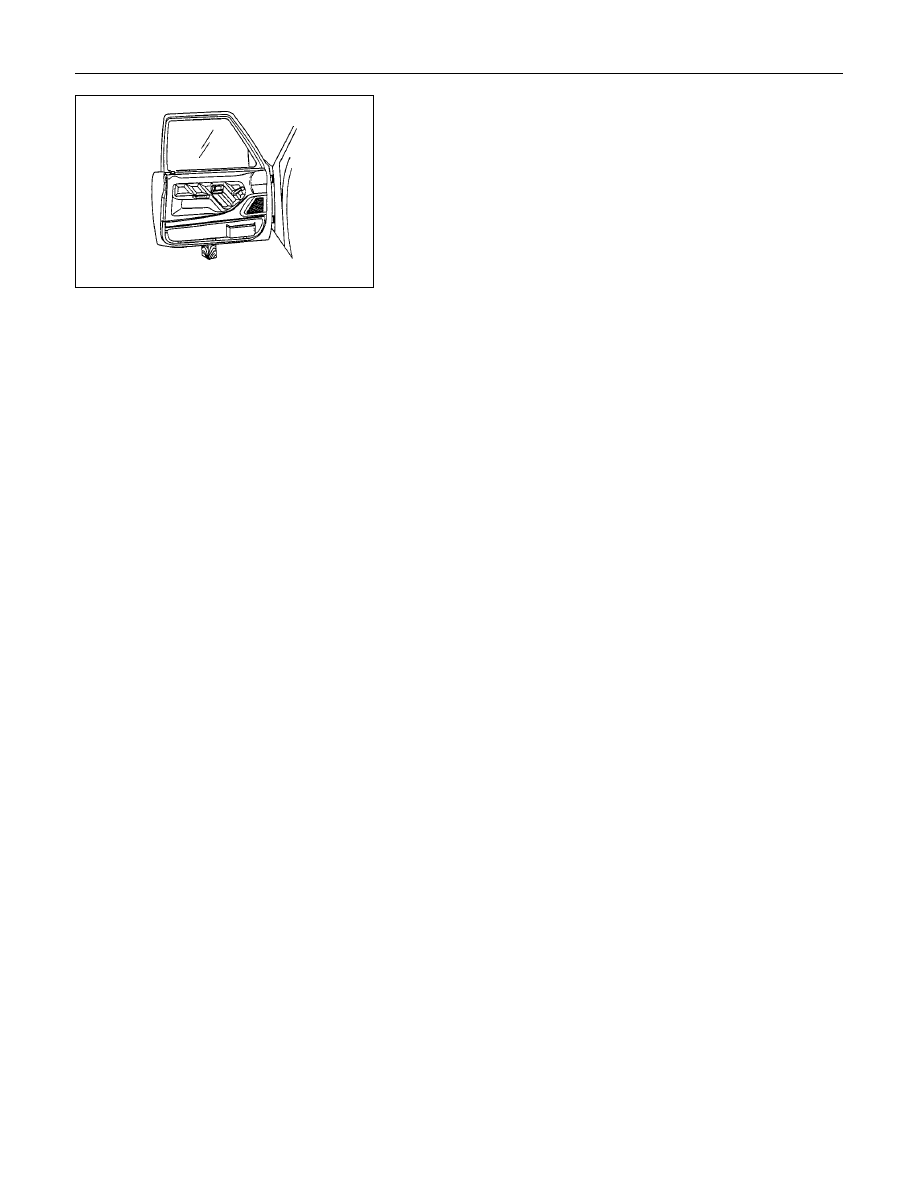

3. Lower Hinge
Position a wood block under the door for protection and
support the door assembly with hands at removal or
installation.

CAB  10-15

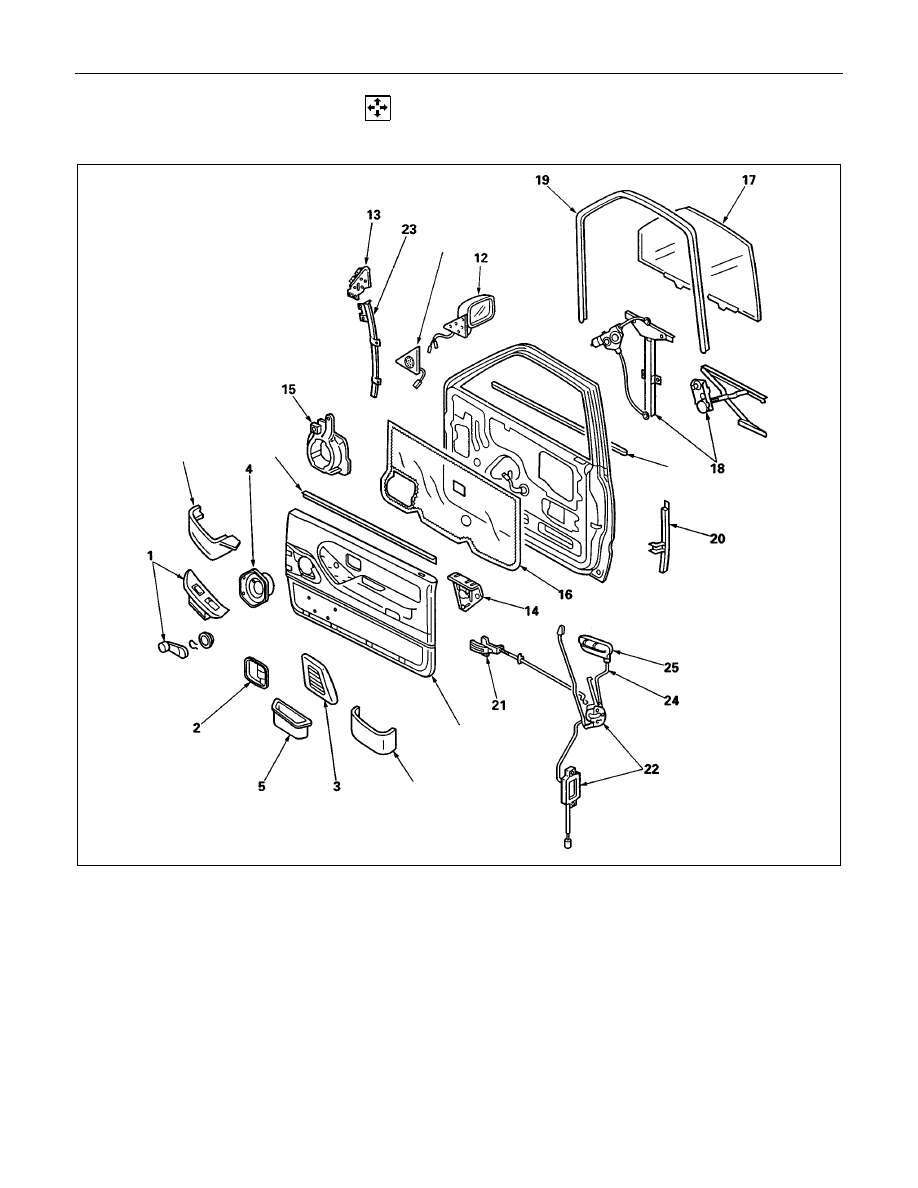

  DISASSEMBLY

(Front Door)

8

7

9

10

11

6

Disassembly Steps

▲

1. Power window switch/Windows regulator

handle

▲

2. Bezel

▲

3. Speaker grill

▲

4. Speaker assembly

▲

5. Door pull case

▲

6. Door mirror cover/Tweeter

▲

7. Door trim pad

▲

8. Door pocket

▲

9. Power window box

▲

10. Inner waste seal

▲

11. Outer waste seal

▲

12. Door mirror assembly

▲

13. Door mirror bracket

▲

14. Bracket

▲

15. Speaker box

▲

16. Water-proof sheet

▲

17. Window glass

▲

18. Window regulator/Power window motor

▲

19. Glass run

▲

20. Glass run rear channel

▲

21. Inside lever

▲

22. Door lock assembly/Door lock actuator

▲

23. Glass run front channel

▲

24. Door lock cylinder

▲

25. Outside handle

10-16  CAB

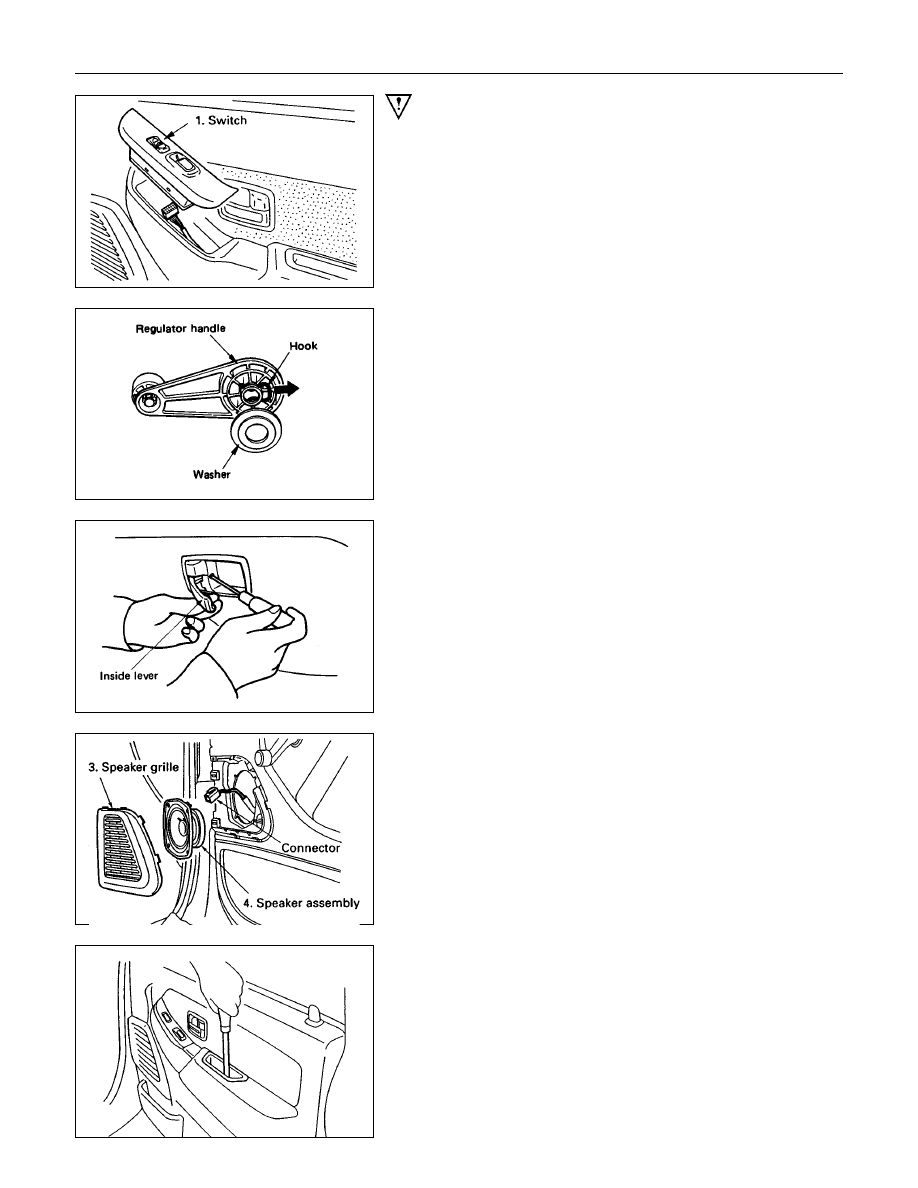

Important Operations

1. Power Window Switch/Window Regulator Handle

•

Prise out the power window switch and remove the

connectors.

•

To remove the regulator handle, remove the clip at the

root of the handle by using wire.

2. Bezel

•

Remove the screw while pulling the inside lever toward

you.

3. Speaker Grill

•

Pull out the clips.

4. Speaker Assembly

•

Remove 4 screws and disconnect the speaker harness

connector.

5. Door Pull Case

•

Remove the screw at the bottom of the case.
