Infiniti QX60 (2019 year). Manual

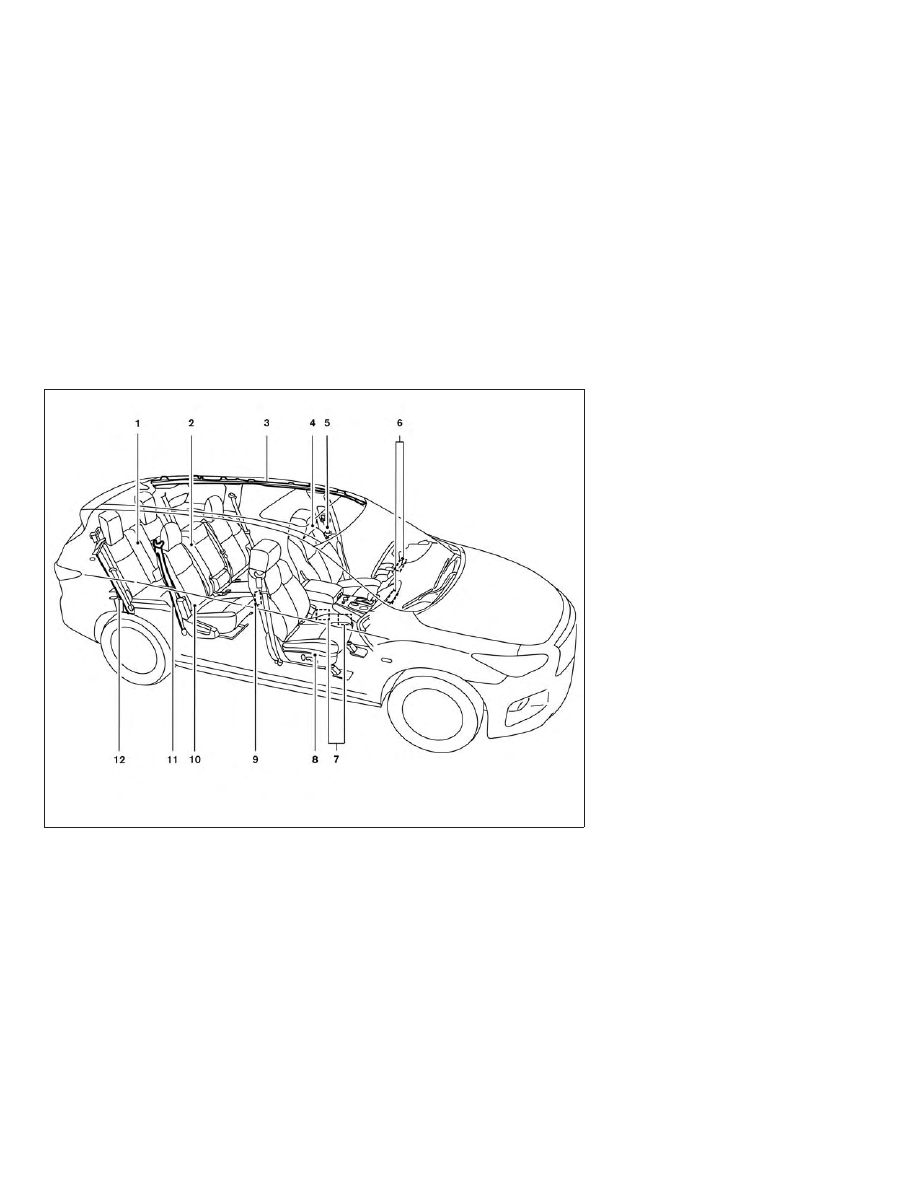

Folding 3rd row bench (P. 1-2)

Folding 2nd row bench (P. 1-2)

Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-50)

Head restraints/headrests (P.1-12)

Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-17, 1-50)

Supplemental air bags (P.1-50)

Occupant classification sensor
(weight sensor) (P.1-50)

Front seats (P. 1-2)

Front seat-mounted side-impact
supplemental air bag (P. 1-50)

10. LATCH (Lower Anchors and Tethers

for CHildren) (P. 1-28)

11. 2nd row seat top tether strap anchor

(located on bottom of seatback)
(P. 1-28)

12. 3rd row bench seat top tether strap

anchor (located on bottom of seat-
back) (P. 1-28)

Refer to the page number indicated in paren-
theses for operating details.

LII2420

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

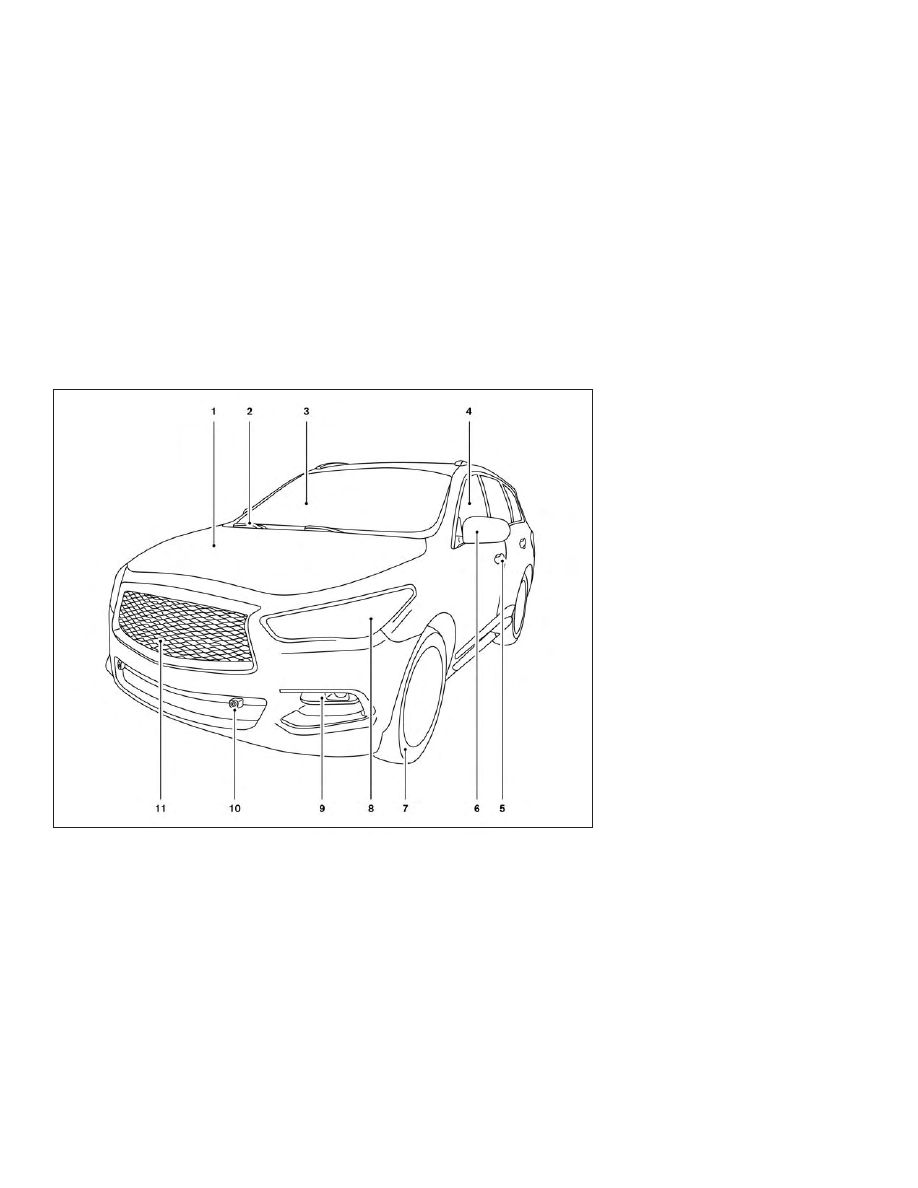

Engine hood (P. 3-22)

Wiper and washer switch (P. 2-35)
Wiper blades (P. 8-17)

Windshield (P. 8-17)

Power windows (P. 2-63)

Door locks (P. 3-5)
INFINITI Intelligent Key (P. 3-7)
Remote Engine Start (if so equipped)
(P. 3-19)
Keys (P. 3-2)

Mirrors (P. 3-34)
Side camera (if so equipped)
(P. 4-11)

Tire pressure (P. 8-27)
Flat tire (P. 6-3)
Tire chains (P. 8-27)

Replacing bulbs (P. 8-24)
Headlight and turn signal switch
(P. 2-39)
LED Daytime Running Lights (DRL)
system (P. 2-39)

Fog light switch (P. 2-39)

10. Sonar sensors (if so equipped)

(P. 5-140)

11. Front camera (if so equipped)

(P. 4-11)

See the page number indicated in parenthe-
ses for operating details.

LII2497

EXTERIOR FRONT

Illustrated table of contents

0-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

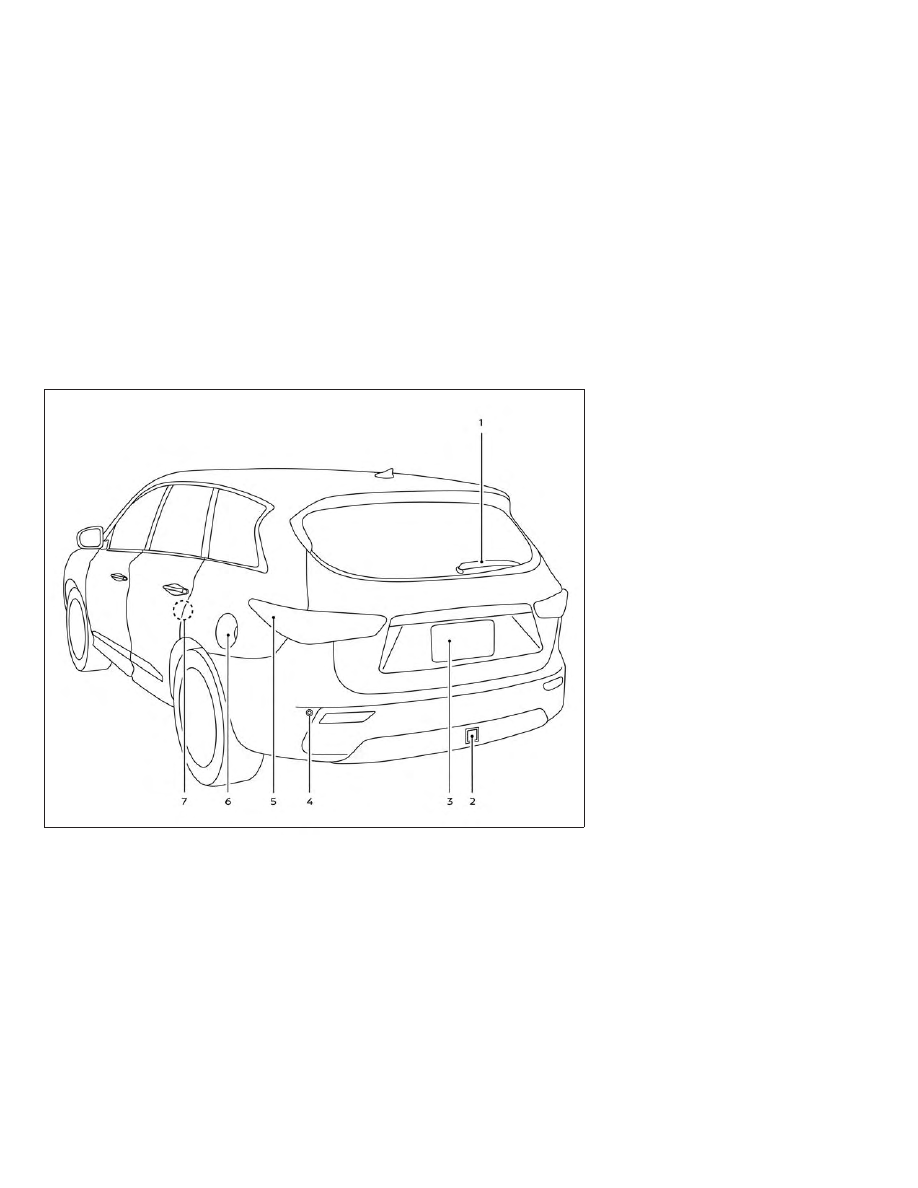

Rear wiper and washer switch
(P. 2-35)

Towing (if so equipped) (P. 10-17)

Liftgate release (P. 3-22)
Rearview camera (P.4-11)

Sonar sensors (if so equipped)
(P. 5-140)

Replacing bulbs (P. 8-24)

Fuel-filler cap (P. 3-28)
Fuel recommendation (P. 0-0)
Fuel-filler door (P. 3-28)

Child safety rear door lock (P. 3-5)

Refer to the page number indicated in paren-
theses for operating details.

LIC3982

EXTERIOR REAR

0-4

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

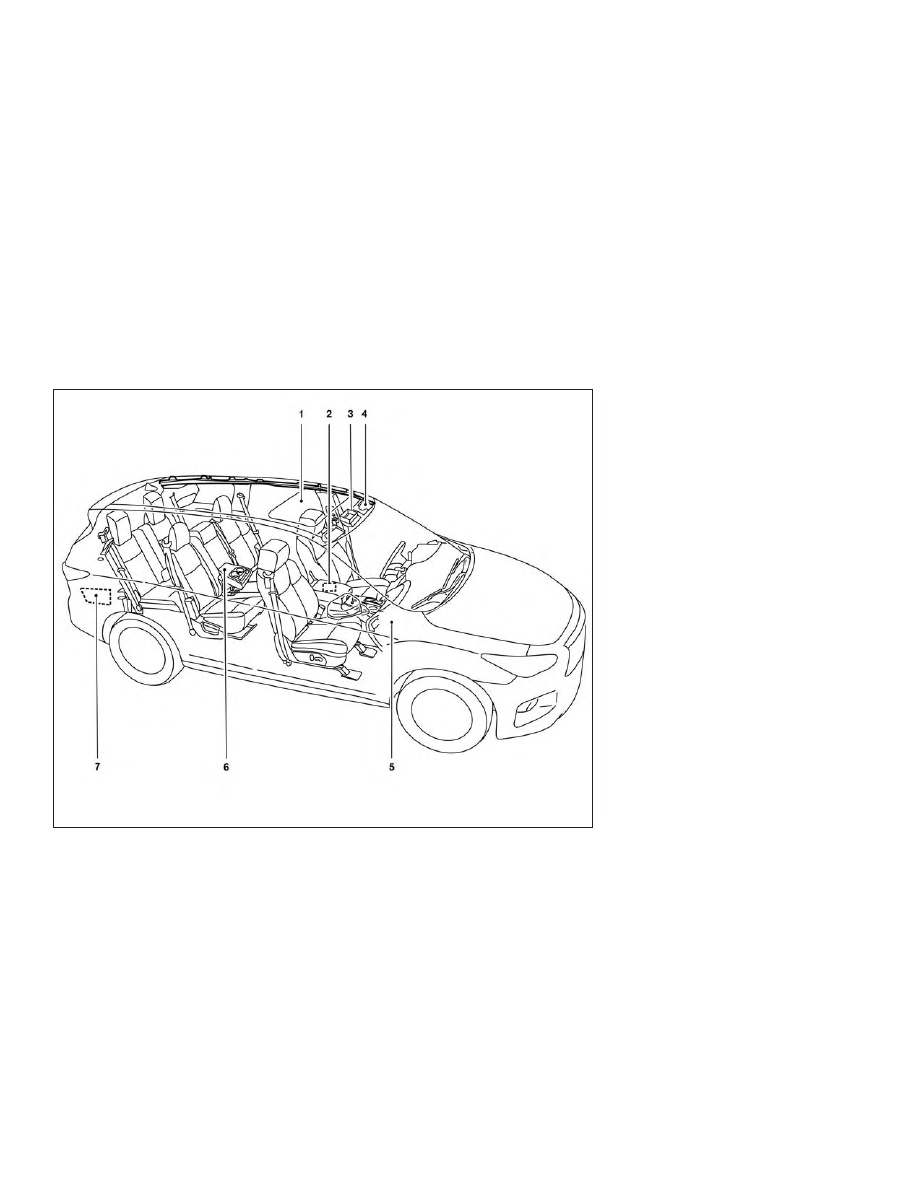

Power moonroof (P. 2-66)
Panoramic sunshade (if so equipped)
(P. 2-67)

Console box (P. 2-56)

Map lights (P. 2-71)

Sun visors (P. 3-32)

Glove box (P. 2-56)

Cup holders (P. 2-56)

Luggage hooks (P. 2-56)

Refer to the page number indicated in paren-
theses for operating details.

LII2419

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

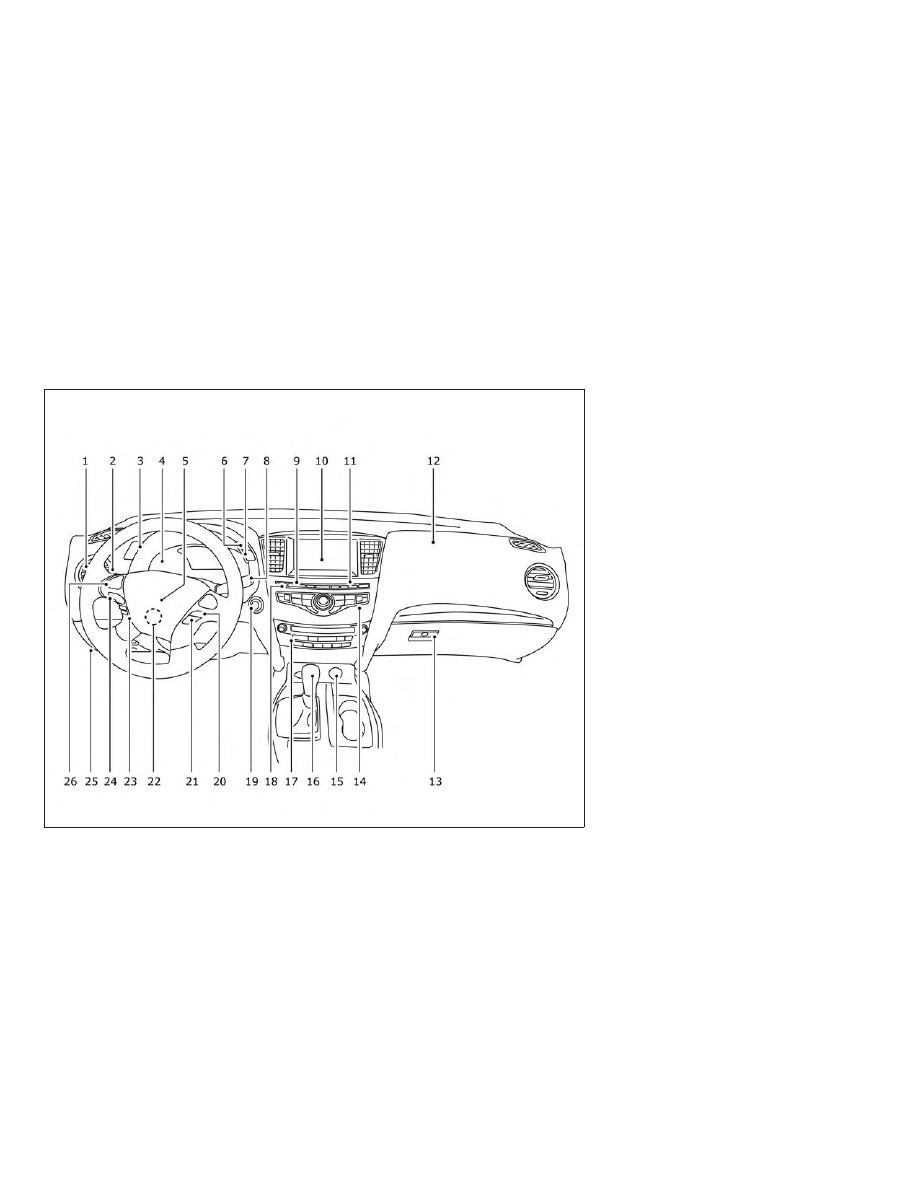

Vent (P. 4-33)

Headlight/fog light/turn signal
switch (P. 2-45)

Instrument brightness control
(P. 2-39)

Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)

Driver supplemental air bag (P.1-50)
Horn (P. 2-46)

Backup Collision Intervention (BCI)
switch (if so equipped) (P. 5-60)

Trip reset switch (P. 2-4)

Wiper and washer switch (P. 2-35)
Rear wiper and washer switch
(P. 2-35)

Rear window and outside mirror
defroster switch (P. 2-39)

10. Center display*

Navigation system* (if so equipped)

11.

Automatic heater and air condi-
tioner controls (P. 4-43, 4-34)

12.

Front passenger supplemental air
bag (P. 1-57)

13.

Glove box (P. 2-58)

14.

Center multi-function control
buttons*

15.

Power outlet (P. 2-53)

16.

Shift lever (P. 5-18)

LII2544

INSTRUMENT PANEL

0-6

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

17.

Audio system controls*
Front passenger air bag status light
(P. 1-50)

18.

Hazard warning flasher switch
(P. 6-2)

19.

Push-button ignition switch
(P. 5-13)

20. Cruise control switches

(if so equipped) (P. 5-76)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-78)

21.

Dynamic driver assistance switch (if
so equipped) (P. 5-32, 5-48, 5-98)

22.

Tilt and telescopic steering wheel
control (P. 3-31)

23.

Bluetooth® Hands-Free Phone
System*

24. Steering wheel switch for audio

control*

25.

Hood release (P. 3-22)
Vehicle Dynamic Control (VDC)
OFF switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-49)
Warning systems switch
(if so equipped) (P. 2-50)
Power inverter switch
(if so equipped) (P. 2-52)
Power liftgate switch (P. 3-22)

26.

Control panel and vehicle informa-
tion display switches (P. 2-17)

*: Refer to the separate INFINITI InTouch

Owner’s Manual (if so equipped).

Refer to the page number indicated in paren-
theses for operating details.

Illustrated table of contents

0-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

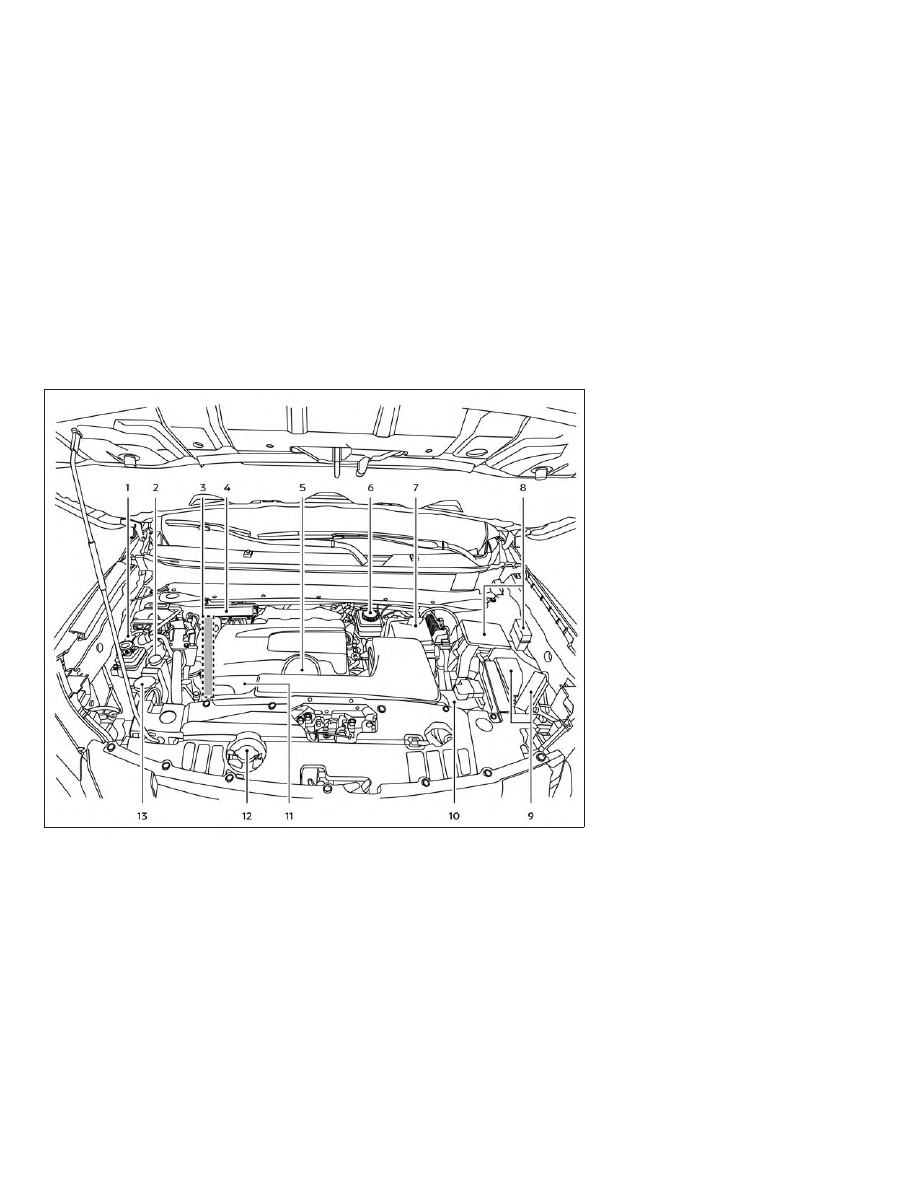

VQ35DD engine

Power steering fluid reservoir
(P. 8-9)

Engine coolant reservoir (P. 8-4)

Drive belt location (P. 8-15)

Fuse box (P. 8-20)

Engine oil filler cap (P. 8-6)

Brake fluid reservoir (P. 8-10)

Air cleaner (P. 8-16)

Fuse box (P. 8-20)

Fuse/Fusible link box (P. 8-20)

10. Battery (P. 8-12)
11. Engine oil dipstick (P. 8-6)
12. Radiator cap (P. 8-4)
13. Windshield-washer fluid reservoir

(P. 8-11)

Refer to the page number indicated in paren-
theses for operating details.

LDI3238

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning

light

Name

Page

Anti-lock Braking
System (ABS)
warning light

2-9

Brake warning
light

2-9

Charge
warning light

2-9

Forward
Emergency
Braking (FEB)
with Pedestrian
Detection system
warning light

2-10

Low tire pressure
warning light

2-10

Warning

light

Name

Page

Master
warning light

2-11

Power steering
warning light

2-12

Seat belt warning
light and chime

2-12

Supplemental air
bag warning light

2-12

Indicator

light

Name

Page

Continuously
Variable
Transmission
(CVT) position
indicator light

2-13

Front fog light
indicator light
(green)

2-13

Indicator

light

Name

Page

Front passenger
air bag status light

2-13

High beam assist
indicator light
(green)
(if so equipped)

2-13

High beam
indicator light
(blue)

2-13

Malfunction
Indicator Light
(MIL)

2-13

Security
indicator light

2-14

Side light and
headlight indicator
light (green)

2-14

Slip indicator light

2-14

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

∙ Do not ride in a moving vehicle when the

seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries.

∙ For the most effective protection when

the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.

∙ After adjustment, gently rock in the seat

to make sure it is securely locked.

∙ Do not leave children unattended inside

the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents.

∙ To help avoid risk of injury or death

through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

∙ Do not adjust the driver’s seat while driv-

ing so full attention may be given to ve-
hicle operation. The seat may move sud-
denly and could cause loss of control of
the vehicle.

∙ The seatback should not be reclined any

more than needed for comfort. Seat belts
are most effective when the passenger
sits well back and straight up in the seat.
If the seatback is reclined, the risk of slid-
ing under the lap belt and being injured is
increased.

CAUTION

When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT POWER SEAT
ADJUSTMENT

Operating tips

∙ The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.

∙ Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.

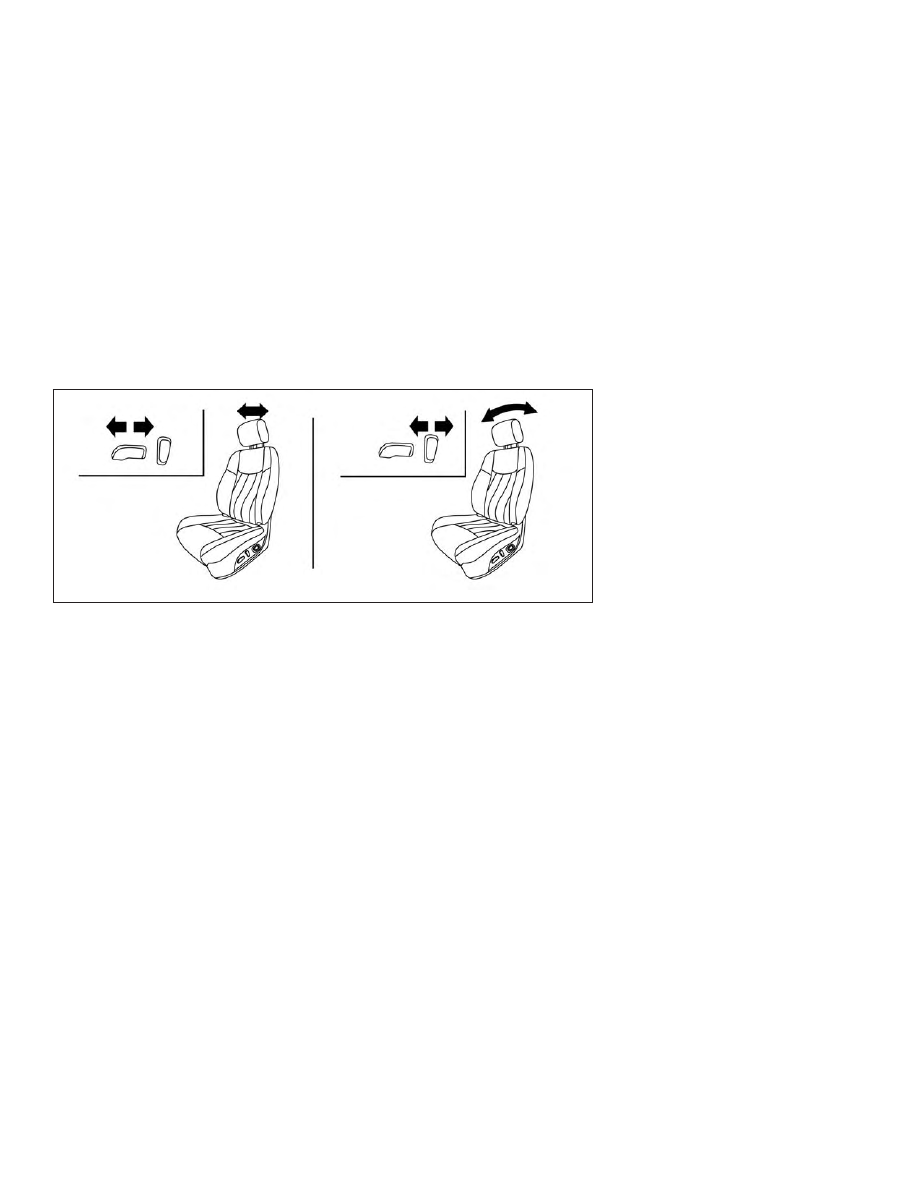

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired po-
sition.

Reclining

Move the recline switch as shown until the
desired angle is obtained.

The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, refer
to “Precautions on seat belt usage” in this
section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).

LRS2662

Safety—Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

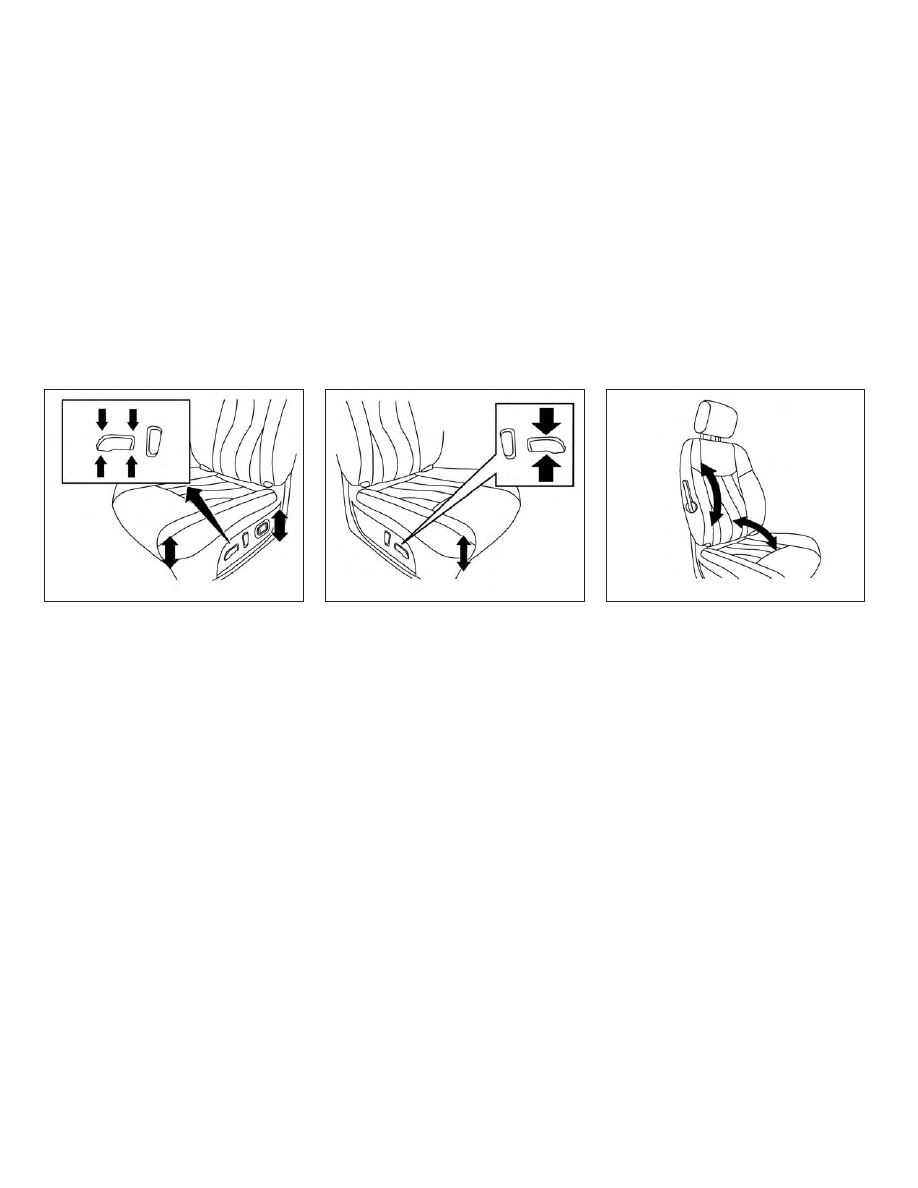

Seat lifter

Move the switch as shown to adjust the
angle (if so equipped) and height of the seat
cushion.

Lumbar support (driver’s seat)

The lumbar support feature provides adjust-
able lower back support to the driver. Move
the lever as shown (manual) or push the
switch as shown (power) to adjust the seat
lumbar area.

Driver’s seat

LRS2636

Passenger’s seat

LRS2909

Manual (if so equipped)

LRS2132

1-4

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2ND ROW BENCH SEAT
ADJUSTMENT

Forward and backward

Pull the center of the bar

䊊

up and hold it

while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.

Reclining

To recline the seatback, pull up on the lever

䊊

and lean back. To bring the seatback for-

ward, pull the lever

䊊

up and lean your body

forward. Release the lever to lock the seat-
back in position.

The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to
“Precautions on seat belt usage” in this sec-
tion. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).

WARNING

∙ After adjustment, gently rock in the seat

to make sure it is securely locked.

∙ Do not ride in a moving vehicle when the

Power (if so equipped)

LRS2270

Outboard seats

LRS2143

Safety—Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------
