Illustrated table of contents

JVC0918X

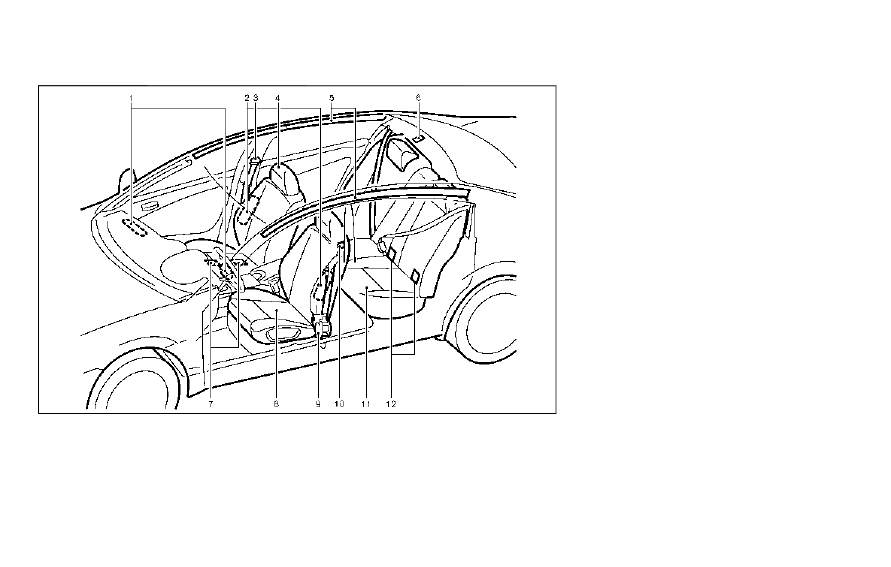

Supplemental front-impact air bags
(P.1-38)

Front seat-mounted side-impact sup-
plemental air bags (P.1-38)

Seat belts (P.1-11)

Head restraints (P.1-7)

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-38)

Child restraint anchor points (for top
tether strap child restraint) (P.1-23,
P.1-30, P.1-34)

Occupant classification sensors
(weight sensors) (P.1-44)

Front seats (P.1-3)

Seat belts with pretensioners (P.1-54)

10. Rear seat walk-in mechanism (P.1-5)
11. Rear seats (P.1-6)

— Child restraints (P.1-19)

12. LATCH (Lower Anchors and Tethers

for CHildren) system (P.1-21)

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0939X

Hood (P.3-22)

Windshield wiper and washer
— Switch operation (P.2-35)
— Window washer fluid (P.8-15)

Headlights and turn signal lights
(P.2-38)

— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-42)

Moonroof (if so equipped) (P.2-54)

Power windows (P.2-52)

Outside mirrors (P.3-30)
— Side turn signal lights (P.2-43)

— Side view camera* (if so equipped)

Front view camera* (if so equipped)

Sonar sensors (if so equipped)
— Around View Monitor* (if so
equipped)

Fog lights (P.2-44)

10. Tires

— Wheels and tires (P.8-32, P.10-12)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-14, P.5-5)

11. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)
— Courtesy light (P.2-59)

Refer to the Infiniti InTouch Owner’s
Manual.

Illustrated table of contents

0-3

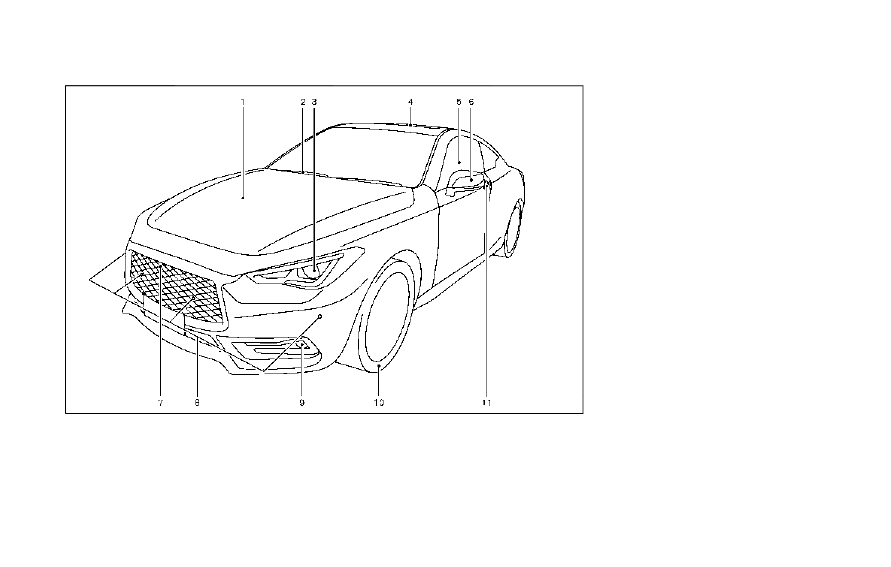

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

JVC0940X

Trunk lid (P.3-22)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Auxiliary battery (for 2.0L turbo
gasoline engine models) (P.8-17)

High-mounted stop light (P.8-29)

Satellite antenna (P.4-3)

Rear window defroster (P.2-37)/An-
tenna (P.4-3)

Sonar sensors (if so equipped)
— Around View Monitor* (if so

equipped)
— Back-up Collision Intervention (BCI)
system (if so equipped) (P.5-61)

Rear view camera*

Rear combination light (P.8-29)

Fuel-filler door (P.3-25)
— Fuel information (P.10-3, P.10-5)

Refer to the Infiniti InTouch Owner’s
Manual.

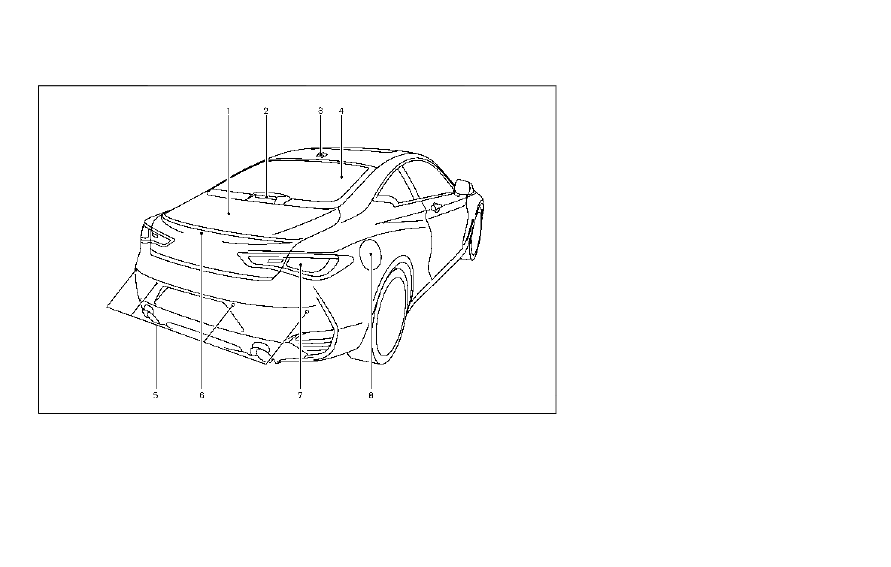

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

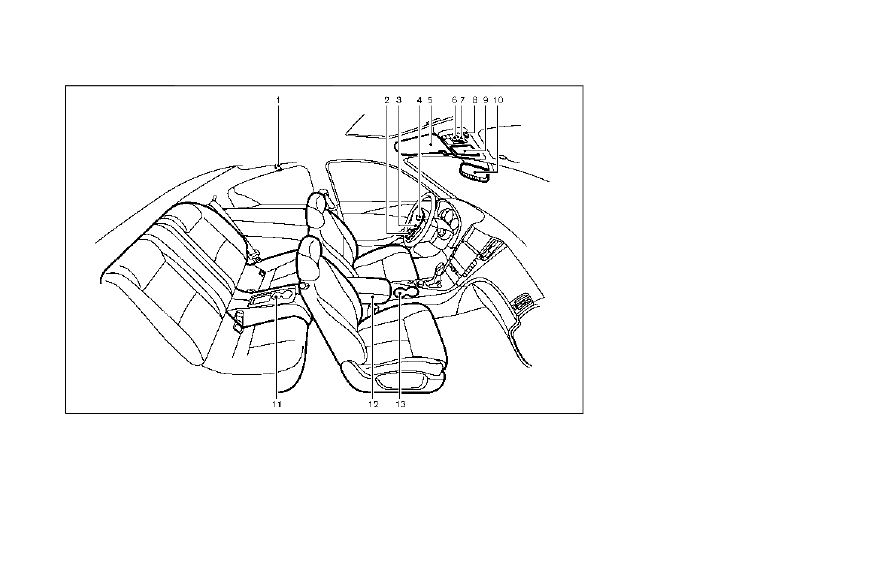

JVC0941X

Coat hooks (P.2-51)

Power window switch (P.2-52)

Outside mirror remote control switch
(P.3-30)

Automatic drive positioner switch (if so
equipped) (P.3-32)

Sun visors (P.3-28)

Moonroof switch (if so equipped)
(P.2-54)

SOS call switch* (if so equipped)

Map light (P.2-56)

Sunglasses holder (P.2-49)

10. Inside mirror (P.3-29)

— HomeLink

universal transceiver (if

so equipped) (P.2-59)
— Compass (if so equipped) (P.2-9)

11. Rear cup holders (P.2-48)
12. Console box (P.2-50)

— Power outlet (P.2-47)
— Media hub*

13. Front cup holders (P.2-48)
*:

Refer to the Infiniti InTouch Owner’s
Manual.

Illustrated table of contents

0-5

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

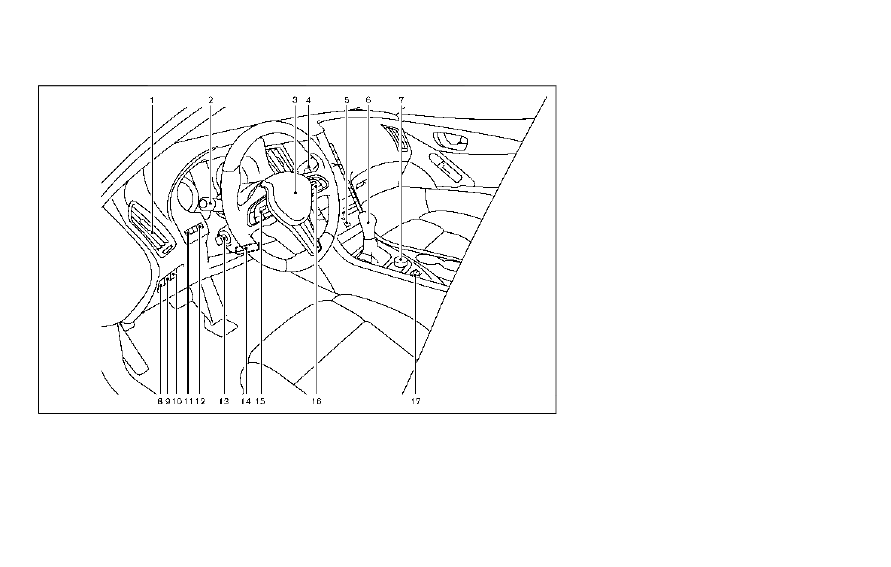

JVC0942X

Side ventilator (P.4-2)

Headlight, fog light and turn signal
switch (P.2-38)

Steering wheel
— Horn (P.2-44)
— Driver supplemental air bag (P.1-38)

— Heated steering wheel (if so
equipped) (P.2-47)
— Power steering (P.5-129)

Windshield wiper and washer switch
(P.2-35)

Hazard warning flasher switch (P.6-2)

Shift lever (P.5-16)

INFINITI controller*

Vehicle Dynamic Control (VDC) OFF
switch (P.2-45, P.5-134)

Idling Stop OFF switch (if so equipped)
(P.5-139)

10. Trunk lid release switch (P.3-23)
11. Instrument brightness control switch

(P.2-43)

12. TRIP/RESET switch for twin trip od-

ometer (P.2-7)

13. Electric tilting/telescopic steering

wheel switch (if so equipped) (P.3-27)

14. Manual tilting/telescopic steering

wheel lever (if so equipped) (P.3-27)

15. Steering-wheel-mounted controls (left

side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*

16. Steering-wheel-mounted controls

(right side)
— Trip computer switches (P.2-29)
— Cruise control switches (if so
equipped) (P.5-71)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-73)
— Dynamic driver assistance switch (if
so equipped) (P. 5-26, P.5-34, P.5-49,

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

JVC0969X

Paddle shifter (if so equipped) (P.5-18)

Meters and gauges (P.2-6)
— Clock (P.2-31)

Push-button ignition switch (P.5-11)

Center ventilator (P.4-2)

Automatic climate control system*

Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)

Lower touch screen display* (lower
display)

Rear window and outside mirror
defroster switch (P.2-37)

Front passenger supplemental air bag
(P.1-38)

10. Hood release handle (P.3-22)
11. Fuse box cover (P.8-23)
12. Parking brake (P.5-21)
13. Storage box (P.2-51) and power outlet

(P.2-47)

14. Seat heater switch (if so equipped)

(P.2-45)

15. Audio system*
16. Trunk release power cancel switch

(P.3-24)

17. Glove box (P.2-50)
*:

Refer to the Infiniti InTouch Owner’s
Manual.

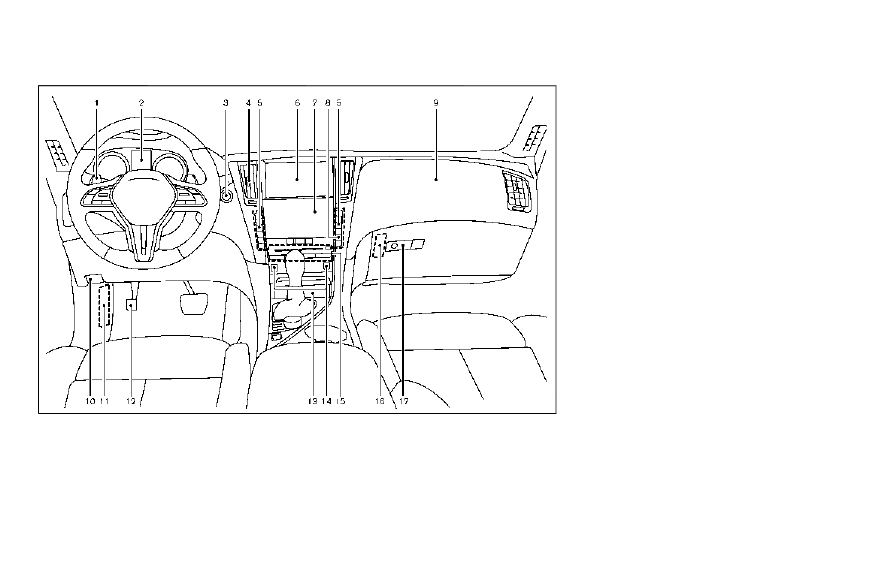

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0428X

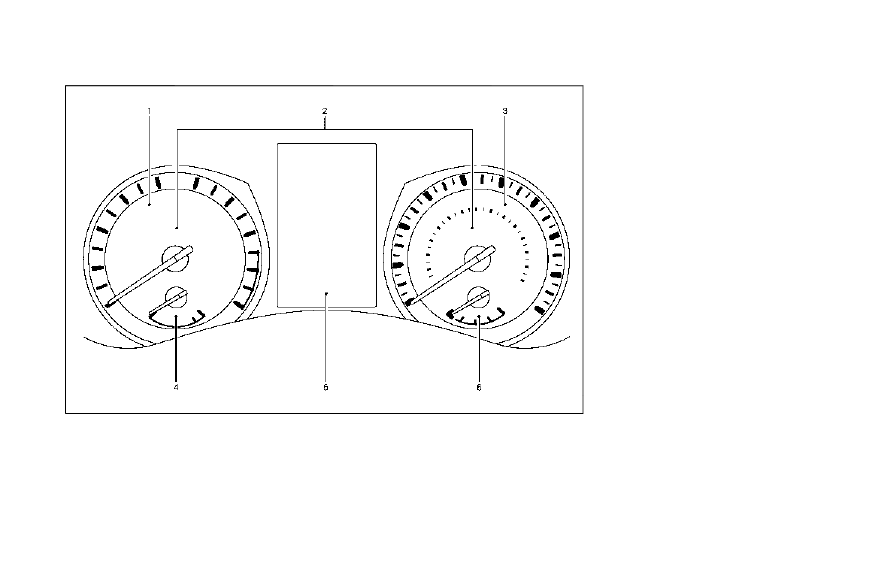

Tachometer (P.2-8)

Warning and indicator lights (P.2-12)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Vehicle information display (P.2-21)/
Odometer/twin trip odometer (P.2-7)

Fuel gauge (P.2-9)

Illustrated table of contents

0-9

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

JVC0968X

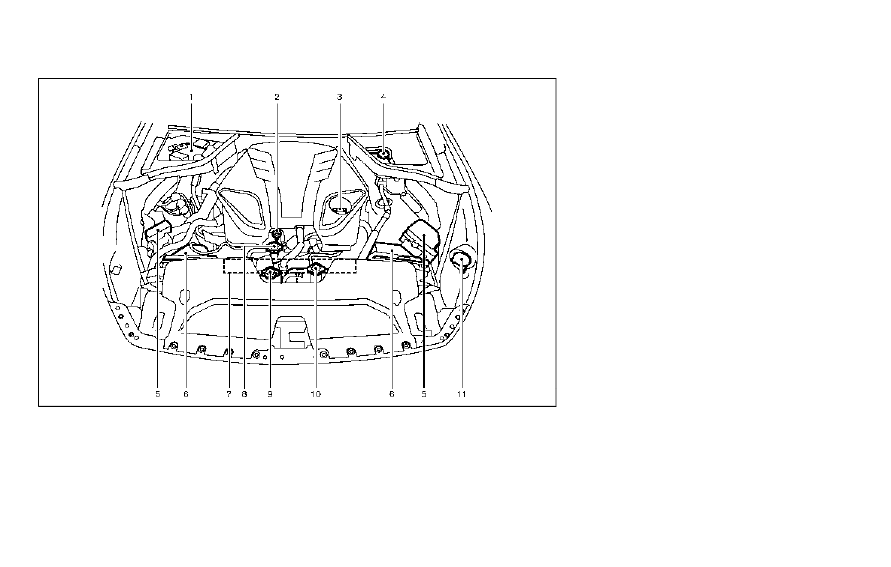

VR30DDTT ENGINE

Battery (P.8-16)

Engine oil dipstick (P.8-10)

Engine oil filler cap (P.8-11)

Brake fluid reservoir (P.8-14)

Fuse/fusible link holder (P.8-23)

Air cleaner (P.8-21)

Engine drive belt location (P.8-20)

Radiator filler cap (P.8-6)

Intercooler cooling reservoir (P.8-9)

10. Engine coolant reservoir (P.8-7)
11. Window washer fluid reservoir (P.8-15)

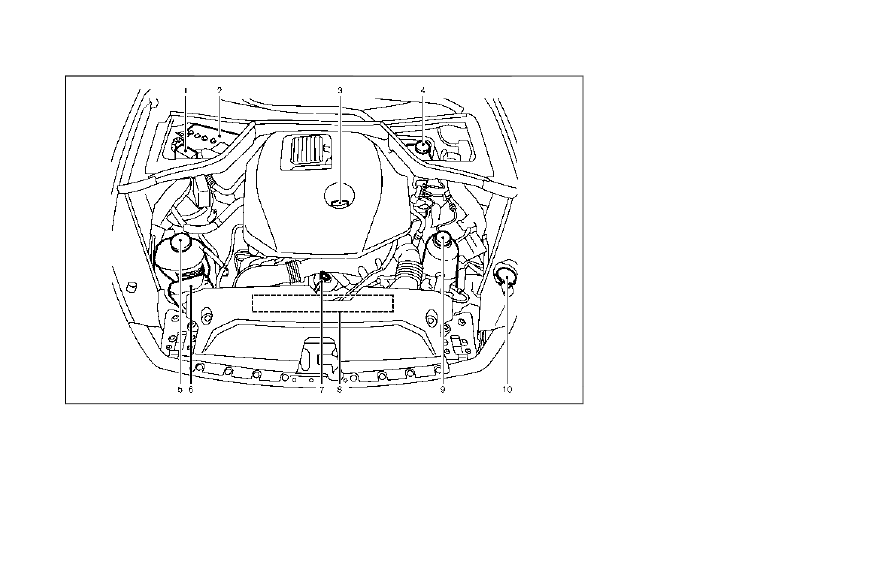

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0646X

2.0L TURBO GASOLINE ENGINE

Fuse and fusible link holder (P.8-23)

Main battery* (P.8-16)

Engine oil filler cap (P.8-11)

Brake fluid reservoir (P.8-14)

Engine coolant reservoir (P.8-8)

Fuse and fusible link holder (P.8-23)

Engine oil dipstick (P.8-11)

Engine drive belt location (P.8-20)

Power steering fluid reservoir (if so
equipped) (P.5-129)

10. Window washer fluid reservoir (P.8-15)

The auxiliary battery is located in the
trunk. (See “Auxiliary battery location
(for 2.0L turbo gasoline engine mod-
els)” (P.8-17).)

Illustrated table of contents

0-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking System
(ABS) warning light

2-12

Brake warning light

2-13

Charge warning light

2-13

Forward Emergency Braking
(FEB) system warning light (if
so equipped)

2-13

Low fuel warning light

2-14

Low tire pressure warning
light

2-14

Master warning light

2-16

Power steering warning light

2-16

Seat belt warning light

2-17

Supplemental air bag warn-
ing light

2-17

Vehicle Dynamic Control
(VDC) warning light

2-17

Indicator

light

Name

Page

ECO drive indicator light (if
so equipped)

2-18

Exterior light indicator

2-18

Front fog light indicator light

2-18

Front passenger air bag sta-
tus light

2-18

High beam assist indicator
light (if so equipped)

2-18

High beam indicator light

2-18

Idling Stop System indicator
light (if so equipped)

2-18

Malfunction Indicator Light
(MIL)

2-19

Security indicator light

2-19

Turn signal/hazard indicator
lights

2-20

Vehicle Dynamic Control
(VDC) off indicator light

2-20

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

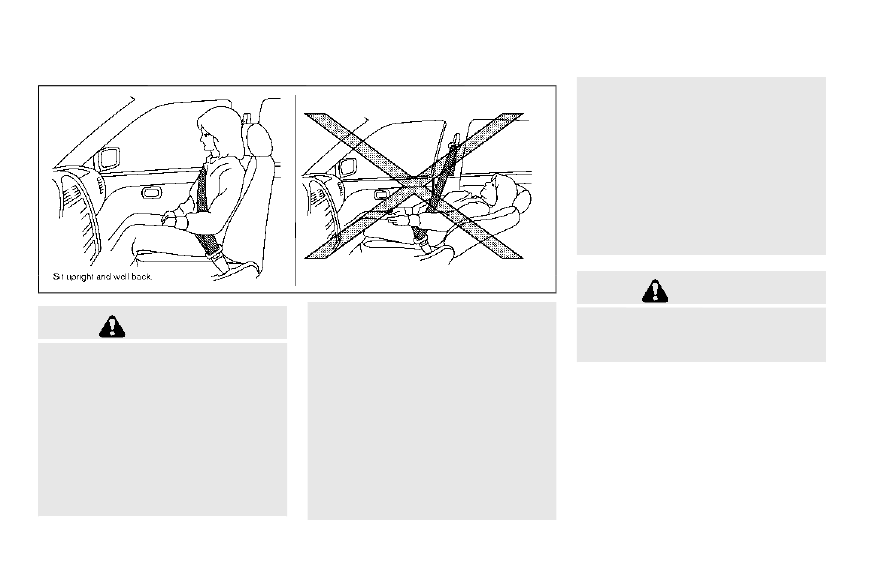

WARNING

. Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with

both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-11).

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

. To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-

hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

. The seatback should not be reclined

further than necessary for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT SEATS

Front power seat adjustment

Operating tips:
. The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

. Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

See “Automatic drive positioner” (P.3-32)
for the seat position memory function.

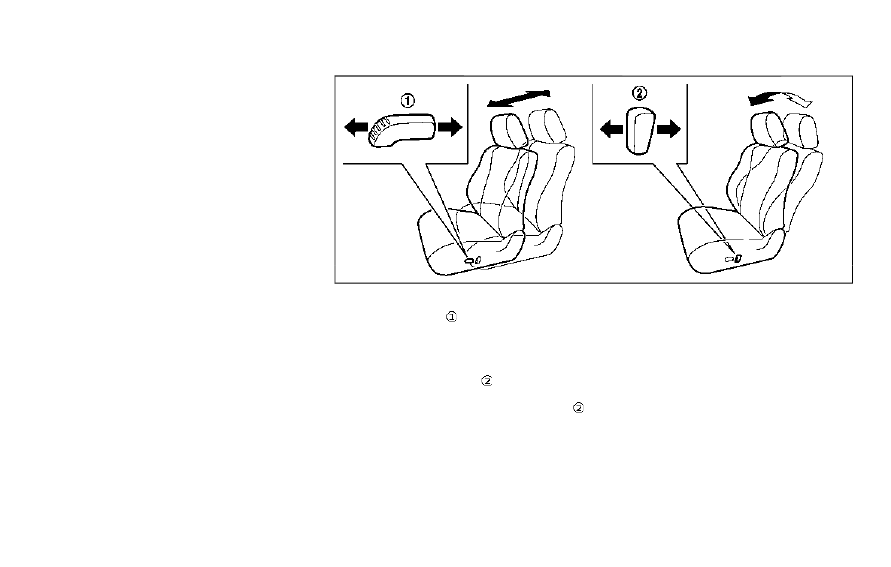

SSS1051

Forward and backward:
Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:
Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-11).) Also, the seatback can be
reclined to allow occupants to rest when the

vehicle is parked.

Safety — Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety — Seats, seat belts and supplemental restraint system

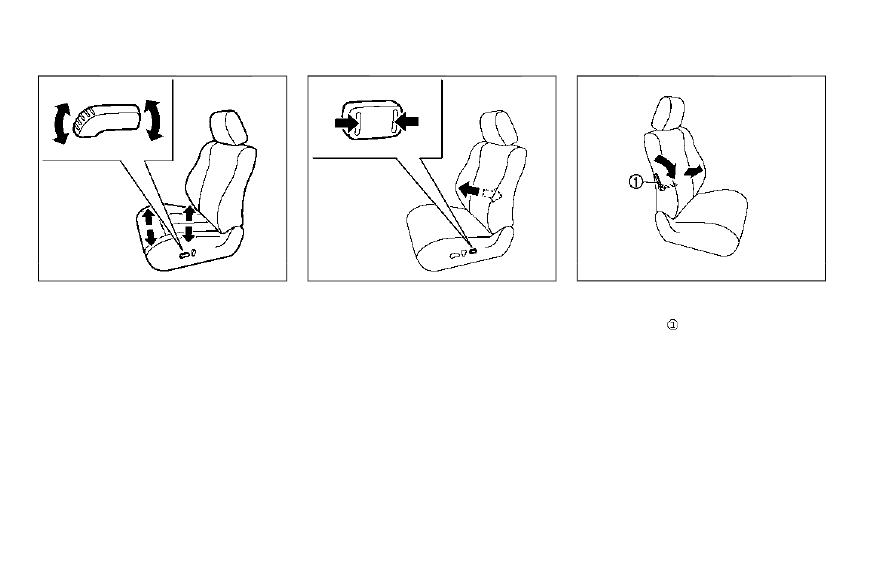

SSS1052

Seat lifter:
Push the front or rear end of the switch up or
down to adjust the angle of the front portion
or height of the seat.

SSS1053

Type A (if so equipped)

Lumbar support (for driver’s seat):
The lumbar support feature provides lower
back support to the driver.
Type A (if so equipped)
Push the front or back end of the switch to
adjust the seatback lumbar area.

SSS0836

Type B (if so equipped)

Type B (if so equipped)
Move the lever

up or down to adjust the

seatback lumbar area.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

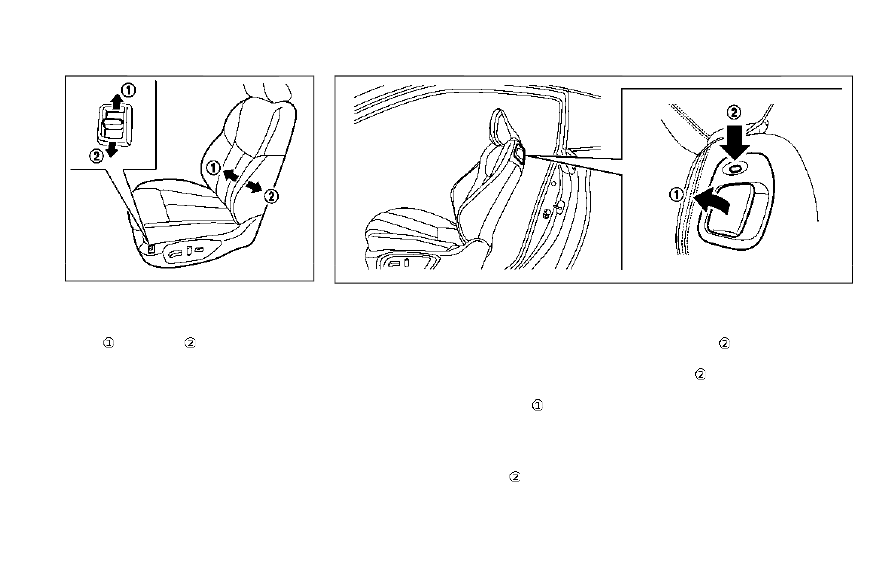

JVR0186X

Side support (if so equipped):
The side support feature allows you to
adjust the torso supports. Push the switch
inside

or outside

to adjust the torso

area.

JVR0497X

Walk-in mechanism:
This feature makes it easier to get in and out
of the rear seat. Use the following procedure
when getting in and out of the rear seat.
If the sun visor is used, close it to the original
position before operating the walk-in fea-
ture.
1. Pull the seatback lever upward

to fold

the front seatback down. Make sure that
the front seatback is completely folded
down.

2. To slide the front seat forward, firmly

push the seatback switch

. The front

seat will move forward.

3. Get in or out of the vehicle.
4. To return the front seat to its original

position, raise the seatback and push the
seatback switch

again.

. To stop the seat sliding, push the seat-

back switch

again or operate the seat

sliding/lifter switches.

. The front passenger seat will stop re-

turning 6.5 in (165.8 mm) from its front-
most position to retain space for the rear
passenger.

. Depending on the seat position, the head

restraint may contact the roof headlining
during the walk-in operation. To prevent
possible interference, lower the seat
using the seat lifter switch.

Safety — Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q60 (2018 year). Manual - part 1
