2017 Infiniti QX60/JX (2017 year). Manual

Sunshade

Open and close the sunshade by sliding it for-
ward or backward.

If the moonroof does not close

Have your moonroof checked and repaired. It is
recommended that you visit an INFINITI retailer
for this service.

POWER MOONROOF

The front moonroof is a power moonroof, the rear
moonroof is fixed glass. The power moonroof will
only operate when the ignition switch is placed in
the ON position. The moonroof is operational for
a period of time, even if the ignition switch is
placed in the ACC or OFF position. If the driver’s
door or the front passenger’s door is opened
during this period of time, the power to the moon-
roof is canceled.

Sliding the moonroof

To slide the moonroof:

● To fully open the moonroof, push the switch

䊊

toward the open position until it reaches

the second detent. If the switch

䊊

pushed to the first detent, only the sunshade
will open.

● To fully close the moonroof, push the switch

䊊

toward the close position until it reaches

the second detent. If the switch

䊊

pushed to the first detent, the moonroof will
close but the sunshade will remain open.

● To open or close the moonroof part way,

release the switch

䊊

while the moon-

roof is sliding open or closed. The moonroof
will stop at the desired position.

Tilting the moonroof

To tilt up, first close the moonroof, then push the
switch to the tilt up position

䊊

and release it; it

need not be held. To tilt down the moonroof, push
the switch to the tilt down position

䊊

Resetting the moonroof switch

If the moonroof does not operate properly, per-
form the following procedure to initialize the
moonroof operation system.

1. Place the ignition switch in the ON position.

2. Press and hold the moonroof tilt switch for-

ward until the moonroof stops.

LIC2313

DUAL PANEL MOONROOF (if so
equipped)

2-64

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Release the moonroof switch.

4. Press and hold the tilt up switch within

6 seconds.

5. The roof glass will Tilt-Down, Slide-Close,

Slide-Open,

Slide-Close,

Tilt-Up,

Tilt-

Down.

6. Release the switch; initialization is complete

if the moonroof operates normally.

If the moonroof does not operate properly after
performing the procedure above, have your ve-
hicle checked. It is recommended that you visit an
INFINITI retailer for this service.

Auto-reverse function (when closing or
tilting down the moonroof)

The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.

When closing

If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.

When tilting down

If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.

If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.

WARNING

● In an accident you could be thrown from

the vehicle through an open moonroof.
Always

use

seat

belts

and

child

restraints.

● Do not allow anyone to stand up or

extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.

CAUTION

● Remove water drops, snow, ice or sand

from the moonroof before opening.

● Do not place heavy objects on the

moonroof or surrounding area.

If the moonroof does not close

Have your moonroof checked and repaired. It is
recommended that you visit an INFINITI retailer
for this service.

Instruments and controls

2-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Panoramic sunshade

The panoramic sunshade operates when the ig-
nition switch is in the ON position. The sunshade
switch is located near the roof console. When
opening or closing the sunshade the switch need
not be held.

To open the sunshade:

● To fully open the sunshade, push the switch

䊊

toward the open position.

To close the sunshade:

● To fully close the sunshade, push the switch

䊊

toward the close position.

WARNING

● To avoid personal injury, keep your

hands, fingers and head away from the
sunshade arm, the arm rail and sun-
shade inlet port.

● Do not allow children near the rear sun-

shade system. They could be injured.

● Do not place objects on or near the rear

sunshade. This could cause improper
operation or damage it.

● Do not pull or push the rear sunshade.

This could cause improper operation or
damage it.

CAUTION

● Do not place objects (such as newspa-

pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.

● Do not push the sunshade arm with

your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.

● Do not put any object into the sunshade

inlet port as this may result in improper
operation or damage the sunshade.

● Do not hang any object on the arm rail

as this may result in improper operation
or damage the sunshade.

● Do not forcefully pull the sunshade. Do-

ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.

LIC2228

2-66

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The interior lights will automatically turn on and
stay on for a period of time when:

● The doors are unlocked by the Intelligent

Key, a key or the request switch while all
doors are closed and the ignition switch is in
the OFF position.

● The doors and/or liftgate is opened.
● The switch is individually pushed.

When the ON switch

䊊

is pushed, the interior

lights illuminate.

When the DOOR/OFF switch

䊊

is pushed, the

interior lights do not illuminate unless individually
pushed.

NOTE:

The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

CONSOLE LIGHT

The console light

䊊

will turn on whenever the

parking lights or headlights are illuminated.

The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.

SIC4357

LIC2213

INTERIOR LIGHTS

Instruments and controls

2-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAP LIGHTS

To turn the map lights on, push the switches. To
turn them off, push the switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

PERSONAL LIGHTS

To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.

LUGGAGE COMPARTMENT LIGHT

The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.

The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. For additional information, refer to “Inte-
rior lights” in this section.

The lights will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.

SIC4356

Rear personal lights

LIC1083

2-68

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.

HomeLink® Universal Transceiver:

● Will operate most radio frequency devices

such as garage doors, gates, home and of-
fice lighting, entry door locks and security
systems.

● Is powered by your vehicle’s battery. No

separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” in this section.

WARNING

● Do not use the HomeLink® Universal

Transceiver

with

any

garage

door

opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came

effective

for

opener

models

manufactured after April 1, 1982). A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener

without

these

features

in-

creases the risk of serious injury or
death.

● During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.

● Your vehicle’s engine should be turned

off while programming the HomeLink®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.

PROGRAMMING HOMELINK®

If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio frequency.

HOMELINK® UNIVERSAL
TRANSCEIVER

Instruments and controls

2-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

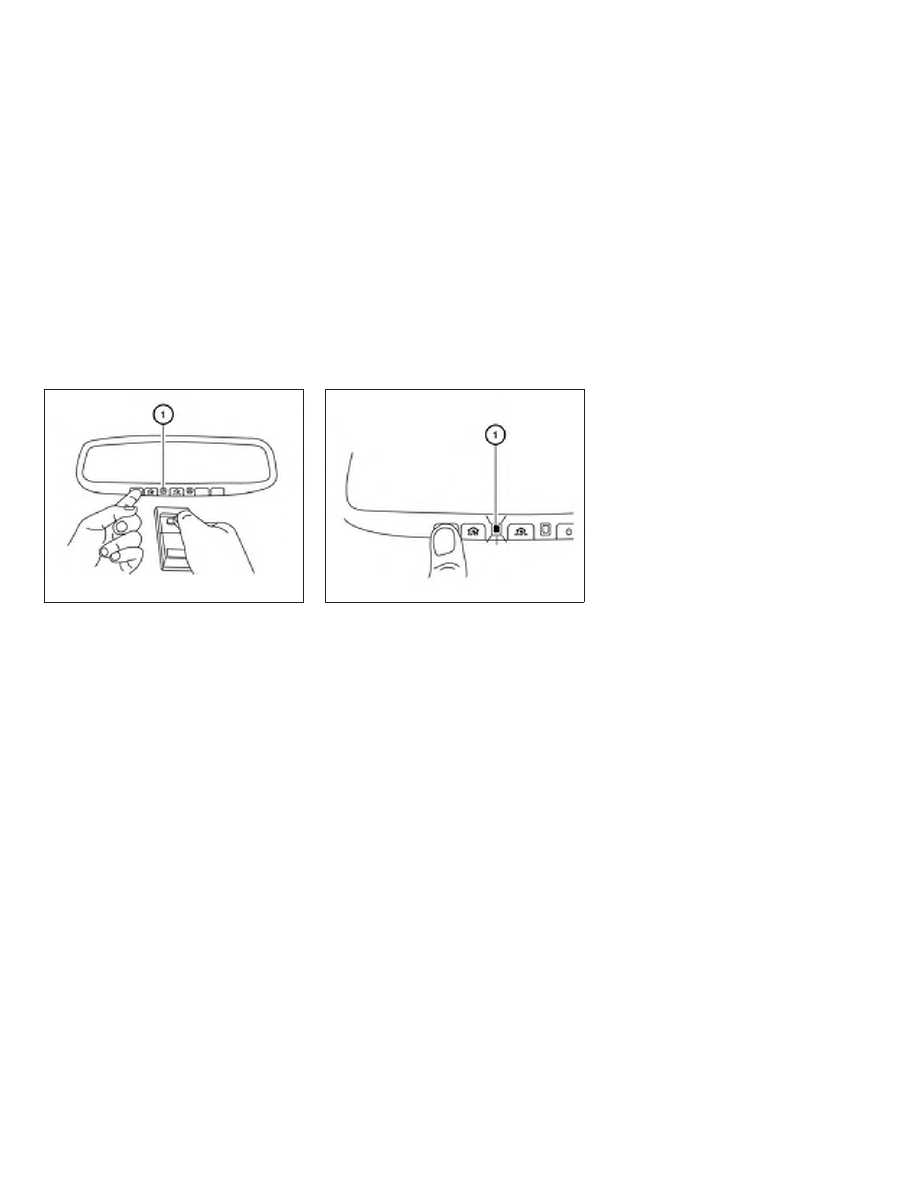

1. Position the end of your hand-held transmit-

ter 1–3 in (2–8 cm) away from the
HomeLink®

surface,

keeping

the

HomeLink® indicator light

䊊

in view.

2. Using both hands, simultaneously press and

hold the desired HomeLink® button and
hand-held transmitter button. DO NOT re-
lease until the HomeLink® indicator light

䊊

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” in this sec-
tion.

3. Press

and

hold

the

programmed

HomeLink® button and observe the indica-
tor light.

● If

the

indicator

light

䊊

solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink® button is
pressed and released.

● If the indicator light

䊊

blinks rapidly for

2 seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device.
Do not stand on your vehicle to perform
the next steps.

4. At the receiver located on the garage door

opener motor in the garage, locate the
“learn” or “smart” button (the name and color
of the button may vary by manufacturer but it
is usually located near where the hanging
antenna wire is attached to the unit). If there

LIC2365

LIC2366

2-70

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

is difficulty locating the button, reference the
garage door opener’s manual.

5. Press and release the “learn” or “smart” but-

ton.

6. Return to the vehicle and firmly press and

hold the trained HomeLink® button for
2

seconds

and

release.

Repeat

the

“press/hold/release” sequence up to three
times to complete the training process.
HomeLink® should now activate your rolling
code equipped device.

7. If you have any questions or are having diffi-

culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-
3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS

Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having difficulties
training a gate operator or garage door opener
by using the “Training” procedures, replace
“Programming HomeLink®” Step 2 with the fol-
lowing:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this sec-
tion.

2. Using both hands, simultaneously press and

hold the desired HomeLink® button and the
hand-held transmitter button. During train-
ing, your hand-held transmitter may auto-
matically stop transmitting. Continue to
press and hold the desired HomeLink® but-
ton while you press and re-press (“cycle”)
your hand-held transmitter every 2 seconds
until the frequency signal has been learned.
The HomeLink® indicator light will flash
slowly and then rapidly after several seconds
upon successful training. DO NOT release
until the HomeLink® indicator light flashes
slowly and then rapidly. When the indicator
light flashes rapidly, both buttons may be

released. The rapid flashing indicates suc-
cessful training.
Proceed with “Programming HomeLink®”
step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release

the

appropriate

programmed

HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted.

For convenience, the hand-held transmitter of the
device may also be used at any time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

● replace the hand-held transmitter batteries

with new batteries.

Instruments and controls

2-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● position the hand-held transmitter with its

battery

area

facing

away

from

the

HomeLink® surface.

● press and hold both the HomeLink® and

hand-held transmitter buttons without inter-
ruption.

● position the hand-held transmitter 1 - 3 in (2

- 8 cm) away from the HomeLink® surface.
Hold the transmitter in that position for up to
15 seconds. If HomeLink® is not pro-
grammed within that time, try holding the
transmitter in another position – keeping the
indicator light in view at all times.

If you continue to have programming difficulties,
please contact the INFINITI Consumer Affairs
Department. The phone numbers are located in
the Foreword of this manual.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed. For additional informa-
tion,

refer

“Reprogramming

single

HomeLink® button” in this section.

To clear all programming:

1. Press and hold the two outer HomeLink®

buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.

2. Release both buttons.

HomeLink® is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink®” - Step 1.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:

1. Press and hold the desired HomeLink® but-

ton. DO NOT release the button.

2. The indicator light will begin to flash after

seconds.

Without

releasing

the

HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.

For questions or comments, contact HomeLink®
at: www.homelink.com or 1–800–355–3515
(except Mexico).

The HomeLink® Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink®
button that was just programmed. This procedure
will not affect any other programmed HomeLink®
buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink®. Consult the
Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause unde-
sired operation.

2-72

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Intelligent Keys (two sets)

Mechanical key

Key number plate (one plate)

INFINITI INTELLIGENT KEY

Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key System components and INFINITI Ve-
hicle Immobilizer System components.

Never leave the keys in the vehicle.

As many as four Intelligent Keys can be regis-
tered and used with one vehicle. The new keys

must be registered prior to use with the Intelligent
Key System and INFINITI Vehicle Immobilizer
System of your vehicle. It is recommended that
you visit an INFINITI retailer for this service. Since
the registration process requires erasing all
memory in the Intelligent Key components when
registering new keys, be sure to take all Intelligent
Keys that you have to the INFINITI retailer.

A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet), not in the vehicle. If you lose
your keys, it is recommended that you visit an
INFINITI retailer for duplicates by using the key

number. INFINITI does not record key numbers
so it is very important to keep track of your key
number plate.

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelligent
Key:

● Do not allow the Intelligent Key, which

contains

electrical

components,

come into contact with water or salt
water. This could affect the system
function.

● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply

against another object.

● Do not change or modify the Intelligent

Key.

● Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

Type A (if so equipped)

WPD0427

Type B (if so equipped)

LPD2052

KEYS

3-2

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Do not place the Intelligent Key for an

extended period in an area where tem-
peratures exceed 140°F (60°C).

● Do not attach the Intelligent Key with a

key holder that contains a magnet.

● Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For information regarding the erasing
procedure, it is recommended that you visit an
INFINITI retailer.

Mechanical key

The Intelligent Key contains the mechanical key.

To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.

Use the mechanical key to lock or unlock the
driver’s door and glove box.

CAUTION

Always carry the mechanical key installed
in the Intelligent Key slot.

For additional information, refer to “Doors” in this
section and “Storage” in the “Instruments and
controls” section of this manual.

Valet hand-off

When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the me-
chanical key with you to protect your belongings.

To prevent the glove box from being opened
during valet hand-off, follow the procedure be-
low.

1. Remove the mechanical key from the Intelli-

gent Key.

2. Lock the glove box with the mechanical key.

3. Hand the Intelligent Key to the valet and

keep the mechanical key with you.

For additional information, refer to “Storage” in
the “Instruments and controls” section of this
manual.

SPA1951

Pre-driving checks and adjustments

3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the Intelli-
gent Keys which are registered to the INFINITI
Vehicle Immobilizer System components in your
vehicle.

The mechanical key can be used for all the locks.

Never leave the keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra INFINITI Vehicle
Immobilizer System keys. Your existing key can
be duplicated without knowing the key number.
As many as four INFINITI Vehicle Immobilizer
System keys can be used with one vehicle. You
should bring all INFINITI Vehicle Immobilizer Sys-
tem keys that you have to the INFINITI retailer for
registration. This is because the registration pro-
cess will erase the memory of all key codes
previously registered into the INFINITI Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the INFINITI Vehicle Immobilizer Sys-
tem during registration. Any key that is not given
to the retailer at the time of registration will no
longer be able to start your vehicle.

CAUTION

Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.

When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.

WARNING

● Before opening any door, always look

for and avoid oncoming traffic.

● To help avoid risk of injury or death

through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.

DOORS

3-4

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

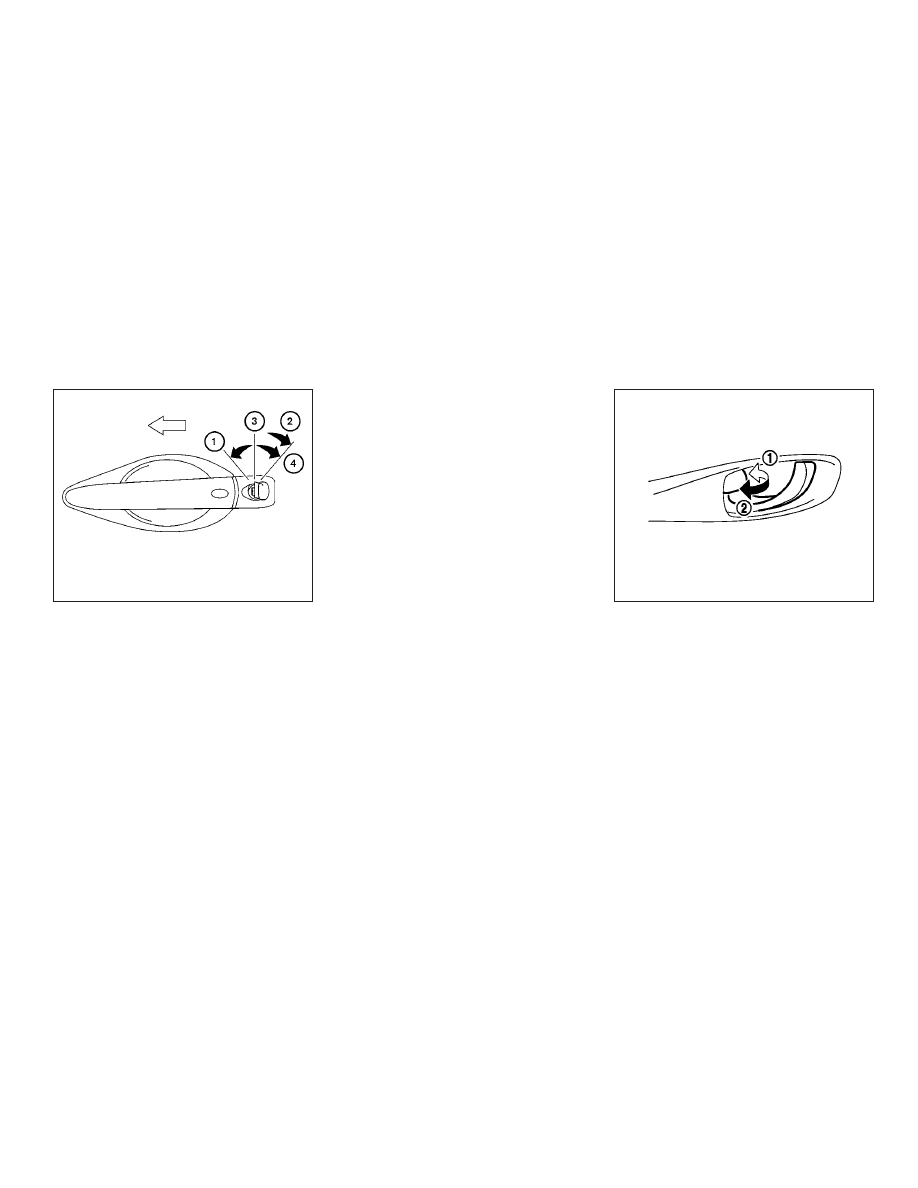

LOCKING WITH KEY

The power door lock system allows you to lock or
unlock all doors at the same time.

Turning the key toward the front

䊊

of the vehicle

locks all doors.

Turning the key one time toward the rear

䊊

of the

vehicle unlocks that door. From that position,
returning the key to neutral

䊊

(where the key can

only be removed and inserted) and turning it
toward the rear again

䊊

within 5 seconds un-

locks all doors.

Opening and closing windows

The driver’s door key operation allows you to
open and close windows equipped with auto-
matic operation at the same time.

● To open the windows, turn the driver’s door

key toward the rear of the vehicle for longer
than 1 second after the door is unlocked.

● To close the windows, turn the driver’s door

key toward the front of the vehicle for longer
than 1 second after the door is locked.

Windows stop when the key cylinder is released.

NOTE:

When the window lock button is pressed
the key will not operate the window open or
close function.

LOCKING WITH INSIDE LOCK
KNOB

To lock the door without the key, move the inside
lock knob to the lock position

䊊

, then close the

door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

Driver’s side

LPD0461

Inside lock

SPA2726

Pre-driving checks and adjustments

3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2017 Infiniti QX60/JX (2017 year). Manual - part 10
