Infiniti Q60 Coupe (2014 year). Manual

0-2

Illustrated table of contents

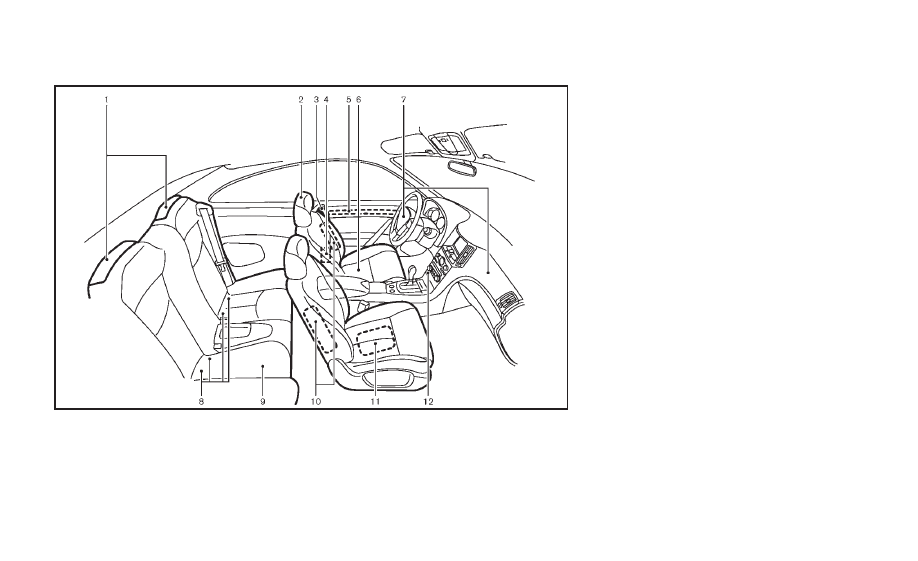

SSI0817

Pop-up roll bar system (Page 1-49)

Head restraints (P.1-7)

Seat belts (P.1-11)

Seat belts with pretensioners (P.1-46)

Door-mounted curtain side-impact
supplemental air bags (P.1-35)

Front seats (P.1-3)

Supplemental front-impact air bags
(P.1-35)

Child restraint lower anchors (P. 1-21)

Rear seats
— Child restraints (P.1-19)

10. Front seat-mounted side-impact sup-

plemental air bags (P.1-35)

11. Occupant classification sensor (pat-

tern sensor) (P.1-40)

12. Front passenger air bag status light

(P.1-42)

SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

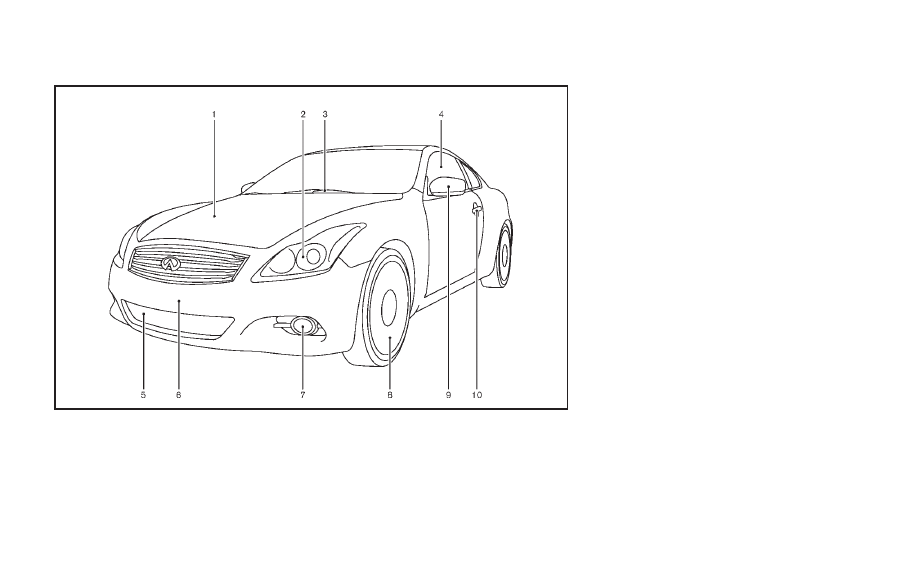

SSI0833

Hood (P.3-17)

Headlight and turn signal
— Operation (P.2-34)
— Bulb replacement (P.8-27)
— Fog light (P.2-39)

Windshield wiper and washer

— Operation (P.2-31)
— Maintenance (P.8-20)

Power windows (P.2-49)

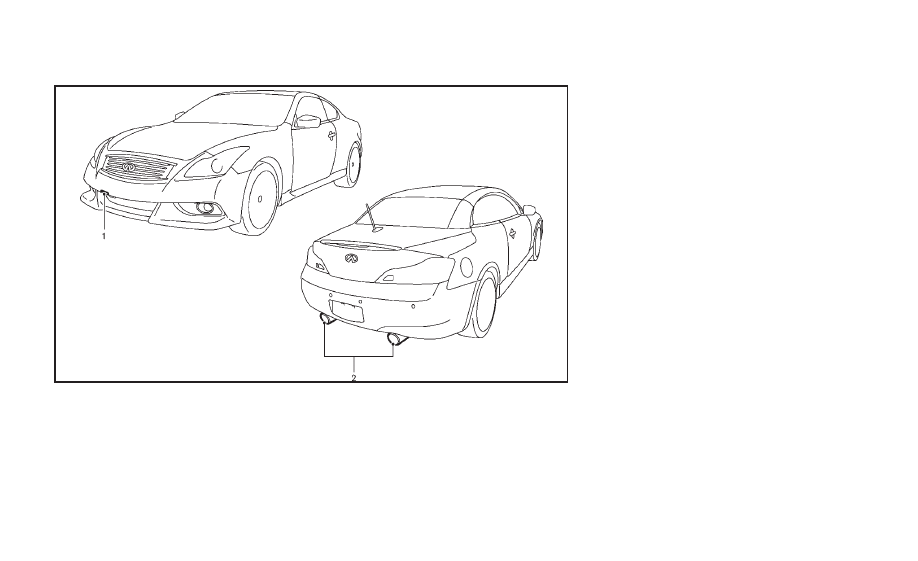

Recovery hook (P.6-19)

Front license plate installation (P.9-13)

Fog light (P.2-39)

Tires
— Wheel and tires (P.8-30, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-12, P.5-4)

Outside mirrors (P.3-36)

10. Doors

— Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)

Illustrated table of contents

0-3

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

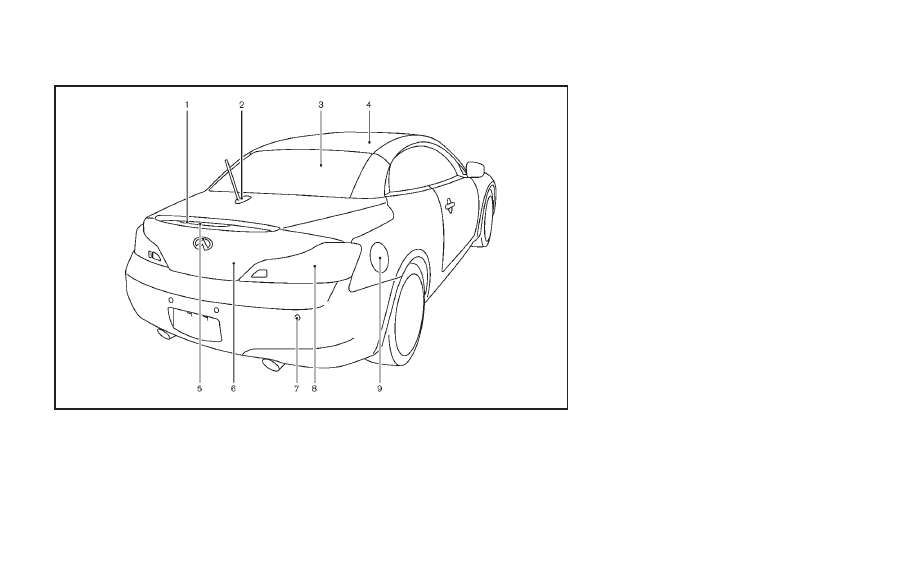

SSI0674

High-mounted stop light (P.8-27)

Antenna (P.4-75)
— Satellite radio antenna (P.4-39)

Rear window defroster (P.2-34)

Retractable hard top (P.3-18)

RearView Monitor camera (P.4-23)

Trunk (P.3-28)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)

Sonar system sensors (if so equipped)
(P.5-49)

Rear combination light (bulb replace-
ment) (P. 8-27)

Fuel-filler door
— Operation (P.3-31)
— Fuel recommendation (P.9-4)

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

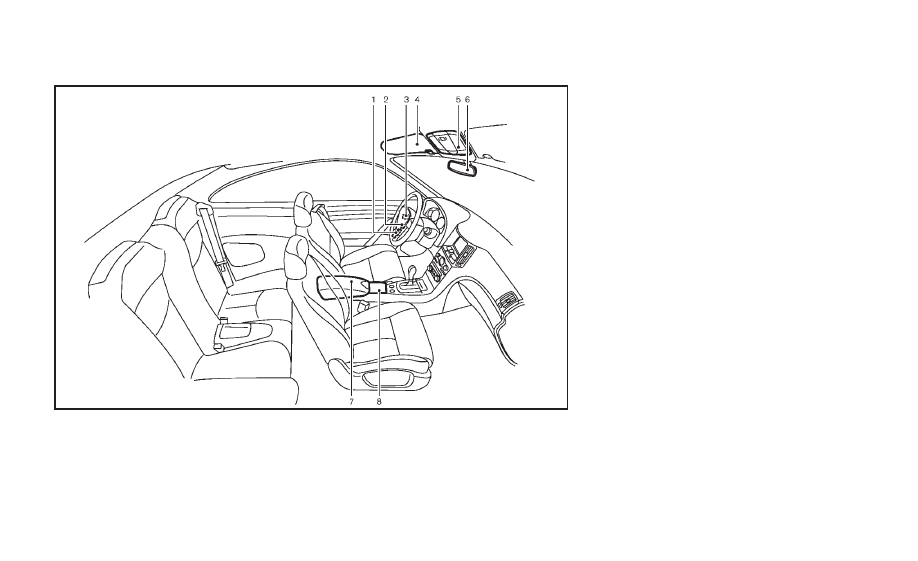

SSI0818

Power window switch (P.2-49)

Outside mirror remote control switch
(P.3-36)

Automatic drive positioner switch (if
so equipped) (P.3-38)

Sun visors (P.3-35)

Map light (P.2-52)

Inside rearview mirror
— Operation (P.3-35)
— HomeLink

universal transceiver (if

so equipped) (P.2-54)

Console box (P.2-47)
— Power outlet (P.2-43)
— iPod

player operation (P.4-71)

— USB input operation (P.4-61)

Front cup holders (P.2-45)

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

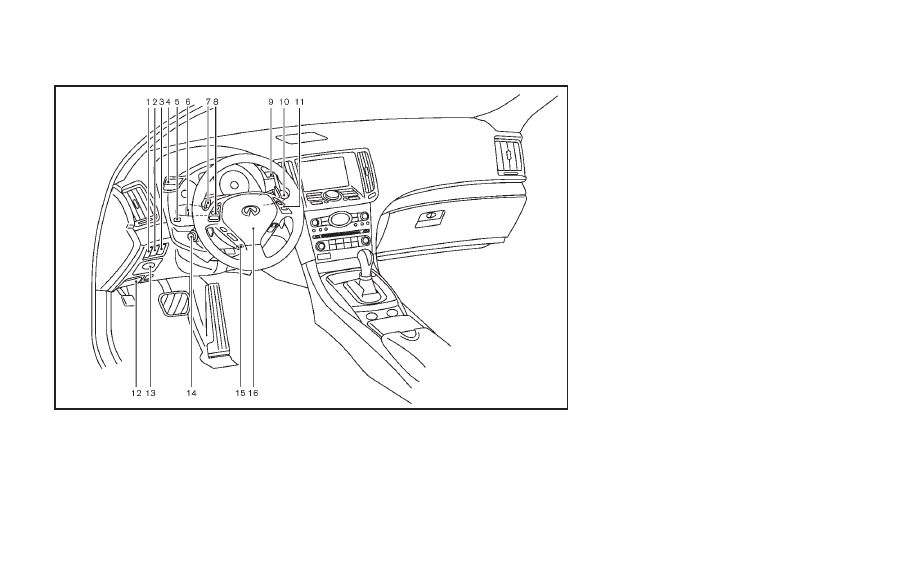

SSI0819

Vehicle Dynamic Control (VDC) OFF
switch (P.5-56)

Trunk lid release switch (P.3-28)

Sonar system OFF switch (if so
equipped) (P.5-51)

Instrument brightness control switch
(P.2-38)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Headlight, fog light and turn signal
switch (P.2-34)

Paddle shifter (if so equipped) (P.5-16)

Steering-wheel-mounted controls (Left
side)
— ENTER or tuning switch (P.4-74)
— BACK switch (P.4-74)
— TALK switch (P.4-101)/Phone
switch (P.4-77, 4-87)
— Volume control switches (P.4-74)
— Source select switch (P.4-74)

Trip computer switch (P.2-26)

10. Windshield wiper and washer switch

(P.2-31)

11. Steering-wheel-mounted controls

(Right side)
— Cruise control switches (P.5-21)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-23)

12. Hood release handle (P.3-17)
13. Intelligent Key port (P.5-9)
14. Electric tilting/telescopic steering

wheel lever (if so equipped) (P.3-34)

15. Manual tilting/telescopic steering

wheel lever (if so equipped) (P.3-34)

16. Steering wheel

— Horn (P.2-39)
— Driver supplemental air bag
(P.1-35)

Illustrated table of contents

0-7

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

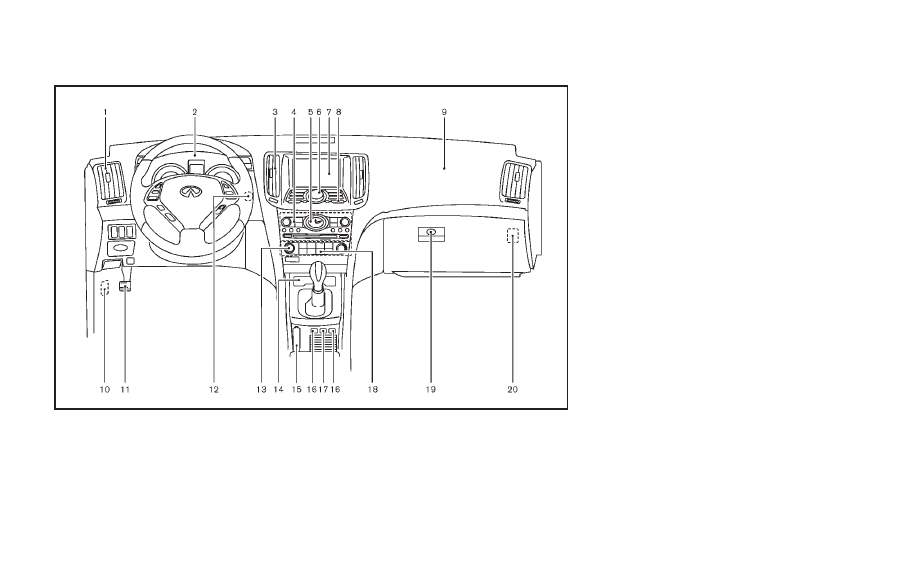

SSI0671

Side ventilator (P.4-30)

Meters and gauges (P.2-6)

Center ventilator (P.4-30)

Audio system (P.4-39)

Clock (P.2-43)

Center multi-function control panel

— N a v i g a t i o n s y s t e m * ( i f s o
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth

Hands-Free Phone Sys-

tem (models with navigation system)

(P.4-77)
— Audio system (P.4-39)

Center display (P.4-3)/Navigation sys-
tem* (if so equipped)

Hazard warning flasher switch (P.6-2)

Front passenger supplemental air bag
(P.1-35)

10. Fuse box cover (P.8-22)
11. Parking brake (for Automatic Trans-

mission models)
— Parking (P.5-20)

12. Push-button ignition switch (P.5-9)
13. Automatic climate control system

(P.4-30)

14. Cigarette lighter and ashtray (if so

equipped) (P.2-44) or Storage box (if
so equipped) (P.2-48)
— Power outlet (if so equipped)
(P.2-43)

15. Parking brake (for Manual Transmis-

sion models)
— Parking (P.5-20)

16. Heated seat switch (if so equipped)

(P.2-39) or Climate controlled seat
switch (if so equipped) (P.2-41)

17. Retractable hard top operating switch

(P.3-18)

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

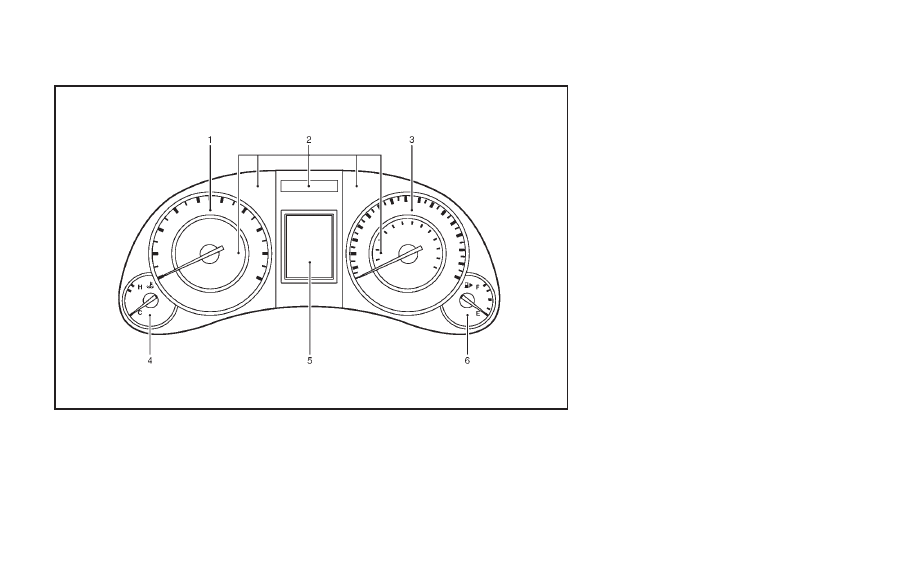

SIC4288

Tachometer (P.2-8)

Warning/Indicator lights (P.2-10)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Dot matrix liquid crystal display/

Odometer/twin trip odometer
(P.2-17)

Fuel gauge (P.2-9)

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

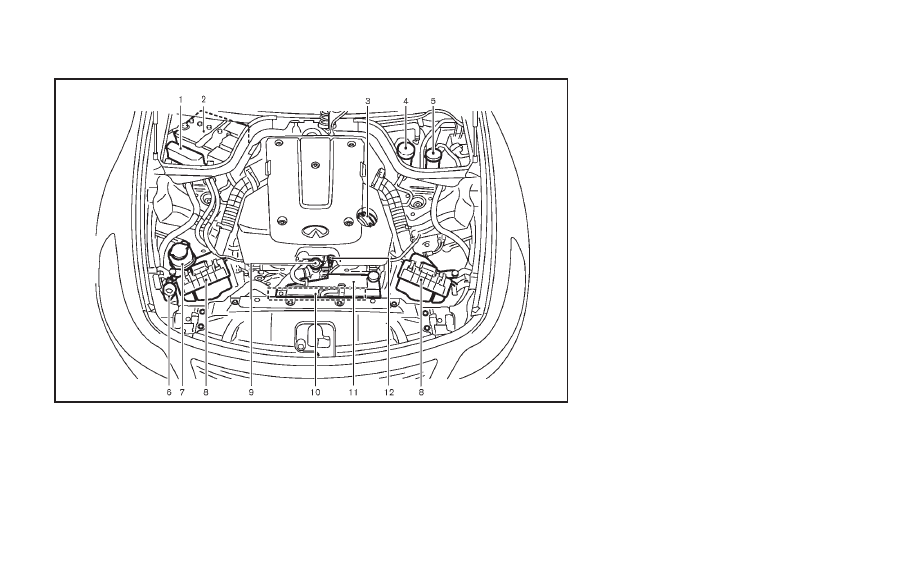

SSI0345

VQ37VHR ENGINE

Fuse/fusible link holder (P.8-22)

Battery (P.8-15)

Engine oil filler cap (P.8-10)

Brake fluid reservoir (P.8-13)

Clutch fluid reservoir (Manual Trans-

mission models) (P.8-13)

Window washer fluid reservoir
(P.8-14)

Power steering fluid reservoir (P.8-13)

Air cleaner (P.8-19)

Radiator filler cap (P.8-8)

10. Drive belts location (P.8-18)
11. Engine Coolant reservoir (P.8-8)
12. Engine oil dipstick (P.8-10)

Illustrated table of contents

0-11

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking System (ABS)
warning light

2-10

Automatic Transmission check
warning light*

2-11

Brake warning light

2-11

Charge warning light

2-11

Engine oil pressure warning
light

2-12

Intelligent Cruise Control (ICC)
system warning light (orange)*

2-12

Intelligent Key warning light

2-12

Low tire pressure warning light

2-12

Master warning light

2-13

Preview Function warning light
(orange)*

2-14

Seat belt warning light

2-14

Supplemental air bag warning
light

2-14

Vehicle Dynamic Control (VDC)
warning light

2-15

Indicator

light

Name

Page

Automatic Transmission posi-
tion indicator light*

2-15

Exterior light indicator

2-15

Front fog light indicator light

2-15

Front passenger air bag status
light

2-15

High beam indicator light

2-15

Malfunction Indicator Light
(MIL)

2-15

Security indicator light

2-16

Turn signal/hazard indicator
lights

2-16

Vehicle Dynamic Control (VDC)
off indicator light

2-16

if so equipped

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2

Safety

— Seats, seat belts and supplemental restraint system

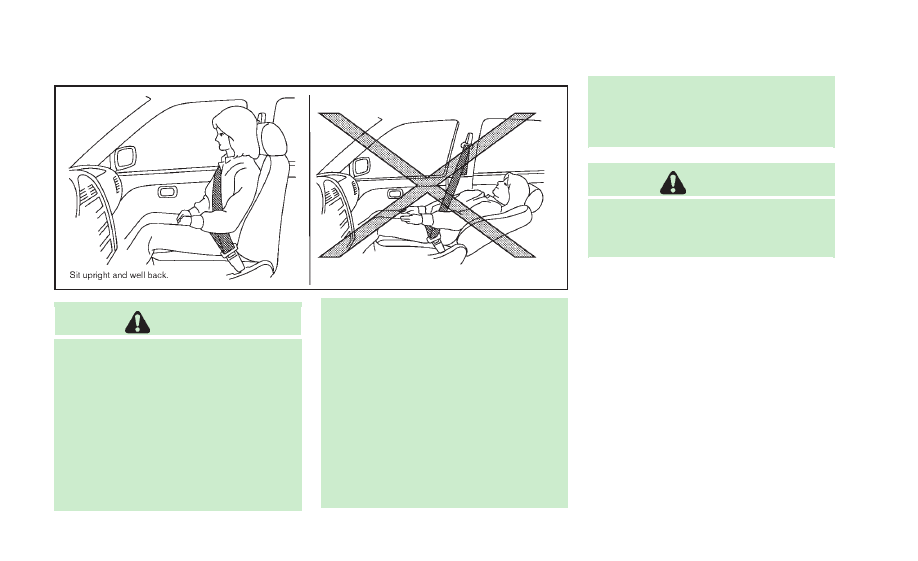

SSS0133

WARNING

. Do not ride in a moving vehicle when the

seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should
be upright. Always sit well back in the

seat with both feet on the floor and
adjust the seat belt properly. See

“Pre-

cautions on seat belt usage

” (P.1-11).

. After adjustment, gently rock in the seat

to make sure it is securely locked.

. Do not leave children unattended inside

the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.

. The seatback should not be reclined

further than necessary for comfort. Seat
belts are most effective when the pas-

senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.

CAUTION

When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT SEATS

Front power seat adjustment

Operating tips:
. The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.

. Do not operate the power seat switch

for a long period of time when the
engine is off. This will discharge the
battery.

See

“Automatic drive positioner” (P.3-38)

for the seat position memory function (if so
equipped).

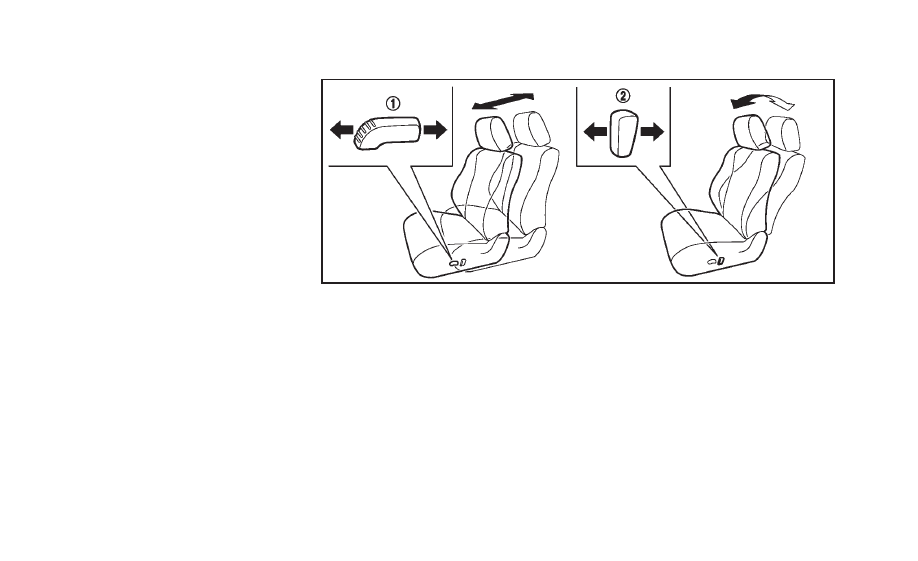

SSS1051

Forward and backward:

Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:

Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch

forward.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See

“Precautions on

seat belt usage

” (P.1-11).) Also, the seat-

back can be reclined to allow occupants to
rest when the vehicle is stopped and the
transmission is in the P (Park) or N
(Neutral) position with the parking brake
fully applied.

Safety

— Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety

— Seats, seat belts and supplemental restraint system

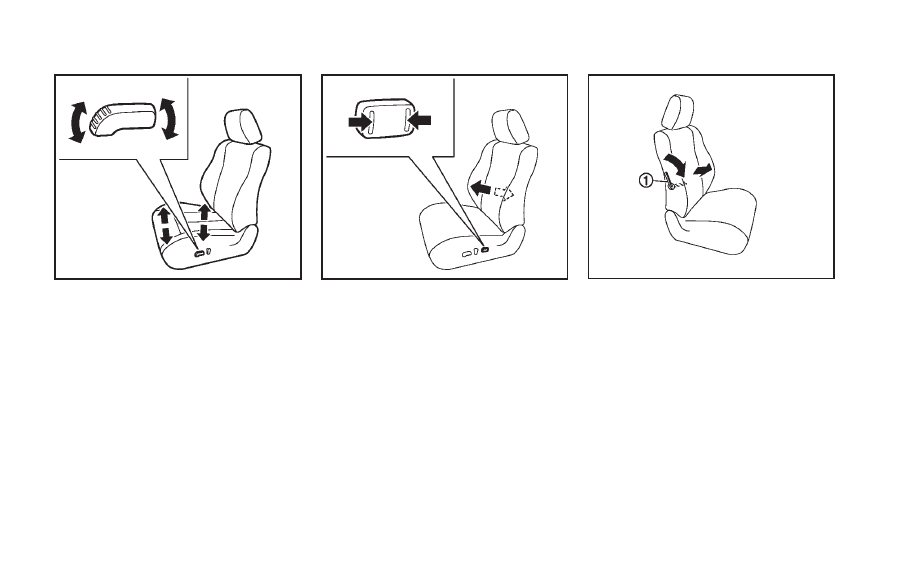

SSS1052

Seat lifter:

Push the front or rear end of the switch up
or down to adjust the angle of the front
portion or height of the seat.

SSS1053

Type A

Lumbar support (if so equipped):

The lumbar support feature provides lower
back support to the driver.

Type A

Push each side of the adjusting switch to
adjust the seat lumbar area until the
desired position is achieved.

SSS0836

Type B

Type B

Move the lever

up or down to adjust the

seatback lumbar area.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

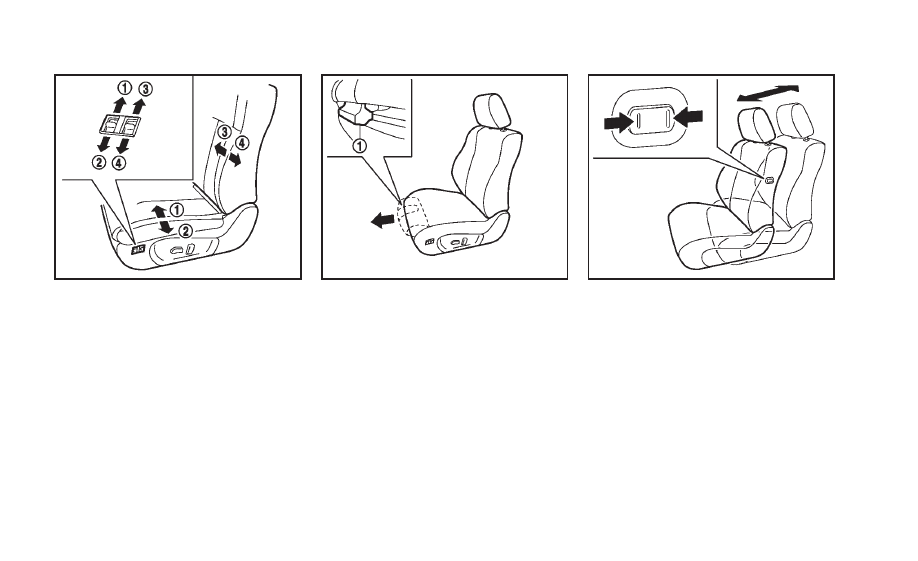

SSS0685

Side support (if so equipped):

The side support feature provides thigh
and torso supports. Push the switch inside

or outside

to adjust the thigh area.

Push the switch inside

or outside

adjust the torso area.

SSS1057

Thigh extension (if so equipped):

The front portion of the front seats can be
extended forward for seating comfort. Pull
up and hold the lever

to extend the

front portion to the desired position.

SSS1058

Passenger

’s seat slide:

Pushing the passenger

’s seat slide switch

will slide the seat forward or backward to
the desired position.

Safety

— Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------
