CONTROL PANEL BUTTONS — COLOR
SCREEN WITHOUT NAVIGATION
SYSTEM (if so equipped)

4-4

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BACK (previous) button (P. 4-5)

9. ENTER button (P. 4-5)

10. SETTING button (P. 4-9)

11.

ECON (fuel economy) button (P. 4-7)

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

ENTER button — This is a button on the control
panel.

“Example” — Words marked in quotes refer to a
key shown on the display. These keys can only be
selected using the INFINITI controller.

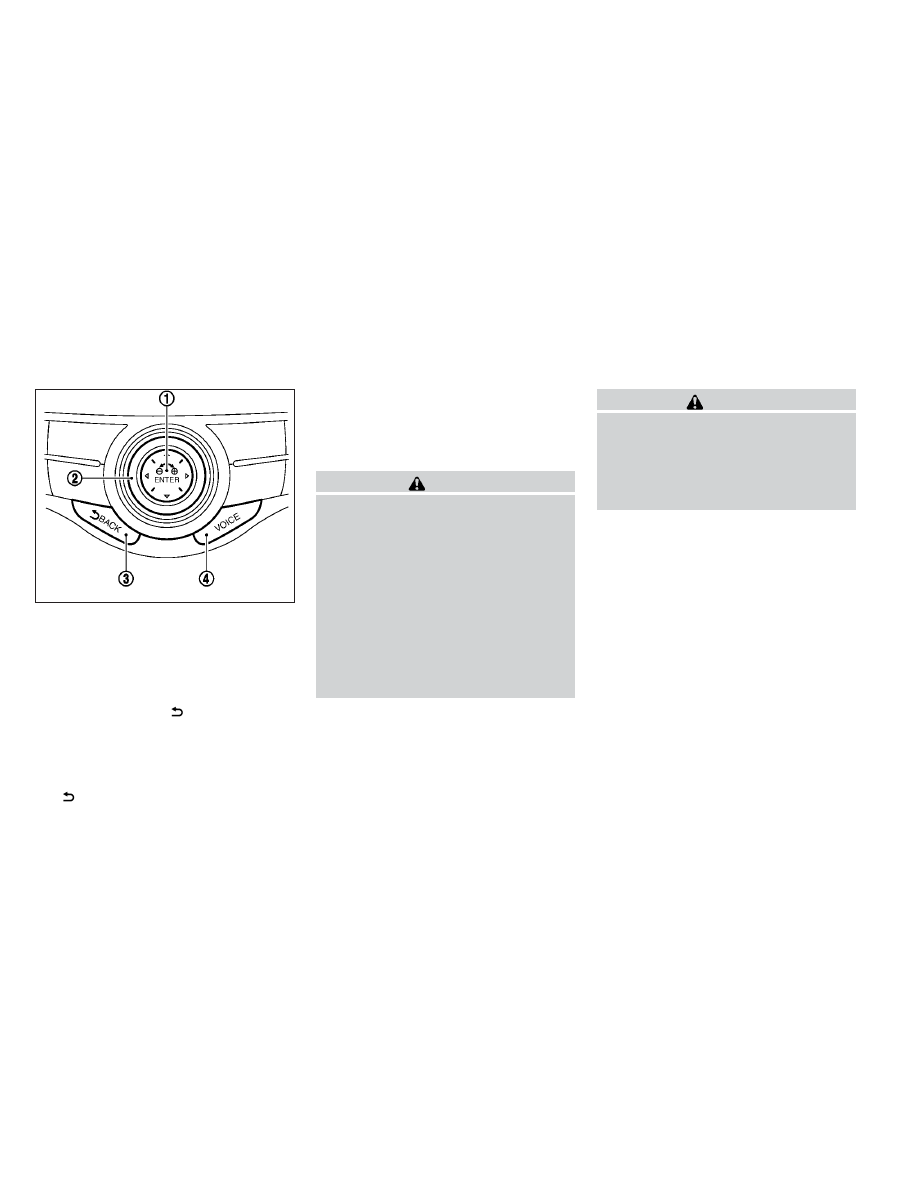

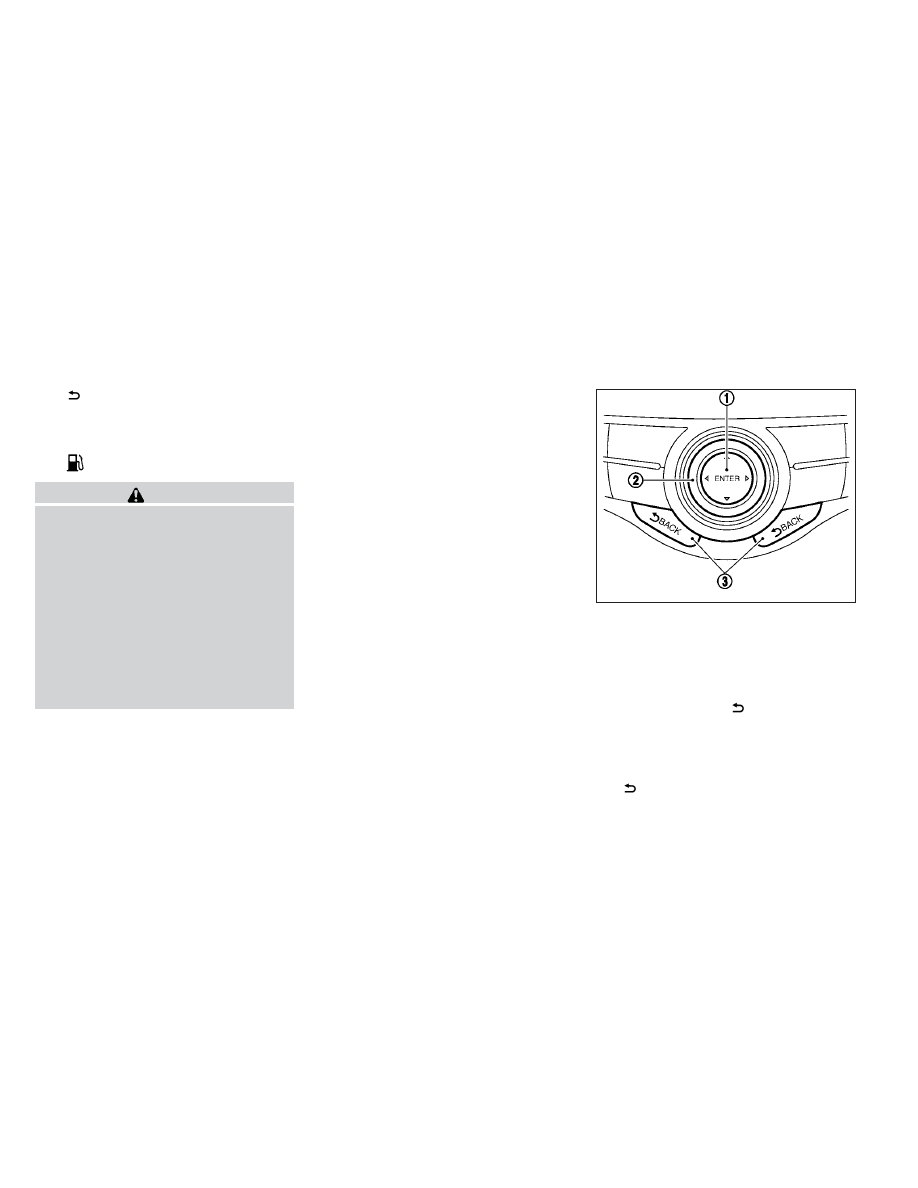

HOW TO USE THE INFINITI
CONTROLLER

Choose an item on the display by rotating or
pushing the center dial

䊊

upward or downward.

Press the ENTER button

䊊

to select an item.

If you press either of the

BACK buttons

䊊

before the operation is completed, the operation
will be canceled and/or the display will return to
the previous screen.

After the operation is complete, press either of
the

BACK buttons

䊊

to return to the

previous screen.

SAA2956

Monitor, climate, audio, phone and voice recognition systems

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO SELECT MENUS ON THE
SCREEN

Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details:

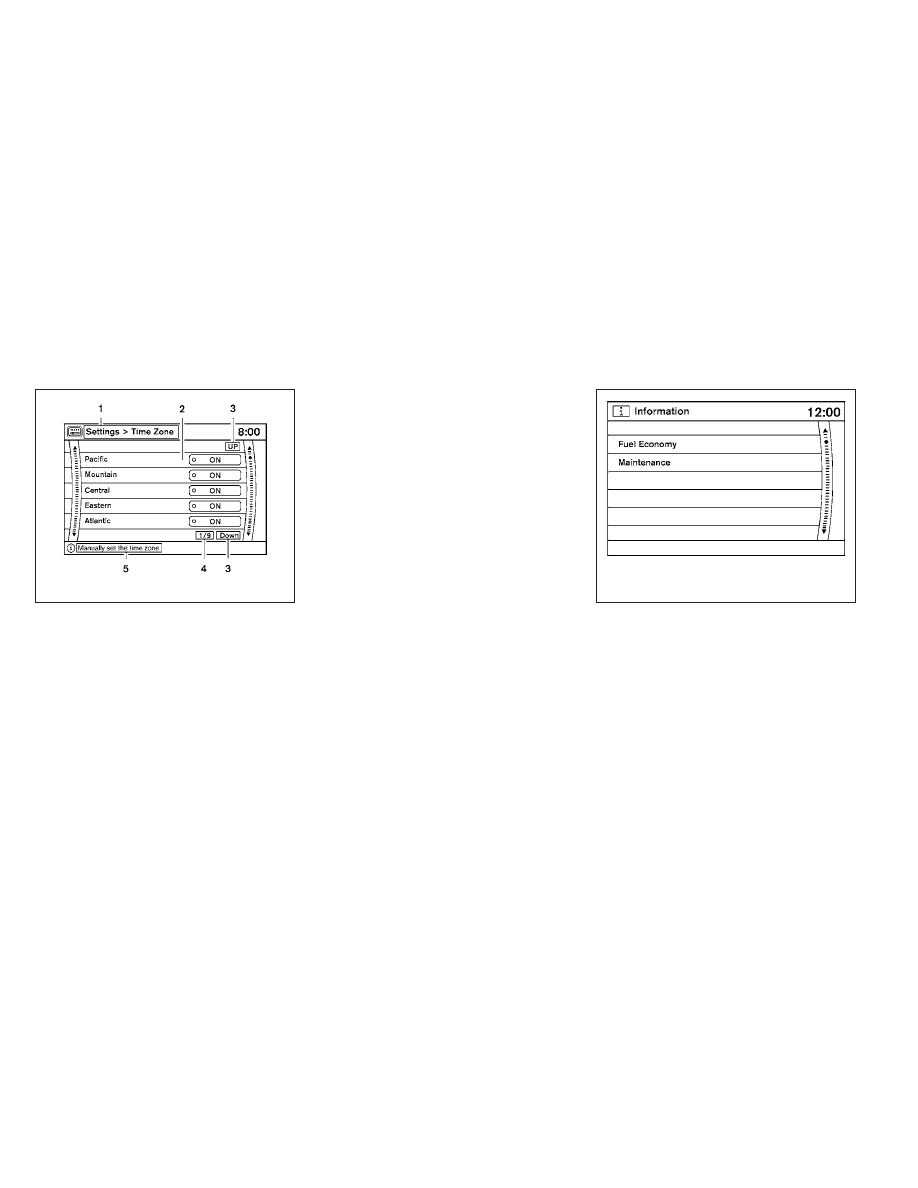

1. Header:

Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Clock” key, then
select the “Time Zone” key).

2. Menu Selections:

Shows the options to choose within that
menu screen (for example, Pacific time zone,
Mountain time zone, etc.).

3. UP/DOWN Movement Indicator:

Shows that the INFINITI controller may be
used to move UP/DOWN on the screen and
select more options.

4. Screen Count:

Shows the number of menu selections avail-
able for that screen (for example, 1/9).

5. Footer/Information Line:

Provides more information (if available)
about the menu selection currently high-
lighted (for example, manually set the time
zone).

HOW TO USE THE STATUS
BUTTON

To display the status of the audio, climate control
system and fuel consumption, press the STATUS
button.

The following information will appear when the
STATUS button is pressed multiple times:

Audio

→ Audio and climate control system →

Audio and fuel consumption

→ Audio

HOW TO USE THE INFO BUTTON

Press the INFO button. The display screen
shows vehicle information for your convenience.

The information shown on the screen should be a
guide to determine the condition of the vehicle.
See the following for details.

LHA1300

WHA1149

4-6

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

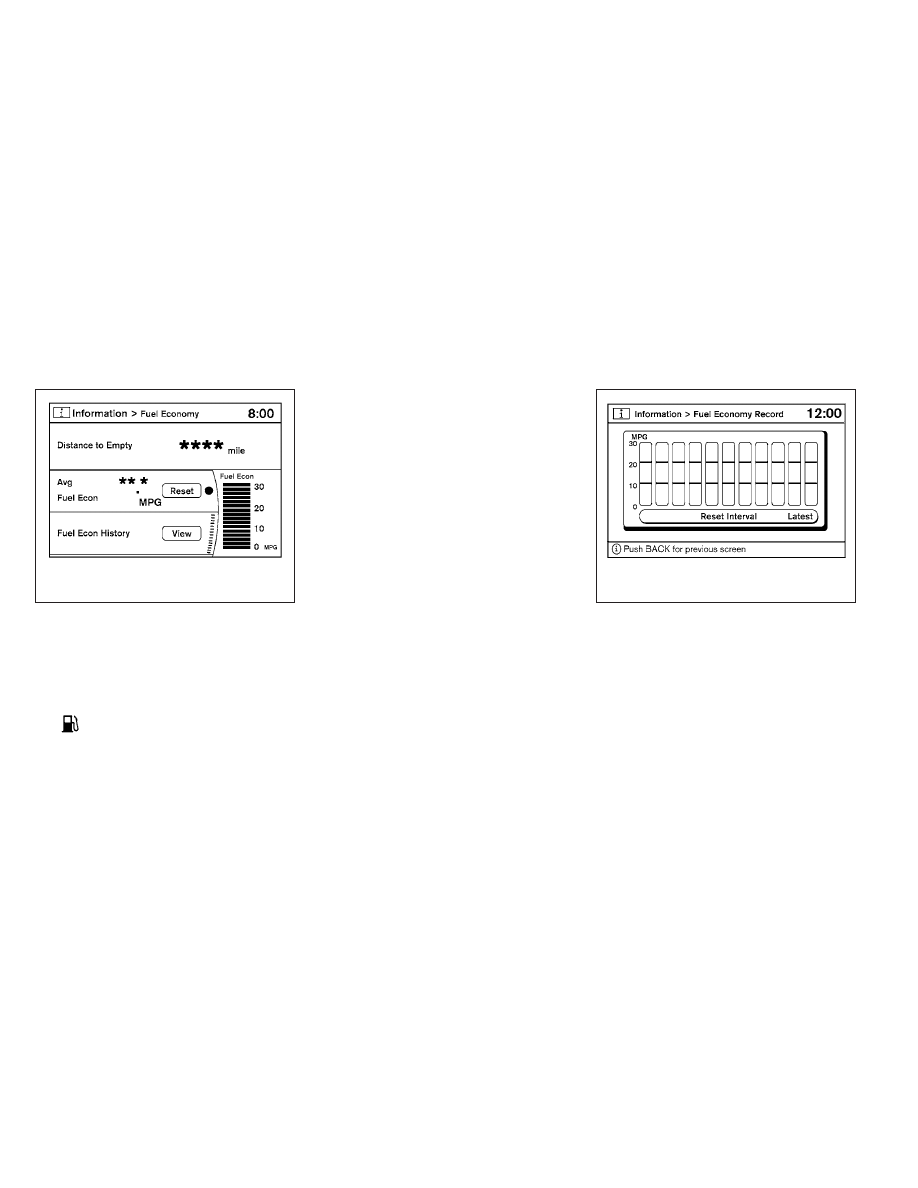

Fuel economy

Press the INFO button, then select the “Fuel
Economy” key using the INFINITI controller to
display Average Fuel Economy, Distance to
Empty and Fuel Economy History.

This screen can also be accessed by pressing
the

button.

Distance to empty (MI or km)

The Distance to Empty (DTE) mode provides you
with an estimation of the distance that can be
driven before refueling. The DTE is constantly
calculated based on the amount of fuel in the fuel
tank and the actual fuel consumption. The display

is updated every 30 seconds. When the fuel level
is low, the DTE display will change to (*).

NOTE:

● If the amount of fuel added while the

ignition switch is OFF is small, the dis-
play just before the ignition switch is
placed in the OFF position may con-
tinue to be displayed.

● When driving uphill or rounding curves,

the fuel in the tank shifts, which may
momentarily change the display.

Average fuel economy (MPG or L/100 km)

The Average Fuel Economy is calculated based
on fuel consumption since the last reset. The
display is updated every 30 seconds and 1/3 mi
(500 m). After a reset or connecting the battery
cables, the display might show (**.*).

Resetting fuel economy

The average fuel economy calculation can be
reset to 0. Press the INFO button and select the
“Fuel Economy” key, then select the “Reset” key
using the INFINITI controller and press the EN-
TER button.

Fuel economy record

Press the INFO button, then select the “Fuel
Economy” key, then select the “View” key using
the INFINITI controller and press the ENTER but-
ton.

The average fuel consumption history will be
displayed in a graph form along with the average
fuel for the previous Reset-to-Reset period.

LHA1301

LHA0922

Monitor, climate, audio, phone and voice recognition systems

4-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

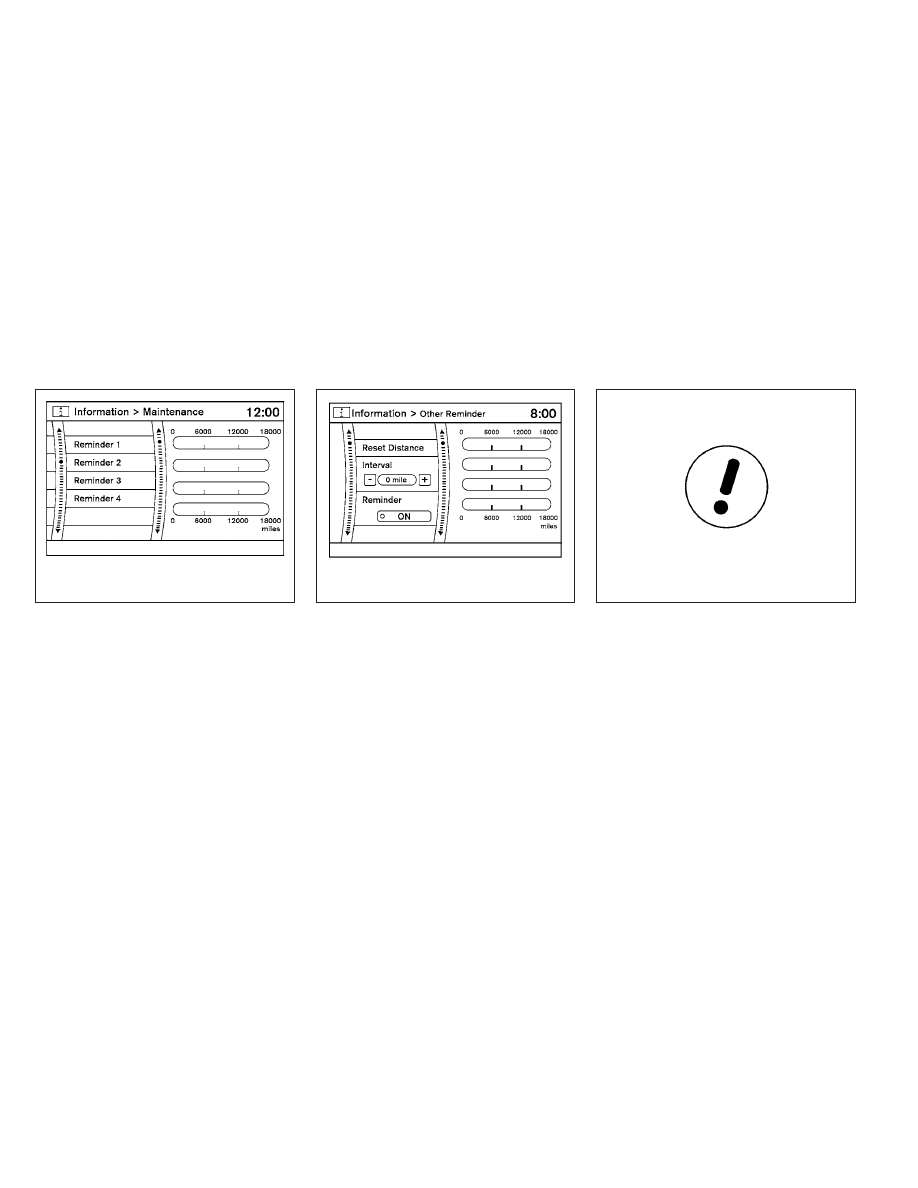

Maintenance items

Press the INFO button and select the “Mainte-
nance” key using the INFINITI controller and
press the ENTER button; the maintenance infor-
mation will be displayed on the screen.

Changing the maintenance interval

Select one of the Reminder keys using the
INFINITI controller to display the screen to
change the maintenance interval.

Select the “Interval” key using the INFINITI con-
troller. Use the INFINITI controller to change the
maintenance interval. To accept the changes,
press the BACK button.

Resetting the maintenance interval

To reset the reminder schedule (distance) to 0 km
(mi), select the “Reset Distance” key using the
INFINITI controller and press the ENTER button.

Displaying the maintenance notice re-
minder

Select the “Interval Reminder ON” key to display
the MAINTENANCE INFORMATION automati-
cally at the set maintenance interval. The indica-
tor light will illuminate when it is ON.

The MAINTENANCE NOTICE screen will be au-
tomatically displayed as shown when both of the
following conditions are met:

● The vehicle is driven the set distance and the

ignition switch is placed in the OFF position.

● The ignition switch is placed in the ON po-

sition the next time the vehicle is driven.

LHA0925

LHA1303

LHA0839

4-8

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To return to the previous display after the MAIN-
TENANCE NOTICE screen is displayed, press
the BACK button.

The MAINTENANCE NOTICE screen displays
each time the key is turned ON until one of the
following conditions are met:

● The “Reset” key is selected.
● The “Interval Reminder ON” key is set to

OFF (indicator light not illuminated).

● The maintenance interval is set again.

HOW TO USE THE SETTING
BUTTON

When the SETTING button is pressed, the Set-
tings screen will appear on the display. You can
select and/or adjust several functions, features
and modes that are available for your vehicle. Use
the INFINITI controller to select each item to be
set.

Audio settings

For audio settings, refer to “Audio System” in this
section.

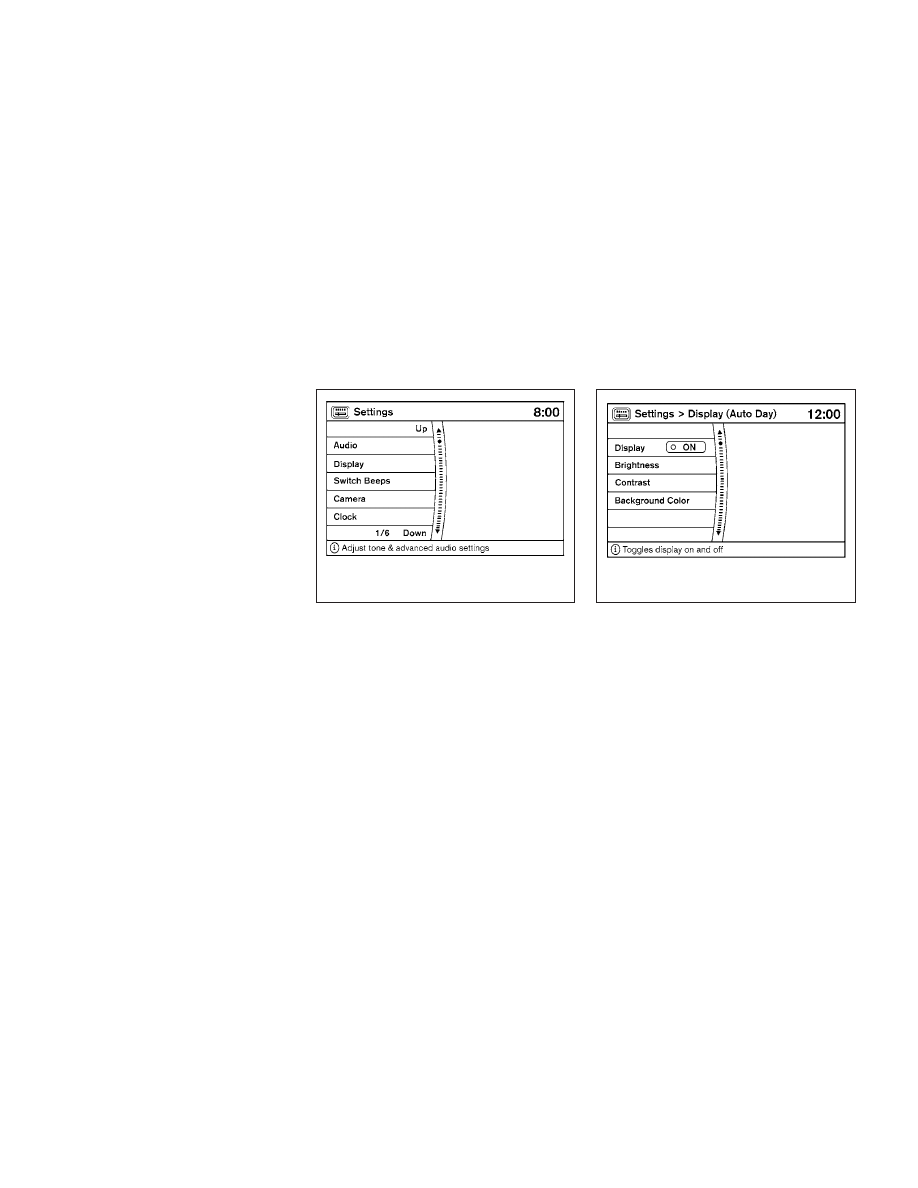

Display settings

Select the “Display” key. The Display settings
screen will appear.

LHA1304

LHA0929

Monitor, climate, audio, phone and voice recognition systems

4-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brightness/contrast:

Select the “Brightness” key or the “Contrast” key
to adjust the brightness or contrast of the map
background. Use the INFINITI controller to adjust
the brightness to darker or brighter and the con-
trast to lower or higher.

The new settings are automatically saved when
you exit the setting screen by pressing the BACK
button or any other mode button.

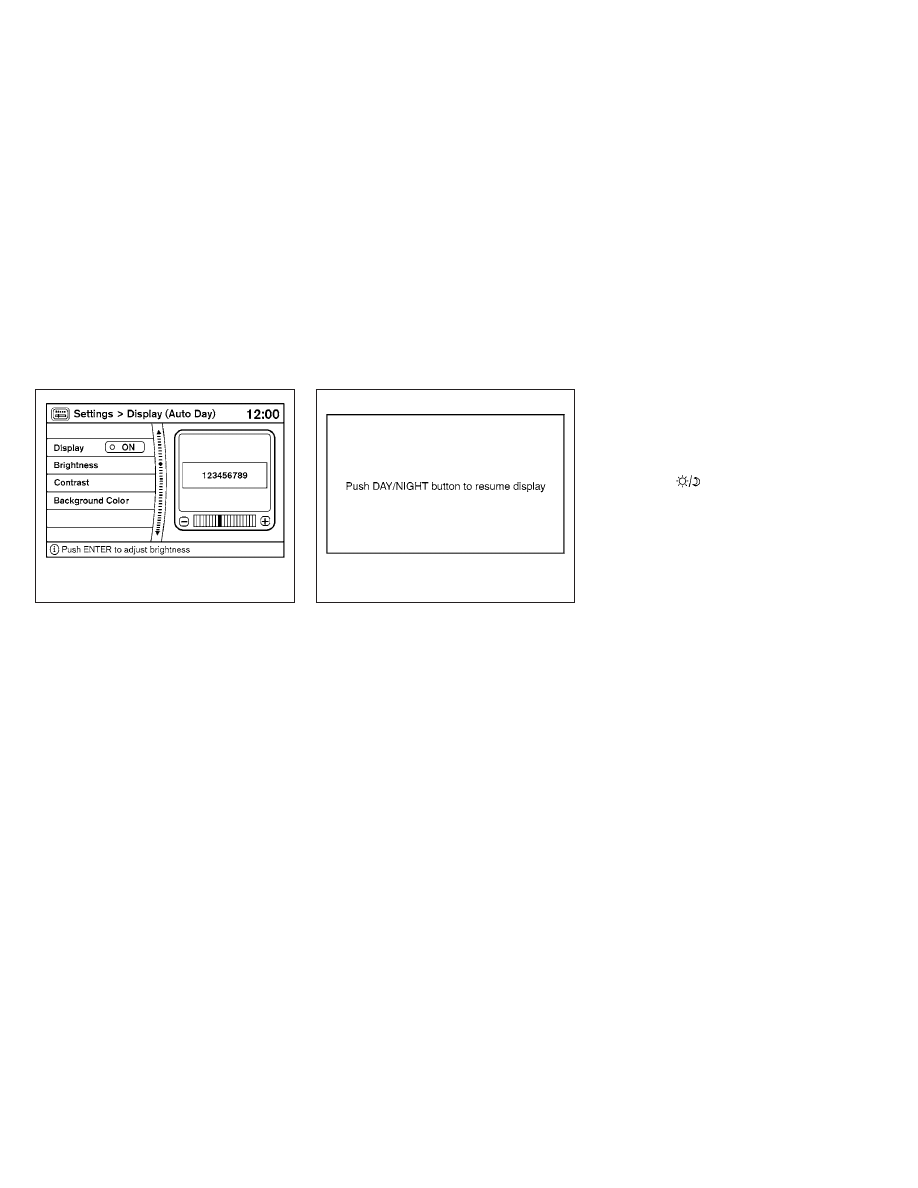

Display off:

Select the “Display ON” key. The amber indicator
next to “Display ON” turns off and the message
above will be displayed briefly. When the audio,
HVAC (Heater and air conditioner), or any mode
button on the control panel is operated, the dis-
play turns on for that operation. If one of the
control panel buttons is pressed, the display will
not automatically turn off until that operation is
finished. Otherwise, the screen turns off auto-
matically after 5 seconds.

To turn the screen on:

● Press the SETTING button, select the “Dis-

play” key and then select the “Display ON”
key. Then set the screen to on by pressing
the ENTER button, or

● Hold the

OFF button for approxi-

mately 2 seconds and the message “resum-
ing display” will appear and the “Display ON”
key will be automatically turned on (no am-
ber indicator).

Background color:

Select the “Background Color” key; the display
color changes between day and night.

The new settings are automatically saved when
you exit the setting screen by pressing the BACK
button or any other mode button.

LHA0930

WHA0823

4-10

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

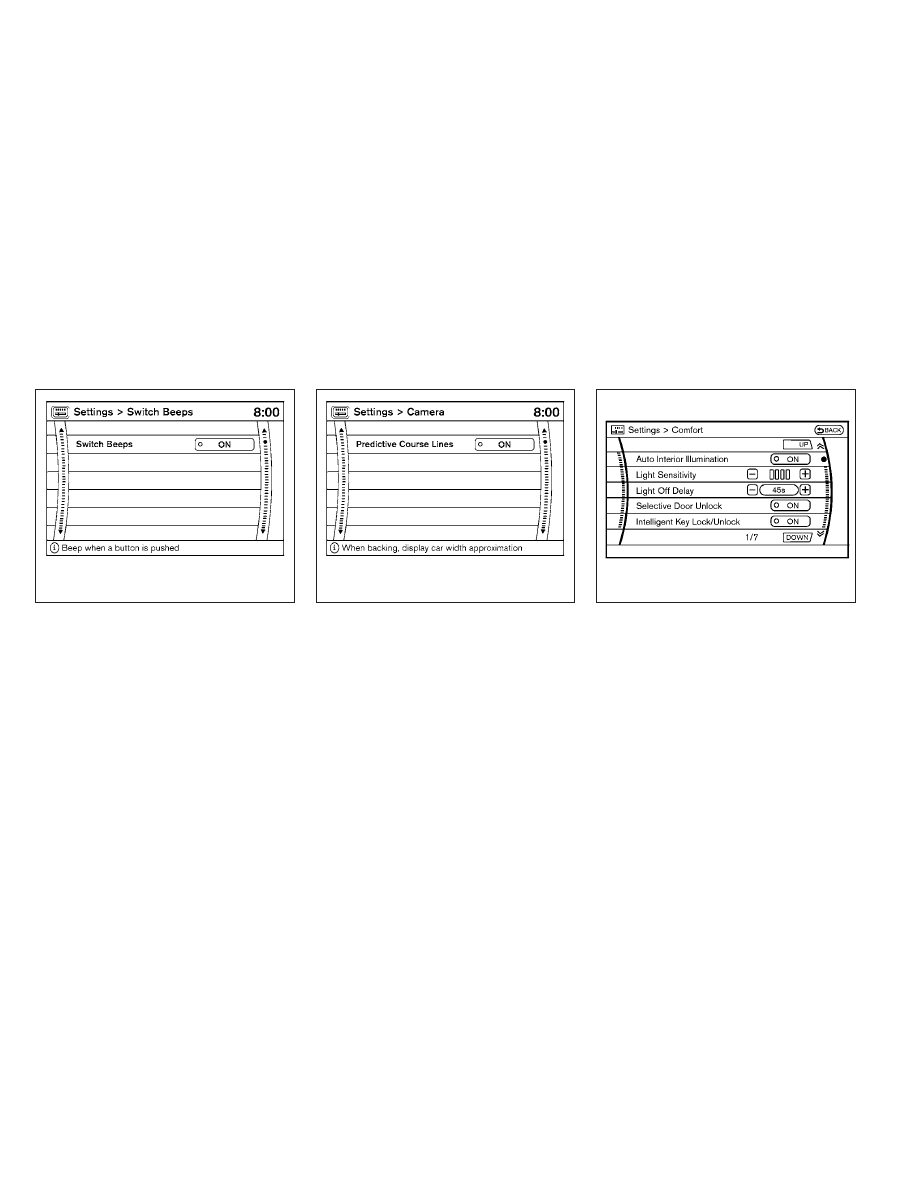

Switch beeps settings

Select the “Switch Beeps” key. The Switch
Beeps settings screen will appear.

With this option on (indicator light illuminated), a
beep will sound if any control panel button is
pressed.

Camera settings

Select the “Camera” key. The Camera settings
screen will appear.

When this option is on (indicator light illumi-
nated), predictive course lines will be displayed
when the RearView monitor is displayed on the
screen. See “RearView Monitor” in this section
for more information.

Comfort settings

Select the “Comfort” key by using the INFINITI
controller. The comfort option screen will be dis-
played.

You can set the following operating conditions by
highlighting the desired item using the INFINITI
controller. The amber indicator (box at the right of
the selected item) alternately turns on and off
each time the ENTER button is pressed.

Indicator light is illuminated — ON

Indicator light is not illuminated — OFF

LHA1305

LHA1306

SAA3150

Monitor, climate, audio, phone and voice recognition systems

4-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Auto Interior Illumination: Select to turn on or
turn off the illumination of the interior lights when
any door is unlocked.

Light Sensitivity: Select to adjust the sensitivity
of the automatic headlights higher (right) or lower
(left).

Light Off Delay: Select to change the duration
of the automatic headlight off timer from 0-, 30-,
45-, 60-, 90-, 120-, 150- and 180-second peri-
ods.

Selective Door Unlock: When this item is
turned on, only the driver’s door is unlocked first
after the door unlock operation. When the door
handle request switch on the driver’s or front
passenger’s side door is pushed to be unlocked,
only the corresponding door is unlocked first. All
the doors can be unlocked if the door unlock
operation is performed again within 1 minute.

When this item is turned to off, all the doors will
be unlocked after the door unlock operation is
performed once.

Intelligent Key Lock / Unlock: Select to turn
on or turn off the door lock/unlock function by
pushing the door handle request switch.

Lift Steering Wheel on Exit (if so equipped):
Select to turn on or turn off the steering wheel
moving upward for easy exit when the ignition
switch is in the OFF position and the driver’s door
is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the steering wheel moves to the previous posi-
tion.

Slide Driver Seat Back on Exit (if so
equipped): Select to turn on or turn off the
driver’s seat moving backward for easy exit when
the ignition switch is in the OFF position and the
driver’s door is opened. After getting into the
vehicle and pushing the ignition switch to the
ACC position, the driver’s seat moves to the
previous position.

Return All Settings to Default: Select to
change all the comfort and convenience systems
to their default settings.

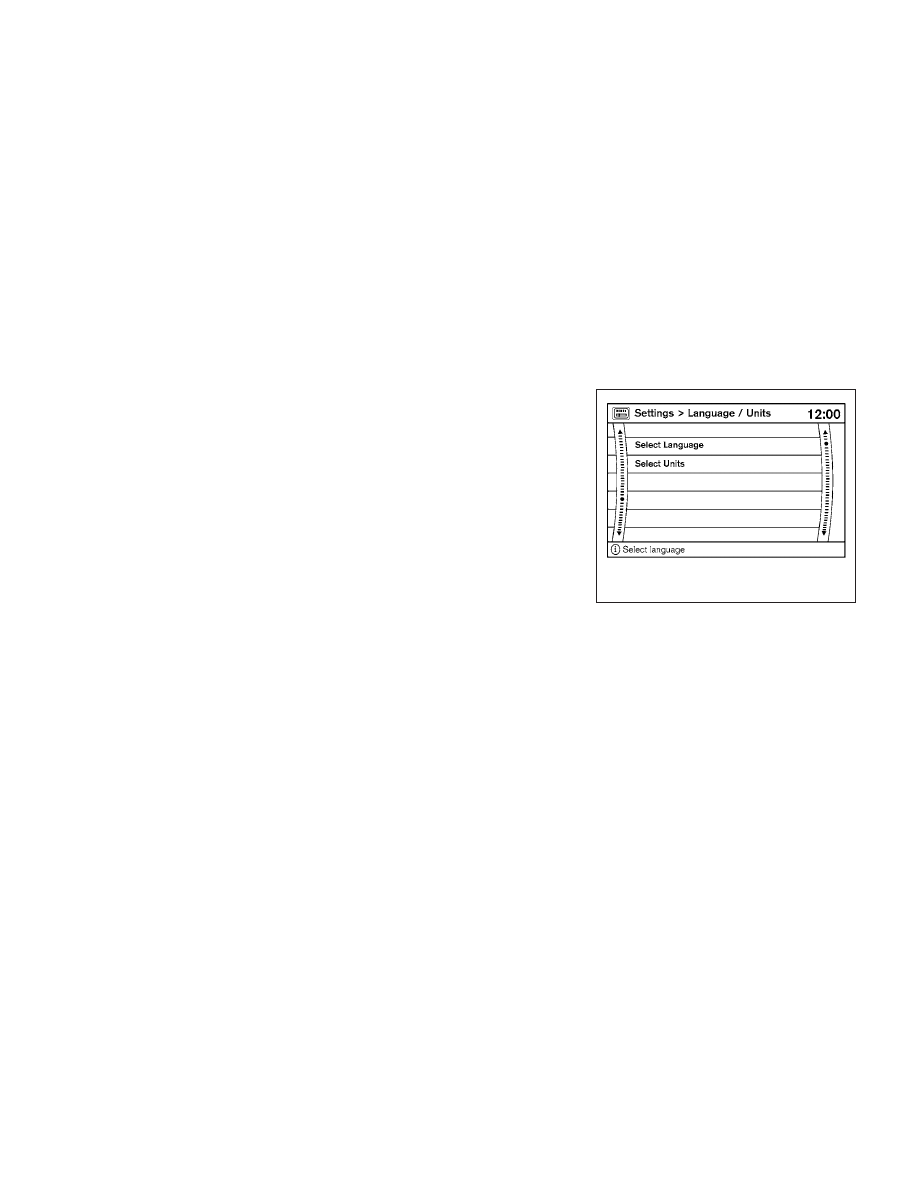

LANGUAGE / UNITS

Use the INFINITI controller to select the “Lan-
guage / Units” key. Select which setting you want
to change using the INFINITI controller.

LHA0934

4-12

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

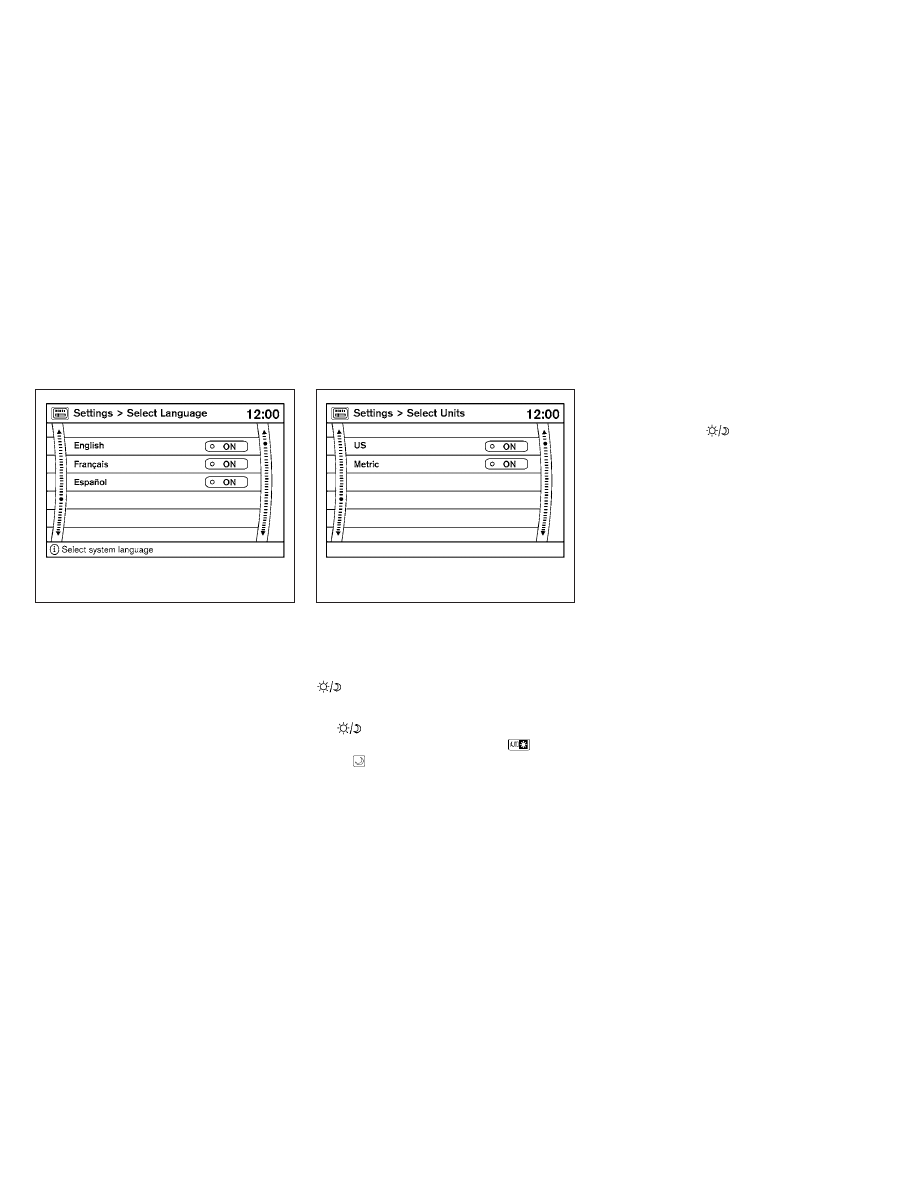

Select Language:

Select the “English” key, the “Français” key or the
“Español” key to change the language shown on
the display.

Select Units:

Select the “US” (mi, °F, MPG) key or the “Metric”
(km, °C, L/100 km) key to change the units
shown on the display.

OFF BUTTON

change

the

display

brightness,

press

the

OFF button. Pressing the button again

will change the display to the day

or the

night

display. The brightness can then be

adjusted using the INFINITI controller.

The display brightness can also be adjusted us-
ing the + (brighter) button or the

⫺ (dimmer)

button.

If no operation is done within 10 seconds, the
display will return to the previous display.

Press and hold the

OFF button for more

than 2 seconds to turn the display off. Press the
button again to turn the display on.

LHA0935

LHA0936

Monitor, climate, audio, phone and voice recognition systems

4-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. CAMERA button (P. 4-36)

2. DEST button*

3. INFINITI controller (P. 4-15)

4. INFO button (P. 4-18)

5. SETTING button (P. 4-22)

OFF brightness control button

(P. 4-28)

7. STATUS button (P. 4-18)

8. VOICE button*

9. ENTER button

10.

BACK (previous) button (P. 4-15)

11. MAP button*

12. ROUTE button*

*For Navigation system control buttons, refer to
the

separate

Navigation

System

Owner’s

Manual.

**For information on the PHONE button, see
“Bluetooth® Hands-Free Phone System with
Navigation System” in this section.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

ENTER button — This is a button on the control
panel.

“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen or using the
INFINITI controller.

LHA2111

CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

4-14

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE THE INFINITI
CONTROLLER

Choose an item on the display by rotating or
pushing the center dial

䊊

upward or downward.

Press the ENTER button

䊊

to select an item.

If you press either of the

BACK buttons

䊊

before the operation is completed, the operation
will be canceled and/or the display will return to
the previous screen.

After the operation is complete, press either of
the

BACK buttons

䊊

to return to the

previous screen.

For the VOICE button

䊊

functions, refer to the

separate Navigation System Owner’s Manual.

HOW TO USE THE TOUCH
SCREEN

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To help ensure safe driving, some functions can-
not be operated while driving.

The on-screen functions that are not available
while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then oper-
ate the navigation system.

WARNING

● ALWAYS give your full attention to

driving.

● Avoid using vehicle features that could

distract you. If distracted, you could
lose control of your vehicle and cause
an accident.

SAA2955

Monitor, climate, audio, phone and voice recognition systems

4-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 10 11 12 13 ..
