LAN

MAIN LINE BETWEEN ADP AND ABS CIRCUIT

LAN-161

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NO

>> Repair the main line between the harness connector E106 and the ABS actuator and electric unit

(control unit).

2013 G Sedan

LAN-162

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

ECM BRANCH LINE CIRCUIT

ECM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832372

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the ECM for damage, bend and loose connection (unit side and
connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of ECM.

2.

Check the resistance between the ECM harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the ECM branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the ECM. Refer to the following.
• VQ37VHR:

EC-174, "Diagnosis Procedure"

• VQ25HR:

EC-748, "Diagnosis Procedure"

Is the inspection result normal?

YES (Present error)>>Replace the ECM. Refer to the following.

• VQ37VHR:

EC-25, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (ECM) :

Special Repair Requirement"

• VQ25HR:

EC-631, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special

Repair Requirement"

YES (Past error)>>Error was detected in the ECM branch line.
NO

>> Repair the power supply and the ground circuit.

ECM harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M107

114

113

Approx. 108 – 132

2013 G Sedan

LAN

4WD BRANCH LINE CIRCUIT

LAN-163

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

4WD BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832373

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).

-

AWD control unit connector

-

Harness connector F103

-

Harness connector M116

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of AWD control unit.

2.

Check the resistance between the AWD control unit harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the AWD control unit branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the AWD control unit. Refer to

DLN-28, "Diagnosis Proce-

dure"

.

Is the inspection result normal?

YES (Present error)>>Replace the AWD control unit. Refer to

DLN-50, "Exploded View"

.

YES (Past error)>>Error was detected in the AWD control unit branch line.
NO

>> Repair the power supply and the ground circuit.

AWD control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

F108

8

16

Approx. 54 – 66

2013 G Sedan

LAN-164

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

AV BRANCH LINE CIRCUIT

AV BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832374

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the AV control unit for damage, bend and loose connection (unit
side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of AV control unit.

2.

Check the resistance between the AV control unit harness connector terminals.

-

Models with navigation system

-

Models without navigation system (With rear view monitor)

-

Models without navigation system (Without rear view monitor)

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the AV control unit branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the AV control unit. Refer to the following.
• Base audio without rear view monitor:

AV-36, "AV CONTROL UNIT : Diagnosis Procedure"

• Base audio with rear view monitor:

AV-145, "AV CONTROL UNIT : Diagnosis Procedure"

• BOSE audio without navigation:

AV-258, "AV CONTROL UNIT : Diagnosis Procedure"

• BOSE audio with navigation:

AV-399, "AV CONTROL UNIT : Diagnosis Procedure"

Is the inspection result normal?

YES (Present error)>>Replace the AV control unit. Refer to the following.

• Base audio without rear view monitor:

AV-75, "Exploded View"

• Base audio with rear view monitor:

AV-175, "Exploded View"

• BOSE audio without navigation:

AV-290, "Exploded View"

• BOSE audio with navigation:

AV-428, "Exploded View"

YES (Past error)>>Error was detected in the AV control unit branch line.
NO

>> Repair the power supply and the ground circuit.

AV control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M210

90

74

Approx. 54 – 66

AV control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M204

81

80

Approx. 54 – 66

AV control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M85

86

87

Approx. 54 – 66

2013 G Sedan

LAN

TCM BRANCH LINE CIRCUIT

LAN-165

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

TCM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832376

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).

-

A/T assembly

-

Harness connector F103

-

Harness connector M116

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of A/T assembly.

2.

Check the resistance between the A/T assembly harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the TCM branch line.

3.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Remove the joint connector. Refer to

TM-277, "Removal and Installation"

.

2.

Check the continuity between the A/T assembly harness connector side and the TCM harness connector
side of the joint connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace the joint connector.

4.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the TCM. Refer to

TM-214, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the control valve & TCM. Refer to

TM-277, "Removal and Installation"

.

YES (Past error)>>Error was detected in the TCM branch line.
NO

>> Repair the power supply and the ground circuit.

A/T assembly harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

F51

3

8

Approx. 54 – 66

A/T assembly harness connector side

TCM harness connector side

Continuity

Terminal No.

Terminal No.

3

3

Existed

8

8

Existed

2013 G Sedan

LAN-166

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

A-BAG BRANCH LINE CIRCUIT

A-BAG BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832377

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait 3 minutes

or more. (To discharge backup capacitor.)

• Never use unspecified tester or other measuring device.

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the air bag diagnosis sensor unit for damage, bend and loose con-
nection (unit side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the main harness.

2.

CHECK AIR BAG DIAGNOSIS SENSOR UNIT

Check the air bag diagnosis sensor unit. Refer to

SRC-5, "Work Flow"

.

Is the inspection result normal?

YES

>> Replace the main harness.

NO

>> Replace parts whose air bag system has a malfunction.

2013 G Sedan

LAN

BCM BRANCH LINE CIRCUIT

LAN-167

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BCM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832378

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the BCM for damage, bend and loose connection (unit side and
connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of BCM.

2.

Check the resistance between the BCM harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the BCM branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the BCM. Refer to

BCS-40, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the BCM. Refer to

BCS-81, "Exploded View"

.

YES (Past error)>>Error was detected in the BCM branch line.
NO

>> Repair the power supply and the ground circuit.

BCM harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M122

91

90

Approx. 54 – 66

2013 G Sedan

LAN-168

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

DLC BRANCH LINE CIRCUIT

DLC BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832379

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the data link connector for damage, bend and loose connection
(connector side and harness side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

Check the resistance between the data link connector terminals.

Is the measurement value within the specification?

YES (Present error)>>Check CAN system type decision again.
YES (Past error)>>Error was detected in the data link connector branch line circuit.
NO

>> Repair the data link connector branch line.

Data link connector

Resistance (

Ω

)

Connector No.

Terminal No.

M24

6

14

Approx. 54 – 66

2013 G Sedan

LAN

M&A BRANCH LINE CIRCUIT

LAN-169

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

M&A BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832380

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the unified meter and A/C amp. for damage, bend and loose con-
nection (unit side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of unified meter and A/C amp.

2.

Check the resistance between the unified meter and A/C amp. harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the unified meter and A/C amp. branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the unified meter and A/C amp. Refer to

MWI-51, "UNIFIED

METER AND A/C AMP. : Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the unified meter and A/C amp. Refer to

MWI-113, "Exploded View"

.

YES (Past error)>>Error was detected in the unified meter and A/C amp. branch line.
NO

>> Repair the power supply and the ground circuit.

Unified meter and A/C amp. harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M67

56

72

Approx. 54 – 66

2013 G Sedan

LAN-170

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

STRG BRANCH LINE CIRCUIT

STRG BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832381

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the steering angle sensor for damage, bend and loose connection
(unit side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of steering angle sensor.

2.

Check the resistance between the steering angle sensor harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the steering angle sensor branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the steering angle sensor. Refer to

BRC-96, "Wiring Dia-

gram - BRAKE CONTROL SYSTEM -"

.

Is the inspection result normal?

YES (Present error)>>Replace the steering angle sensor. Refer to

BRC-117, "Exploded View"

.

YES (Past error)>>Error was detected in the steering angle sensor branch line.
NO

>> Repair the power supply and the ground circuit.

Steering angle sensor harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

M37

1

2

Approx. 54 – 66

2013 G Sedan

LAN

ADP BRANCH LINE CIRCUIT

LAN-171

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ADP BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832382

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).

-

Driver seat control unit

-

Harness connector B462

-

Harness connector B59

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of driver seat control unit.

2.

Check the resistance between the driver seat control unit harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the driver seat control unit branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the driver seat control unit. Refer to

ADP-65, "DRIVER SEAT

CONTROL UNIT : Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the driver seat control unit. Refer to

ADP-203, "Exploded View"

.

YES (Past error)>>Error was detected in the driver seat control unit branch line.
NO

>> Repair the power supply and the ground circuit.

Driver seat control unit harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

B451

3

19

Approx. 54 – 66

2013 G Sedan

LAN-172

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

ABS BRANCH LINE CIRCUIT

ABS BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832383

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the ABS actuator and electric unit (control unit) for damage, bend
and loose connection (unit side and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of ABS actuator and electric unit (control unit).

2.

Check the resistance between the ABS actuator and electric unit (control unit) harness connector termi-
nals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the ABS actuator and electric unit (control unit) branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the ABS actuator and electric unit (control unit). Refer to

BRC-81, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the ABS actuator and electric unit (control unit). Refer to

BRC-114, "Exploded

View"

.

YES (Past error)>>Error was detected in the ABS actuator and electric unit (control unit) branch line.
NO

>> Repair the power supply and the ground circuit.

ABS actuator and electric unit (control unit) harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

E41

35

14

Approx. 54 – 66

2013 G Sedan

LAN

IPDM-E BRANCH LINE CIRCUIT

LAN-173

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM-E BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000008832385

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the IPDM E/R for damage, bend and loose connection (unit side
and connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of IPDM E/R.

2.

Check the resistance between the IPDM E/R harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the IPDM E/R branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the IPDM E/R. Refer to

PCS-17, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the IPDM E/R. Refer to

PCS-31, "Exploded View"

.

YES (Past error)>>Error was detected in the IPDM E/R branch line.
NO

>> Repair the power supply and the ground circuit.

IPDM E/R harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

E6

40

39

Approx. 108 – 132

2013 G Sedan

LAN-174

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

CAN COMMUNICATION CIRCUIT

CAN COMMUNICATION CIRCUIT

Diagnosis Procedure

INFOID:0000000008832386

1.

CONNECTOR INSPECTION

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect all the unit connectors on CAN communication system.

4.

Check terminals and connectors for damage, bend and loose connection.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the harness and repair the root cause.

3.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector and the ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Check the harness and repair the root cause.

4.

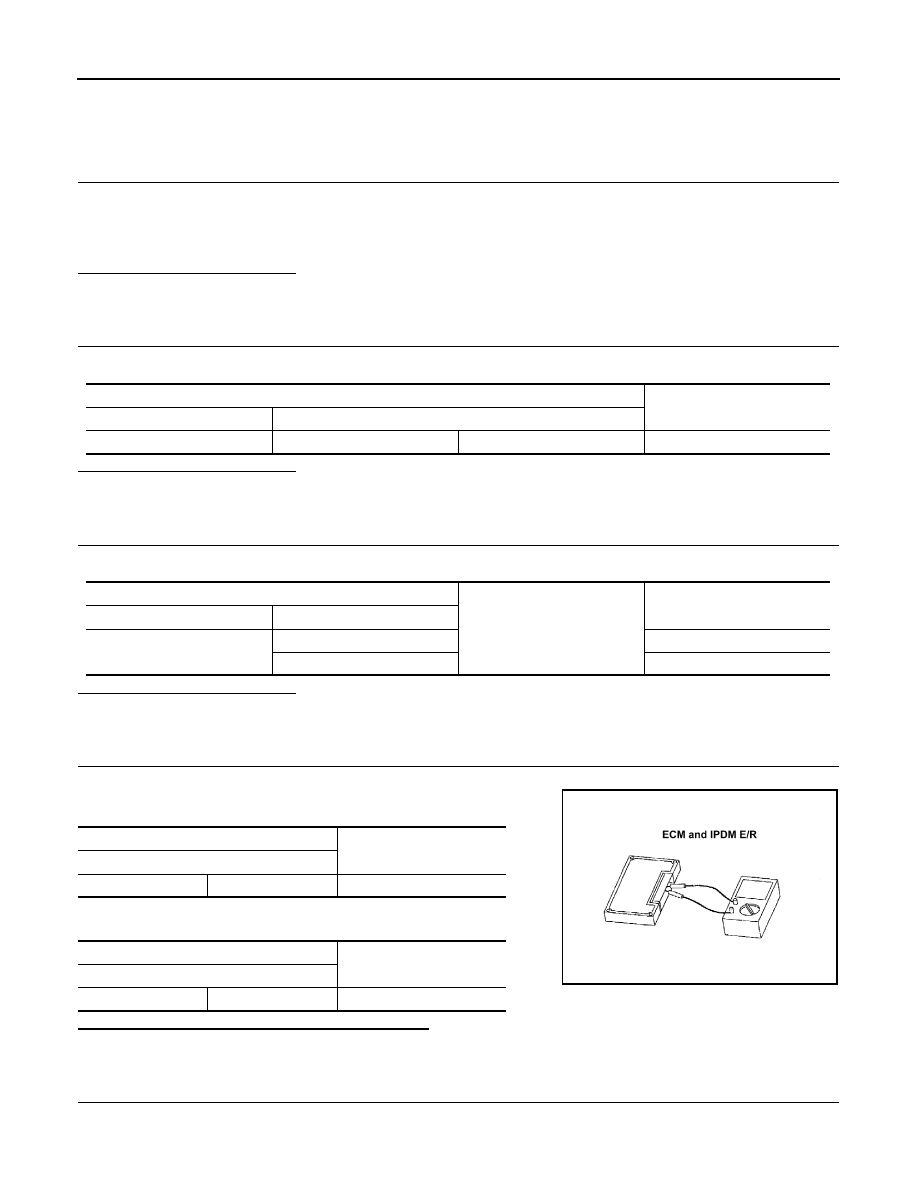

CHECK ECM AND IPDM E/R TERMINATION CIRCUIT

1.

Remove the ECM and the IPDM E/R.

2.

Check the resistance between the ECM terminals.

3.

Check the resistance between the IPDM E/R terminals.

Is the measurement value within the specification?

YES

>> GO TO 5.

NO

>> Replace the ECM and/or the IPDM E/R.

5.

CHECK SYMPTOM

Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with
customer)” are reproduced.

Data link connector

Continuity

Connector No.

Terminal No.

M24

6

14

Not existed

Data link connector

Ground

Continuity

Connector No.

Terminal No.

M24

6

Not existed

14

Not existed

ECM

Resistance (

Ω

)

Terminal No.

114

113

Approx. 108 – 132

IPDM E/R

Resistance (

Ω

)

Terminal No.

40

39

Approx. 108 – 132

LKIA0037E

2013 G Sedan

LAN

CAN COMMUNICATION CIRCUIT

LAN-175

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 7)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Inspection result

Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is

detected.

6.

CHECK UNIT REPRODUCTION

Perform the reproduction test as per the following procedure for each unit.
1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect one of the unit connectors of CAN communication system.
NOTE:
ECM and IPDM E/R have a termination circuit. Check other units first.

4.

Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom
(Results from interview with customer)” are reproduced.
NOTE:
Although unit-related error symptoms occur, do not confuse them with other symptoms.

Inspection result

Reproduced>>Connect the connector. Check other units as per the above procedure.
Non-reproduced>>Replace the unit whose connector was disconnected.

2013 G Sedan

LAN-176

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 8)]

MAIN LINE BETWEEN AV AND DLC CIRCUIT

DTC/CIRCUIT DIAGNOSIS

MAIN LINE BETWEEN AV AND DLC CIRCUIT

Diagnosis Procedure

INFOID:0000000008832392

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).

-

Harness connector M18

-

Harness connector M17

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the following harness connectors.

-

AV control unit

-

Harness connectors M18 and M17

2.

Check the continuity between the AV control unit harness connector and the harness connector.

-

With navigation system

-

Without navigation system (With rear view monitor)

-

Without navigation system (Without rear view monitor)

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the AV control unit and the harness connector M18.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

Check the continuity between the harness connector and the data link connector.

Is the inspection result normal?

YES (Present error)>>Check CAN system type decision again.

AV control unit harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M210

90

M18

1

Existed

74

2

Existed

AV control unit harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M204

81

M18

1

Existed

80

2

Existed

AV control unit harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M85

86

M18

1

Existed

87

2

Existed

Harness connector

Data link connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M17

1

M24

6

Existed

2

14

Existed

2013 G Sedan
