Infiniti QX56 (2012 year). Manual

0-2

Illustrated table of contents

SSI0728

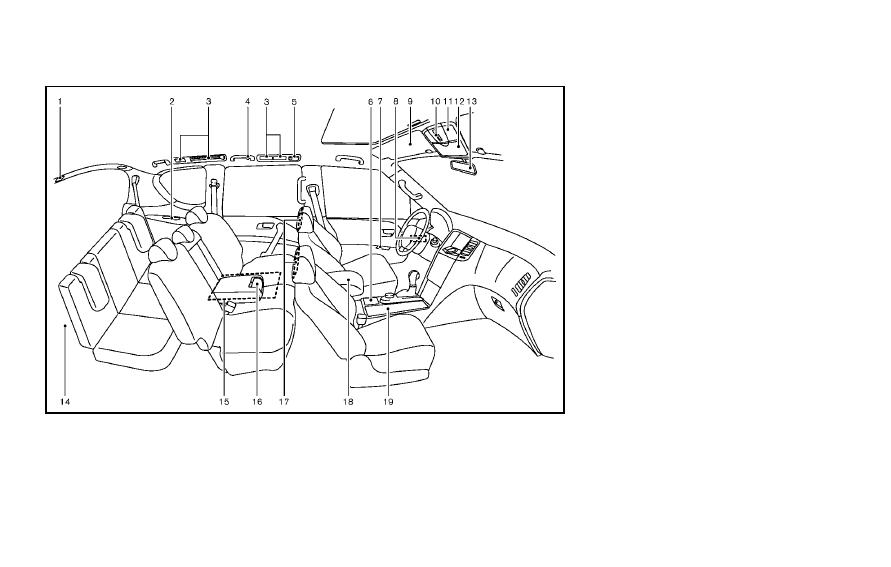

Seat belt for 3rd row center seat belt
(Page 1-27)

Roof-mounted curtain side-impact
and rollover supplemental air bags
(P.1-54)

Head Restraints (P.1-10)

— Front-seat Active Head Restraints
(P.1-14)

Seat belts (P.1-21)

Front seat-mounted side-impact sup-
plemental air bags (P.1-54)

Supplemental front-impact air bags
(P.1-54)

Child restraint anchor points (for top
tether strap child restraint) (P.1-35)

3rd row seats (P.1-8)
— Child restraints (P.1-33)

LATCH (Lower Anchors and Tethers for
CHildren) system (P.1-35)

10. Armrest (2nd row seat) (P.1-17)
11. 2nd row seats (P.1-5)

— Child restraints (P.1-33)

12. Seat belt pretensioner (P.1-67)
13. Front armrest (P.1-17)
14. Front seats (P.1-4)

— Occupant classification sensors
(weight sensors) (P.1-60)

15. Front passenger air bag status light

(P.1-62)

SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSI0729

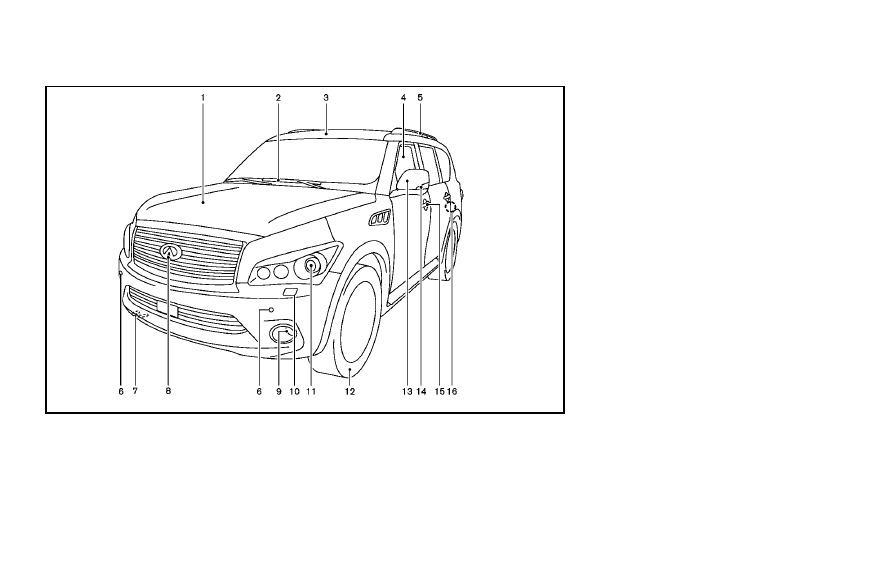

Hood (P.3-18)

Windshield wiper and washer
— Switch operation (P.2-33)
— Rain-sensing auto wiper system
(P.2-34)
— Wiper blade replacement (P.8-20)

— Window washer fluid (P.8-15)
— Windshield wiper deicer* (P.2-36)

Moonroof (P.2-63)

Power windows (P.2-61)

Roof rack (P.2-60)

Front Sensor

— Around View Monitor (P.4-21)

Recovery hook (P.6-17)

Front view camera (P.4-21)

Fog light (P.2-43)

10. Headlight washers* (P.2-41)
11. Headlight and turn signal (P.2-37)

— Bulb replacement (P.8-27)
— Adaptive Front lighting System
(AFS)* (P.2-41)

12. Tires

— Wheel and tires (P.8-30, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)

13. Outside mirrors (P.3-28)

— Side view camera (P.4-21)
— Welcome light (P.2-65)

14. Side turn signal lights (bulb replace-

ment) (P.8-27)

15. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)

16. Child safety rear door locks (P.3-6)

*: if so equipped

Illustrated table of contents

0-3

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

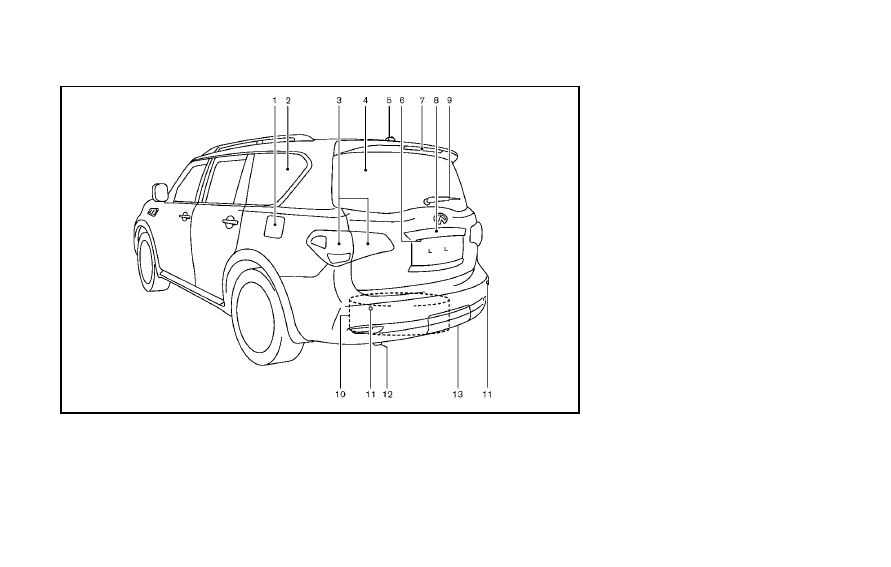

SSI0737

Fuel-filler door (P.3-23)
— Fuel recommendation (P.9-4)

Antenna (P.4-80)

Rear combination light (bulb replace-
ment) (P.8-27)

Rear window defroster (P.2-36)

Satellite antenna (P.4-41)

Rear view camera (P.4-21)

High-mounted stop light (bulb repla-
cement) (P.8-27)

Lift gate (P.3-18)
— Intelligent Key system (P.3-6)

Rear window wiper and washer
— Switch operation (P.2-35)
— Window washer fluid (P.8-15)

10. Spare tire (under the vehicle) (P.6-2)
11. Rear Sensor

— Around View Monitor (P.4-21)

12. Recovery hook (P.6-17)
13. Trailer hitch (P.9-22)

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSI0743

Cargo light (P.2-68)

Cup holders (3rd row seat) (P.2-55)

Rear ventilators (P.4-32)

Coat hooks (P.2-59)

Rear personal lights (P.2-66)

Tray (P.2-58)

— USB memory operation* (P.4-59)
— iPod

player operation* (P.4-68)

Door armrest
— Power window controls (P.2-61)
— Power door lock switch (P.3-5)

Automatic drive positioner switch
(P.3-30)

Sun visors (P.3-27)

10. Moon roof switch (P.2-63)
11. Map lights (P.2-66)
12. Sunglasses holder (P.2-56)
13. Inside rearview mirror (P.3-27)

— HomeLink

universal transceiver

(P.2-68)

14. Cargo area

— Power outlet (P.2-52)
— Cargo floor box (P.2-60)
— Luggage hooks (P.2-59)
— Jacking tools (P.6-4)

15. Rear console box (P.2-58)

— Cup holders (2nd row seat)*
(P.2-54)
— Pocket* (P.2-58)

16. Cup holders (2nd row seat)* (P.2-54)
17. Dual head restraint DVD system*

(P.4-81)

18. Console box (P.2-57)

— Power outlet (P.2-52)
— Auxiliary input jacks* (P.4-76,
P.4-82)
— Rear automatic air conditioning
system* (P.4-38)

Illustrated table of contents

0-5

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0172X

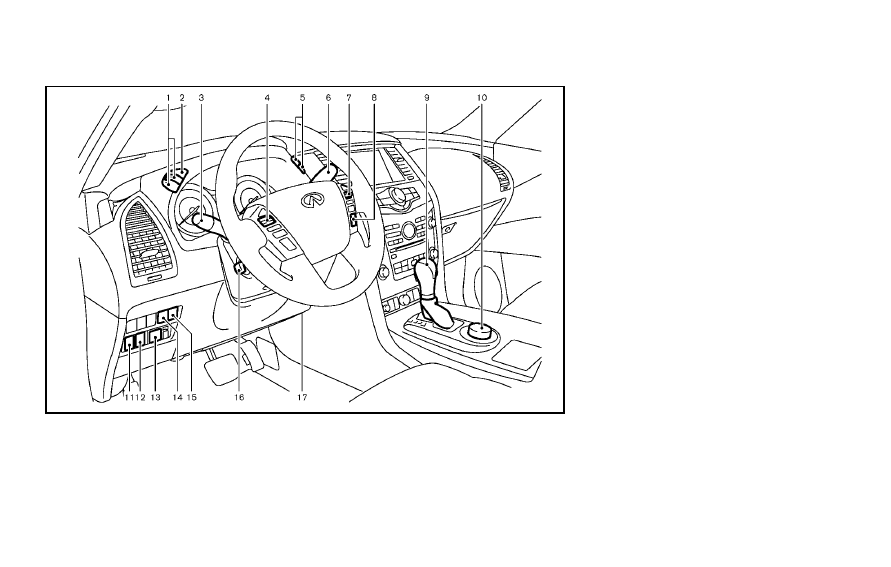

Instrument brightness control switch
(P.2-42)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Headlight, fog light and turn signal
switch

— Headlight (P.2-38)
— Turn signal (P.2-43)
— Fog light (P.2-43)

Steering-wheel-mounted controls (left
side)

— Audio control steering switch
(P.4-79)
— Hands-Free Phone System switch
(P.4-94)

Trip computer switch (P.2-28)

Wiper and washer switch (P.2-33)

Steering-wheel-mounted controls
(right side)
— Cruise control system* (P.5-45)
— Intelligent Cruise Control (ICC) sys-
tem* (P.5-47)

Dynamic driver assistance switch*
— Lane Departure Prevention (LDP)
system* (P.5-21)
— Distance Control Assist (DCA) sys-
tem* (P.5-70)
— Blind Spot Intervention system*
(P.5-31)

Selector lever (P.9-29)

10. Four-Wheel Drive (4WD) shift switch*

(P.5-91)/SNOW mode switch (P.2-49)/
TOW MODE switch (P.2-49)/Vehicle
Dynamic Control (VDC) OFF switch
(P.5-106)

11. Headlight aiming control* (P.2-40)
12. Power lift gate main switch (P.3-18)
13. Outside rearview mirror remote con-

trol switch (P.3-28)

Illustrated table of contents

0-7

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSI0733

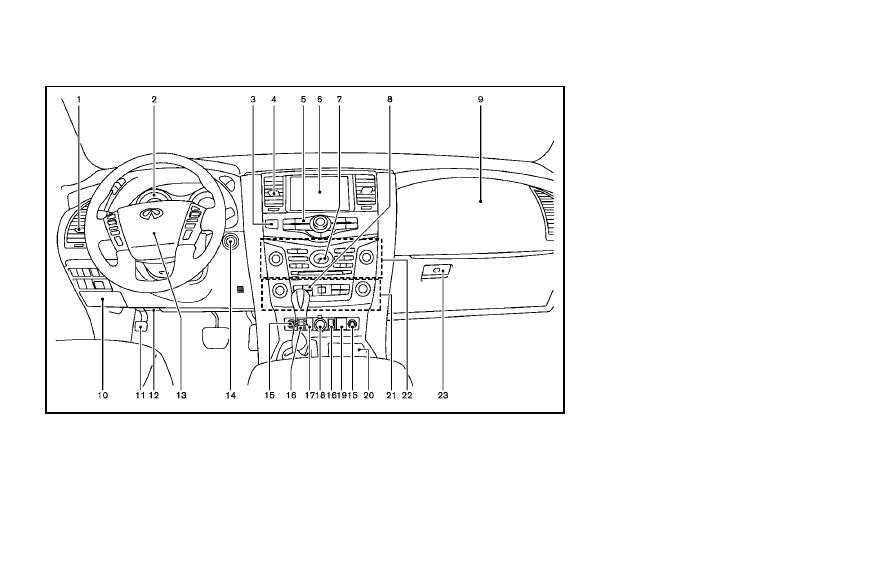

Side ventilator (P.4-32)

Meters and gauges (P.2-6)

Hazard warning flasher switch (P.2-43)

Center ventilator (P.4-32)

Center multi-function control panel
(P.4-4)

— Vehicle information and setting
buttons (P.4-8)

Center display
— Around View Monitor (P.4-21)
— Navigation system**
— DVD player operation (P.4-56)

Clock (P.2-51)

Defroster switch (P.2-36)/Deicer
switch* (P.2-36)

Front passenger supplemental air bag
(P.1-54)

10. Fuse box (P.8-24)
11. Parking brake (P.5-20)
12. Hood release handle (P.3-18)
13. Steering wheel

— Horn (P.2-45)
— Driver supplemental air bag
(P.1-54)
— Power steering system (P.5-101)

14. Push-button ignition switch (P.5-11)
15. Climate controlled seat switch*

(P.2-47)/Heated seat switch* (P.2-45)

16. Remote tip-up 2nd row seat switch*

(P.1-9)

17. Heated steering wheel switch (P.2-44)
18. Power outlet (P.2-52)
19. Front passenger air bag status light

(P.1-62)

20. Cup holder (P.2-54)
21. Automatic climate control system

(P.4-33)

22. Audio system (P.4-41)
23. Glove box (P.2-57)

Illustrated table of contents

0-9

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

*: if so equipped

**: Refer to the separate Navigation
System Owner

’s Manual.

SIC4450

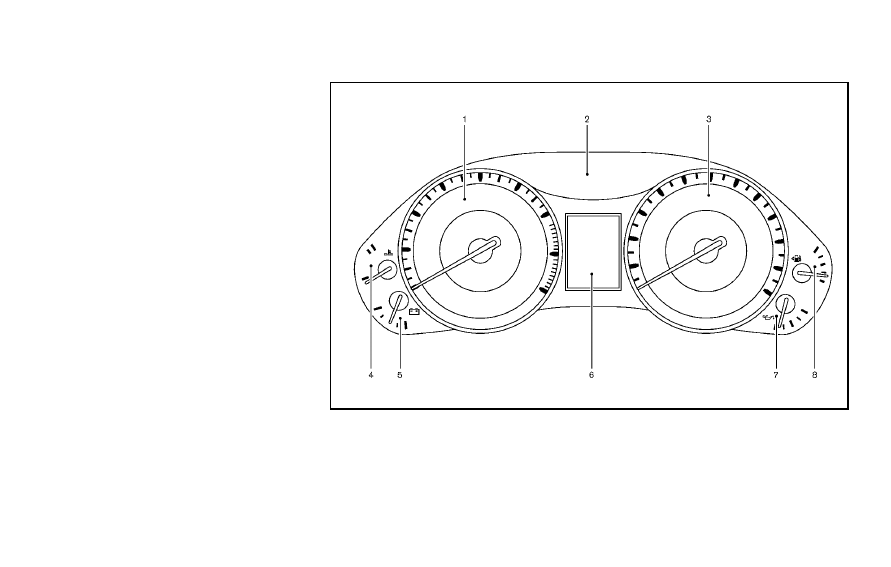

Tachometer (P.2-8)

Warning/Indicator lights (P.2-11)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Voltmeter (P.2-10)

Dot matrix liquid crystal display/
Odometer/twin trip odometer
(P.2-22)

Engine oil pressure gauge (P.2-9)

Fuel gauge (P.2-9)

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

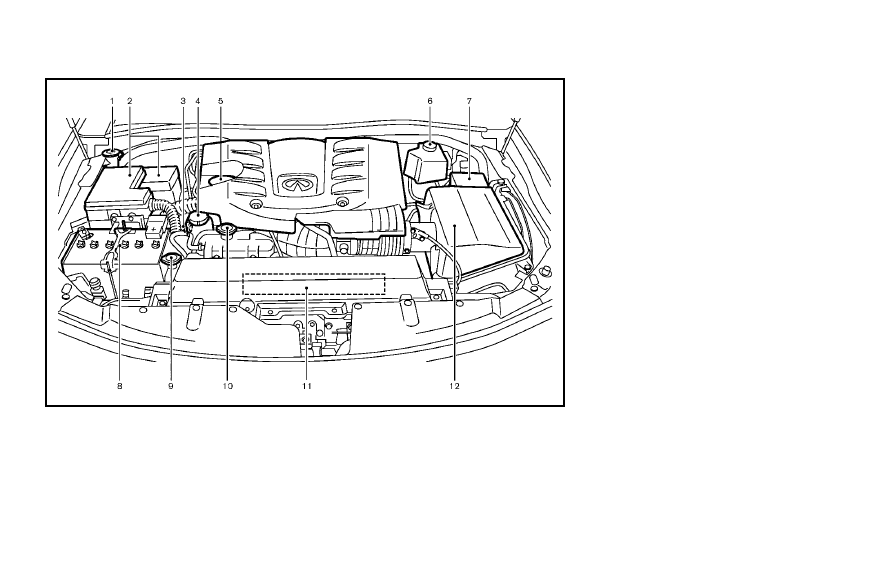

SDI2585

VK56VD ENGINE

Window washer fluid reservoir
(P.8-15)

Fuse/fusible link holder (P.8-22)

Engine oil dipstick (P.8-10)

Power steering fluid reservoir (P.8-13)

Engine oil filler cap (P.8-10)

Brake fluid reservoir (P.8-14)

Fuse/fusible link holder (P.8-22)

Battery (P.8-16)

Radiator filler cap (P.8-8)

10. Engine coolant reservoir (P.8-8)
11. Drive belts (P.8-18)
12. Air cleaner (P.8-19)

Illustrated table of contents

0-11

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking System (ABS)
warning light

2-12

Automatic Transmission (AT)
check warning light

2-12

Automatic Transmission (AT) oil
temperature warning light

2-12

Automatic Transmission (AT)
park warning light

2-12

Brake warning light

2-13

Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (orange)*

2-13

Charge warning light

2-14

Distance Control Assist (DCA)
system warning light (orange)*

2-14

Engine oil pressure warning
light

2-14

Four-Wheel Drive (4WD) warn-
ing light (4WD models)

2-14

Intelligent Cruise Control (ICC)
system warning light (orange)*

2-15

Intelligent Key warning light

2-15

Lane departure warning light
(orange)*

2-15

Warning

light

Name

Page

Low tire pressure warning light

2-15

Master warning light

2-17

Preview Function warning light
(orange)*

2-17

Seat belt warning light

2-17

Supplemental air bag warning
light

2-17

Vehicle Dynamic Control (VDC)
warning light

2-18

Indicator

light

Name

Page

Adaptive Front lighting System
(AFS) indicator light*

2-18

Automatic Transmission (AT)
position indicator light

2-19

Blind Spot Intervention (BSI) ON
indicator light (green)*

2-19

Check suspension indicator
light

2-19

Cruise indicator light*

2-19

Exterior light indicator

2-19

Front passenger air bag status
light

2-19

High beam indicator light

2-19

Indicator

light

Name

Page

Intelligent Brake Assist (IBA) off
indicator light*

2-19

Lane Departure Prevention
(LDP) ON indicator light (green)*

2-20

Malfunction Indicator Light
(MIL)

2-20

Security indicator light

2-21

SNOW mode indicator light

2-21

TOW mode indicator light

2-21

Turn signal/hazard indicator
lights

2-21

Vehicle Dynamic Control (VDC)
off indicator light

2-21

if so equipped

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0133

WARNING

. Do not ride in a moving vehicle when the

seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should
be upright. Always sit well back in the

seat with both feet on the floor and
adjust the seat belt properly. See

“Pre-

cautions on seat belt usage

” later in this

section.

. After adjustment, gently rock in the seat

to make sure it is securely locked.

. Do not leave children unattended inside

the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.

. The seatback should not be reclined any

more than needed for comfort. Seat belts

are most effective when the passenger
sits well back and straight up in the
seat. If the seatback is reclined, the risk
of sliding under the lap belt and being
injured is increased.

Safety

— seats, seat belts and supplemental restraint system

1-3

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety

— seats, seat belts and supplemental restraint system

FRONT SEATS

Front power seat adjustment

Operating tips:
. The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.

. Do not operate the power seat switch

for a long period of time when the
engine is off. This will discharge the
battery.

See

“Automatic drive positioner” in the “3.

Pre-driving checks and adjustments

” sec-

tion for the seat position memory function.

CAUTION

When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.

SSS1051

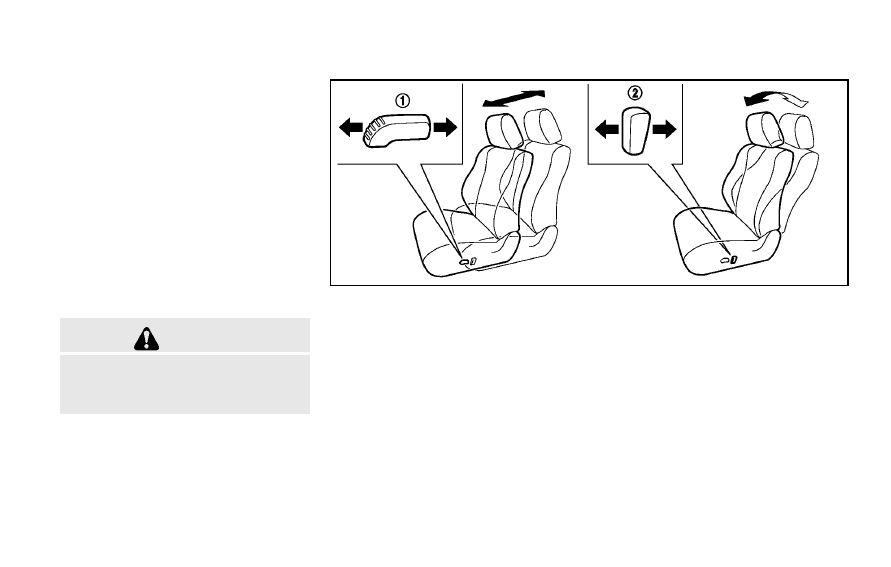

Forward and backward:

Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:

Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch

forward.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See

“Precautions on

seat belt usage

” later in this section.) Also,

the seatback can be reclined to allow
occupants to rest when the vehicle is
stopped and the transmission is in the P
(Park) position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1052

Seat lifter:

1. Pull up or push down the adjusting

switch to adjust the seat height until
the desired position is achieved.

2. Tilt up or down the adjusting switch to

adjust the front angle of the seat until
the desired position is achieved (for
driver

’s seat).

SSS1053

Lumbar support:

The lumbar support feature provides lower
back support to the occupants.

Push the front or back end of the switch to
adjust the seatback lumbar area.

2ND ROW SEATS

WARNING

. Never allow anyone to ride in the cargo

area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an

accident or sudden stop.

. When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.

. Properly secure all cargo to help prevent

it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.

Safety

— seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX56 (2012 year). Manual - part 1
