Infiniti G37 Coupe (2012 year). Manual

4-70

Monitor, climate, audio, phone and voice recognition systems

Input the number to be searched and
select the

“OK” key.

The specified folder/file will be played.

. Display

To adjust the image quality of the
screen, select the preferred adjustment
items.

. DRC

DRC (Dynamic Range Compression)
automatically adjusts the soundtrack
volume level to maintain a more even
sound to the speakers.

. Audio

Select the preferred language for audio.

. Subtitle

Select the preferred language for sub-
title.

. Display Mode

Select the

“Normal”, “Wide”, “Cinema”

“Full” mode.

Bluetooth

STREAMING AUDIO

(models with navigation system)

Your INFINITI is equipped with Bluetooth

Streaming Audio. If you have a compatible
Bluetooth

device with streaming audio

(A2DP profile), you can set up the wireless
connection between your Bluetooth

de-

vice and the in-vehicle audio system. This
connection allows you to listen to the
audio from the Bluetooth

device using

your vehicle speakers. It also may allow
basic control of the device for playing and
skipping audio files using the AVRCP
Bluetooth

profile. All Bluetooth

Devices

do not have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth

Device for more details.

Once your Bluetooth

device is connected

to the in-vehicle audio system, it will
automatically reconnect whenever the de-
vice is present in the vehicle and you select
Bluetooth

Audio from your audio system.

You do not need to manually reconnect for
each usage.

Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band
(2.4 GHz). Using the Bluetooth

and the

wireless LAN functions at the same time
may slow down or disconnect the commu-

nication and cause undesired noise. It is
recommended that you turn off the wire-
less LAN (Wi-Fi) when using the Bluetooth

functions.

Regulatory information

FCC Regulatory information:
. CAUTION: To maintain compliance with

FCC

’s RF exposure guidelines, use only

the supplied antenna. Unauthorized
antenna, modification, or attachments
could damage the transmitter and may
violate FCC regulations.

. Operation is subject to the following

two conditions:
1) This device may not cause inter-

ference and

2) This device must accept any inter-

ference, including interference that
may cause undesired operation of
the device

IC Regulatory information:
. Operation is subject to the following

two conditions:
1) This device may not cause inter-

ference, and

2) This device must accept any inter-

ference, including interference that

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-72

Monitor, climate, audio, phone and voice recognition systems

SAA2507

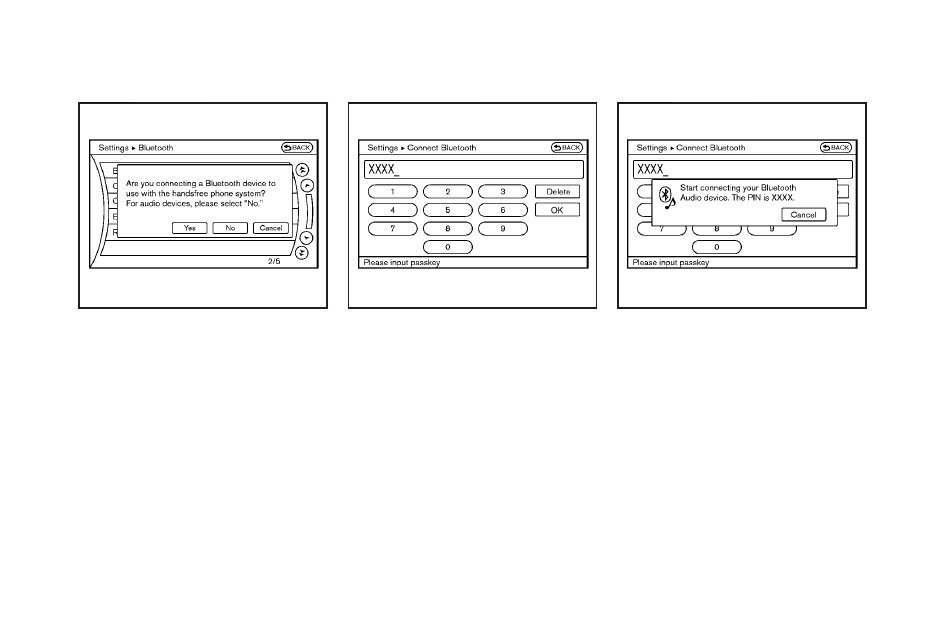

3. A confirmation screen will be dis-

played. Select

“No”.

Note: Selecting

“Yes” will only connect

the hands free phone portion of a
Bluetooth

device.

SAA3005

4. Choose a PIN code to use with the

compatible Bluetooth

audio device

using the number input screen. The
PIN code will need to be entered into
the Bluetooth

audio device after step

5. Select the

“OK” key.

SAA3006

5. The standby message screen will ap-

pear. Operate the compatible Blue-
t o o t h

a u d i o

d e v i c e .

F o r

t h e

connecting procedure of the audio
device, see the Bluetooth

audio in-

structions.

When the connecting is completed, the
screen will return to the Bluetooth

setup display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2510

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the Bluetooth

audio mode. If the system has been turned
off while the Bluetooth

audio device was

playing, pushing the ON·OFF/VOL control
knob will start the Bluetooth

audio

device.

The ability to pause, change tracks, fast
forward, rewind, randomize and repeat
music may be different between devices.
Some or all of these functions may not be
supported on each device.

DISC·AUX button:

When the DISC·AUX button is pushed with
the system off and the Bluetooth

audio

device connected, the system will turn on.
If another audio source is playing and the
Bluetooth

audio device is connected,

push the DISC·AUX button repeatedly until
the display changes to the Bluetooth

audio mode.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for

more than 1.5 seconds while a Bluetooth

audio file is being played, the Bluetooth

audio device will play while forwarding or
rewinding. When the button is released,
the Bluetooth

audio device will return to

normal play speed.

When the

button is pushed for

less than 1.5 seconds while a Bluetooth

audio file is being played, the next track or
the beginning of the current track on the
Bluetooth

audio device will be played.

The INFINITI controller can also be used to
select tracks when the Bluetooth

audio

play mode screen is shown on the display.
(

“Bluetooth audio” will be indicated on the

header of the screen.)

REPEAT (RPT), RANDOM (RDM):

To change the play mode, push the

button repeatedly and the mode changes
as follows.

Normal

? Shuffle All Tracks ? Shuffle

Group

? Repeat 1 Track ? Repeat All

Tracks

? Repeat Group ? Normal

Operation keys:

To operate a Bluetooth

audio device,

select a key displayed on the operation
screen using the INFINITI controller.

Play

Select the

“

” key to start playing when

pausing. Select this key again to pause the
audio play.

Pause

Select the

“

” key to pause the Blue-

tooth

audio device. Select this key again

to resume playing.

Play Mode:

The play mode setting display will appear
when the

“Menu” key is selected.

Choose the preferred play mode from the

Monitor, climate, audio, phone and voice recognition systems

4-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-74

Monitor, climate, audio, phone and voice recognition systems

following items.
. Shuffle

Choose

“Shuffle OFF”, “Shuffle All

Tracks

” and “Shuffle Group”.

. Repeat

Choose from

“Repeat OFF”, “Repeat 1

Track

”, “Repeat All Tracks” and “Repeat

Group

”.

SAA2511

Bluetooth

settings

To set up the Bluetooth

device system to

the preferred settings, push the SETTING
button and select the

“Bluetooth” key.

Bluetooth:

If this setting is turned off, the connection
between the Bluetooth

devices and the

in-vehicle Bluetooth

module will be can-

celed.

Connect Bluetooth:

Connects to the Bluetooth

device. See

“Connecting procedure” (P.4-71). Up to 5
devices can be registered.

Connected Devices:

Registered devices are shown on the list.
Select a Bluetooth

device from the list,

the following options will be available.
. Select

Select

“Select” to connect the selected

device to the vehicle. If there is a
different device currently connected,
the selected device will replace the
current device.

. Edit

Rename the selected Bluetooth

device

using the keypad displayed on the
screen. (See

“How to use touch screen

(models with navigation system)

” (P.4-

5).)

. Delete

Delete the selected Bluetooth

device.

Edit Bluetooth Info:

Change the name broadcasted by this
system over Bluetooth

. Change the PIN

code that is entered when connecting a
hands free device to this system.

Replace Connected Phone:

Replace the Bluetooth

connection with a

connected Bluetooth

cellular phone. For

details about Hands-Free Phone System,

-------------------------------------------------------------------------------------------------------------------------------------------------------------

see

“Bluetooth

Hands-Free Phone System

(models with navigation system)

” (P.4-90).

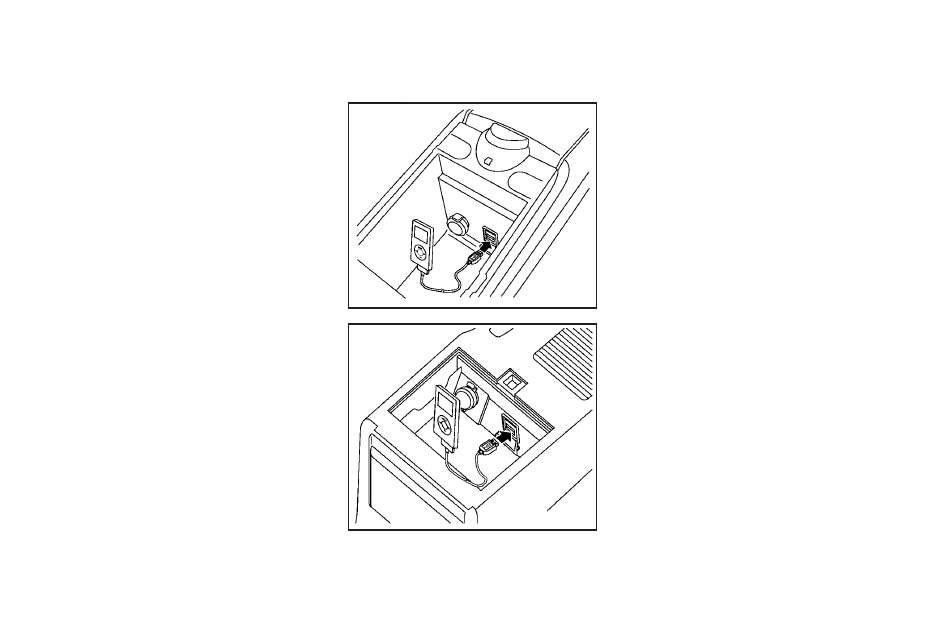

SAA2974

Automatic transmission models

SAA2426

Manual transmission models

iPod

PLAYER OPERATION (if so

equipped)

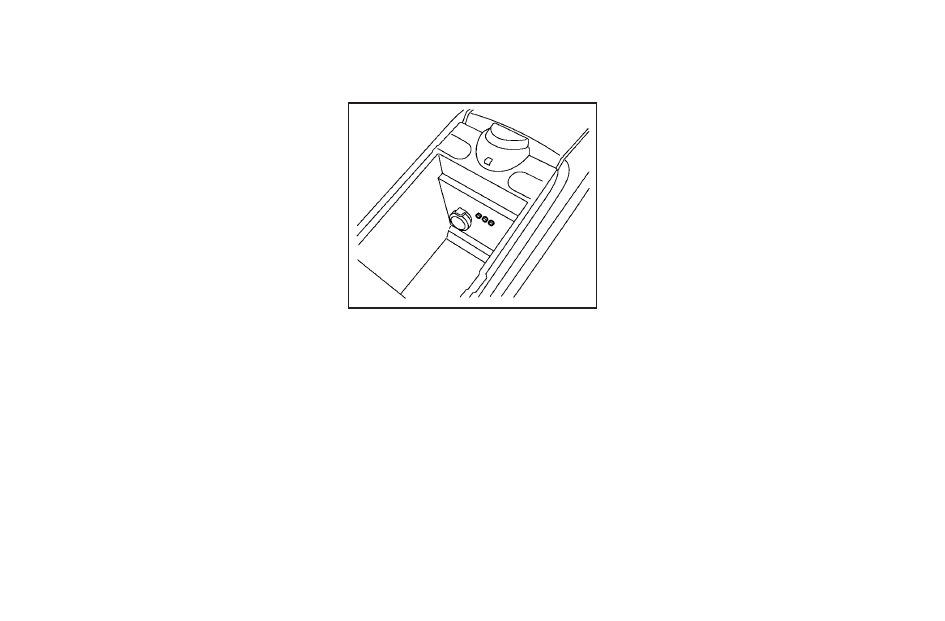

Connecting iPod

Open the console lid and connect the
iPod

cable to the USB connector. If

compatible, the battery of the iPod

charged while the connection to the
vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows an INFINITI or

Accessory Attached screen when the con-
nection is completed. When the iPod

connected to the vehicle, the iPod

music

library can only be operated by the vehicle
audio controls.

* iPod

is a trademark of Apple Inc.,

registered in the U.S. and other countries.

Compatibility

The following models are available:

Models with navigation system:
. Fifth generation iPod

(version 1.2.3 or

later)

. iPod Classic

(version 1.1.1 or later)

. First generation iPod touch

(version

2.0.0 or later)

Monitor, climate, audio, phone and voice recognition systems

4-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-76

Monitor, climate, audio, phone and voice recognition systems

. Second generation iPod touch

(version

1.2.3 or later)

. First generation iPod nano

(version

1.3.1 or later)

. Second generation iPod nano

(version

1.1.3 or later)

. Third generation iPod nano

(version

1.1 or later)

. Fourth generation iPod nano

(version

1.0.2 or later)

Models without navigation system:

. Fifth generation iPod

(firmware ver-

sion 1.3)

. First generation iPod Classic

(firmware

version 1.1.2 PC)

. Second generation iPod Classic

(firm-

ware version 2.0 PC)

. First generation iPod touch

(firmware

version 2.1)

. Second generation iPod touch

(firm-

ware version 2.1.1)

. First generation iPod nano

(firmware

version 1.3.1)

. Second generation iPod nano

(firm-

ware version 1.1.3)

. Third generation iPod nano

(firmware

version 1.1 PC)

. Third generation iPhone

(firmware

version 2.1)

Make sure that the iPod

version is

updated.

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX or DISC
button repeatedly to switch to the iPod

mode.

If the system has been turned off while the
iPod

was playing, pushing the ON·OFF

button will start the iPod

PLAY:

When the DISC·AUX or AUX button is
pushed with the system off and the iPod

connected, the system will turn on. If
another audio source is playing and the
iPod

is connected, push the DISC·AUX or

AUX button repeatedly until the center
display changes to the iPod

mode.

Interface:

The interface for iPod

operation shown on

the vehicle center display is similar to the
iPod

interface. Use the INFINITI controller

and the ENTER or BACK button to play the
iPod

with your favorite settings.

The following items can be chosen from the
menu list screen. For further information
about each item, see the iPod

Owner

’s

Manual.
. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
The following touch-panel buttons shown
on the screen are also available:
.

: returns to the previous screen.

: plays/pauses the music selected.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for

more than 1.5 seconds while the iPod

playing, the iPod

will play while fast

forwarding or rewinding. When the button
is released, the iPod

will return to the

normal play speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the

button is pushed for

less than 1.5 seconds while the iPod

playing, the next track or the beginning of
the current track on the iPod

will be

played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less
than 1.5 seconds after 3 seconds from
when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when the iPod

is playing.

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while a
track is being played, the play pattern can
be changed as follows:

Music Box

(if so equipped)

The Music Box

can store songs from CDs

being played. The system has 9.3GB
storage capacity in models with navigation
system or 2.0GB (800 MB for music
storage) for models without navigation
system.

The following CDs can be recorded in the
Music Box audio system.
. CDs that contain uncompressed audio

files

. Hybrid Compact Disc Digital Audio

(Hybrid CD-DA) specification in Super
Audio CDs

. Compact Disc Digital Audio (CD-DA)

specification in CD-Extras

. First session of multisession disc

Extreme temperature conditions [below
-4

8F (-208C) and above 1588F (708C)] could

affect the performance of the system.

NOTE:

If the system needs to be replaced due to a
malfunction, all stored music data will be
erased.

Monitor, climate, audio, phone and voice recognition systems

4-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-78

Monitor, climate, audio, phone and voice recognition systems

SAA2513

Models with navigation system

SAA2612

Models without navigation system

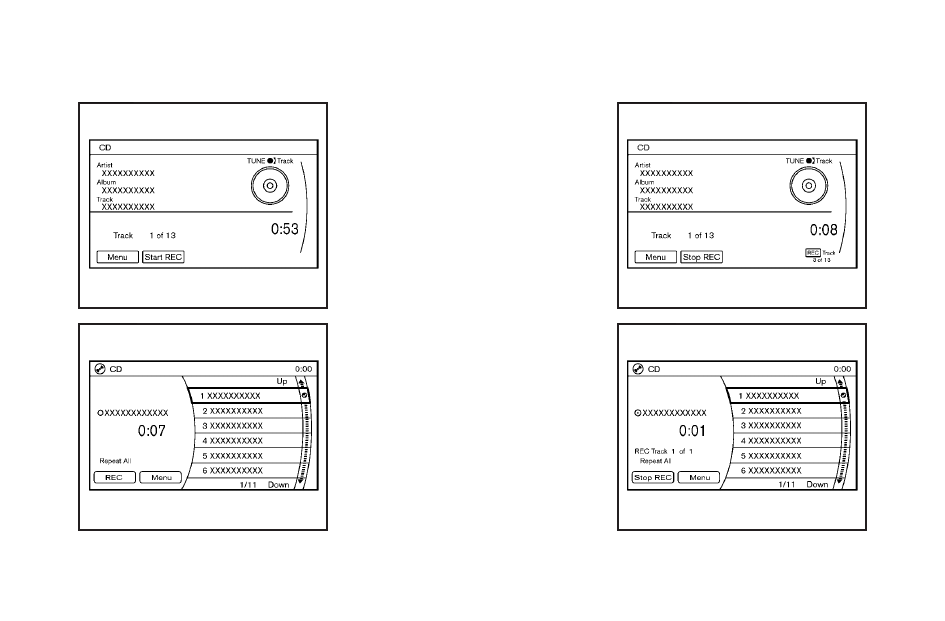

Recording CDs

1. Operate the audio system to play a CD.

For the details of playing CDs, see
“Compact Disc (CD) player operation”
(P.4-60).

2. Select the

“Start REC” or “REC” key.

NOTE:
. The system starts playing and record-

ing the 1st track on the CD when the
“Start REC” or “REC” key is selected.

. The recording process can be stopped

at any time. All tracks that were played
before the CD was stopped are stored.

. Individual tracks can be deleted from

the hard drive/flash memory after the
CD is recorded.

. The order of the tracks may not be

changed while recording.

SAA2514

Models with navigation system

SAA2613

Models without navigation system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the title information of the track being
recorded is stored either in the hard drive/
flash memory or in the CD, the title is
automatically displayed on the screen. For
title acquisition from the hard drive/flash
memory, music recognition technology and
related data are provided by Gracenote

If a track is not recorded successfully due
to skipping sounds, the

mark is

displayed behind the track number.

The Music Box

hard drive/flash memory

cannot perform recording under the follow-
ing conditions.
. There is not enough space on the hard

drive

. The number of albums reaches the

maximum of 500.

. The number of tracks reaches the

maximum of 3,000.

Automatic recording:

If the

“Automatic Recording” function is

turned to ON, recording starts when a CD is
inserted. (See

“Music Box

settings

” (P.4-

83).)

Stopping recording:

To stop the recording, select the

“Stop

REC

” key button by touching the screen or

using the INFINITI controller.

If the CD is ejected, the audio system is
turned off or the ignition switch is pushed
to the OFF position, the recording also
stops.

SAA2515

Models with navigation system

SAA2614

Models without navigation system

Monitor, climate, audio, phone and voice recognition systems

4-79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-80

Monitor, climate, audio, phone and voice recognition systems

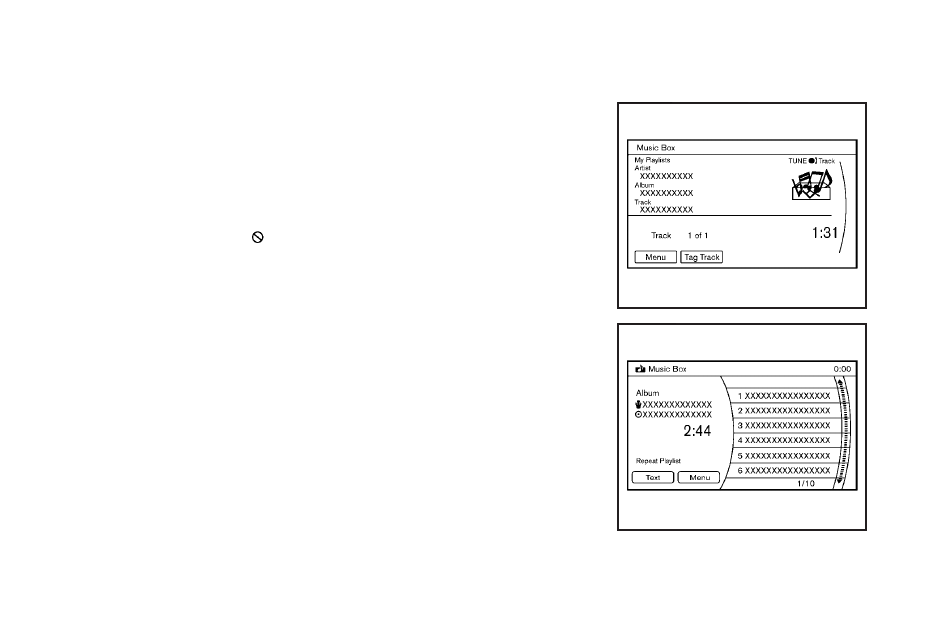

Playing recorded songs

Select the Music Box

audio system by

using one of the following methods.
. Push the audio source switch on the

steering wheel repeatedly until the
center display changes to the Music
Box

mode. (See

“Steering-wheel-

mounted controls for audio

” (P.4-87).)

. Push the DISC·AUX or DISC button

repeatedly until the center display
changes to the Music Box

mode.

. Give voice commands (models with

navigation system). (See

“INFINITI Voice

Recognition system (models with navi-
gation system)

” (P.4-114).)

Stopping playback:

The system stops playing when:

another mode (radio, CD, DVD, USB
memory or iPod) is selected.

the audio system is turned off.

the ignition switch is pushed to the
LOCK position.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for

more than 1.5 seconds while a track is

being played, the track will play while fast
forwarding or rewinding. When the button
is released, the track will return to the
normal play speed.

When the

button is pushed for

less than 1.5 seconds while a track is
being played, the next track or the begin-
ning of the current track will be played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less
than 1.5 seconds after 3 seconds from
when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when a track is being played.

Play mode selection:

The TUNE/FOLDER knob will skip from
album to album unless it is playing

“All

Songs

” from the Music Library menu. When

playing

“All Songs”, the knob will change

the track instead of the album. The upper
right corner of the main screen will indicate
if the TUNE knob is changing by track or
album.

REPEAT (RPT), RANDOM (RDM):

When the RPT·RDM button is pushed while
a track is being played, the play pattern
can be changed as follows:

(Normal)

? 1 Album Repeat ? 1 Track

Repeat

? 1 Album Random ? All Random

? (Normal)
Tag Track (models with navigation sys-
tem):

Select

“Tag Track” key on the screen when

a track is being played. A menu will show
the 5 available playlists. Select one of the
playlists to add the current song to that
playlist. If a playlist is not selectable (text
is grayed out), it means the song already
exists in that playlist.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2516

Models with navigation system

SAA2725

Models without navigation system

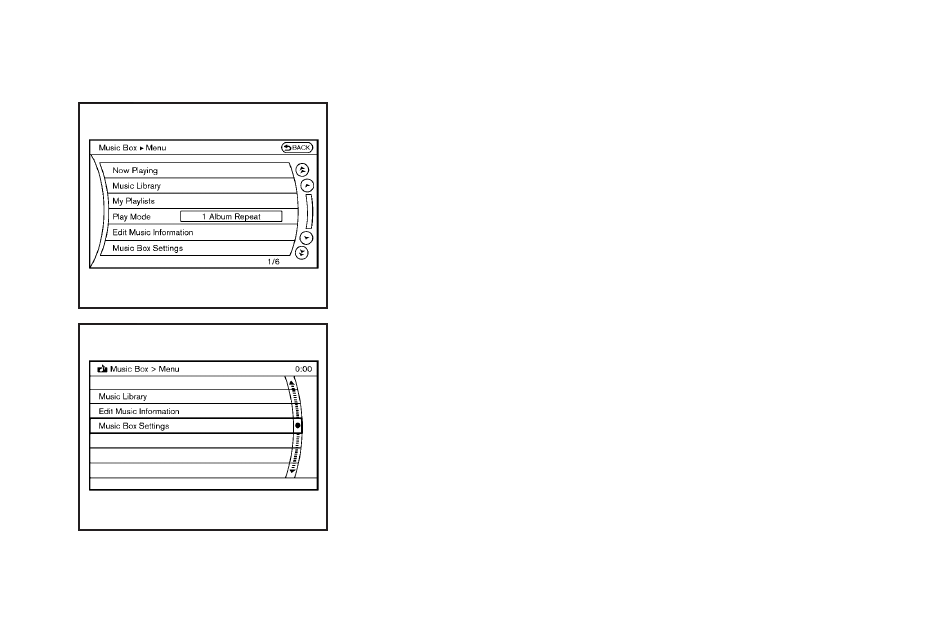

There are some options available by
selecting the

“Menu” key on the screen

during playback. Select one of the follow-
ing options that are displayed on the
screen if necessary.

Now Playing (models with navigation
system):

Displays a track list to choose a preferred
track for playback.

Music Library:

There are some options available during
playback. Select one of the following
options that are displayed on the screen
if necessary.
. Artists

Play tracks by an artist whose music is
currently being played. The artists are
sorted in alphabetical order.

. Albums

Play tracks in each album. The albums
are sorted in alphabetical order.

. All Songs

Play tracks from all recorded tracks. The
tracks are sorted in alphabetical order.

. Genres

Play tracks by a selected genre.

My Playlists (models with navigation
system):

Displays the Playlist and edits the Playlist
if necessary.

Select the

“Edit” key.

The following items are available
. Add Current Songs

Add a current track to the Playlist.

. Add Songs by Album

Displays a list of albums in alphabetical
order. Selecting an album displays all
of the tracks in the album. Select tracks
from the list to add to the Playlist.

. Add Songs by Artist

Displays a list of artists in alphabetical
order. Selecting an artist displays all of
the tracks by the artist. Select tracks
from the list to add to the Playlist.

. Edit Songs Order

Reorder the tracks in the Playlist by
selecting a track and specifying the
order.

. Edit Name

Edit the name of the Playlist using the
keypad displayed on the screen. (See
“How to use INFINITI controller” (P.4-5).)

Monitor, climate, audio, phone and voice recognition systems

4-81

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-82

Monitor, climate, audio, phone and voice recognition systems

. Delete Songs

Delete tracks in the Playlist by selecting
from the displayed song list.

Play Mode (models with navigation sys-
tem):

Choose the preferred play mode from the
following items.
. Normal
. 1 Album Repeat
. 1 Track Repeat
. 1 Playlist Random
. 1 Artist Random
. 1 Album Random
. 1 All Track Random
. 1 All Random
Edit Music Information:

Displays the following information about
the Music Box

hard drive/flash memory

to edit if necessary.
. Edit Information of Current Song (mod-

els with navigation system)
Edit the

“Track”, “Artist” and “Genre”

information of the current track using
the keypad displayed on the screen.
(See

“How to use touch screen (models

with navigation system)

” (P.4-5).)

Edit the

“Mode” information by select-

ing from the list.

. Edit Information by Album (models with

navigation system)
Edit the displayed name and of a
selected album and the track informa-
tion in the album.

. Update Gracenote from USB Device

(models with navigation system)/
Transfer Titles from USB (models with-
out navigation system)
Update the in-vehicle Gracenote Data-
base using a USB memory. Search the
title from a information acquired on the
Internet.
Visit www.InfinitiUSA.com/music-up-
date/ for details.

. Transfer Missing Titles to USB

Transfer the information of an album
recorded without titles to a USB mem-
ory.
Visit www.InfinitiUSA.com/music-up-
date/ for details.

. Update Gracenote from HDD (models

with navigation system)/Update Miss-
ing Titles (models without navigation
system)
The title information is acquired from
the database stored on the hard drive/

flash memory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2517

Models with navigation system

SAA2438

Models without navigation system

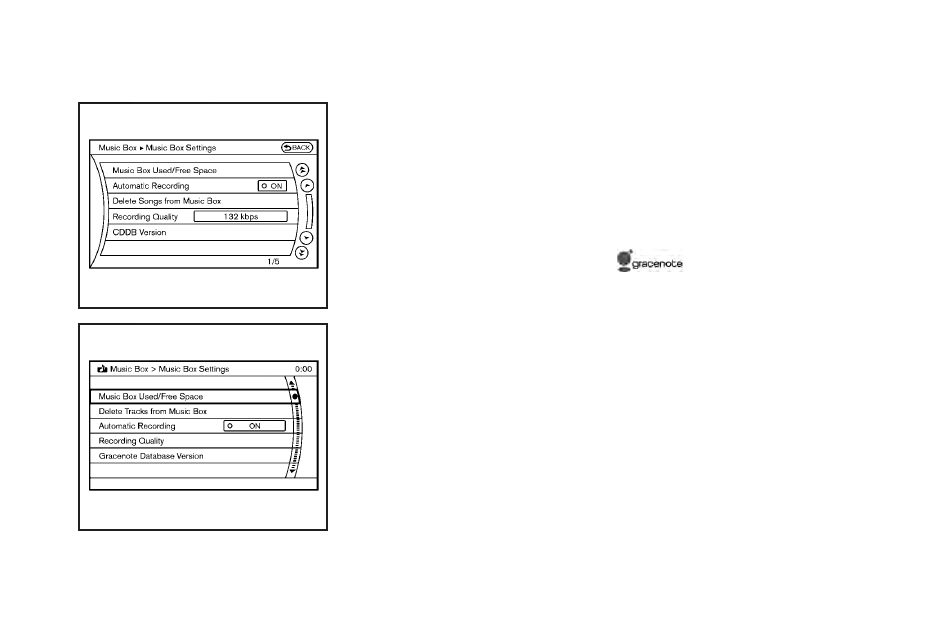

Music Box

settings

To set the Music box

hard drive/flash

memory to your preferred settings, select
the

“Menu” key during playback, and the

“Music Box Settings” key with the INFINITI
controller, and then push the

ENTER

button.

Music Box Used/Free Space:

Information about

“Saved Album”, “Saved

Track

” and “Remaining Time” is displayed.

Automatic Recording:

When this item is turned to ON, the Music
Box

hard drive/flash memory automati-

cally starts recording when a CD is
inserted.

Delete Songs from Music Box:

Deletes the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box

Recording Quality:

Set the recording quality of 105 kbps or
132 kbps. The default is set to 105 kbps.

CDDB Version (models with navigation
system)/Gracenote Database Version
(models without navigation system):

The version of the built-in Gracenote

Database is displayed.

Gracenote

NOTE:
. The information contained in the Grace-

note Database is not fully guaranteed.

. The service of the Gracenote Database

on the Internet may be stopped with-
out prior notice for maintenance.

End-User License Agreement

USE OF THIS PRODUCT IMPLIES ACCEP-
TANCE OF THE TERMS BELOW.

Gracenote

MusicID

Terms of Use

This application or device contains soft-
ware from Gracenote, Inc. of Emeryville,
California (

“Gracenote”). The software from

Gracenote (the

“Gracenote Software”) en-

ables this application to perform disc and/
or file identification and obtain music-
related information, including name, artist,
track, and title information (

“Gracenote

Data

”) from online servers or embedded

databases (collectively,

“Gracenote Ser-

vers

”) and to perform other functions. You

may use Gracenote Data only by means of
the intended End-User functions of this
application or device. You agree that you

Monitor, climate, audio, phone and voice recognition systems

4-83

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-84

Monitor, climate, audio, phone and voice recognition systems

will use Gracenote Data, the Gracenote
Software, and Gracenote Servers for your
own personal non-commercial use only.
You agree not to assign, copy, transfer or
transmit the Gracenote Software or any
Gracenote Data to any third party. YOU
AGREE NOT TO USE OR EXPLOIT GRACE-
NOTE DATA, THE GRACENOTE SOFTWARE,
OR GRACENOTE SERVERS, EXCEPT AS EX-
PRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license
to use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will ter-
minate if you violate these restrictions. If
your license terminates, you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote Ser-
vers. Gracenote reserves all rights in
Gracenote Data, the Gracenote Software,
and the Gracenote Servers, including all
ownership rights. Under no circumstances
will Gracenote become liable for any
payment to you for any information that
you provide.

You agree that Gracenote, Inc. may enforce
its rights under this Agreement against you
directly in its own name.

The Gracenote service uses a unique
identifier to track queries for statistical

purposes. The purpose of a randomly
assigned numeric identifier is to allow the
Gracenote service to count queries without
knowing anything about who you are. For
more information, see the web page for the
Gracenote Privacy Policy for the Gracenote
service.

The Gracenote Software and each item of
Gracenote Data are licensed to you

“AS

IS.

” Gracenote makes no representations

or warranties, express or implied, regard-
ing the accuracy of any Gracenote Data
from in the Gracenote Servers. Gracenote
reserves the right to delete data from the
Gracenote Servers or to change data
categories for any cause that Gracenote
deems sufficient. No warranty is made that
the Gracenote Software or Gracenote Ser-
vers are error-free or that functioning of
Gracenote Software or Gracenote Servers
will be uninterrupted. Gracenote is not
obligated to provide you with new en-
hanced or additional data types or cate-
gories that Gracenote may provide in the
future and is free to discontinue its
services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES
EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTI-
CULAR PURPOSE, TITLE, AND NON-INFRIN-
GEMENT. GRACENOTE DOES NOT WARRANT
THE RESULTS THAT WILL BE OBTAINED BY
YOUR USE OF THE GRACENOTE SOFTWARE
OR ANY GRACENOTE SERVER. IN NO CASE
WILL GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES
OR FOR ANY LOST PROFITS OR LOST
REVENUES.

Copyright:

Music recognition technology and related
data are provided by Gracenote

. Grace-

note is the industry standard in music
recognition technology and related content
delivery. For more information, please visit
www.gracenote.com.

CD and music-related data from Gracenote,
Inc., copyright © 2000-2009 Gracenote.
Gracenote Software, copyright © 2000-
2009 Gracenote. This product and service
may practice one or more of the following
U.S. Patents: #5,987,525; #6,061,680;
#6,154,773, #6,161,132, #6,230,192,
#6,230,207, #6,240,459, #6,330,593,
and other patents issued or pending. Some
services supplied under license from Open
Globe, Inc. for U.S. Patent: #6,304,523.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti G37 Coupe (2012 year). Manual - part 16
