Infiniti G Convertible (2012 year). Manual

4-62

Monitor, climate, audio, phone and voice recognition systems

SAA2500

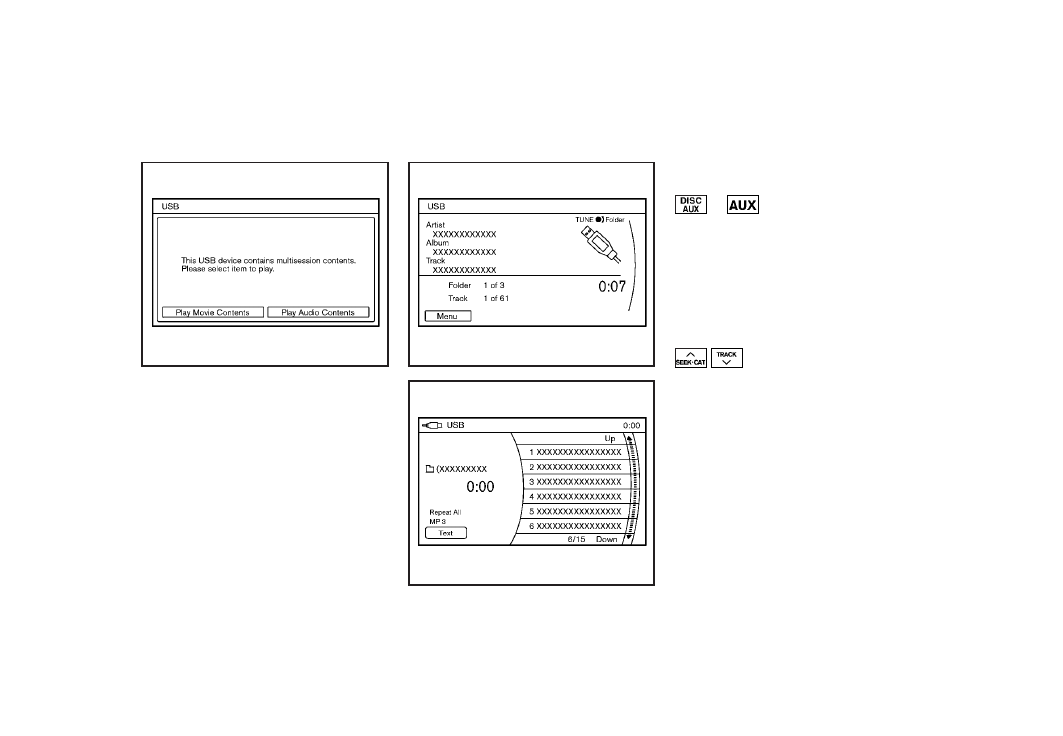

File selection (models with naviga-
tion system)

When there are both audio and movie files
in the USB memory, the mode select
screen is displayed. Select the preferred
contents to play.

When there is only one type of file, the
audio or movie operation screen is dis-
played and starts to play.

If a video file restricts the number of
playbacks, a pop-up screen will appear to
confirm it is ok to play. Answer yes or no as
requested by the display.

SAA2501

Models with navigation system

SAA2611

Models without navigation system

Audio file operation

PLAY:

When the DISC·AUX or AUX button is
pushed with the system off and the USB
memory inserted, the system will turn on.

If another audio source is playing and a
USB memory is inserted, push the
DISC·AUX or AUX button repeatedly until
the center display changes to the USB
memory mode.

Next/Previous File and Fast

Forward/Rewind:

Push the FF or REW button for more than
1.5 seconds while a USB memory is being
played to fast forward or rewind through a
track. When the button is released, the USB
memory will return to normal play speed.

When the FF button is pushed for less than
1.5 seconds while a USB memory is being
played, the next track on the USB memory
will be played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less

-------------------------------------------------------------------------------------------------------------------------------------------------------------

than 1.5 seconds after 3 seconds from
when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when the USB memory is
being played.

Folder selection:

To change to another folder in the USB
memory, turn the folder selector or choose
a folder displayed on the screen using the
INFINITI controller.

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while the
USB memory is played, the play pattern
can be change as follows.

To change the play mode, push the RPT
button repeatedly and the mode will
change as follows.

Normal ? 1 Folder Repeat ? 1 Track
Repeat ? All Random ? 1 Folder Random
? Normal

Text (models without navigation system):
When the “Text” key is selected on the
screen using the INFINITI controller and
then the ENTER button is pushed while a

USB memory is being played, the music
information listed below will be displayed
on the screen.

. Folder title
. File title
. Song title
. Album Title
. Artist

SAA2502

Menu (models with navigation system):

There are some options available during
playback. Select one of the following
options that are displayed on the screen
if necessary. Refer to the following infor-
mation for each item.

. Movie Playback

Switch to the movie playback mode.
This item is displayed only when a USB
memory contains movie files.

. Folder List/Track List

Displays the folder or track list. The
“Movie Playback” key is also displayed
in this list screen, and enables switch-

Monitor, climate, audio, phone and voice recognition systems

4-63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-64

Monitor, climate, audio, phone and voice recognition systems

ing to the movie playback mode.

. Play Mode

Select the preferred play mode.

SAA2503

Movie file operation (models with
navigation system)

Park the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.

PLAY:

When the DISC·AUX button is pushed with
the system off and the USB memory
inserted, the system will turn on.

If another audio source is playing and a
USB memory is inserted, push the
DISC·AUX button repeatedly until the cen-
ter display changes to the USB memory

mode.

Operation keys:
To operate the USB memory, select the
desired key displayed on the operation
screen using the INFINITI controller.

Pause

Select the “

” key to pause the movie

file. To resume playing the movie file,
select the “

” key.

Play

Select the “

” key to start playing a

movie file, for example, after pausing a
movie file.

STOP

Select the “

” key to stop playing a

movie file.

Skip (Next chapter)

Select the “

” key to skip the chapter(s)

of the disc forward. The chapters will
advance the number of times the ENTER
button is pushed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Skip (Previous chapter)

Select the “

” key to skip the chapter(s)

of the disc backward. The chapters will go
back the number of times the “

” key is

selected.

List:

Select the “List” key on the movie file
operation screen to display the file list.

SAA2504

Example

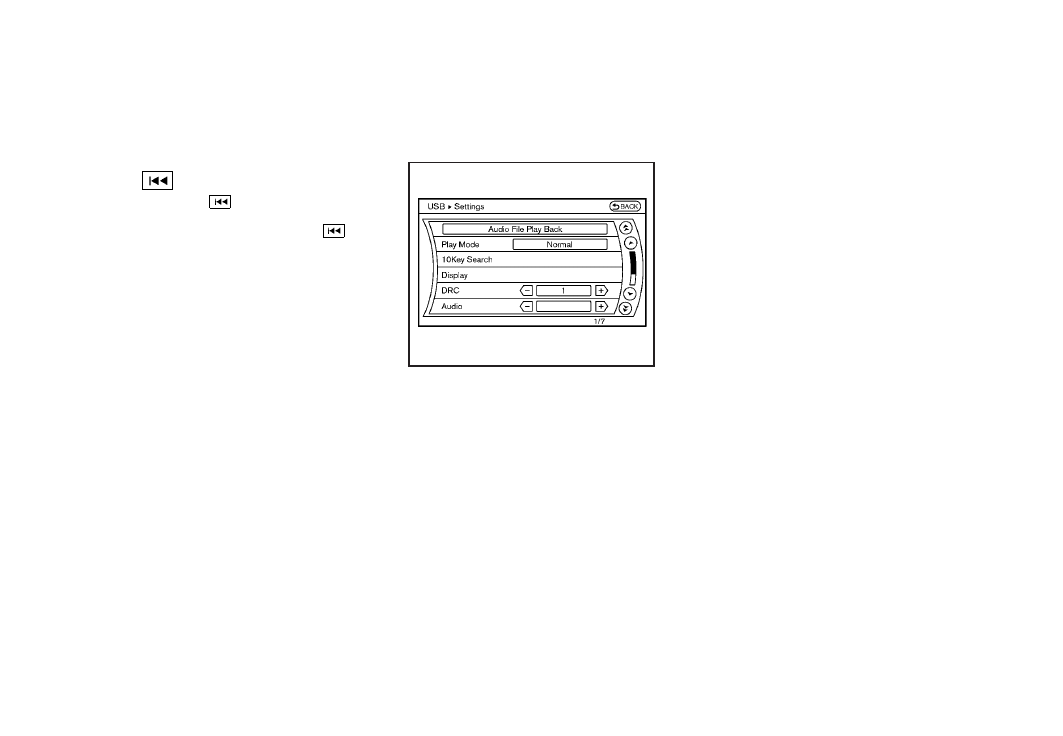

Settings:

Select the “Settings” key to adjust the
following settings.

. Audio File Playback

Switch to the audio playback mode.
This item is displayed only when the
USB memory contains the audio files.

. Play Mode

Select the “Normal” or “1 Track Re-
peat” play mode.

. 10 Key Search

Select the “10 Key Search” key to open
the number entry screen.

Input the number to be searched and
select the “OK” key.
The specified folder/file will be played.

. Display

To adjust the image quality of the
screen, select the preferred adjustment
items.

. DRC

DRC (Dynamic Range Compression)
automatically adjusts the soundtrack
volume level to maintain a more even
sound to the speakers.

. Audio

Select the preferred language for audio.

. Subtitle

Select the preferred language for sub-
title.

. Display Mode

Select the “Normal”, “Wide”, “Cinema”
or “Full” mode.

Monitor, climate, audio, phone and voice recognition systems

4-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-66

Monitor, climate, audio, phone and voice recognition systems

Bluetooth

STREAMING AUDIO

(models with navigation system)

Your INFINITI is equipped with Bluetooth

Streaming Audio. If you have a compatible
Bluetooth

device with streaming audio

(A2DP profile), you can set up the wireless
connection between your Bluetooth

de-

vice and the in-vehicle audio system. This
connection allows you to listen to the
audio from the Bluetooth

device using

your vehicle speakers. It also may allow
basic control of the device for playing and
skipping audio files using the AVRCP
Bluetooth profile. All Bluetooth

Devices

do not have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth

Device for more details.

Once your Bluetooth

device is connected

to the in-vehicle audio system, it will
automatically reconnect whenever the de-
vice is present in the vehicle and you select
Bluetooth

Audio from your audio system.

You do not need to manually reconnect for
each usage.

Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band
(2.4 GHz). Using the Bluetooth

and the

wireless LAN functions at the same time
may slow down or disconnect the commu-

nication and cause undesired noise. It is
recommended that you turn off the wire-
less LAN (Wi-Fi) when using the Bluetooth

functions.

Regulatory information

FCC Regulatory information:
. CAUTION: To maintain compliance with

FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized
antenna, modification, or attachments
could damage the transmitter and may
violate FCC regulations.

. Operation is subject to the following

two conditions:
1) This device may not cause inter-

ference and

2) This device must accept any inter-

ference, including interference that
may cause undesired operation of
the device

IC Regulatory information:
. Operation is subject to the following

two conditions:
1) This device may not cause inter-

ference, and

2) This device must accept any inter-

ference, including interference that

may cause undesired operation of
the device.

. This Class B digital apparatus meets all

requirements of the Canadian Interfer-
ence-Causing Equipment Regulations.

Bluetooth trademark:

Bluetooth

is a trademark

owned by Bluetooth SIG, Inc.
and licensed to Clarion Co., Ltd.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-68

Monitor, climate, audio, phone and voice recognition systems

SAA3005

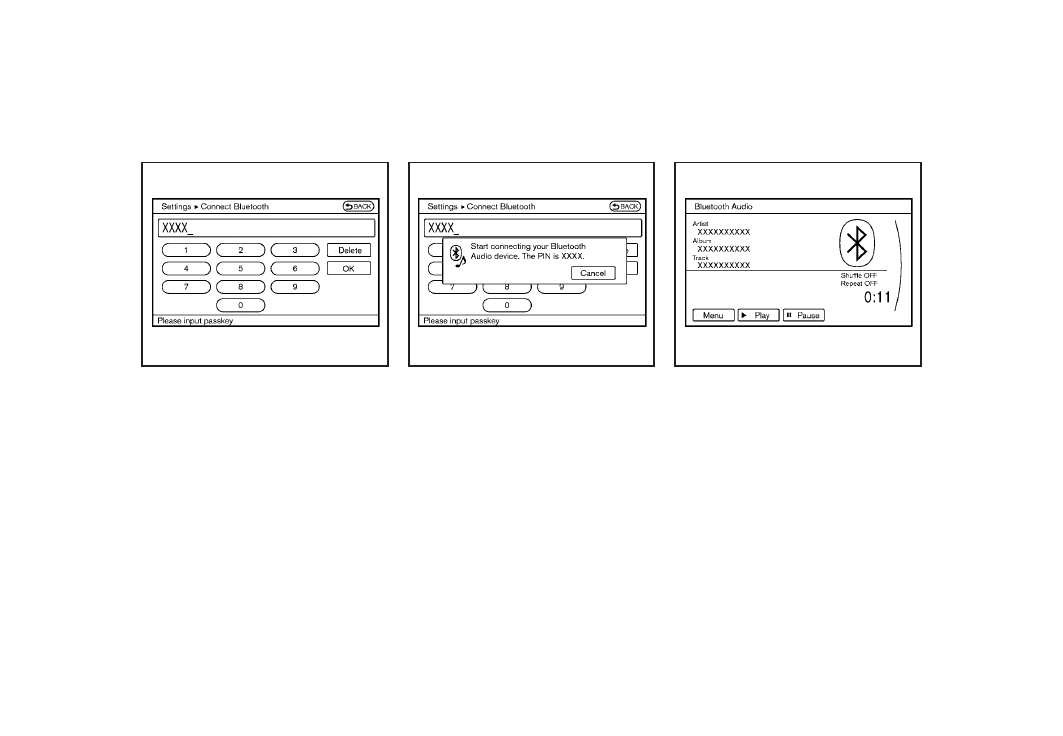

4. Choose a PIN code to use with the

compatible Bluetooth

audio device

using the number input screen. The
PIN code will need to be entered into
the Bluetooth

audio device after step

5. Select the “OK” key.

SAA3006

5. The standby message screen will ap-

pear. Operate the compatible Blue-
t o o t h

a u d i o

d e v i c e .

F o r

t h e

connecting procedure of the audio
device, see the Bluetooth

audio in-

structions.

When the connecting is completed, the
screen will return to the Bluetooth

setup display.

SAA2510

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the Bluetooth

audio mode. If the system has been turned
off while the Bluetooth

audio device was

playing, pushing the ON·OFF/VOL control
knob will start the Bluetooth

audio

device.

Some of the functions, such as pause,
change track, fast forward, etc., may not be
used depending on the paired Bluetooth

device.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISC·AUX button:

When the DISC·AUX button is pushed with
the system off and the Bluetooth

audio

device connected, the system will turn on.
If another audio source is playing and the
Bluetooth

audio device is connected,

push the DISC·AUX button repeatedly until
the display changes to the Bluetooth

audio mode.

Next/Previous Track and Fast

Forward/Rewind:

Push the FF or REW button for more than
1.5 seconds while a Bluetooth

file is

being played to fast forward or rewind
through the track. When the button is
released, the Bluetooth

audio device will

return to the normal play speed.

When the FF button is pushed for less than
1.5 seconds while the Bluetooth

audio

device is being played, the next track will
be played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less
than 1.5 seconds after 3 seconds from

when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when the Bluetooth

audio is

playing.

REPEAT (RPT), RANDOM (RDM):

To change the play mode, push the

button repeatedly and the mode changes
as follows.

Normal ? Shuffle All Tracks ? Shuffle
Group ? Repeat 1 Track ? Repeat All
Tracks ? Repeat Group ? Normal

Operation keys:

To operate a Bluetooth

audio device,

select a key displayed on the operation
screen using the INFINITI controller.

Play

Select the “

” key to start playing when

pausing. Select this key again to pause the
audio play.

Pause

Select the “

” key to pause the Blue-

tooth

audio device. Select this key again

to resume playing.

Play Mode:

The play mode setting display will appear
when the “Menu” key is selected.

Choose the preferred play mode from the
following items.

. Shuffle

Choose “Shuffle OFF”, “Shuffle All
Tracks” and “Shuffle Group”.

. Repeat

Choose from “Repeat OFF”, “Repeat 1
Track”, “Repeat All Tracks” and “Repeat
Group”.

Monitor, climate, audio, phone and voice recognition systems

4-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-70

Monitor, climate, audio, phone and voice recognition systems

SAA2511

Bluetooth

settings

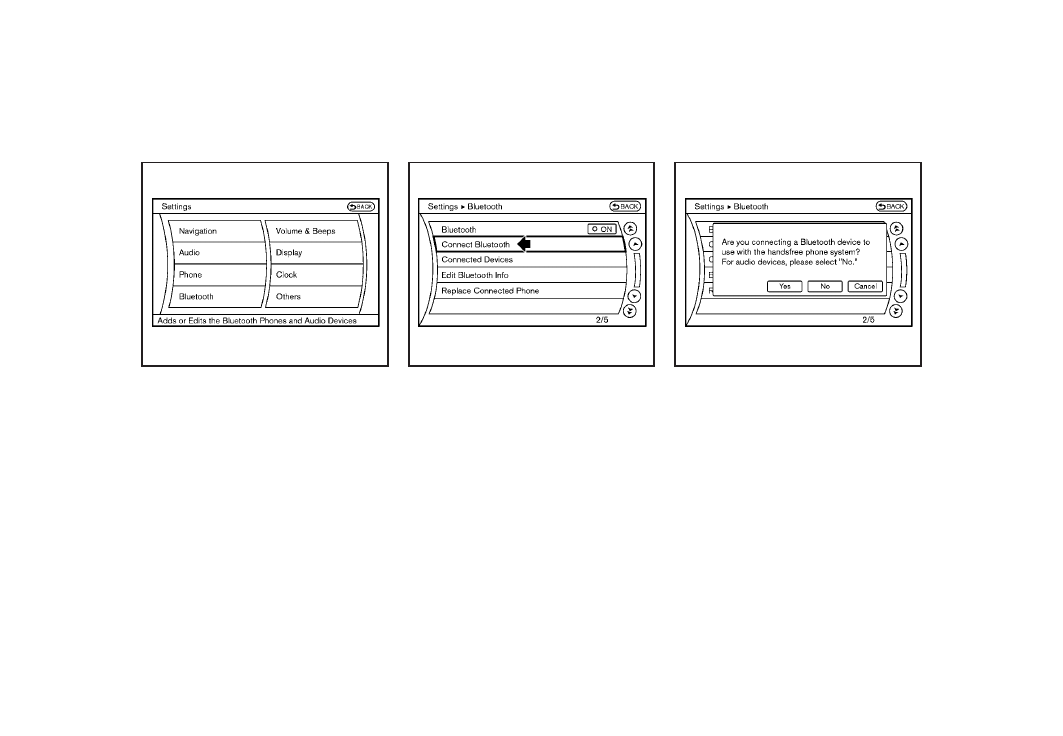

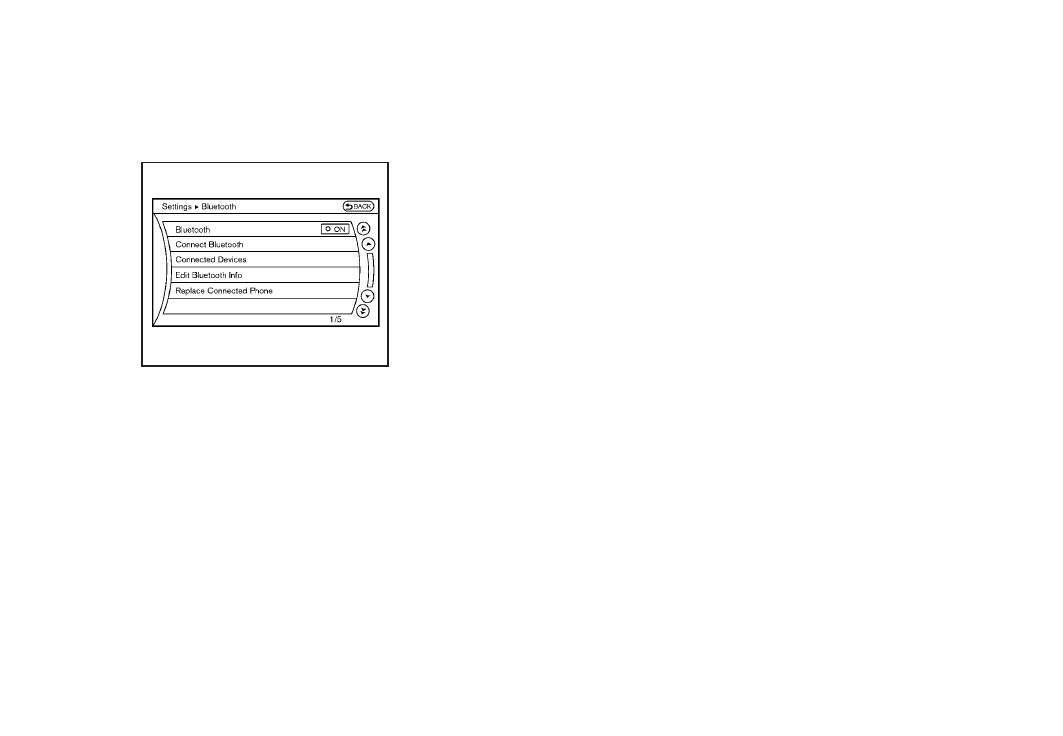

To set up the Bluetooth

device system to

the preferred settings, push the SETTING
button and select the “Bluetooth” key.

Bluetooth:
If this setting is turned off, the connection
between the Bluetooth

devices and the

in-vehicle Bluetooth

module will be can-

celed.

Connect Bluetooth:
Connects to the Bluetooth

device. See

“Connecting procedure” (P.4-67). Up to 5
devices can be registered.

Connected Devices:
Registered devices are shown on the list.
Select a Bluetooth

device from the list,

the following options will be available.

. Select

Select “Select” to connect the selected
device to the vehicle. If there is a
different device currently connected,
the selected device will replace the
current device.

. Edit

Rename the selected Bluetooth

device

using the keypad displayed on the
screen. (See “How to use touch screen
(models with navigation system)” (P.4-
5).)

. Delete

Delete the selected Bluetooth

device.

Edit Bluetooth Info:
Change the name broadcasted by this
system over Bluetooth

. Change the PIN

code that is entered when connecting a
hands free device to this system.

Replace Connected Phone:
Replace the Bluetooth

connection with a

connected Bluetooth

cellular phone. For

details about Hands-Free Phone System,

see “Bluetooth

Hands-Free Phone System

(models with navigation system)” (P.4-84).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2974

Automatic transmission models

SAA2426

Manual transmission models

iPod

PLAYER OPERATION

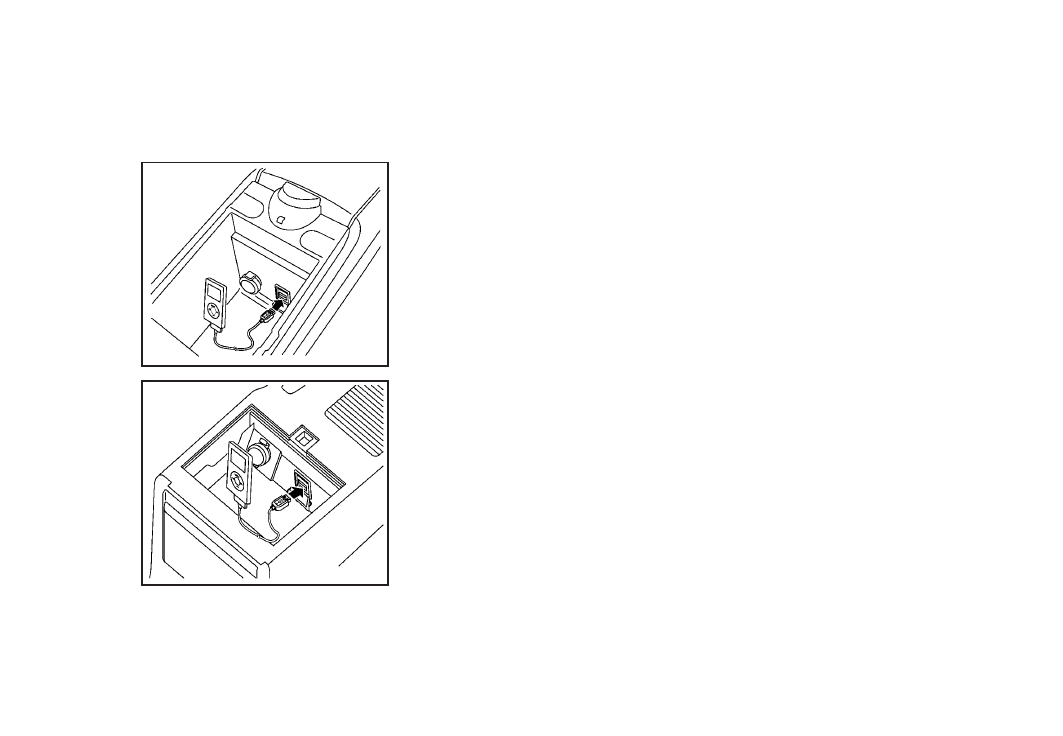

Connecting iPod

Open the console lid and connect the
iPod

cable to the USB connector. If

compatible, the battery of the iPod

charged while the connection to the
vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows an INFINITI or

Accessory Attached screen when the con-
nection is completed. When the iPod

connected to the vehicle, the iPod

music

library can only be operated by the vehicle
audio controls.

* iPod

is a trademark of Apple Inc.,

registered in the U.S. and other countries.

Compatibility

The following models are available:

Models with navigation system:
. Fifth generation iPod

(version 1.2.3 or

later)

. iPod Classic

(version 1.1.1 or later)

. First generation iPod touch

(version

2.0.0 or later)

. Second generation iPod touch

(version

1.2.3 or later)

. First generation iPod nano

(version

1.3.1 or later)

. Second generation iPod nano

(version

1.1.3 or later)

. Third generation iPod nano

(version

1.1 or later)

. Fourth generation iPod nano

(version

1.0.2 or later)

Models without navigation system:
. Fifth generation iPod

(firmware ver-

sion 1.3)

. First generation iPod Classic

(firmware

version 1.1.2 PC)

. Second generation iPod Classic

(firm-

ware version 2.0 PC)

. First generation iPod touch

(firmware

version 2.1)

. Second generation iPod touch

(firm-

ware version 2.1.1)

. First generation iPod nano

(firmware

version 1.3.1)

. Second generation iPod nano

(firm-

ware version 1.1.3)

. Third generation iPod nano

(firmware

version 1.1 PC)

. Third generation iPhone

(firmware

version 2.1)

Monitor, climate, audio, phone and voice recognition systems

4-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-72

Monitor, climate, audio, phone and voice recognition systems

Make sure that the iPod

version is

updated.

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX or DISC
button repeatedly to switch to the iPod

mode.

If the system has been turned off while the
iPod

was playing, pushing the ON·OFF

button will start the iPod

PLAY:

When the DISC·AUX or AUX button is
pushed with the system off and the iPod

connected, the system will turn on. If
another audio source is playing and the
iPod

is connected, push the DISC·AUX or

AUX button repeatedly until the center
display changes to the iPod

mode.

Interface:
The interface for iPod

operation shown on

the vehicle center display is similar to the
iPod

interface. Use the INFINITI controller

and the ENTER or BACK button to play the
iPod

with your favorite settings.

The following items can be chosen from the
menu list screen. For further information

about each item, see the iPod

Owner’s

Manual.

. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
The following touch-panel buttons shown
on the screen are also available:

: returns to the previous screen.

: plays/pauses the music selected.

Next/Previous Track and Fast

Forward/Rewind:

Push the FF or REW button for more than
1.5 seconds while the iPod

is playing to

fast forward or rewind through a track.
When the button is released, the iPod

will

return to the normal play speed.

When the FF button is pushed for less than
1.5 seconds while the iPod

audio device

is being played, the next track will be

played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less
than 1.5 seconds after 3 seconds from
when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when the iPod

is playing.

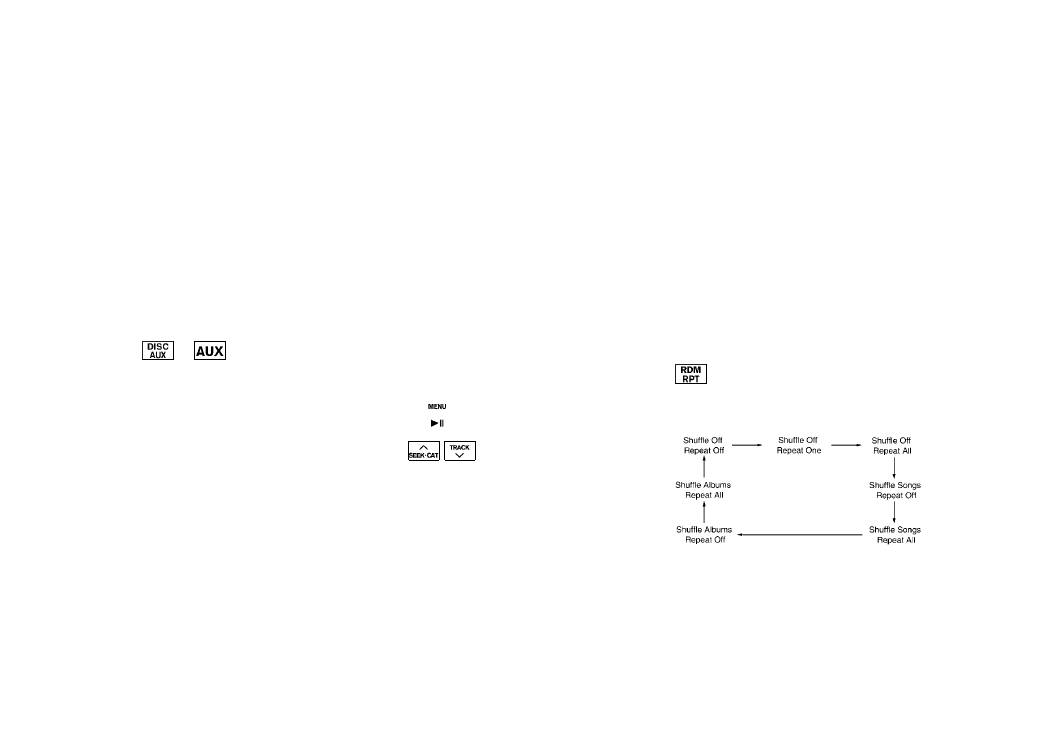

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while a
track is being played, the play pattern can
be changed as follows:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Music Box

(if so equipped)

The Music Box

can store songs from CDs

being played. The system has 9.3GB
storage capacity in models with navigation
system or 2.0GB (800 MB for music
storage) for models without navigation
system.

The following CDs can be recorded in the
Music Box audio system.

. CDs that contain uncompressed audio

files

. Hybrid Compact Disc Digital Audio

(Hybrid CD-DA) specification in Super
Audio CDs

. Compact Disc Digital Audio (CD-DA)

specification in CD-Extras

. First session of multisession disc
Extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)]
could affect the performance of the sys-
tem.

NOTE:

If the system needs to be replaced due to a
malfunction, all stored music data will be
erased.

SAA2513

Models with navigation system

SAA2612

Models without navigation system

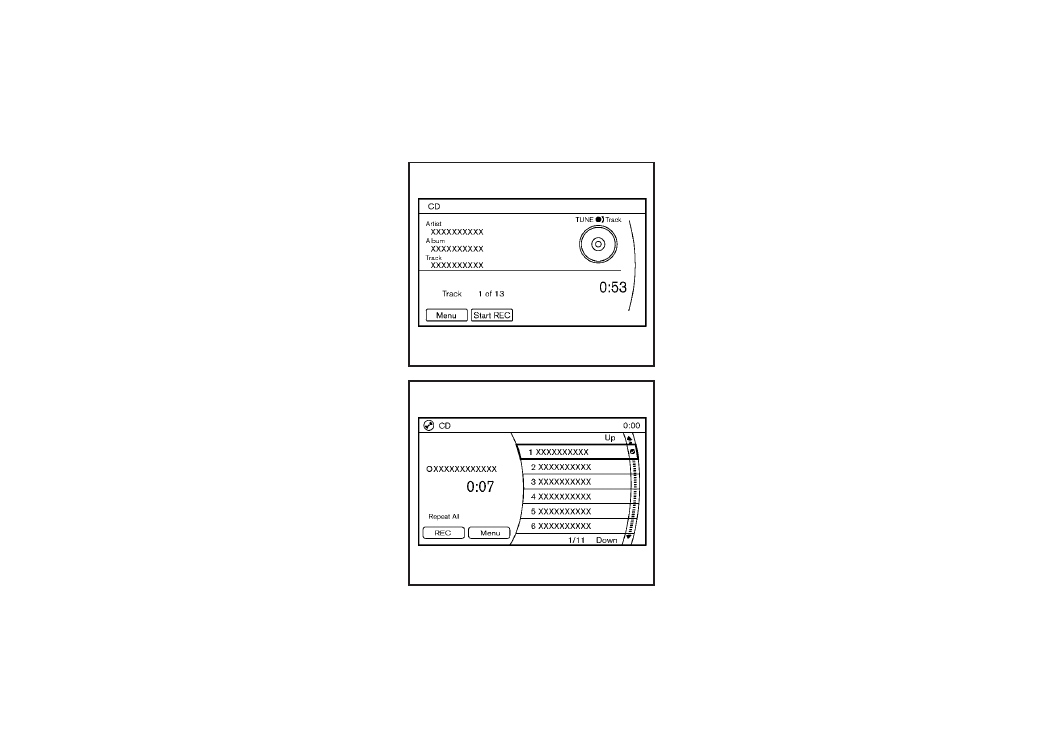

Recording CDs

1. Operate the audio system to play a CD.

For the details of playing CDs, see
“Compact Disc (CD) player operation”
(P.4-56).

2. Select the “Start REC” or “REC” key.

NOTE:
. The system starts playing and record-

ing the 1st track on the CD when the
“Start REC” or “REC” key is selected.

. The recording process can be stopped

at any time. All tracks that were played
before the CD was stopped are stored.

. Individual tracks can be deleted from

the hard drive/flash memory after the
CD is recorded.

. The order of the tracks may not be

changed while recording.

Monitor, climate, audio, phone and voice recognition systems

4-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-74

Monitor, climate, audio, phone and voice recognition systems

SAA2514

Models with navigation system

SAA2613

Models without navigation system

If the title information of the track being
recorded is stored either on the hard drive/
flash memory or in the CD, the title is
automatically displayed on the screen. For
title acquisition from the hard drive/flash
memory, music recognition technology and
related data are provided by Gracenote

If a track is not recorded successfully due
to the CD skipping, the

mark is

displayed behind the track number.

The “Music Box

” hard drive/flash mem-

ory cannot perform recording under the
following conditions.

. There is not enough space on the hard

drive/flash memory

. The number of albums reaches the

maximum of 500.

. The number of tracks reaches the

maximum of 3,000.

Automatic recording:

If the “Automatic Recording” function is
turned to ON, recording starts when a CD is
inserted. (See “Music Box

settings” (P.4-

78).)

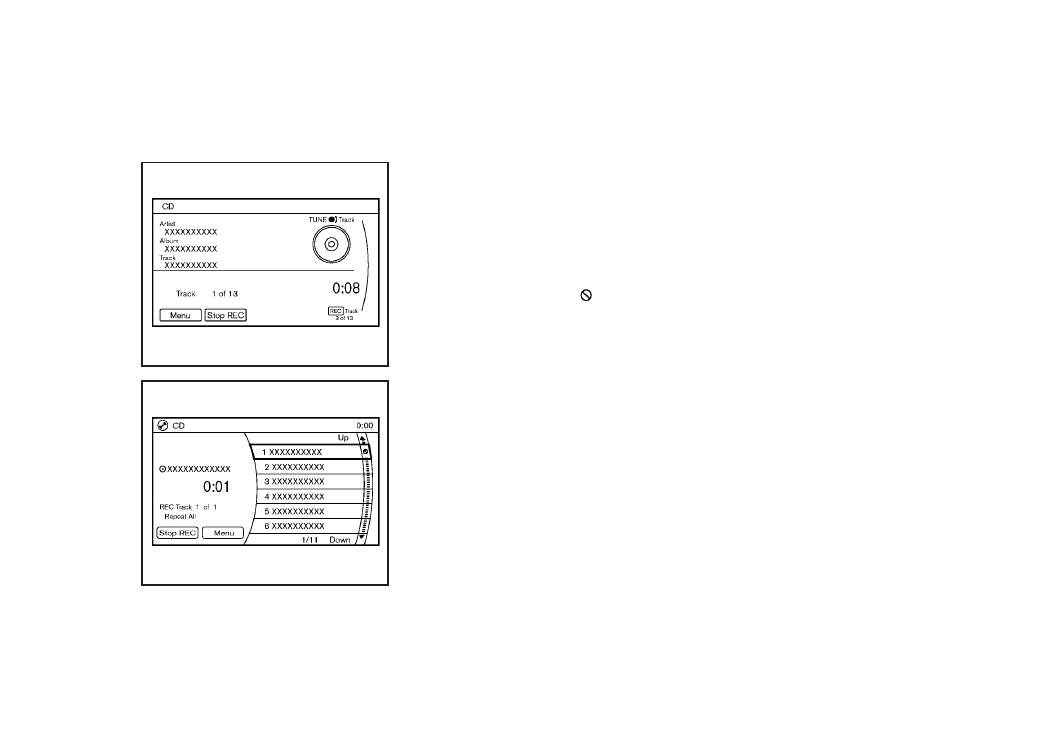

Stopping recording:
To stop the recording, select the “Stop
REC” key button by touching the screen or

using the INFINITI controller.

If the CD is ejected, the audio system is
turned off or the ignition switch is pushed
to the OFF position, the recording also
stops.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2515

Models with navigation system

SAA2614

Models without navigation system

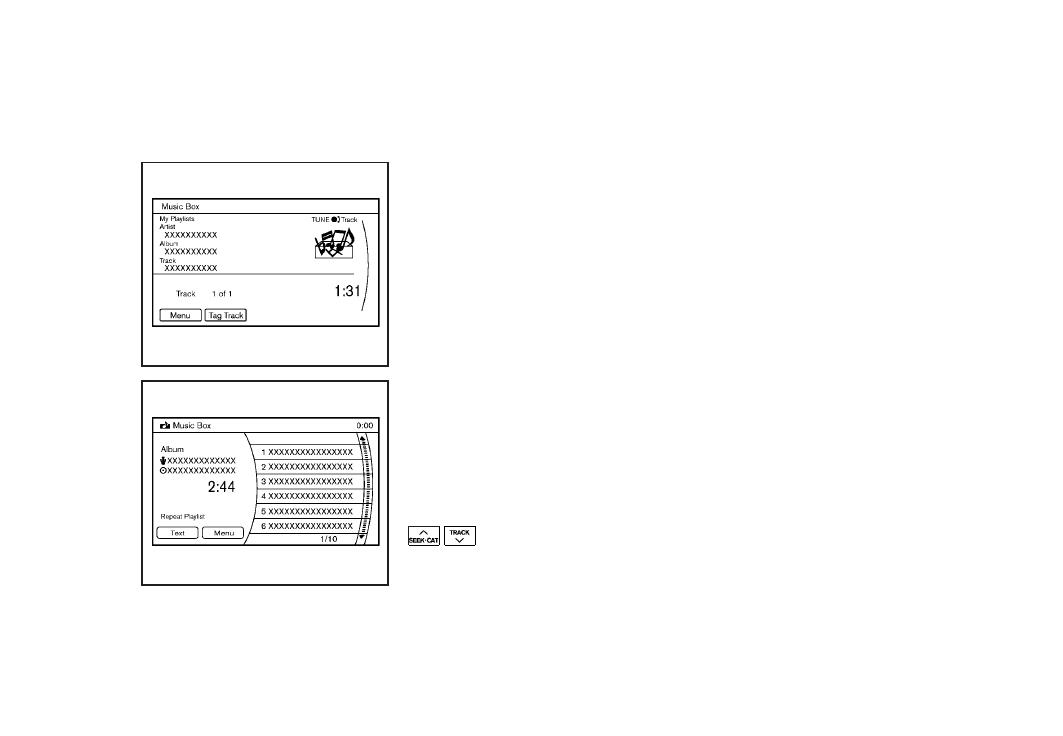

Playing recorded songs

Select the “Music Box

” audio system by

using one of the following methods.

. Push the audio source switch on the

steering wheel repeatedly until the
center display changes to the Music
Box

mode. (See “Steering-wheel-

mounted controls for audio” (P.4-81).)

. Push the DISC·AUX or DISC button

repeatedly until the center display
changes to the Music Box

mode.

. Give voice commands (models with

navigation system). (See “INFINITI Voice
Recognition system (models with navi-
gation system)” (P.4-109).)

Stopping playback:
The system stops playing when:

another mode (radio, CD, DVD, USB
memory or iPod) is selected.

the audio system is turned off.

the ignition switch is pushed to the
LOCK position.

Next/Previous Track and Fast

Forward/Rewind:

Push the FF or REW button for more than
1.5 seconds while a track is being played

to fast forward or rewind through the track.
When the button is released, the track will
return to the normal play speed.

When the FF button is pushed for less than
1.5 seconds while a track is being played,
the next track will be played.

When the REW button is pushed for less
than 1.5 seconds within 3 seconds after
the current track started playing, the
previous track will be played.

When the REW button is pushed for less
than 1.5 seconds after 3 seconds from
when the current track started playing, the
beginning of the current track will be
played.

The INFINITI controller can also be used to
select tracks when a track is being played.

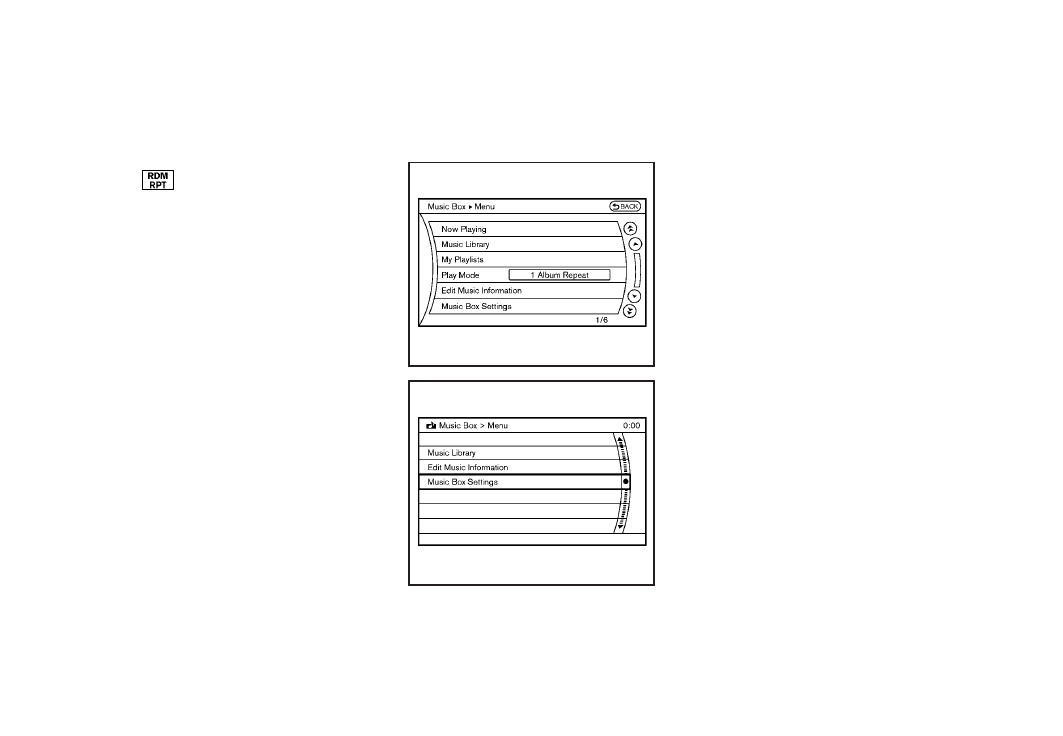

Play mode selection:
The TUNE/FOLDER knob will skip from
album to album unless it is playing “All
Songs” from the Music Library menu. When
playing “All Songs”, the knob will change
the track instead of the album. The upper
right corner of the main screen will indicate
if the TUNE knob is changing by track or
album.

Monitor, climate, audio, phone and voice recognition systems

4-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-76

Monitor, climate, audio, phone and voice recognition systems

REPEAT (RPT), RANDOM (RDM):

When the RPT·RDM button is pushed while
a track is being played, the play pattern
can be changed as follows:

(Normal) ? 1 Album Repeat ? 1 Track
Repeat ? 1 Album Random ? All Random
? (Normal)

Tag Track (models with navigation sys-
tem):
Select “Tag Track” key on the screen when
a track is being played. A menu will show
the 5 available playlists. Select one of the
playlists to add the current song to that
playlist. If a playlist is not selectable (text
is grayed out), it means the song already
exists in that playlist.

SAA2516

Models with navigation system

SAA2725

Models without navigation system

There are some options available by
selecting the “Menu” key on the screen
during playback. Select one of the follow-
ing options that are displayed on the
screen if necessary.

Now Playing (models with navigation
system):

Displays a track list to choose a preferred
track for playback.

Music Library:
There are some options available during
playback. Select one of the following
options that are displayed on the screen
if necessary.

. Artists

Play tracks by an artist whose music is
currently being played. The artists are
sorted in alphabetical order.

. Albums

Play tracks in each album. The albums
are sorted in alphabetical order.

. All Songs

Play tracks from all recorded tracks. The
tracks are sorted in alphabetical order.

. Genres

Play tracks by a selected genre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

My Playlists (models with navigation
system):

Displays the Playlist and edits the Playlist
if necessary.

Select the “Edit” key.

The following items are available

. Add Current Songs

Add a current track to the Playlist.

. Add Songs by Album

Displays a list of albums in alphabetical
order. Selecting an album displays all
of the tracks in the album. Select tracks
from the list to add to the Playlist.

. Add Songs by Artist

Displays a list of artists in alphabetical
order. Selecting an artist displays all of
the tracks by the artist. Select tracks
from the list to add to the Playlist.

. Edit Songs Order

Reorder the tracks in the Playlist by
selecting a track and specifying the
order.

. Edit Name

Edit the name of the Playlist using the
keypad displayed on the screen. (See
“How to use INFINITI controller” (P.4-5).)

. Delete Songs

Delete tracks in the Playlist by selecting
from the displayed song list.

Play Mode (models with navigation sys-
tem):
Choose the preferred play mode from the
following items.

. Normal
. 1 Album Repeat
. 1 Track Repeat
. 1 Playlist Random
. 1 Artist Random
. 1 Album Random
. 1 All Track Random
. 1 All Random

Edit Music Information:
Displays the following information about
the Music Box

hard drive/flash memory

to edit if necessary.

. Edit Information of Current Song (mod-

els with navigation system)
Edit the “Track”, “Artist” and “Genre”
information of the current track using
the keypad displayed on the screen.
(See “How to use touch screen (models
with navigation system)” (P.4-5).)
Edit the “Mode” information by select-

ing from the list.

. Edit Information by Album (models with

navigation system)
Edit the displayed name and of a
selected album and the track informa-
tion in the album.

. Update Gracenote from USB Device

(models with navigation system)/
Transfer Titles from USB (models with-
out navigation system)
Update the in-vehicle Gracenote Data-
base using a USB memory. Search the
title from a information acquired on the
Internet.
Visit www.InfinitiUSA.com/music-up-
date/ for details.

. Transfer Missing Titles to USB

Transfer the information of an album
recorded without titles to a USB mem-
ory.
Visit www.InfinitiUSA.com/music-up-
date/ for details.

. Update Gracenote from HDD

Search the title using the database on
the hard drive/flash memory.

Monitor, climate, audio, phone and voice recognition systems

4-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti G Convertible (2012 year). Manual - part 15
