2-50

Instruments and controls

when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

Automatic adjusting function

CAUTION

When the battery cable is removed from the
battery terminal, do not close either of the
front doors. The automatic window adjust-
ing function will not work and the side roof
panel may be damaged.

The power window has an automatic
adjusting function. When the door is being
opened, the window is automatically low-
ered slightly to avoid contact between the
window and the side roof panel. When the
door is closed, the window is automatically
raised slightly.

While the automatic adjusting function
does not work, the window will be con-
trolled as follows:

. When the door is opened, the window

lowers for approximately 0.39 in (10
mm).

. While the door is open, the window

cannot be raised.

If the windows do not close auto-
matically

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.

1. Push the ignition switch to the ON

position.

2. Close the door and hard top.

3. Open the window completely by oper-

ating the power window switch.

4. Pull the power window switch and hold

it to close the window, and then hold
the switch more than 3 seconds after
the window is closed completely.

5. Release the power window switch.

Operate the window by the automatic
function to confirm the initialization is
complete.

6. Perform steps 2 through 5 above for

other windows.

If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked by an INFINITI retailer.

Automatic window lowering

When the retractable hard top operating
switch is pressed, the power windows will
automatically be lowered completely. The
windows do not rise automatically after the
retractable hard top operation is com-
pleted. Use the power window switches
to raise them.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC4043

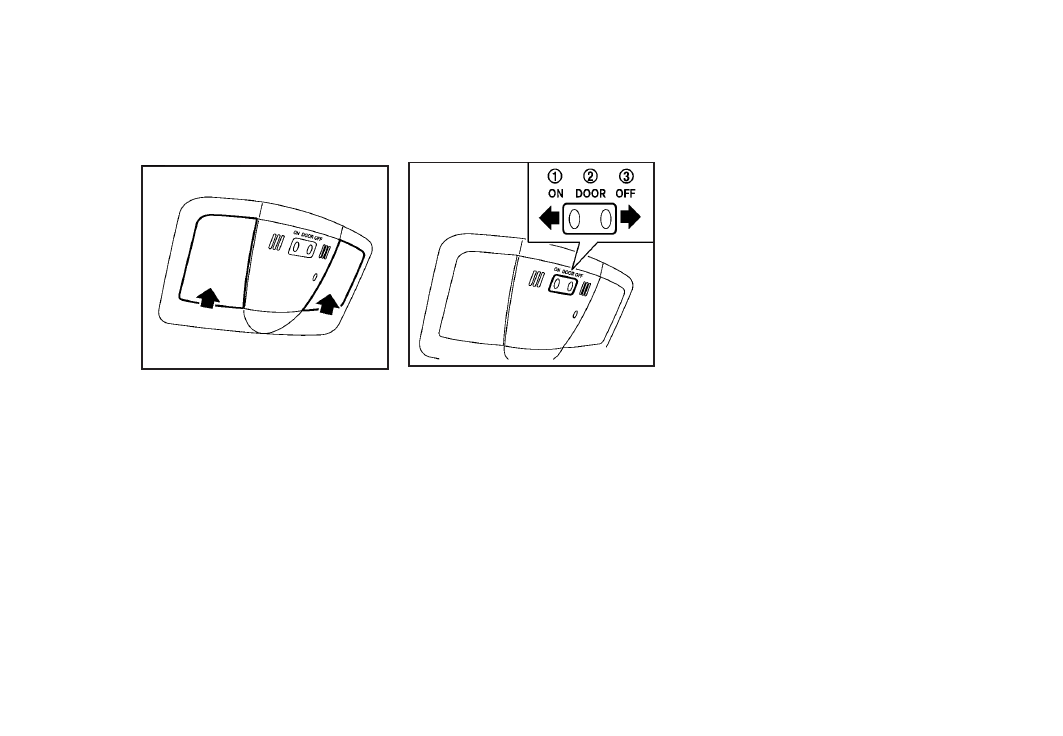

MAP LIGHTS

Push the button as illustrated to turn the
light on or off.

SIC4044

INTERIOR LIGHT CONTROL SWITCH

The interior light control switch has three
positions: ON, DOOR and OFF.

ON position

When the switch is in the ON position

the map lights will illuminate.

DOOR position

When the switch is in the DOOR position

, the map lights will illuminate under

the following conditions:

. ignition switch is switched to the OFF or

LOCK position

— remain on for about 15 seconds.

. doors are unlocked by pushing the

UNLOCK button on the Intelligent Key
or door handle request switch with the
ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed

with the ignition switch in the LOCK
position
— remain on for about 15 seconds.

. any door is opened with the ignition

switch in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights
go off.

The lights will also turn off after 15
minutes when the lights remain illumi-
nated after the ignition switch has been
pushed to the OFF or LOCK position to
prevent the battery from becoming dis-
charged.

When the auto interior illumination is set
to the OFF position (see “Vehicle informa-
tion and settings” (P.4-9)), the lights will
illuminate under the following condition:

. any door is opened with the ignition

switch in any position

Instruments and controls

2-51

INTERIOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-52

Instruments and controls

— remain on while the door is opened.

When the door is closed, the lights
go off.

OFF position

When the switch is in the OFF position

the lights will not illuminate, regardless of
the condition.

CAUTION

Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.

SIC2064

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.

When the cover is closed, the light will turn
off.

The lights will also turn off after 15
minutes when the lights remain illumi-
nated to prevent the battery from becom-
ing discharged.

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.

The light will also turn off after 15 minutes
when the light remains illuminated after
the ignition switch has been pushed to the
OFF or LOCK position to prevent the
battery from becoming discharged.

VANITY MIRROR LIGHTS

TRUNK LIGHT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HomeLink

Universal Transceiver provides

a convenient way to consolidate the func-
tions of up to three individual hand-held
transmitters into one built-in device.

HomeLink

Universal Transceiver:

. Will operate most Radio Frequency (RF)

devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

. Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink

will retain all

programming.

Once HomeLink

Universal Transceiver is

programmed, retain the original transmit-
ter for future programming procedures
(Example: new vehicle purchases). Upon
sale of the vehicle, the programmed
HomeLink

Universal Transceiver buttons

should be erased for security purposes.
For additional information, see “Program-
ming HomeLink

” (P.2-53).

WARNING

Do not use HomeLink

Universal Trans-

ceiver with any garage door opener that
lacks safety stop and reverse features as

required by federal safety standards.
(These standards became effective for
opener models manufactured after April
1, 1982.) A garage door opener which
cannot detect an object in the path of a
closing garage door and then automati-
cally stop and reverse, does not meet
current federal safety standards. Using a
garage door opener without these fea-
tures increases the risk of serious injury
or death.

During programming procedure, your
garage door or security gate may open
or close. Make sure that people and
objects are clear of the garage door,
gate, etc. that you are programming.

Your vehicle’s engine should be turned
off while programming HomeLink

Uni-

versal Transceiver.

PROGRAMMING HomeLink

To program your HomeLink

Transceiver to

operate a garage door, gate, or entry door
opener, home or office lighting, you need
to be at the same location as the device.
Note: Garage door openers (manufactured
after 1996) have “rolling code protection”.
To program a garage door opener equipped
with “rolling code protection”; you will
need to use a ladder to get up to the
garage door opener motor to be able to
access the “smart or learn” program
button.

Instruments and controls

2-53

HomeLink

UNIVERSAL TRANSCEIVER (if so

equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-54

Instruments and controls

SIC3612

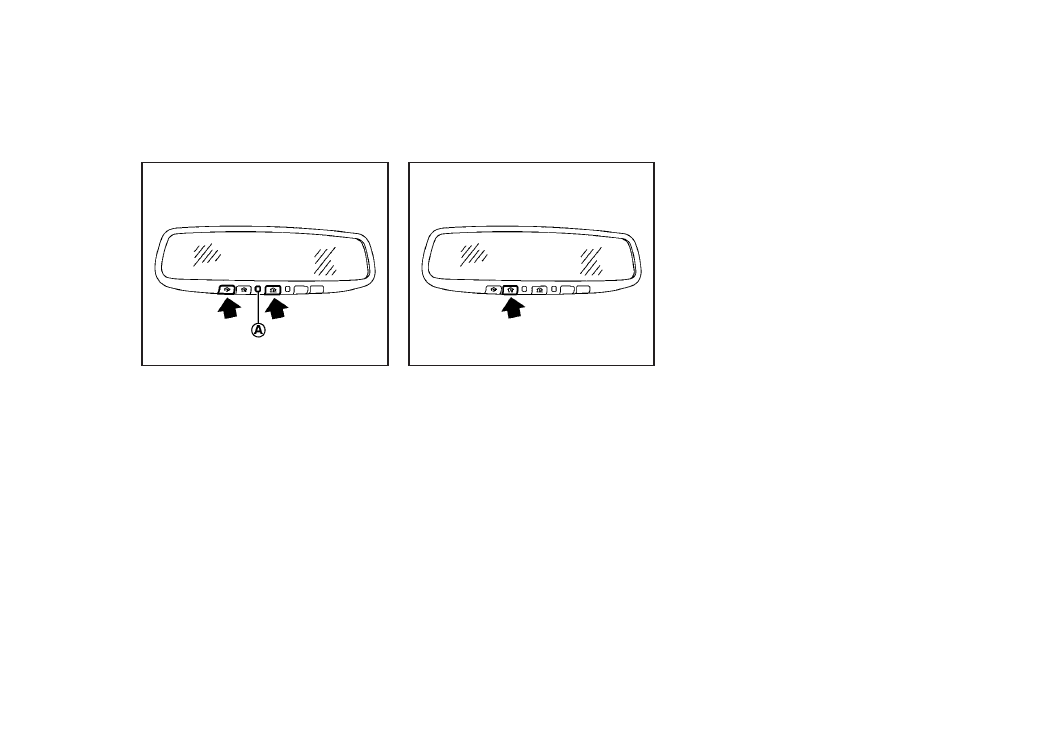

1. To begin, push and hold the 2 outer

HomeLink

buttons (to clear the mem-

ory) until the indicator light

blinks

(after 20 seconds). Release both but-
tons.

2. Position the end of the hand-held

transmitter 1-3 inches away from the
HomeLink

surface.

SIC3613

3. Using both hands, simultaneously push

and hold both the HomeLink

button

you want to program and the hand-held
transmitter button.

DO NOT release the buttons until step 4
has been completed.

4. Hold down both buttons until the

indicator light on HomeLink

flashes,

changing from a “slow blink” to a
“rapid blink”. This could take up to 90
seconds. When the indicator light
blinks rapidly, both buttons may be
released. The rapidly flashing light
indicates successful programming. To
activate the garage door or other

programmed device, push and hold
the programmed HomeLink

button -

releasing when the device begins to
activate.

5. If the indicator light on HomeLink

blinks rapidly for two seconds and then
turns solid, HomeLink

has picked up a

“rolling code” garage door opener
signal. You will need to proceed with
the next steps to train HomeLink

completing the programming may re-
quire a ladder and another person for
convenience.

6. Push and release the program button

located on the garage door opener’s
motor to activate the “training mode”.
This button is usually located near the
antenna wire that hangs down from the
motor. If the wire originates from under
a light lens, you will need to remove the
lens to access the training button.

NOTE:
Once you have pushed and released
the training button on the garage door
opener’s motor and the “training light”
is lit, you have 30 seconds in which to
perform step 7. For convenience, use
the help of a second person to assist
when performing this step.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7. Quickly (within 30 seconds of pushing

and releasing the garage door opener
training button) and firmly push and
release the HomeLink

button you’ve

just programmed. Push and release the
HomeLink

button up to three times to

complete the training.

8. Your HomeLink

button should now be

programmed. To program the remaining
HomeLink

buttons for additional door

or gate openers, follow steps 2 through
8 only.

NOTE:

Do not repeat step 1 unless you want to
“clear” all previously programmed
HomeLink

buttons.

If you have any questions or are having
difficulty programming your HomeLink

buttons, please refer to the HomeLink

web site at: www.homelink.com or call 1-
800-355-3515.

PROGRAMMING HomeLink

FOR

CANADIAN CUSTOMERS

Prior to 1992, D.O.C. regulations required
hand-held transmitters to stop transmitting
after 2 seconds. To program your hand-
held transmitter to HomeLink

, continue to

push and hold the HomeLink

button (note

steps 2 through 4 under “Programming
HomeLink

”) while you push and re-push

(“cycle”) your hand-held transmitter every
2 seconds until the indicator light flashes
rapidly (indicating successful program-
ming).

NOTE:

If programming a garage door opener, etc.,
it is advised to unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.

OPERATING THE HomeLink

UNI-

VERSAL TRANSCEIVER

HomeLink

Universal Transceiver (once

programmed) may now be used to activate
the garage door, etc. To operate, simply
push the appropriate programmed
HomeLink

Universal Transceiver button.

The red indicator light will illuminate while
the signal is being transmitted.

PROGRAMMING TROUBLE-DIAGNO-
SIS

If HomeLink

does not quickly learn the

hand-held transmitter information:

. replace the hand-held transmitter bat-

teries with new batteries.

. position the hand-held transmitter with

its battery area facing away from the
HomeLink

surface.

. push and hold both the HomeLink

and

hand-held transmitter buttons without
interruption.

. position the hand-held transmitter 2 to

5 in (50 to 127 mm) away from the
HomeLink

surface. Hold the transmit-

ter in that position for up to 15
seconds. If HomeLink

is not pro-

grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at all
times.

If you continue to have programming
difficulties, please contact the INFINITI
Consumer Affairs Department. The phone
numbers are located in the Foreword of
this Owner’s Manual.

Instruments and controls

2-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-56

Instruments and controls

CLEARING THE PROGRAMMED IN-
FORMATION

Individual buttons cannot be cleared,
however to clear all programming, push
and hold the two outside buttons and
release when the indicator light begins to
flash (in approximately 20 seconds).

REPROGRAMMING A SINGLE
HomeLink

BUTTON

To reprogram a HomeLink

Universal

Transceiver button, complete the following.

1. Push and hold the desired HomeLink

button. Do not release the button until
step 4 has been completed.

2. When the indicator light begins to flash

slowly (after 20 seconds), position the
hand-held transmitter 2 to 5 in (50 to
127 mm) away from the HomeLink

surface.

3. Push and hold the hand-held transmit-

ter button.

4. The HomeLink

indicator light will

flash, first slowly and then rapidly.
When the indicator light begins to flash
rapidly, release both buttons.

The HomeLink

Universal Transceiver but-

ton has now been reprogrammed. The new

device can be activated by pushing the
HomeLink

button that was just pro-

grammed. This procedure will not affect
any other programmed HomeLink

but-

tons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device
t h a t h a s

b e e n

p r o g r a m m e d i n t o

HomeLink

. Consult the Owner’s Manual

of each device or call the manufacturer or
retailer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink

Uni-

versal Transceiver with your new transmit-
ter information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada:

This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in
the vehicle. If you lose your keys, see an
INFINITI retailer for duplicates by using the
key number. INFINITI does not record any
key numbers so it is very important to keep
track of your key number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, this
key can be duplicated by an INFINITI
retailer.

SPA2222

Intelligent Keys (2)

Mechanical keys (inside the Keys) (2)

Key number plate (1)

INTELLIGENT KEY

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and INFINITI Vehicle Immobilizer
System components. As many as 4 Intelli-
gent Keys can be registered and used with
one vehicle. The new keys must be
registered by an INFINITI retailer prior to
use with the Intelligent Key system and
INFINITI Vehicle Immobilizer System of your
vehicle. Since the registration process

requires erasing all memory in the Intelli-
gent Key components when registering
new keys, be sure to take all Intelligent
Keys that you have to the INFINITI retailer.

It is possible that the Intelligent Key
functions become canceled. Contact an
INFINITI retailer.

CAUTION

Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note
the following.

— The Intelligent Key is water resis-

tant; however, wetting may damage
the Intelligent Key. If the Intelligent
Key gets wet, immediately wipe until
it is completely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is below

148F (−108C) degrees, the battery of
the Intelligent Key may not function
properly.

Pre-driving checks and adjustments

3-3

KEYS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-4

Pre-driving checks and adjustments

— Do not place the Intelligent Key for

an extended period in a place where
temperatures exceed 1408F (608C).

— Do not change or modify the In-

telligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key near

an electric appliance such as a
television set or personal computer.

— Do not allow the Intelligent Key to

come into contact with water or salt
water, and do not wash it in a
washing machine. This could affect
the system function.

If an Intelligent Key is lost or stolen,
INFINITI recommends erasing the ID code
of that Intelligent Key. This will prevent
the Intelligent Key from unauthorized
use to unlock the vehicle. For informa-
tion regarding the erasing procedure,
please contact an INFINITI retailer.

SPA2033

Mechanical key

To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.

To install the mechanical key, firmly insert
it into the Intelligent Key until the lock
knob returns to the lock position.

Use the mechanical key to lock or unlock
the doors and glove box if they are
equipped with a key cylinder.

See “Doors” (P.3-5) and “Storage” (P.2-44).

CAUTION

Always carry the mechanical key installed in
the key.

VALET HAND-OFF

When you have to leave a key with a valet,
give them the Intelligent Key itself and
keep the mechanical key with you to
protect your belongings.

To prevent the glove box and the trunk
from being opened during valet hand-off,
follow the procedures below.

1. Push the trunk release power cancel

switch to the CANCEL side.

2. Remove the mechanical key from the

Intelligent Key.

3. Lock the glove box with the mechanical

key.

4. Hand the Intelligent Key to the valet,

keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.

See “Trunk lid” (P.3-29) and “Storage” (P.2-
44).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Always have the doors locked while
driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally opening
the doors, and will help keep out
intruders.

Before opening any door, always look for
and avoid oncoming traffic.

Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.

SPA2626

LOCKING WITH MECHANICAL KEY

The power door lock system allows you to
lock or unlock all doors simultaneously
using the mechanical key.

. Turning the driver’s door key cylinder to

the rear of the vehicle

will lock all

doors.

. Turning the driver’s door key cylinder

once to the front of the vehicle

will

unlock the driver’s door. After returning
the key to the neutral position

turning it to the front again within 5
seconds will unlock all doors.

. You can switch the lock system to the

mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
13).)

OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY

The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-48).)

To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.

This function can also be performed by
pushing and holding the UNLOCK button
on the Intelligent Key. (See “Remote key-
less entry system” (P.3-14).)

To close the windows, turn the driver’s
door key cylinder to the front of the vehicle
for longer than 1 second. The door is
locked and the window keeps closing while
turning the key.

Pre-driving checks and adjustments

3-5

DOORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-6

Pre-driving checks and adjustments

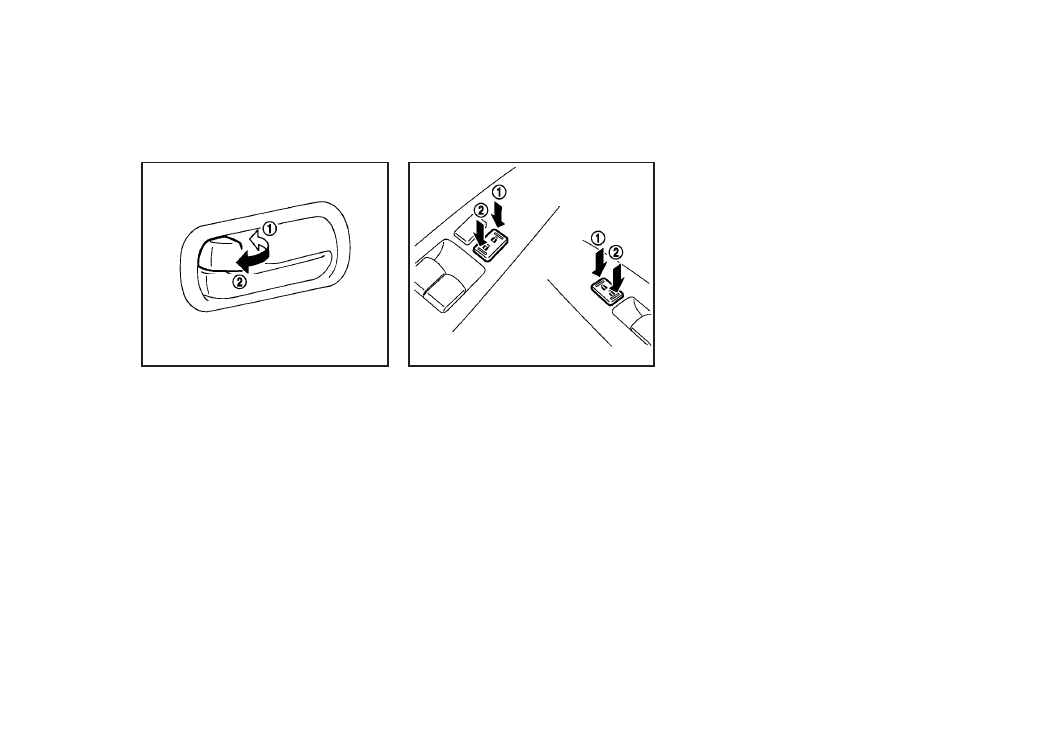

SPA1814

LOCKING WITH INSIDE LOCK KNOB

To lock the door individually, move the
inside lock knob to the lock position

then close the door.

To unlock, move the inside lock knob to the
unlock position

When locking the door without an Intelli-
gent Key, be sure not to leave the
Intelligent Key inside the vehicle.

SPA2300

LOCKING WITH POWER DOOR LOCK
SWITCH

Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’s and front
passenger’s door armrests.

To lock the doors, push the power door
lock switch to the lock position

with the

driver’s or front passenger’s door open,
then close the door.

When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.

To unlock the doors including the fuel-filler

door, push the power door lock switch to
the unlock position

Lockout protection

When the power door lock switch (driver or
front passenger) is moved to the lock
position with the Intelligent Key in the port
and any door open, all doors will lock and
unlock automatically. With the Intelligent
Key left in the vehicle (not in the Intelligent
Key port) and any door open, all doors will
unlock automatically and a chime will
sound after the door is closed.

These functions help to prevent the In-
telligent Key from being accidentally
locked inside the vehicle.

AUTOMATIC DOOR LOCKS

. All doors lock automatically when the

vehicle speed reaches 15 MPH (24
km/h).

. All doors unlock automatically when the

ignition switch is placed in the OFF
position.

The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Close all doors.

2. Place the ignition switch in the ON

position.

3. Within 20 seconds of performing Step

2, push and hold the power door lock
switch to the

position (UNLOCK) for

more than 5 seconds.

4. When activated, the hazard indicator

will flash twice. When deactivated, the
hazard indicator will flash once.

5. The ignition switch must be placed in

the OFF and ON position again between
each setting change.

When the automatic door unlock system is
deactivated, the doors do not unlock when
the ignition switch is placed in the OFF
position. To unlock the door manually, use
the inside lock knob or the power door lock
switch (driver’s or front passenger’s side).

WARNING

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.

The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.

The Intelligent Key system can operate all
the door and the trunk lid lock using the
remote controller function or pushing the
request switch on the vehicle without
taking the key out from a pocket or purse.
The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.

Be sure to read the following before using
the Intelligent Key system.

CAUTION

Be sure to carry the Intelligent Key with
you when operating the vehicle.

Never leave the Intelligent Key in the
vehicle when you leave the vehicle.

The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.

. When operating near a location where

strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.

. When in possession of wireless equip-

ment, such as a cellular telephone,
transceiver, and CB radio.

. When the Intelligent Key is in contact

with or covered by metallic materials.

. When any type of radio wave remote

control is used nearby.

. When the Intelligent Key is placed near

an electric appliance such as a perso-

Pre-driving checks and adjustments

3-7

INTELLIGENT KEY SYSTEM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti G Convertible (2012 year). Manual - part 8
