WARNING

● Do not adjust the steering wheel while driv-

ing. You could lose control of your vehicle

and cause an accident.

● Do not adjust the steering wheel any closer

to you than is necessary for proper steering

operation and comfort. The driver’s air bag

inflates with great force. If you are unre-

strained, leaning forward, sitting sideways

or out of position in any way, you are at

greater risk of injury or death in a crash. You

may also receive serious or fatal injuries

from the air bag if you are up against it when

it inflates. Always sit back against the seat-

back and as far away as practical from the

steering wheel. Always use the seat belts.

TILT OR TELESCOPIC OPERATION

Move the lever to adjust the steering wheel up

or down, forward or rearward to the desired

position.

Entry/Exit function operation

The automatic drive positioner system will

make the steering wheel move up automatically

when the driver’s door is opened with the

ignition switch in the LOCK position. This lets

the driver get into and out of the seat more

easily.
For more information, see “AUTOMATIC DRIVE

POSITIONER” later in this section.

SPA2018

SPA2057

TILT/TELESCOPIC STEERING

SUN VISORS

3-22

Pre-driving checks and adjustments

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

● Do not store the main sun visor before stor-

ing the sub-sun visor and the extension sun

visor.

● Do not pull the sub-sun visor and the exten-

sion sun visor forcedly downward.

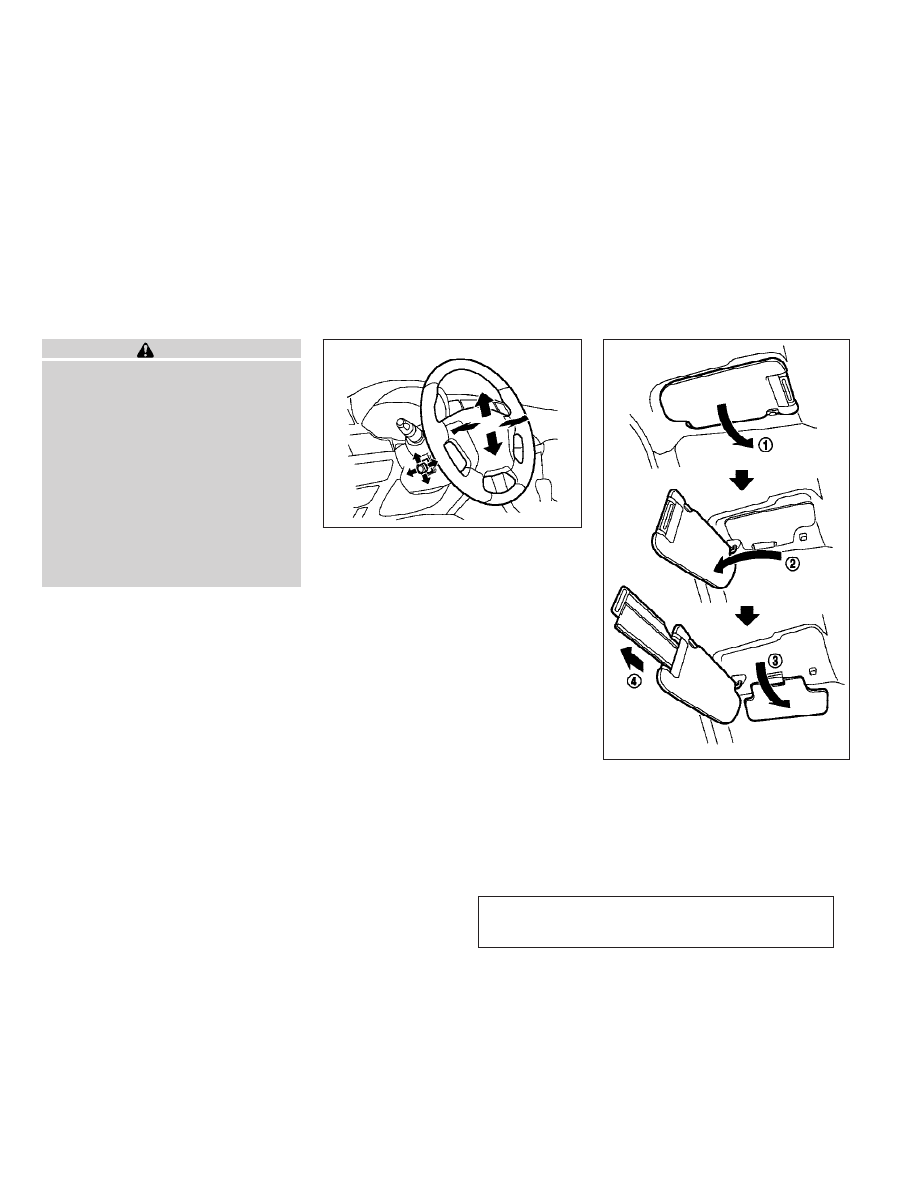

1. To block out glare from the front, swing

down the main sun visor

2. To block glare from the side, remove the

main sun visor from the center mount and

swing it to the side

3. To block glare from the front, swing down

the sub-sun visor

4. Draw out the extension sun visor

from

the main sun visor to block from further

glare.

INSIDE MIRROR

Adjust the height and the angle of the inside

mirror to the desired position.

SPA2447

Type A

SPA2422A

Type B

SPA2450

MIRRORS

Pre-driving checks and adjustments

3-23

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic anti-glare type

The inside mirror is designed so that it auto-

matically changes reflection according to the

intensity of the headlights of the following

vehicle.
The anti-glare system will be automatically

turned on when the ignition switch is pushed to

the ON position.
When the anti-glare system is turned on, the

indicator light

will illuminate and excessive

glare from the headlights of the vehicle behind

you will be reduced.

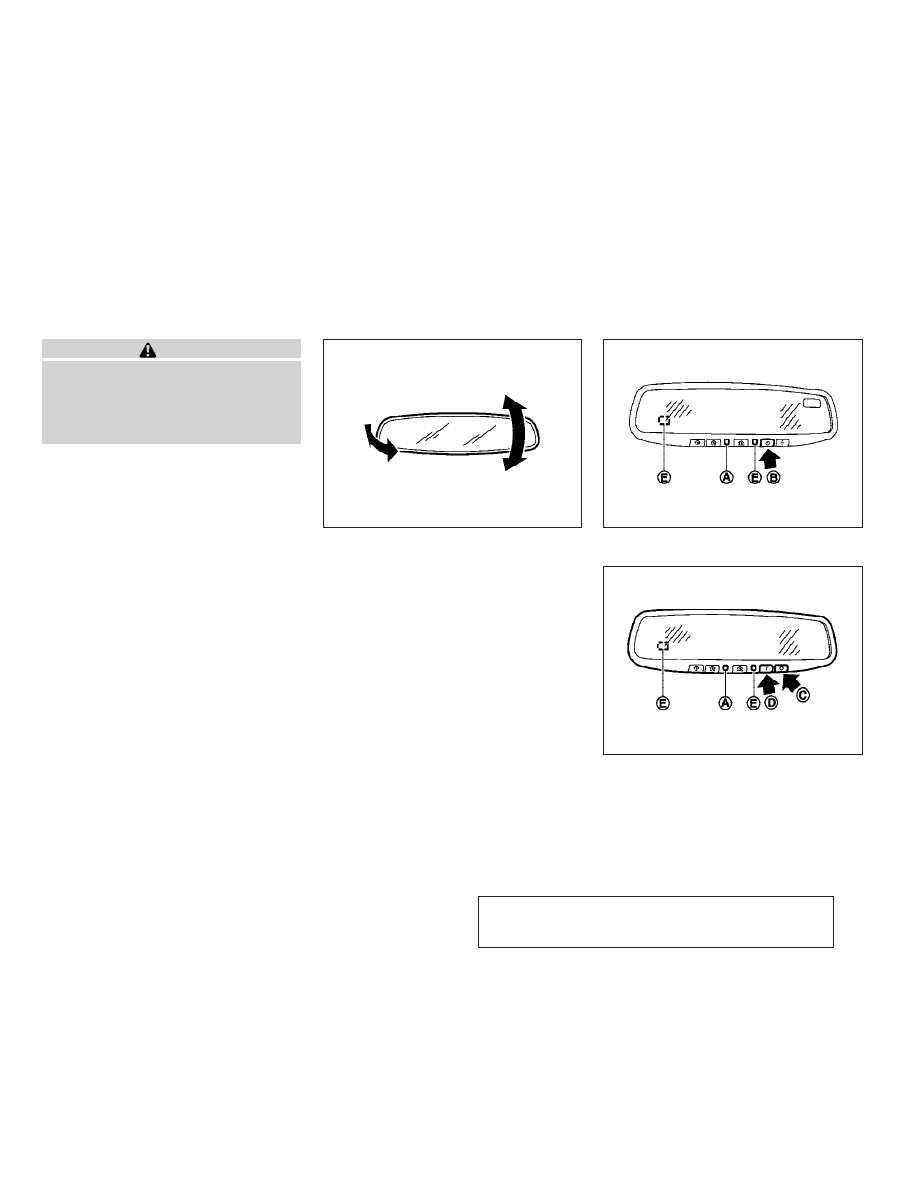

Type A: Push the

switch

to make the

inside rearview mirror operate normally and the

indicator light will turn off. Push the

switch again to turn the system on.

Type B: Push the “

C” switch

to make the

inside rearview mirror operate normally. The

indicator light will turn off. Push the “I” switch

to turn the system on.

Do not allow any object to cover the sensors

or apply glass cleaner on them. Doing so will

reduce the sensitivity of the sensor, resulting in

improper operation.
For the compass (if so equipped) operation, see

“COMPASS” in the “2. Instruments and con-

trols” section.

For the HomeLink

T Universal Transceiver opera-

tion, see “HomeLink

T UNIVERSAL TRANS-

CEIVER” in the “2. Instruments and controls”

section.

OUTSIDE MIRRORS

WARNING

Objects viewed in the outside mirror on the

passenger side are closer than they appear. Be

careful when moving to the right. Using only

this mirror could cause an accident. Use the

inside mirror or glance over your shoulder to

properly judge distances to other objects.

Adjusting outside mirrors

The outside mirror control switch is located at

the lower part of the instrument panel.
The outside mirror will operate only when the

ignition switch is in the ACC or ON position.

SPA2214

3-24

Pre-driving checks and adjustments

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Move the switch right

or left

to select the

right or left side mirror, then adjust

using

the control switch.

Defrosting outside mirrors (if so

equipped)

The outside mirrors will be heated when the

rear window defroster switch is operated. (See

“REAR WINDOW AND OUTSIDE MIRROR DE-

FROSTER SWITCH” in the “2. Instruments and

controls” section.)

Foldable outside mirrors

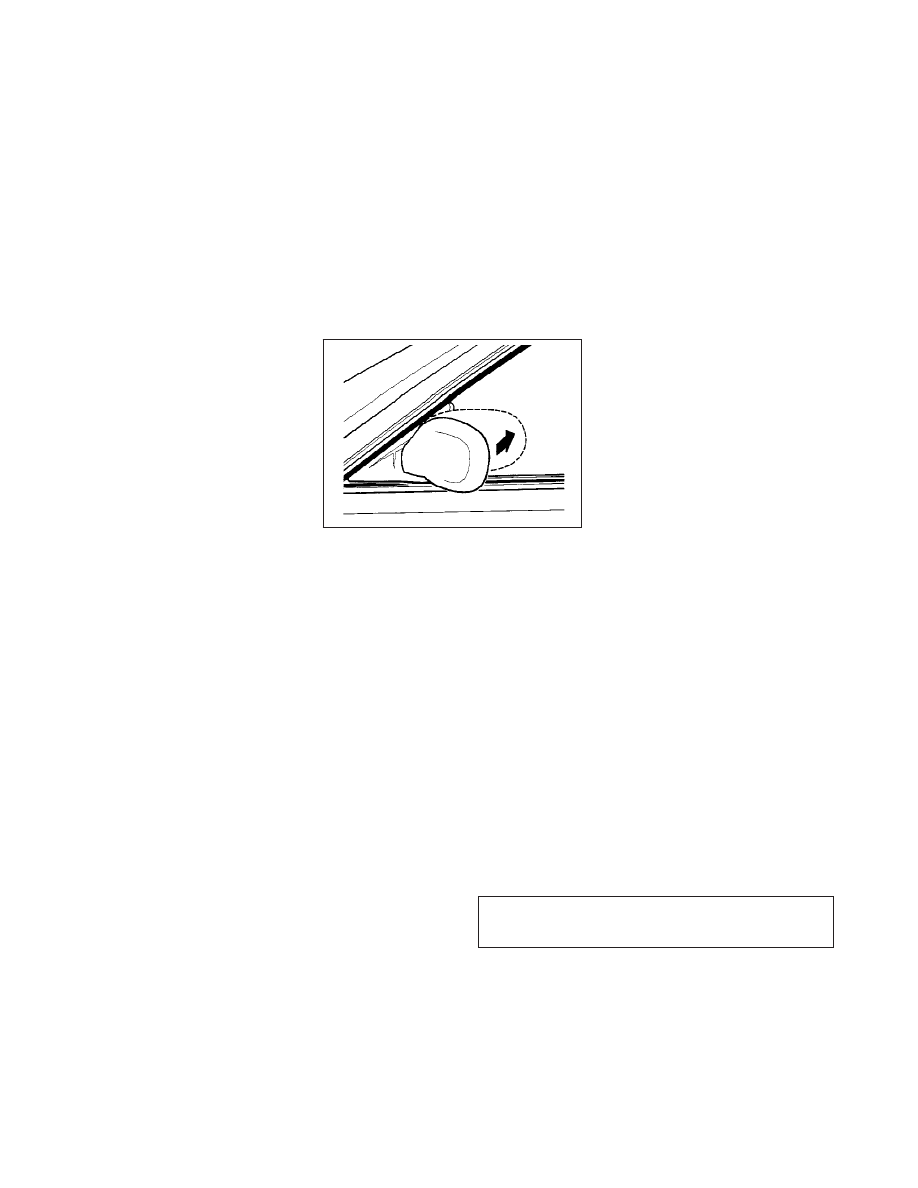

Fold the outside mirror by pushing it toward the

rear of the vehicle.

Reverse tilt-down feature

When backing up the vehicle, the right or left

outside mirror will turn downward automatically

to provide better rear visibility.
1. Push the ignition switch to the ON posi-

tion.

2. Move the selector lever to the R (Reverse)

position.

3. Choose the right or left outside mirror by

operating the outside mirror control

switch.

4. The selected outside mirror surface

moves downward.

When one of the following conditions has oc-

curred, the selected outside mirror surface will

return to its original position.
● The selector lever is moved to any position

other than R (Reverse).

● The outside mirror control switch is set to

the center position.

● The ignition switch is pushed to the LOCK

position.

For more information regarding this feature and

how to save the R (Reverse) mirror tilt-down

adjustment in the automatic drive positioner

memory, see “Automatic drive positioner” later

in this section.

SPA1829

Pre-driving checks and adjustments

3-25

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

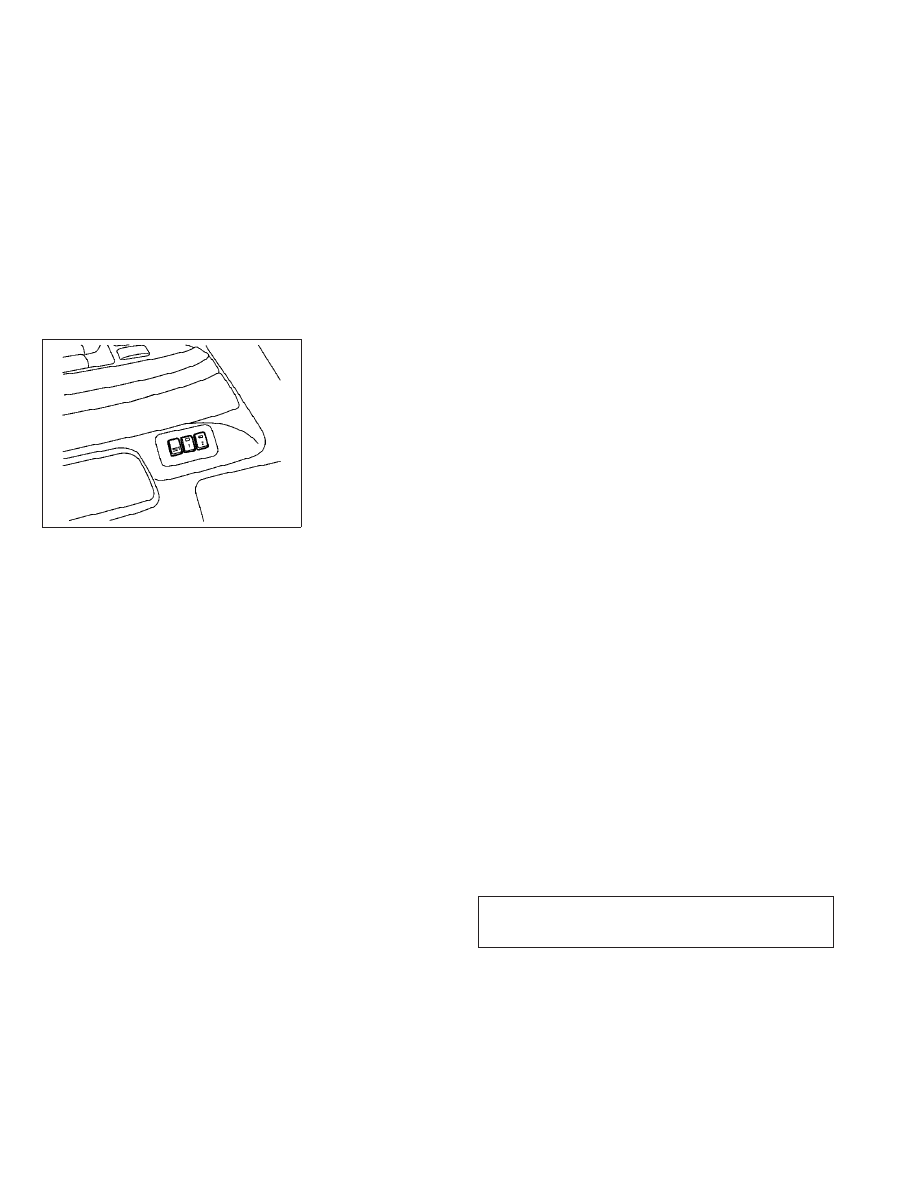

The automatic drive positioner system has the

following features:
● Entry/exit function
● Memory storage

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s seat

and steering column will automatically move

when the selector lever is in the P (Park)

position. This allows the driver to get into and

out of the driver’s seat more easily.
The driver’s seat will slide backward and the

steering wheel will move up when the driver’s

door is opened with the ignition switch in the

LOCK position.
The driver’s seat and steering wheel will return

to the previous positions when one of the

following is operated:
● When the ignition switch is pushed to the

ACC position after the driver’s door is

closed.

● When the ignition switch is pushed to the

ON position.

● When the Intelligent Key is inserted into the

port after the driver’s door is closed.

The driver’s seat will not return to the previous

positions if the seat or steering adjusting

switch is operated when the seat is at the exit

position.

Cancel or activate entry/exit function

To cancel or activate the entry/exit function, the

selector lever must be in the P (Park) position

with the ignition switch in the LOCK position.
Push and hold the SET switch for more than 10

seconds to cancel or activate the entry/exit

function.
The indicator lights on the memory switches (1

and 2) will blink once when the function is

canceled, and the indicator lights will blink

twice when the function is activated.
The entry/exit function can also be canceled or

activated if the “Lift Steering Wheel on Exit” key

or “Slide Driver Seat Back on Exit” key is turned

to ON or OFF in the “Comfort & Conv.” settings.

(See “VEHICLE INFORMATION AND SETTINGS” in

the “4. Monitor, climate, audio, phone and

voice recognition systems” section.)

Initialize entry/exit function

If the battery cable is disconnected, or if the

fuse opens, the entry/exit function will not work

though this function was set on before. In such

a case, after connecting the battery or replacing

with a new fuse, open and close the driver’s

door more than two times after the ignition

switch is pushed to the ON position once, then

pushed to the LOCK position. The entry/exit

function will be activated.

AUTOMATIC DRIVE POSITIONER

3-26

Pre-driving checks and adjustments

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMORY STORAGE

Two positions for the driver’s seat, steering

column and outside mirrors can be stored in the

automatic drive positioner memory. Follow

these procedures to use the memory system.
1. Move the selector lever to the P (Park)

position.

2. Push the ignition switch to the ON posi-

tion.

3. Adjust the driver’s seat, steering column

and outside mirrors to the desired posi-

tions by manually operating each adjust-

ing switch. For additional information, see

“SEATS” in the “1. Safety — Seats, seat

belts and supplemental restraint system”

section and “TILT/TELESCOPIC STEERING”

page 3-22 and “OUTSIDE MIRRORS” ear-

lier in this section.

4. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2)

fully for at least 1 second.
The indicator light for the pushed memory

switch will stay on for approximately 5 sec-

onds after pushing the switch.

If memory is stored in the same memory switch,

the previous memory will be deleted.

Procedure for storing the outside

mirror positions for best visibility at

reverse tilt-down feature

Two outside mirror positions for backing up can

be stored in the automatic drive positioner

memory.
1. Apply the parking brake.
2. Push the ignition switch to the ON posi-

tion. (Do not start the engine.)

3. Push the memory switch (1 or 2) fully for

at least 1 second to operate the automatic

drive positioner.

4. Turn the outside mirror control switch to L

(left).

5. Depress the brake pedal.
6. Move the selector lever to the R (Reverse)

position.

7. Adjust the mirror to the desired viewing

position for backing up by operating the

outside mirror control switch.

8. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2)

selected in step 3 fully for at least 1

second.

● The indicator light for the pushed memory

switch will stay on for approximately 5

seconds after pushing the switch. After

the indicator light goes off, the selected

mirror position is stored in the selected

memory (1 or 2).

9. Turn the outside mirror control switch to R

(right).
Repeat the above procedure to adjust the

right mirror position and store in the se-

lected memory.

● When the driver’s seat, outside mirror and

steering column are not in the memorized

SPA2020

Pre-driving checks and adjustments

3-27

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

position, the outside mirror will move with

the initial tilt-down angle, if the reverse

tilt-down position is stored.

Linking Intelligent Key to a stored

memory position

The Intelligent Key can be linked to a stored

memory position with the following procedure.
1. Follow the steps for storing a memory

position.

2. While the indicator light for the memory

switch being set is illuminated for 5 sec-
onds, push the

button on the Intel-

ligent Key. If the indicator light blinks, the

Intelligent Key is linked to that memory

setting.

Push the ignition switch to the LOCK position,
and push the

button on the Intelligent

Key. The driver’s seat, steering wheel and out-

side mirrors will move to the memorized posi-

tion.

Confirming memory storage

● Push the ignition switch to the ON position

and push the SET switch. If the main memory

has not been stored, the indicator light will

come on for approximately 0.5 second.

When the memory has stored in position, the

indicator light will stay on for approximately

5 seconds.

● If the battery cable is disconnected, or if the

fuse opens, the memory will be canceled. In

this case, reset the desired position using

the previous procedure.

● If optional Intelligent Keys are added to your

vehicle, perform the memory storage proce-

dure to switch (1 or 2) and linking Intelligent

Key procedure to a stored memory position

again for each Intelligent Key. For additional

Intelligent Key information, see “KEYS” ear-

lier in this section.

Selecting the memorized position

1. Move the selector lever to the P (Park)

position.

2. Use one of the following methods to move

the driver’s seat, steering column and

outside mirrors.

● Push the ignition switch to the ON posi-

tion and push the memory switch (1 or 2)

fully for at least 1 second.

● Within 45 seconds after opening the driv-

er’s door, push the memory switch (1 or 2)

fully for at least 1 second.
The driver’s seat, steering column and

outside mirrors will move to the memo-

rized position with the indicator light

flashing, and then the light will stay on for

approximately 5 seconds.

3-28

Pre-driving checks and adjustments

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM OPERATION

The automatic drive positioner system will not

work or will stop operating under the following

conditions:
● When the vehicle speed is above 4 MPH (7

km/h).

● When the adjusting switch for the driver’s

seat and steering column is turned on while

the automatic drive positioner is operating.

● When the memory switch (1 or 2) is not

pushed for at least 1 second.

● When the seat, steering column and outside

mirrors have already been moved to the

memorized position.

● When no position is stored in the memory

switch.

● When the engine is started while the auto-

matic drive positioner is operating.

● When approximately 45 seconds have

passed after the driver’s door was opened

(ignition switch is not in the ON position).

● When the selector lever is moved from the P

(Park) position to any other position. (How-

ever, it will not be canceled if the switch is

pushed while the seat and steering column

are returning to the previous positions

(entry/exit function).)

Pre-driving checks and adjustments

3-29

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-30

Pre-driving checks and adjustments

MEMO

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Monitor, climate, audio, phone and voice

recognition systems

Safety note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Center multi-function control panel . . . . . . . . . . . . . . . . . 4-2

How to use INFINITI controller . . . . . . . . . . . . . . . . . . . 4-4
How to use touch screen

(models with navigation system). . . . . . . . . . . . . . . . . 4-4
Start-up screen

(models with navigation system). . . . . . . . . . . . . . . . . 4-6
Start menu

(models with navigation system). . . . . . . . . . . . . . . . . 4-6
How to select menus on the screen . . . . . . . . . . . . . . 4-7

Vehicle information and settings. . . . . . . . . . . . . . . . . . . . 4-7

How to use STATUS button. . . . . . . . . . . . . . . . . . . . . . 4-7
How to use brightness control and display

ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
How to use DISP button

(models without navigation system). . . . . . . . . . . . . . 4-8
How to use TRIP button

(models without navigation system). . . . . . . . . . . . . . 4-8
How to use FUEL ECON button

(models without navigation system). . . . . . . . . . . . . . 4-8
How to use INFO button . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Warning display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

How to use SETTING button . . . . . . . . . . . . . . . . . . . . .4-15
How to use AUX button . . . . . . . . . . . . . . . . . . . . . . . . 4-21
How to use DISC button (for models

without navigation system). . . . . . . . . . . . . . . . . . . . . 4-22

Rearview monitor (if so equipped) . . . . . . . . . . . . . . . . . 4-22

How to read the displayed lines . . . . . . . . . . . . . . . . 4-23
How to park with predicted course lines. . . . . . . . . 4-23
Difference between predicted and actual

distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
How to adjust the screen . . . . . . . . . . . . . . . . . . . . . . 4-27
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Ventilators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Automatic climate control . . . . . . . . . . . . . . . . . . . . . . 4-30
Rear switches for climate control

(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
In-cabin microfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Servicing climate control. . . . . . . . . . . . . . . . . . . . . . . 4-33

Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

Audio operation precautions . . . . . . . . . . . . . . . . . . . 4-34

—

05/19/09—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FM-AM-SAT radio with Compact Disc (CD)

player/changer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
CompactFlash (CF) player operation

(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
iPod

T player operation (if so equipped) . . . . . . . . . 4-48

Music box hard-disk drive audio system

(models with navigation system). . . . . . . . . . . . . . . . 4-50
CD/CF (CompactFlash) care and cleaning . . . . . . . . 4-57
Steering-wheel-mounted controls for audio . . . . . . 4-58
Rear control switches for audio

(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Auxiliary input jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

INFINITI Mobile Entertainment System (MES)

(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62

Digital Versatile Disc (DVD) system

components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Before operating the DVD mobile

entertainment system. . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Playing a DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 4-72

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73

Bluetooth

T Hands-Free Phone System with

navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74

Bluetooth

T Hands-Free Phone System without

navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84

—

05/19/09—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . 4-97

INFINITI Voice Recognition system

(models with navigation system). . . . . . . . . . . . . . . . . . . 4-98

INFINITI Voice Recognition standard mode . . . . . . . 4-98
Using the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
INFINITI Voice Recognition alternate

command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Using the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-116
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . 4-120

—

05/19/09—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

● Do not disassemble or modify this system. If

you do, it may result in accidents, fire, or

electric shock.

● Do not use this system if you notice any

abnormality, such as a frozen screen or lack

of sound. Continued use of the system may

result in accident, fire or electric shock.

● In case you notice any foreign object in the

system hardware, spill liquid on it, or notice

smoke or smell coming from it, stop using

the system immediately and contact your

nearest INFINITI retailer. Ignoring such con-

ditions may lead to accidents, fire, or electric

shock.

● Park the vehicle in a safe location and apply

the parking brake to view the images on the

front center display screen using devices

connected to the auxiliary input jacks.

Do not attempt to operate the system in extreme

temperature conditions [below 24°F (220°C)

and above 158°F (70°C)]. Operating this system

under these conditions may result in system

malfunctions.

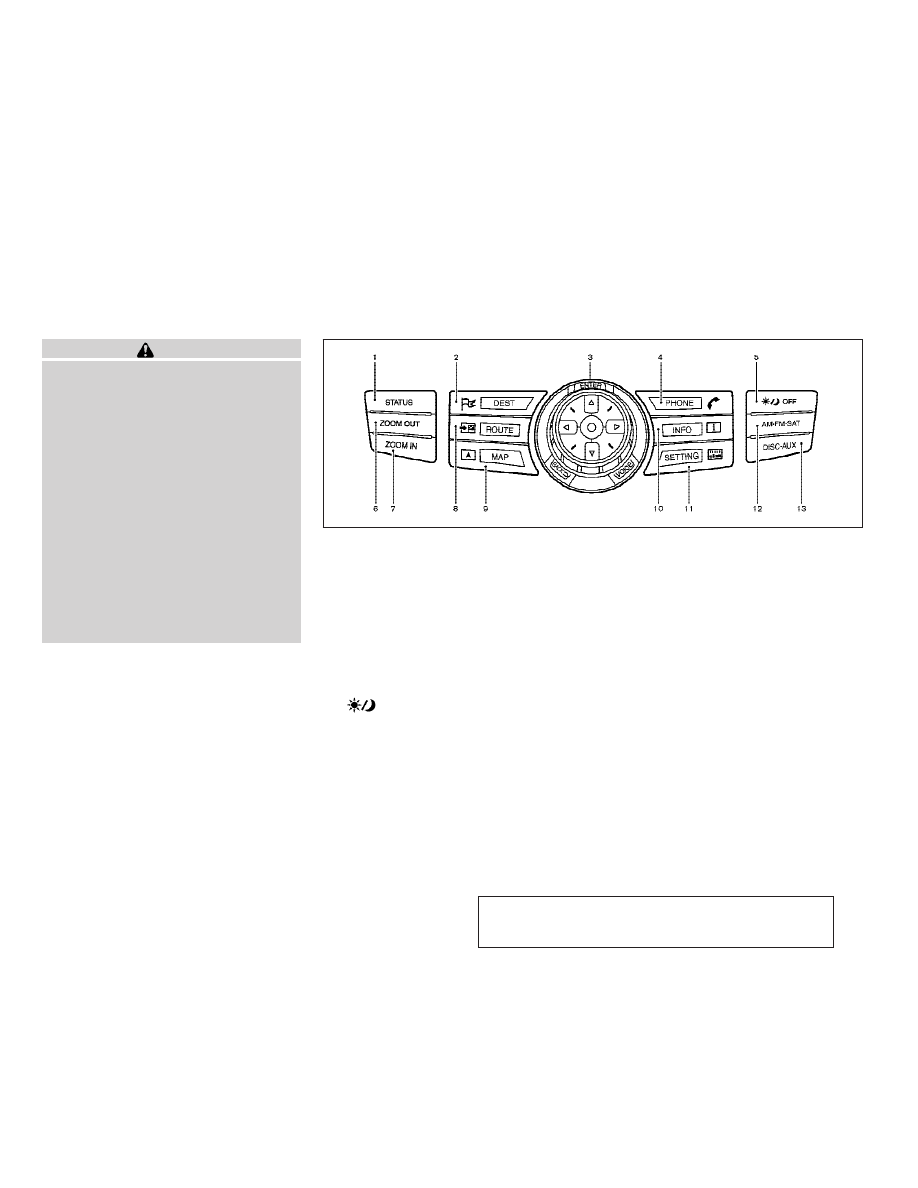

1. “

STATUS ” status display button (P. 4-7)

2, 6, 7, 8, 9. Navigation system control

buttons (Refer to the separate

Navigation System Owner’s

Manual.)

3. INFINITI controller (P. 4-4)
4. “

PHONE ” BluetoothT Hands-Free Phone

System button (P. 4-74)

5. “

OFF ” brightness control and dis-

play ON/OFF button (P. 4-7)

10. “

INFO ” vehicle and navigation informa-

tion button (P. 4-8)

11. “

SETTING ” button (P. 4-15)

12. “

AM·FM·SAT ” band selector button

(P. 4-34)

13. “

DISC·AUX ” selector button (P. 4-21)

With navigation system

SAA1800

SAFETY NOTE

CENTER MULTI-FUNCTION CONTROL PANEL

4-2

Monitor, climate, audio, phone and voice recognition systems

—

05/19/09—tbrooks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

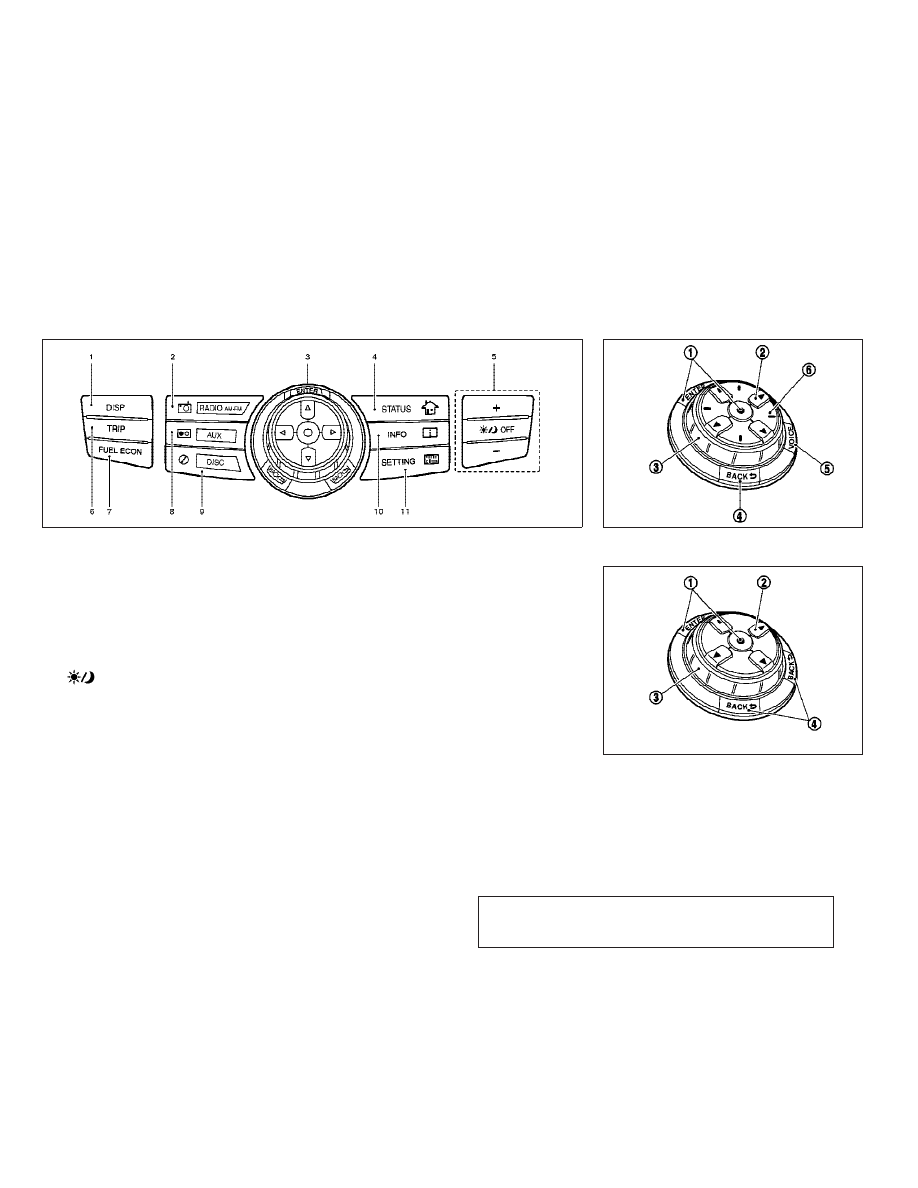

1. “

DISP ” display setting button

(P. 4-8, P. 4-16)

2. “

RADIO AM·FM ” band selector button

(P. 4-34)

3. INFINITI controller (P. 4-4)
4. “

STATUS ” status display button (P. 4-7)

5. “

OFF ” brightness control and

display ON/OFF button (P. 4-7)

6. “

TRIP ” trip computer button

(P. 4-8, P. 4-10)

7. “

FUEL ECON ” button (P. 4-8, P. 4-9)

8. “

AUX ” button (P. 4-21)

9. “

DISC ” selector button (P. 4-22)

10. “

INFO ” vehicle information button

(P. 4-8)

11. “

SETTING ” button (P. 4-15)

When you use this system, make sure the

engine is running.
If you use the system with the engine not run-

ning (ignition ON or ACC) for a long time, it will

use up all the battery power, and the engine will

not start.

Without navigation system

SAA1801

With navigation system

SAA1097

Without navigation system

SAA1098

Monitor, climate, audio, phone and voice recognition systems

4-3

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE INFINITI CONTROLLER

Choose an item on the display using the main

directional buttons

(or additional directional

buttons

with navigation system) or center

dial

, and push the

ENTER button

for

operation.
If you push the

BACK button

before the

setup is completed, the setup will be canceled

and/or the display will return to the previous

screen. This button can also be used to delete

characters that have been input.
After the setup is completed, push the

BACK

button

and return to the previous screen.

For the

VOICE button

functions, refer to the

separate Navigation System Owner’s Manual.

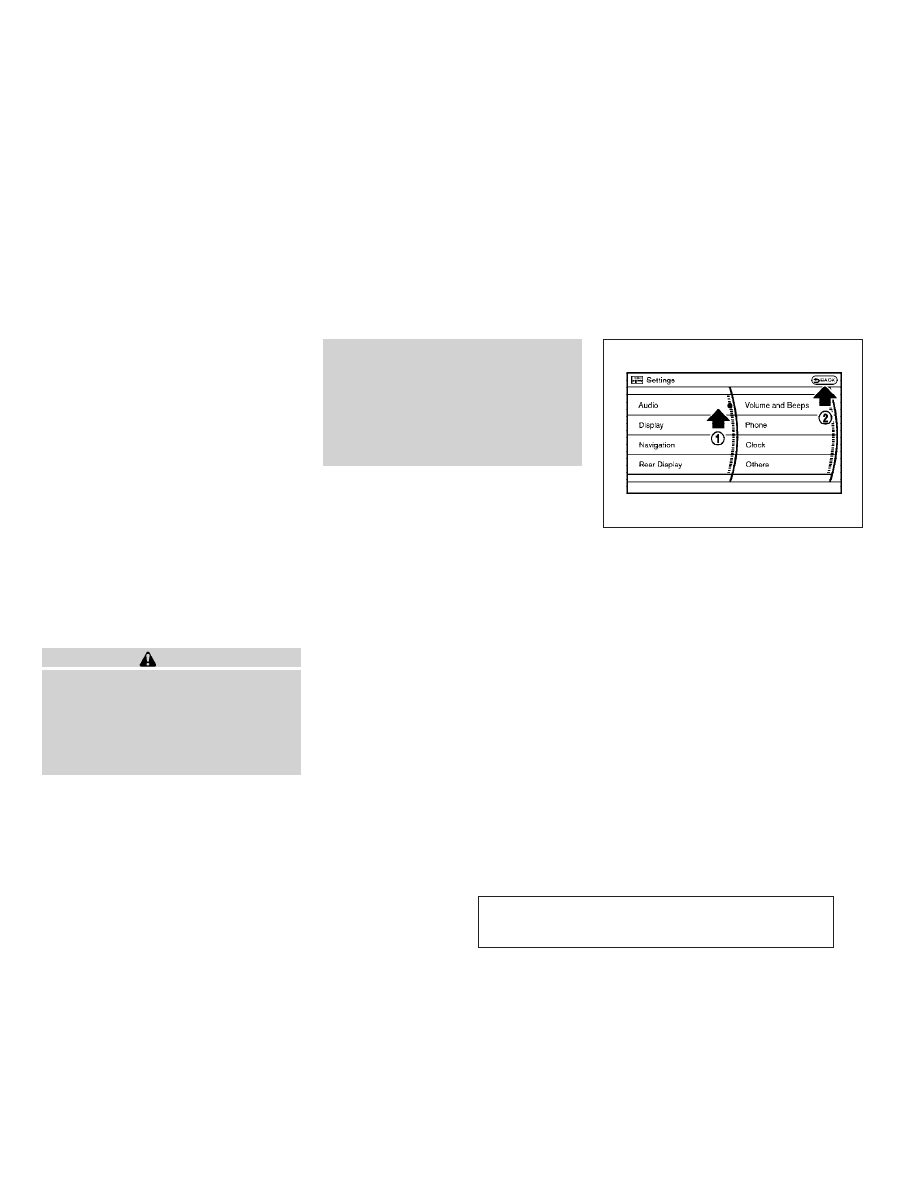

HOW TO USE TOUCH SCREEN (models

with navigation system)

CAUTION

● The glass screen on the liquid crystal display

may break if it is hit with a hard or sharp

object. If the glass breaks, do not touch the

liquid crystalline material, which contains a

small amount of mercury. In case of contact

with skin, wash immediately with soap and

water.

● To clean the display, never use a rough cloth,

alcohol, benzine, thinner or any kind of sol-

vent or paper towel with a chemical cleaning

agent. They will scratch or deteriorate the

panel.

● Do not splash any liquid such as water or car

fragrance on the display. Contact with liquid

will cause the system to malfunction.

To ensure safe driving, some functions cannot

be operated while driving.
The on-screen functions that are not available

while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then

operate the navigation system.

Touch screen operation

With this system, the same operations as those

for the INFINITI controller are possible using the

touch screen operation.
Selecting the item :
Touch an item to select. To select the “Audio”

settings, touch the “Audio” area

on the

screen.
Touch the

BACK

button to return the previ-

ous screen.

SAA1802

4-4

Monitor, climate, audio, phone and voice recognition systems

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adjusting an item :
Touch the +

button to adjust the

settings.
Touch the

DOWN

button to move to

the previous or next page.

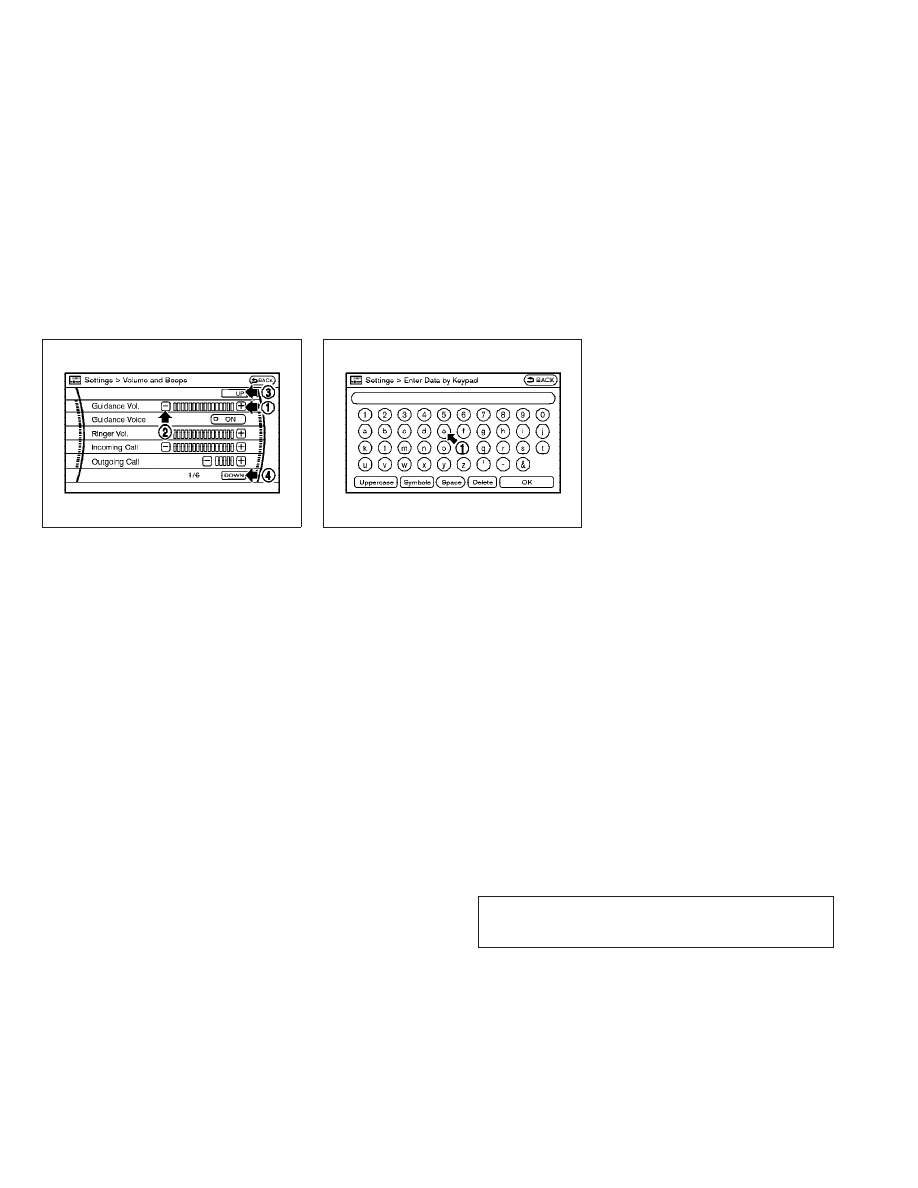

Inputting characters :
Touch the letter or number

There are some options available when input-

ting characters.
● Uppercase:

Shows uppercase characters.

● Lowercase:

Shows lowercase characters.

● Space:

Inserts a space.

● Symbols:

Shows symbols such as the question mark

(?).

● Delete:

Deletes the last character that has been

input with one touch. Push and hold the

button to delete all of the characters.

● OK:

Completes character inputs.

Touch screen maintenance

If you clean the display screen, use a dry, soft

cloth. If additional cleaning is necessary, use a

small amount of neutral detergent with a soft

cloth. Never spray the screen with water or

detergent. Dampen the cloth first, and then

wipe the screen.

SAA1543

SAA1617

Monitor, climate, audio, phone and voice recognition systems

4-5

—

05/14/09—pattie

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 8 9 10 11 ..
