11) Disconnect engine coolant temperature sensor harness con-

nector.

12) Connect 150

Ω

resistor to engine coolant temperature sensor

harness connector.

13) Restart engine and make sure that cooling fan operates at

higher speed than low speed.
Be careful not to overheat engine.

14) If NG, go to “Diagnostic Procedure”, EC-516.

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Overall Function Check (Cont’d)

EC-513

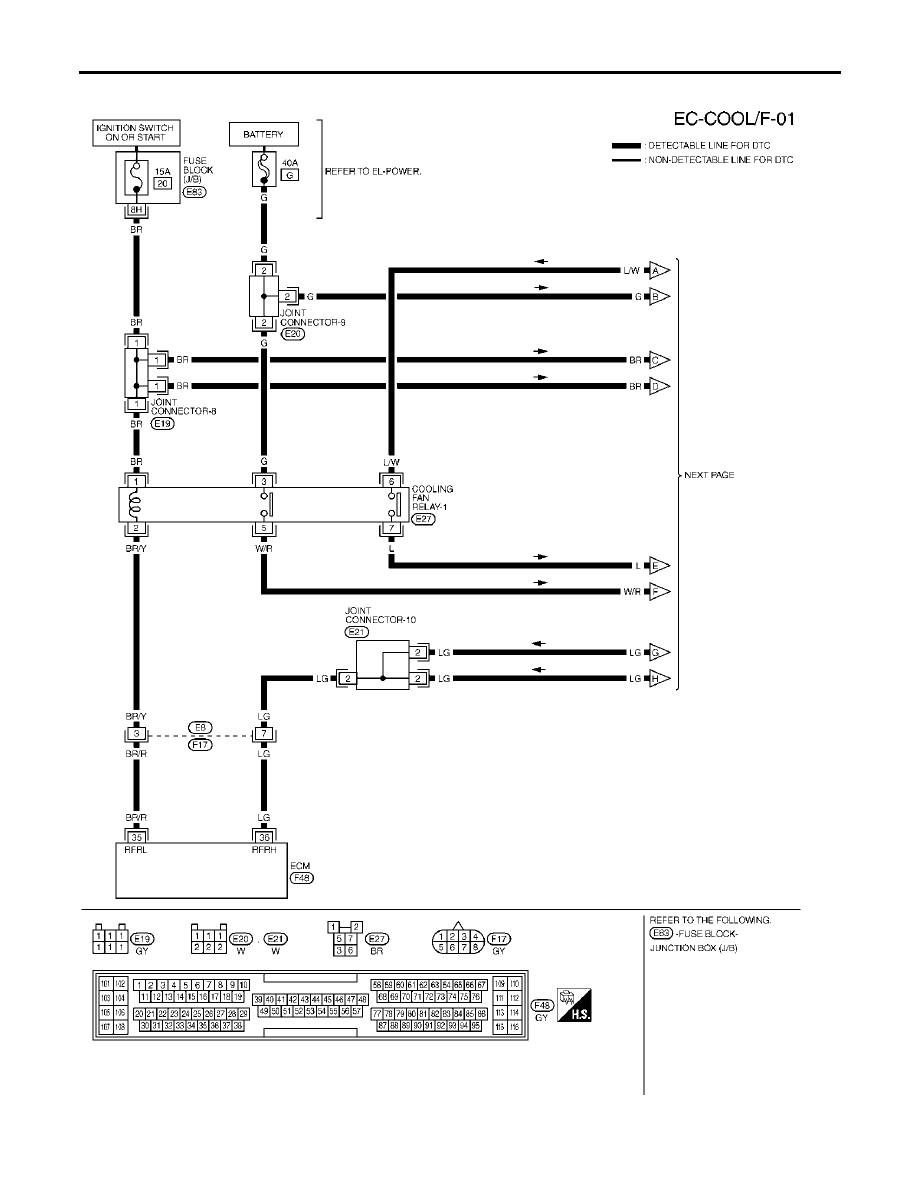

Wiring Diagram

NHEC1325

MEC548D

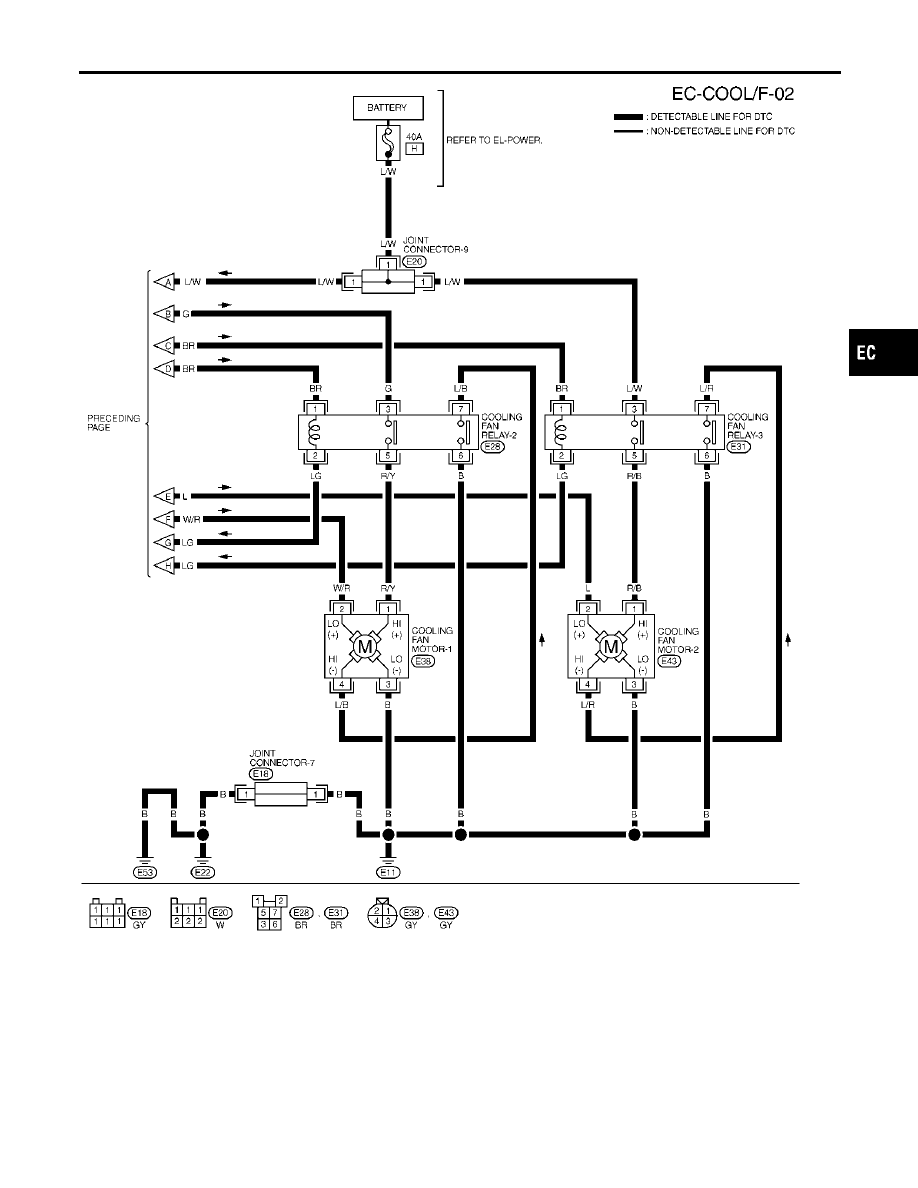

DTC P1217 ENGINE OVER TEMPERATURE

Wiring Diagram

EC-514

MEC549D

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Wiring Diagram (Cont’d)

EC-515

SEF630XC

Diagnostic Procedure

NHEC1326

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

䊳

GO TO 2.

䊳

GO TO 4.

CHECK COOLING FAN LOW SPEED OPERATION

With CONSULT-II

1. Disconnect cooling fan relays-2 and -3.

SEC006C

2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF646X

4. Make sure that cooling fans-1 and -2 operate at low speed.

OK or NG

䊳

GO TO 3.

䊳

Check cooling fan low speed control circuit. (Go to PROCEDURE A, EC-522.)

DTC P1217 ENGINE OVER TEMPERATURE

Wiring Diagram (Cont’d)

EC-516

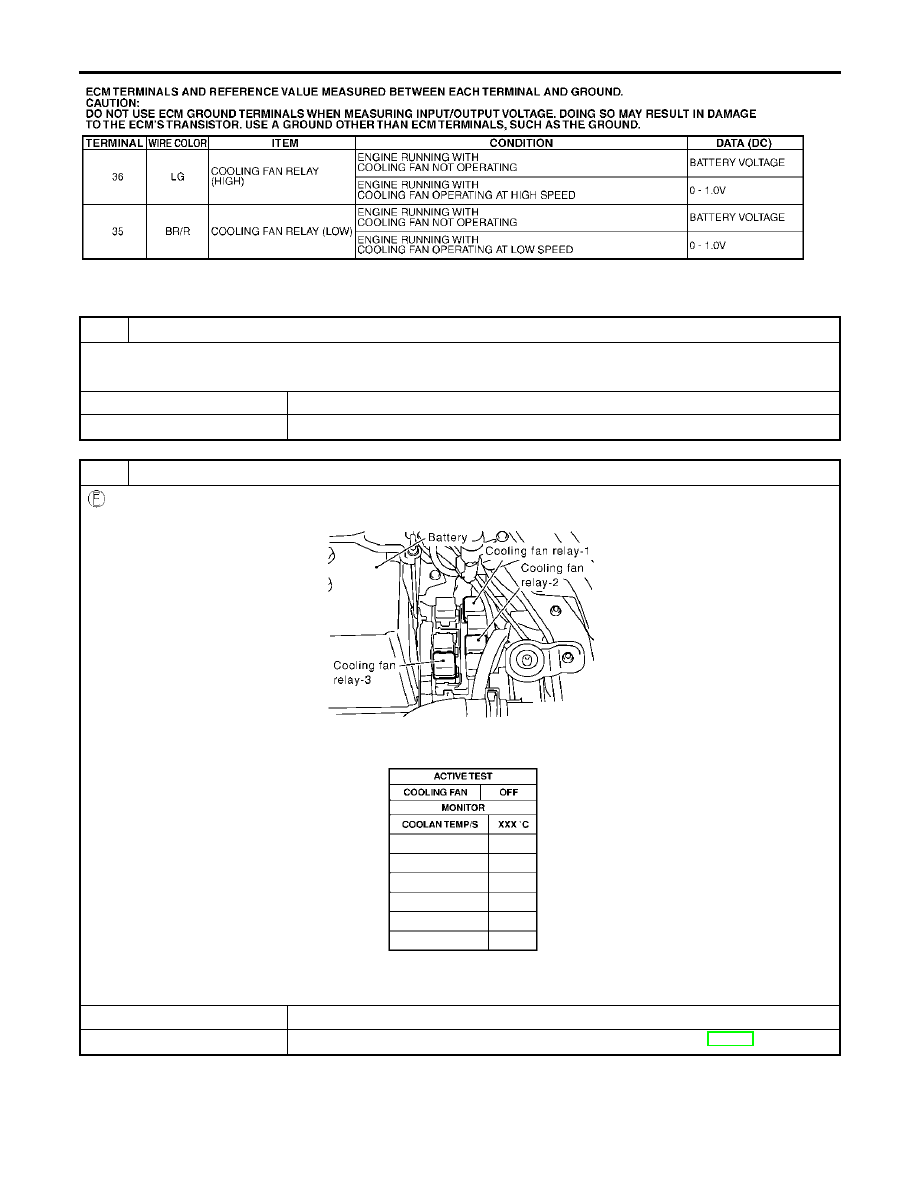

CHECK COOLING FAN HIGH SPEED OPERATION

With CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF111X

5. Make sure that cooling fans-1 and -2 operate at high speed.

OK or NG

䊳

GO TO 6.

䊳

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-525.)

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-517

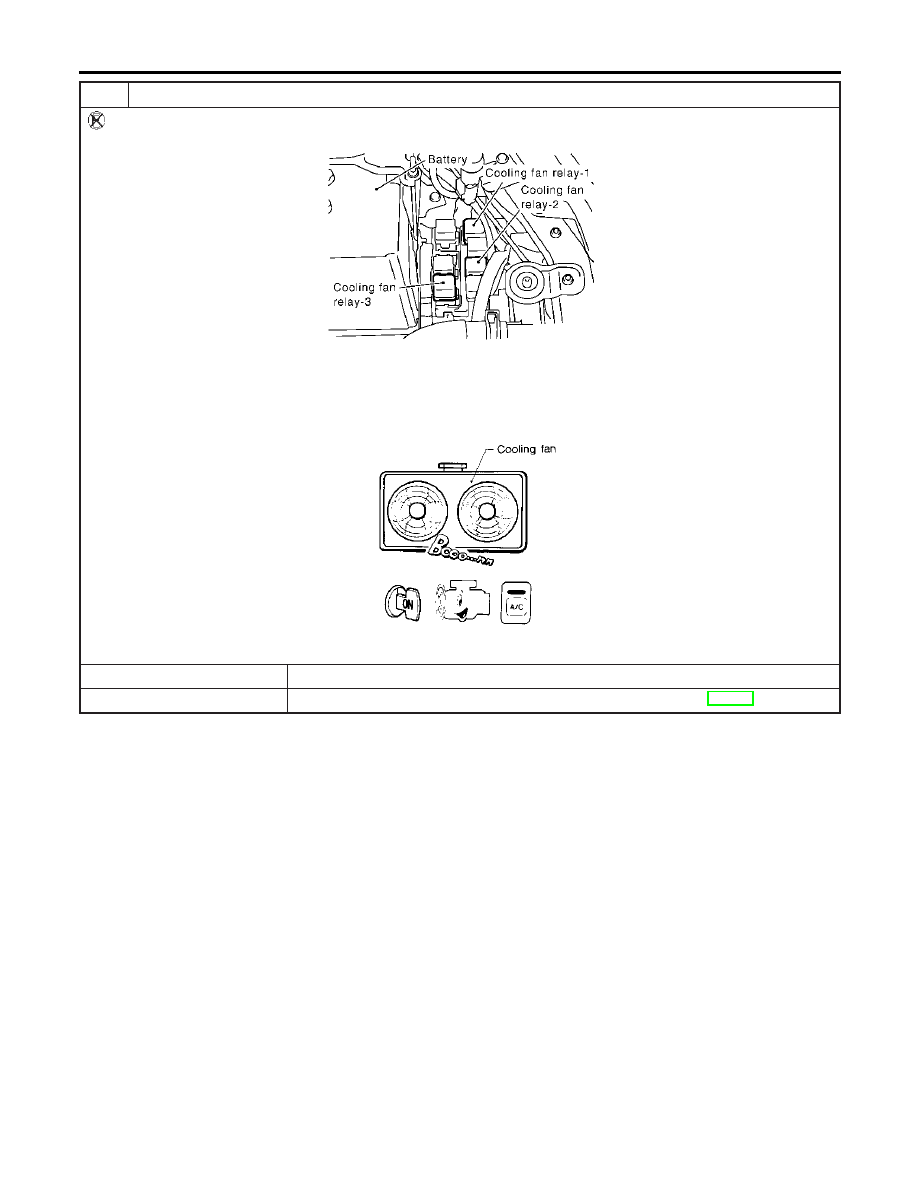

CHECK COOLING FAN LOW SPEED OPERATION

Without CONSULT-II

1. Disconnect cooling fan relays-2 and -3.

SEC006C

2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.

SEC163BA

OK or NG

䊳

GO TO 5.

䊳

Check cooling fan low speed control circuit. (Go to PROCEDURE A, EC-522.)

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-518

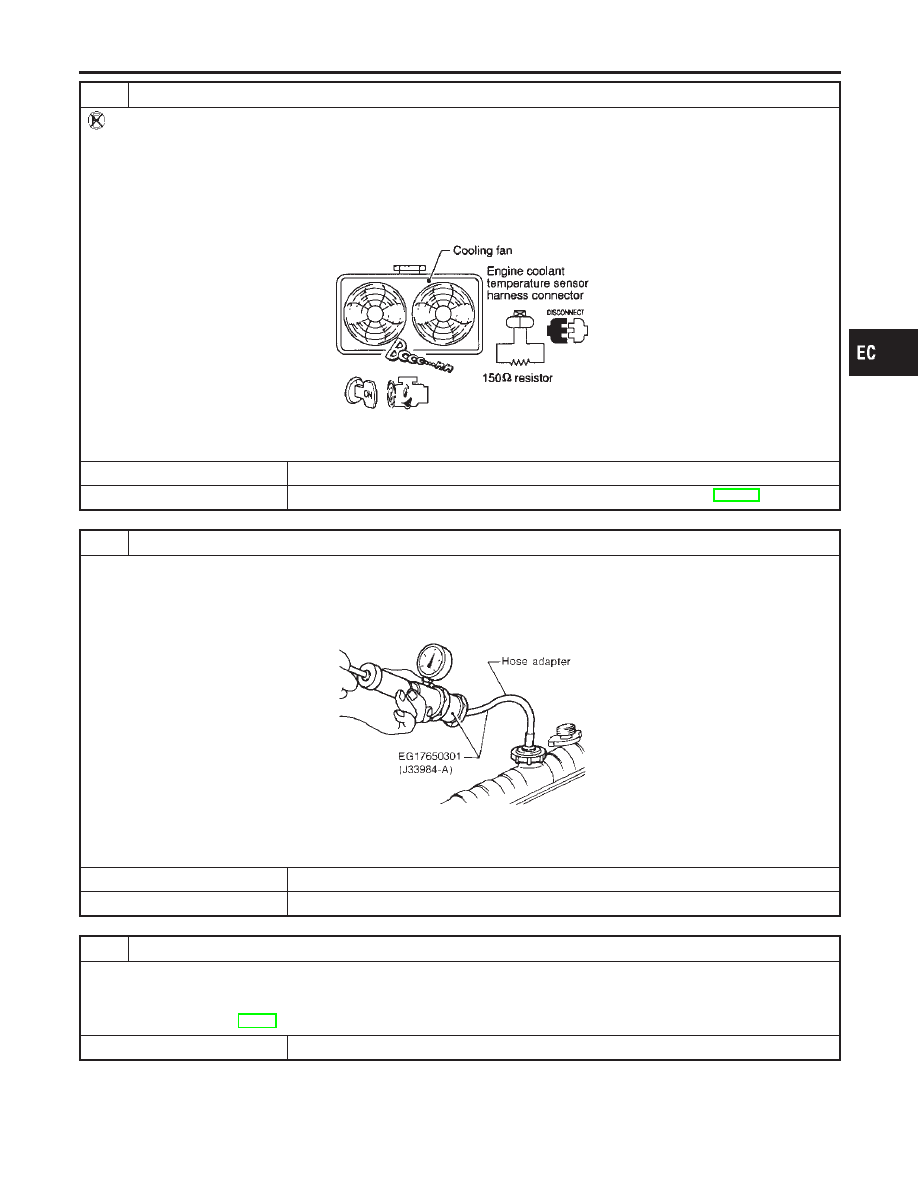

CHECK COOLING FAN HIGH SPEED OPERATION

Without CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150

Ω

resistor to engine coolant temperature sensor harness connector.

6. Restart engine and make sure that cooling fans-1 and -2 operate at high speed.

MEC475B

OK or NG

䊳

GO TO 6.

䊳

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-525.)

CHECK COOLING SYSTEM FOR LEAK

Apply pressure to the cooling system with a tester, and check if the pressure drops.

Testing pressure: 157 kPa (1.6 kg/cm

, 23 psi)

CAUTION:

Higher than the specified pressure may cause radiator damage.

SLC754A

Pressure should not drop.

OK or NG

䊳

GO TO 8.

䊳

GO TO 7.

DETECT MALFUNCTIONING PART

Check the following for leak.

쐌

Hose

쐌

Radiator

쐌

Water pump (Refer to LC-14, “Water Pump”.)

䊳

Repair or replace.

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-519

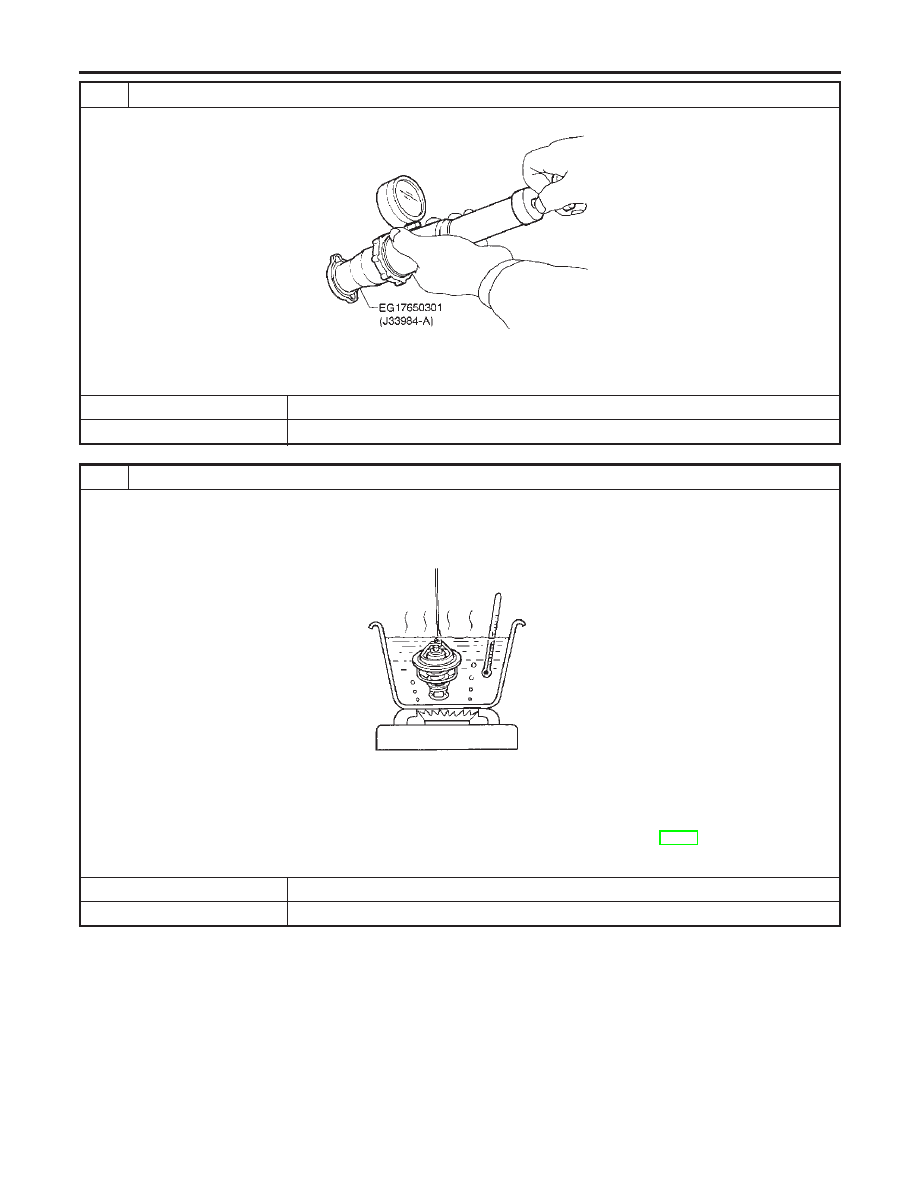

CHECK RADIATOR CAP

Apply pressure to cap with a tester and check radiator cap relief pressure.

SLC755A

Radiator cap relief pressure:

59 - 98 kPa (0.6 - 1.0 kg/cm

, 9 - 14 psi)

OK or NG

䊳

GO TO 9.

䊳

Replace radiator cap.

CHECK THERMOSTAT

1. Remove thermostat.
2. Check valve seating condition at normal room temperatures.

It should seat tightly.

3. Check valve opening temperature and valve lift.

SLC343

Valve opening temperature:

82°C (180°F) [standard]

Valve lift:

More than 8.6 mm/95°C (0.339 in/203°F)

4. Check if valve is closed at 5°C (9°F) below valve opening temperature. For details, refer to LC-18, “Thermostat”.

OK or NG

䊳

GO TO 10.

䊳

Replace thermostat.

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-520

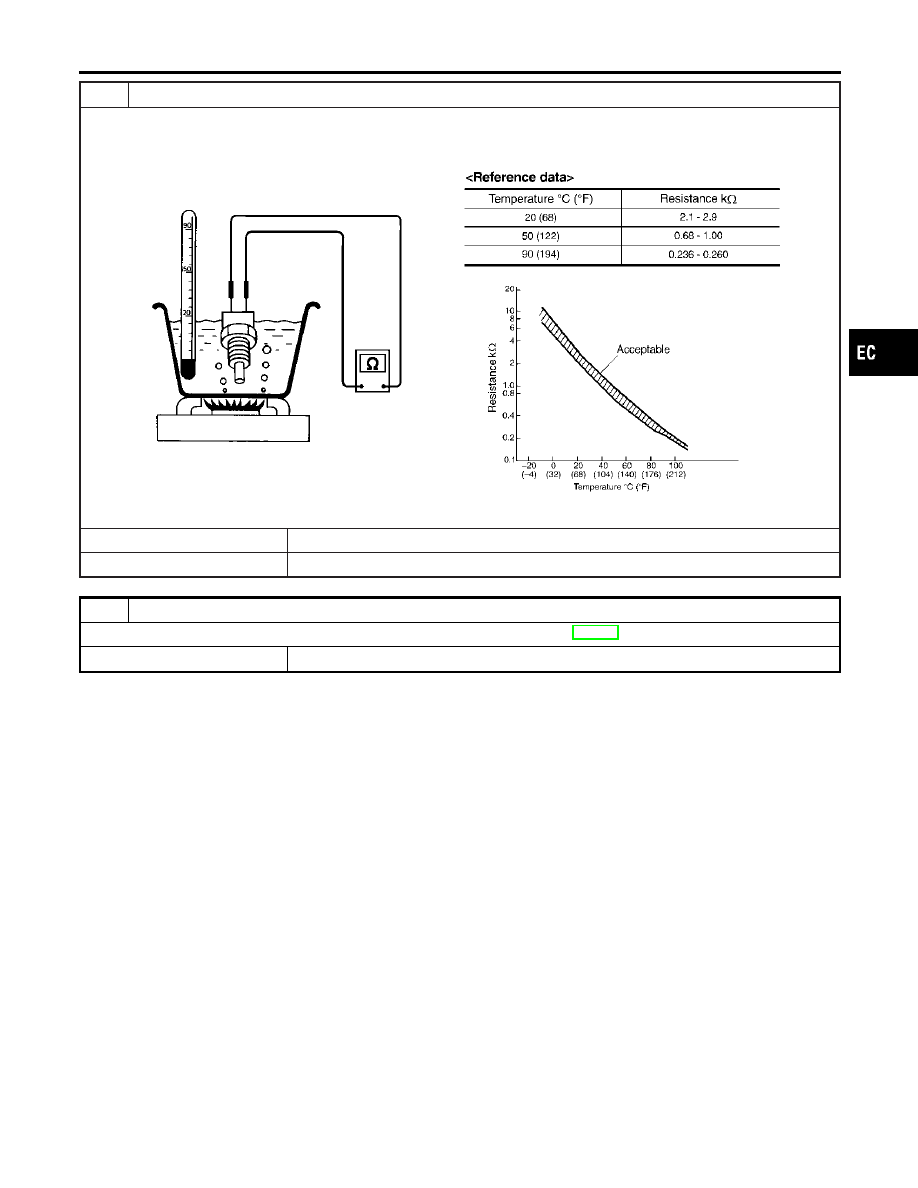

CHECK ENGINE COOLANT TEMPERATURE SENSOR

1. Remove engine coolant temperature sensor.
2. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

SEF304X

OK or NG

䊳

GO TO 11.

䊳

Replace engine coolant temperature sensor.

CHECK MAIN 12 CAUSES

If the cause cannot be isolated, go to “MAIN 12 CAUSES OF OVERHEATING”, EC-527.

䊳

INSPECTION END

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-521

PROCEDURE A

=NHEC1326S01

CHECK COOLING FAN POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 3, 6 and ground with CONSULT-II or tester.

SEF590X

OK or NG

䊳

GO TO 3.

䊳

GO TO 2.

DETECT MALFUNCTIONING PART

Check the following.

쐌

Joint connector-8

쐌

Joint connector-9

쐌

15A fuse

쐌

40A fusible links

쐌

Harness for open or short between cooling fan relay-1 and fuse

쐌

Harness for open or short between cooling fan relay-1 and battery

䊳

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-522

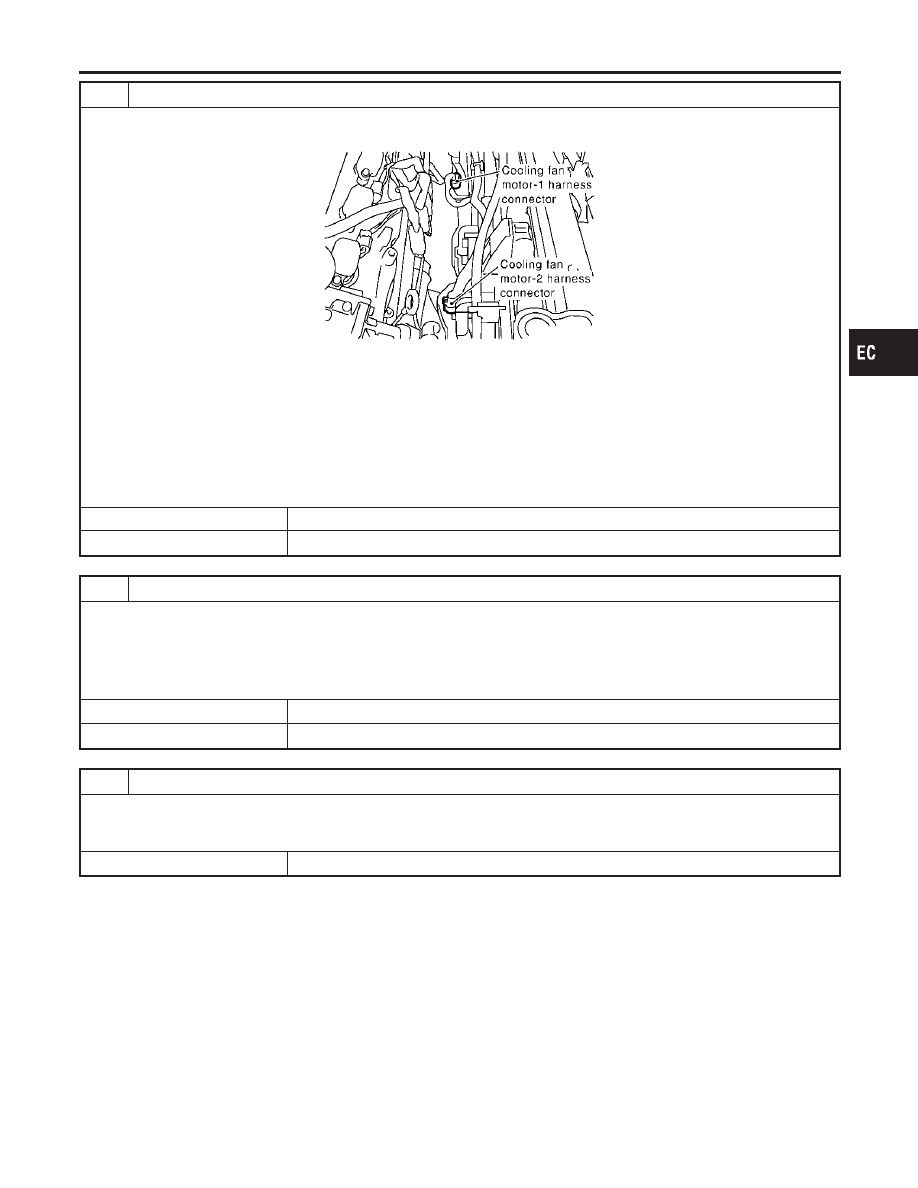

CHECK COOLING FAN MOTORS CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.

SEC057D

3. Check harness continuity between cooling fan relay-1 terminal 5 and cooling fan motor-1 terminal 2, cooling fan

motor-1 terminal 3 and body ground. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 7 and cooling fan motor-2 terminal 2, cooling fan

motor-2 terminal 3 and body ground. Refer to Wiring Diagram.

Continuity should exist.

6. Also check harness for short to ground and short to power.

OK or NG

䊳

GO TO 4.

䊳

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 35 and cooling fan relay-1 terminal 2. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

䊳

GO TO 6.

䊳

GO TO 5.

DETECT MALFUNCTIONING PART

Check the following.

쐌

Harness connectors E8, F17

쐌

Harness for open or short between cooling fan relay-1 and ECM

䊳

Repair open circuit or short to ground or short to power in harness or connectors.

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-523

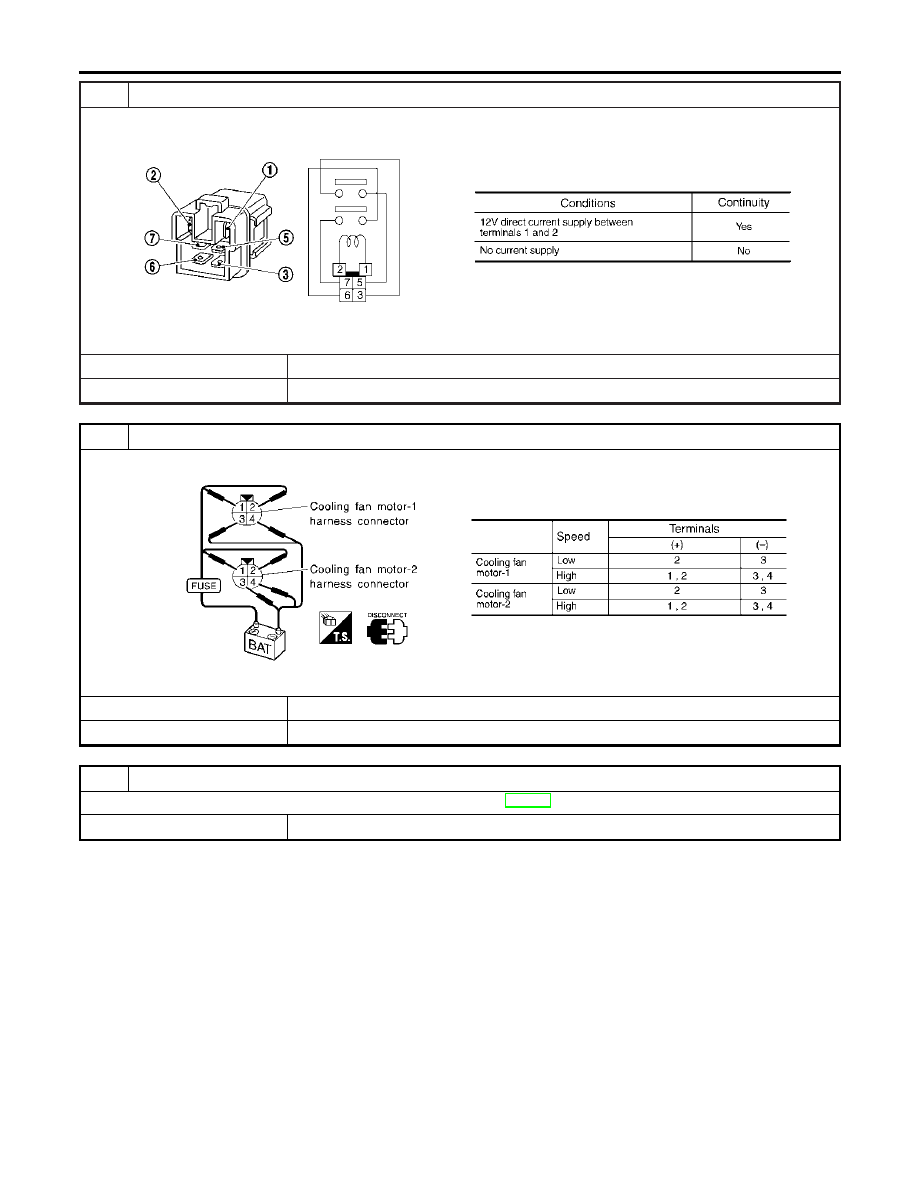

CHECK COOLING FAN RELAY-1

Check continuity between cooling fan relay-1 terminals 3 and 5, 6 and 7 under the following conditions.

SEF591X

OK or NG

䊳

GO TO 7.

䊳

Replace cooling fan relay.

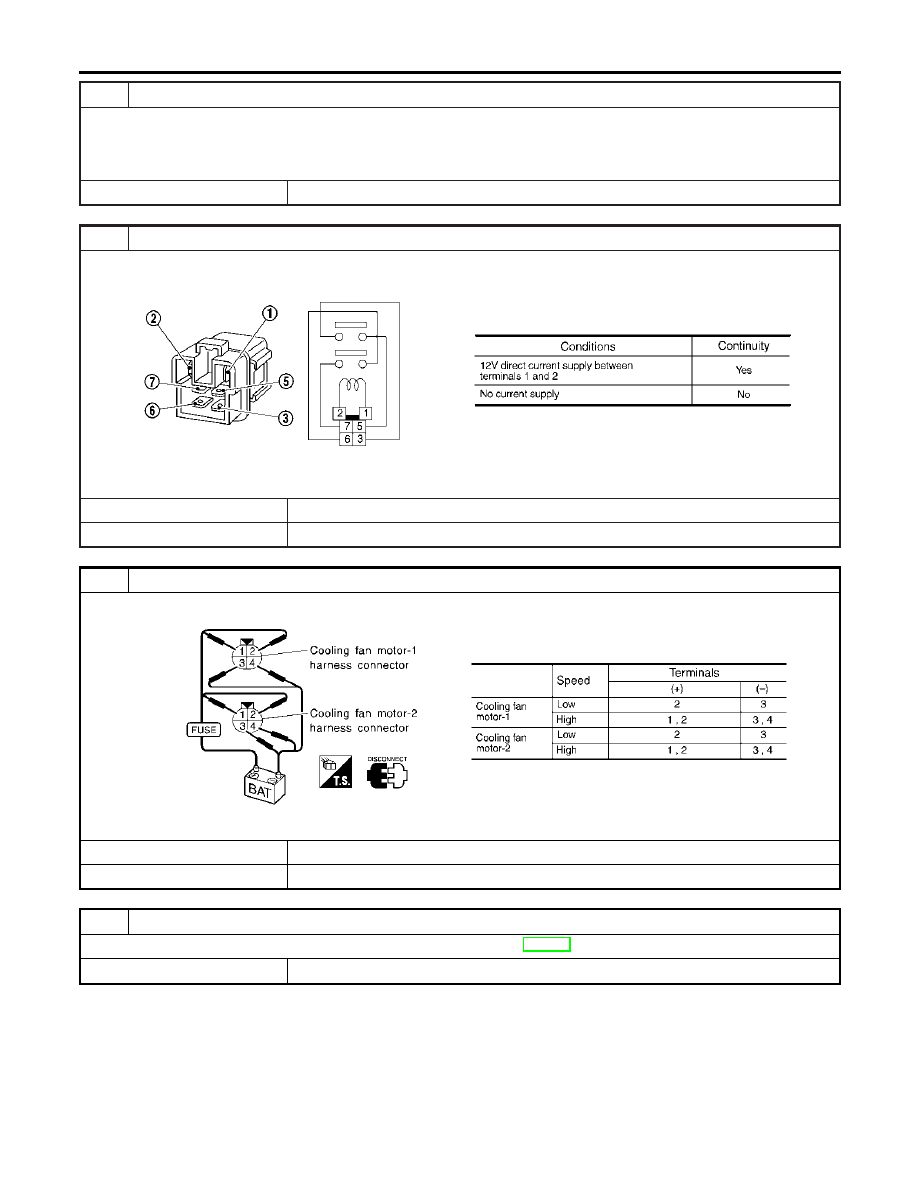

CHECK COOLING FAN MOTORS-1 AND -2

Supply battery voltage between the following terminals and check operation.

SEF592X

OK or NG

䊳

GO TO 8.

䊳

Replace cooling fan motors.

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-151.

䊳

INSPECTION END

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-524

PROCEDURE B

NHEC1326S02

CHECK COOLING FAN POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relays-2 and -3 terminals 1, 3 and ground with CONSULT-II or tester.

SEF593X

OK or NG

䊳

GO TO 3.

䊳

GO TO 2.

DETECT MALFUNCTIONING PART

Check the following.

쐌

Joint connector-8

쐌

Joint connector-9

쐌

Harness for open or short between cooling fan relays-2 and -3 and joint connectors-8, -9

䊳

Repair harness or connectors.

CHECK COOLING FAN CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 1, cooling fan relay-2

terminal 7 and cooling fan motor-1 terminal 4, cooling fan relay-2 terminal 6 and body ground. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 1, cooling fan relay-3

terminal 7 and cooling fan motor-2 terminal 4, cooling fan relay-3 terminal 6 and body ground. Refer to Wiring Diagram.

Continuity should exist.

6. Also check harness for short to ground and short to power.

OK or NG

䊳

GO TO 4.

䊳

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 36 and cooling fan relay-2 terminal 2, cooling fan relay-3 terminal 2.

Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

䊳

GO TO 6.

䊳

GO TO 5.

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-525

DETECT MALFUNCTIONING PART

Check the following.

쐌

Harness connectors E8, E17

쐌

Joint connector-10

쐌

Harness for open or short between cooling fan relays-2 and -3 and ECM

䊳

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK COOLING FAN RELAYS-2 AND -3

Check continuity between cooling fan relay-2, -3 terminals 3 and 5, 6 and 7 under the following conditions.

SEF591X

OK or NG

䊳

GO TO 7.

䊳

Replace cooling fan relays.

CHECK COOLING FAN MOTORS

Supply battery voltage between the following terminals and check operation.

SEF592X

OK or NG

䊳

GO TO 8.

䊳

Replace cooling fan motors.

CHECK INTERMITTENT INCIDENT

1. Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-151.

䊳

INSPECTION END

DTC P1217 ENGINE OVER TEMPERATURE

Diagnostic Procedure (Cont’d)

EC-526

Main 12 Causes of Overheating

NHEC1327

Engine

Step

Inspection item

Equipment

Standard

Reference page

OFF

쐌

Blocked radiator

쐌

Blocked condenser

쐌

Blocked radiator grille

쐌

Blocked bumper

쐌

Visual

No blocking

—

쐌

Coolant mixture

쐌

Coolant tester

50 - 50% coolant mixture See MA-11, “RECOM-

MENDED FLUIDS AND
LUBRICANTS”.

쐌

Coolant level

쐌

Visual

Coolant up to MAX level
in reservoir tank and
radiator filler neck

See MA-14, “Changing
Engine Coolant”.

쐌

Radiator cap

쐌

Pressure tester

59 - 98 kPa
(0.6 - 1.0 kg/cm

, 9 - 14

psi) (Limit)

See LC-12, “System
Check”.

ON*

쐌

Coolant leaks

쐌

Visual

No leaks

See LC-12, “System
Check”.

ON*

쐌

Thermostat

쐌

Touch the upper and
lower radiator hoses

Both hoses should be
hot

See LC-18, “Thermostat”
and LC-20, “Radiator”.

ON*

쐌

Cooling fan

쐌

CONSULT-II

Operating

See trouble diagnosis for
DTC P1217 (EC-510).

OFF

쐌

Combustion gas leak

쐌

Color checker chemi-
cal tester 4 Gas ana-
lyzer

Negative

—

ON*

쐌

Coolant temperature
gauge

쐌

Visual

Gauge less than 3/4
when driving

—

쐌

Coolant overflow to
reservoir tank

쐌

Visual

No overflow during driv-
ing and idling

See MA-14, “Changing
Engine Coolant”.

OFF*

쐌

Coolant return from
reservoir tank to radia-
tor

쐌

Visual

Should be initial level in
reservoir tank

See MA-13, “ENGINE
MAINTENANCE”.

OFF

쐌

Cylinder head

쐌

Straight gauge feeler
gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warping)

See EM-50, “Inspection”.

쐌

Cylinder block and pis-
tons

쐌

Visual

No scuffing on cylinder
walls or piston

See EM-73, “Inspection”.

*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to LC-25, “OVERHEATING CAUSE ANALYSIS”.

IDX

DTC P1217 ENGINE OVER TEMPERATURE

Main 12 Causes of Overheating

EC-527

PBIB0145E

Component Description

NHEC1340

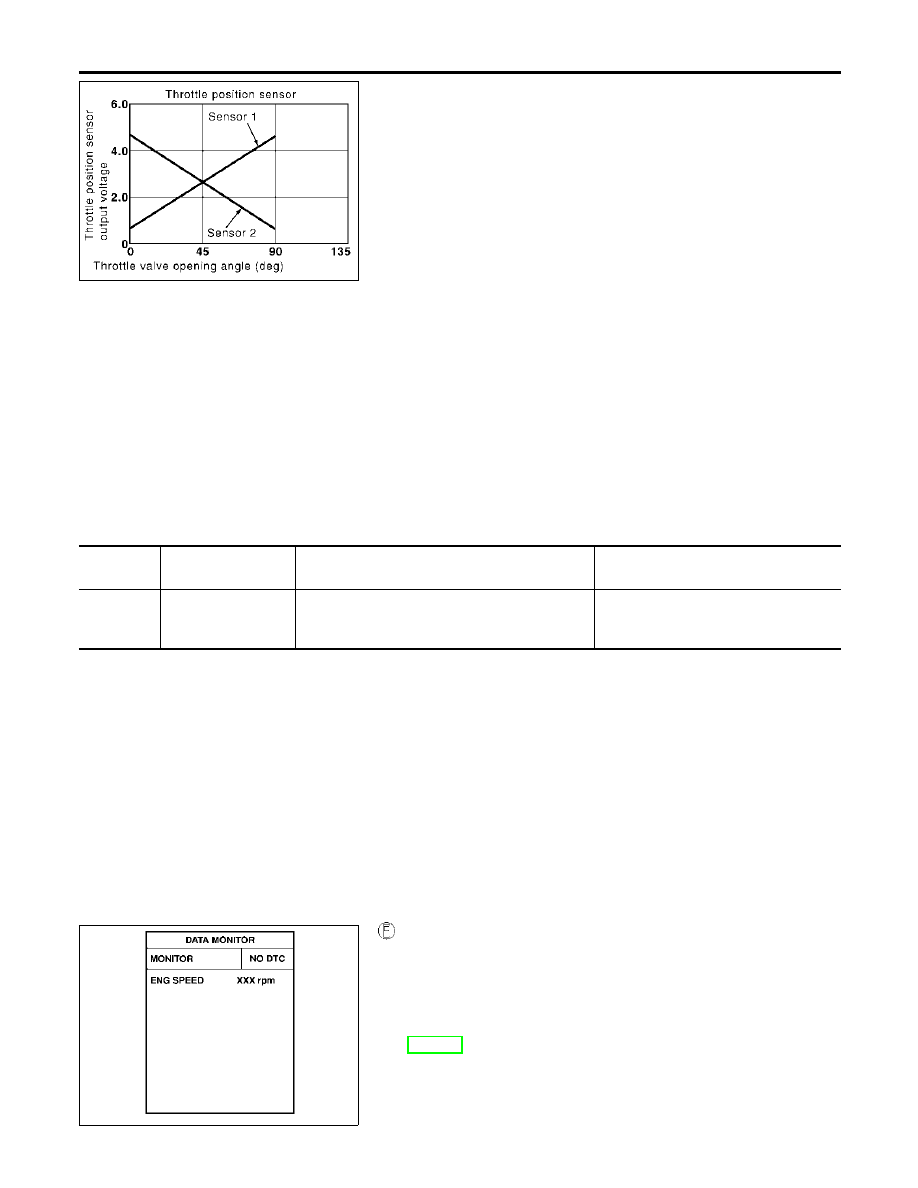

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds
to the throttle valve movement.
The throttle position sensor has the two sensors. These sensors
are a kind of potentiometers which transform the throttle valve
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the throttle valve and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the throttle valve from
these signals and the ECM controls the throttle control motor to
make the throttle valve opening angle properly in response to driv-
ing condition.

On Board Diagnosis Logic

NHEC1342

The MIL will not light up for this self-diagnosis.

DTC No.

Trouble diagnosis

name

DTC Detecting Condition

Possible Cause

P1225
1225

Closed throttle posi-
tion learning perfor-
mance problem

Closed throttle position learning value is exces-
sively low.

쐌

Electric throttle control actuator (TP
sensor 1 and 2)

DTC Confirmation Procedure

NHEC1343

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 10V at idle.

SEF058Y

With CONSULT-II

Turn ignition switch “ON”.

Select “DATA MONITOR” mode with CONSULT-II.

Turn ignition switch “OFF”, wait at least 10 seconds.

Turn ignition switch “ON”.

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-529.

DTC P1225 TP SENSOR

Component Description

EC-528

Content .. 31 32 33 34 ..
