INTAKE DOOR MOTOR

Removal and Installation

INFOID:0000000005147617

Intake Door Motor - Front Heater and Cooling Unit Assembly

REMOVAL

1. Remove the front heater and cooling unit assembly. Refer to

VTL-17, "Removal and Installation"

.

2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the intake door motor electrical connector.
4. Remove the three screws and remove the intake door motor.

INSTALLATION

Installation is in the reverse order of removal.

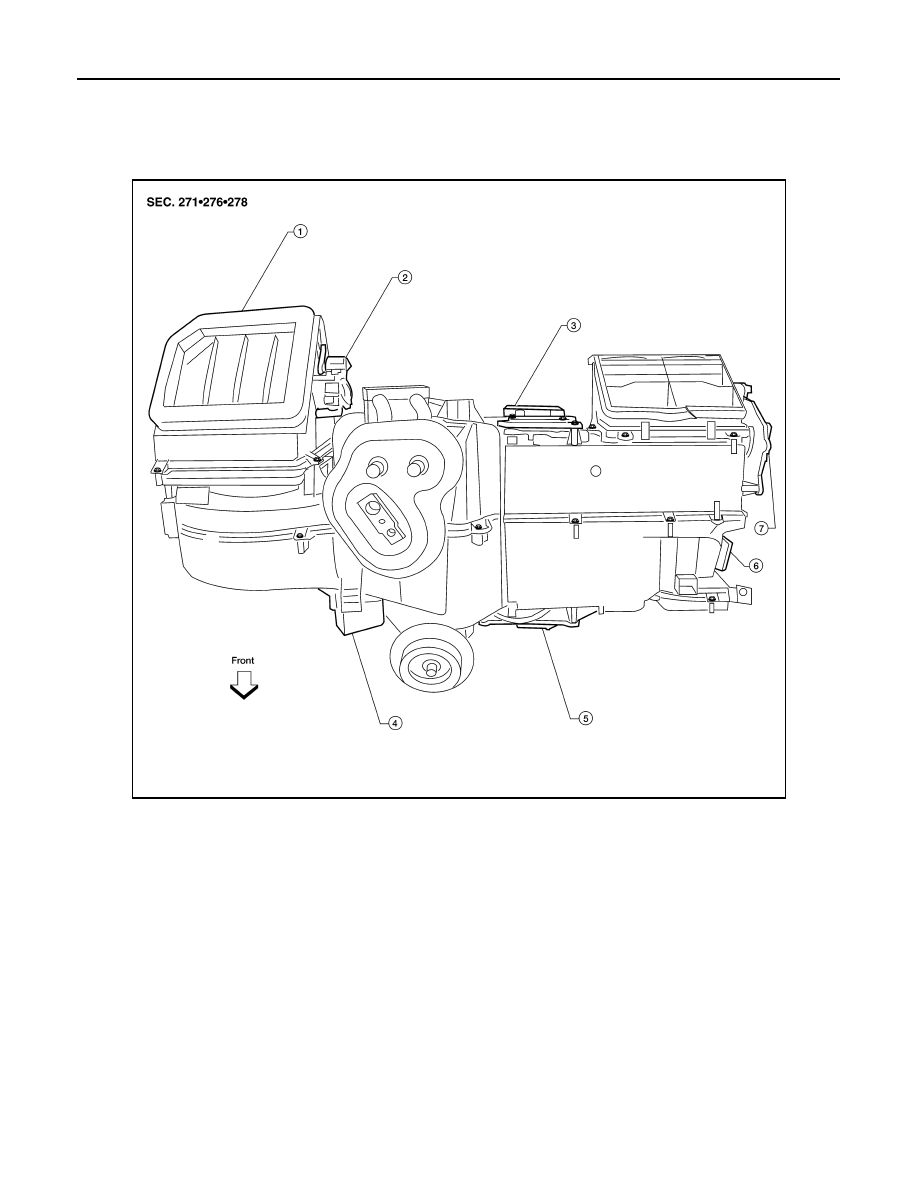

LJIA0139E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

VTL-28

< ON-VEHICLE REPAIR >

MODE DOOR MOTOR

MODE DOOR MOTOR

Components

INFOID:0000000005147618

Front Mode Door Motor - Front Heater and Cooling Unit Assembly

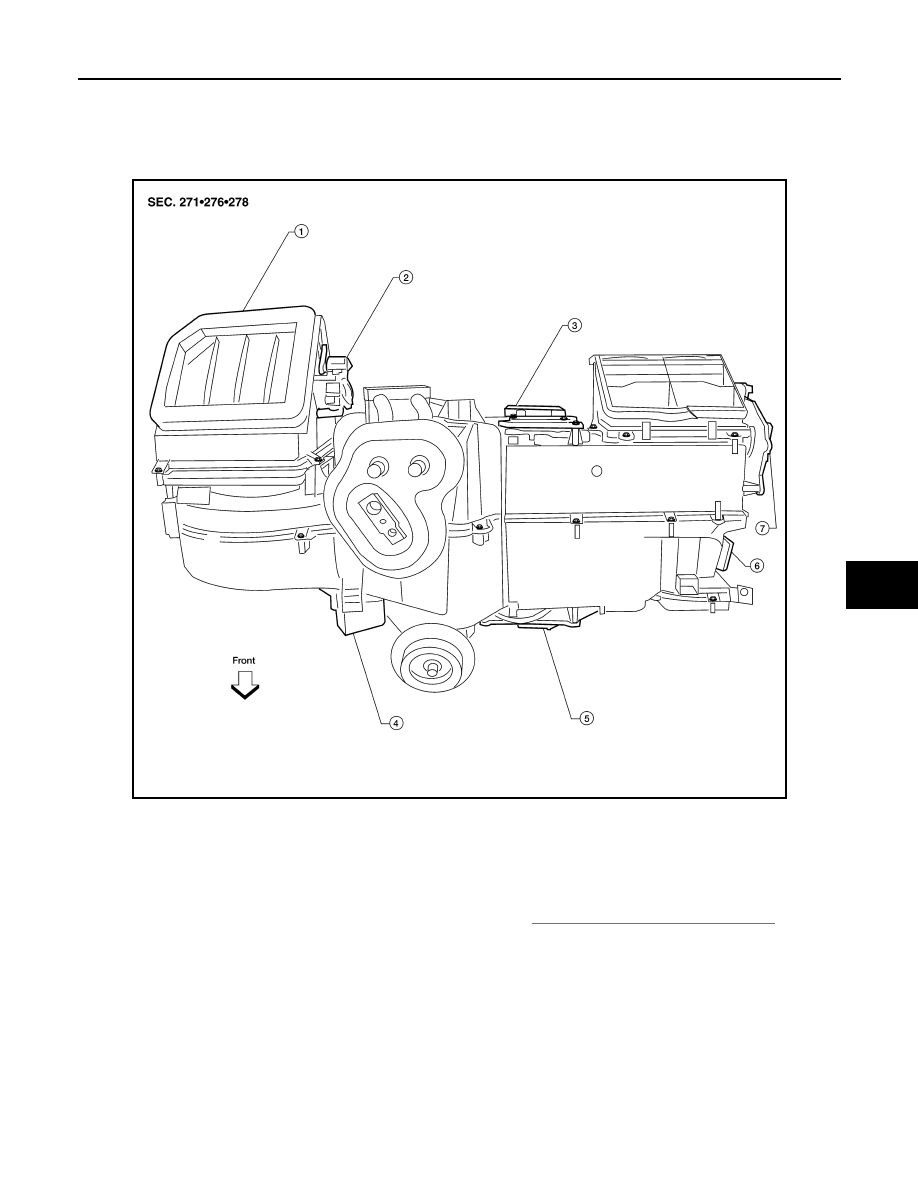

LJIA0139E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

MODE DOOR MOTOR

VTL-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Rear Mode Door Motor - Rear Heater and Cooling Unit Assembly

Removal and Installation

INFOID:0000000005147619

FRONT MODE DOOR MOTOR

Removal

1. Remove the instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2. Remove the accelerator pedal. Refer to

ACC-4, "Removal and Installation"

.

3. Remove the BCM. Refer to

BCS-59, "Removal and Installation"

.

4. Remove the BOSE amp. (if equipped). Refer to

AV-182, "Removal and Installation"

.

5. Remove the center console lower cover LH. Refer to

IP-20, "Removal and Installation"

.

6. Disconnect the front mode door motor connector.
7. Remove the two screws and remove the front mode door motor.

Installation

Installation is in the reverse order of removal.

REAR MODE DOOR MOTOR

Removal

1. Remove the luggage side finisher lower and upper RH. Refer to

INT-19, "Removal and Installation"

.

2. Remove the rear heater and cooling unit assembly. Refer to

VTL-17, "Removal and Installation"

.

3. Disconnect the rear mode door motor connector.
4. Remove the two screws and remove rear mode door motor.

Installation

Installation is in the reverse order of removal.

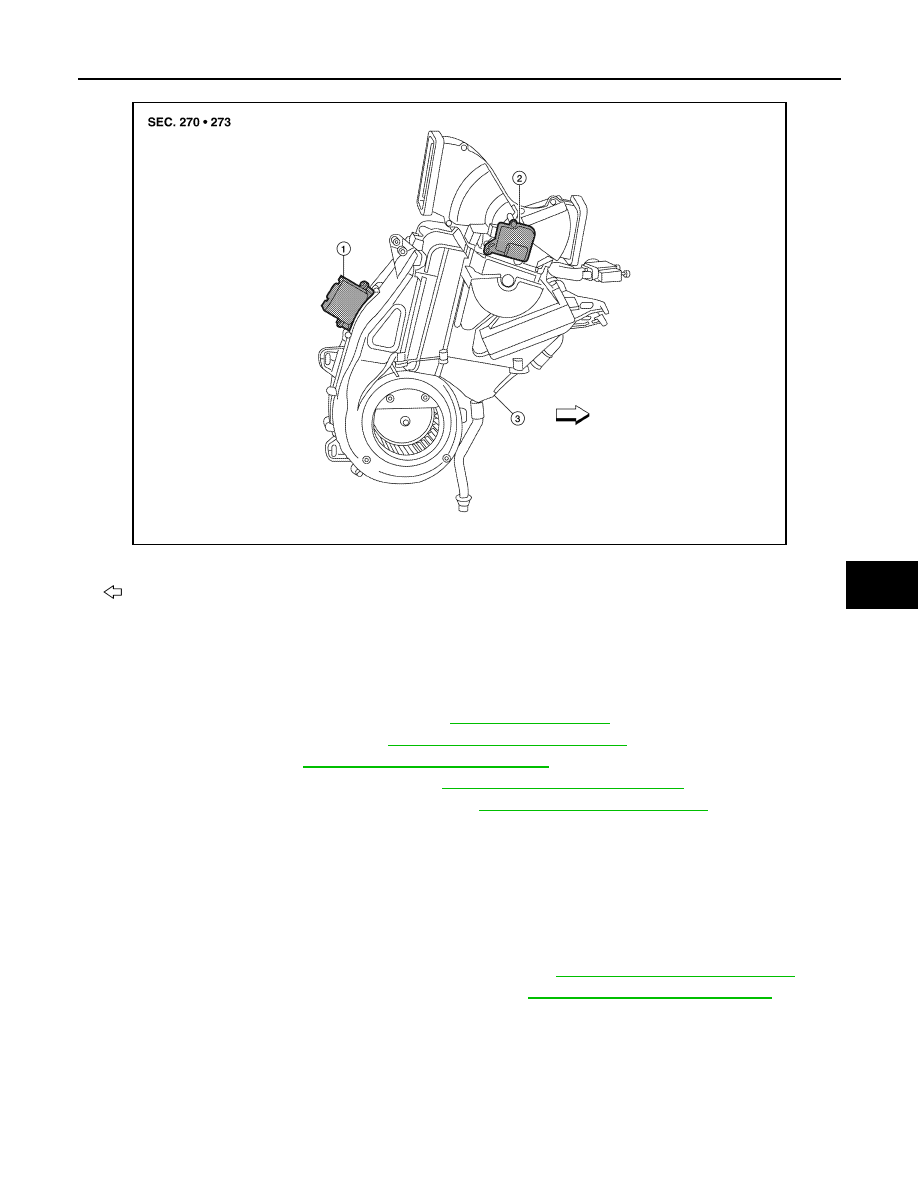

ALIIA0065ZZ

1.

Variable blower control

2.

Mode door motor

3.

Rear heater and cooling unit assembly

Front

VTL-30

< ON-VEHICLE REPAIR >

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

Component

INFOID:0000000005147620

Front Air Mix Door Motors - Front Heater and Cooling Unit Assembly

LJIA0139E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor
