Infiniti QX56 (JA60). Manual - part 994





INTAKE SENSOR

VTL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000005147608

REMOVAL

1. Remove the instrument lower panel RH and glove box. Refer to

IP-17, "Removal and Installation"

.

2. Disconnect the intake sensor electrical connector.

NOTE:

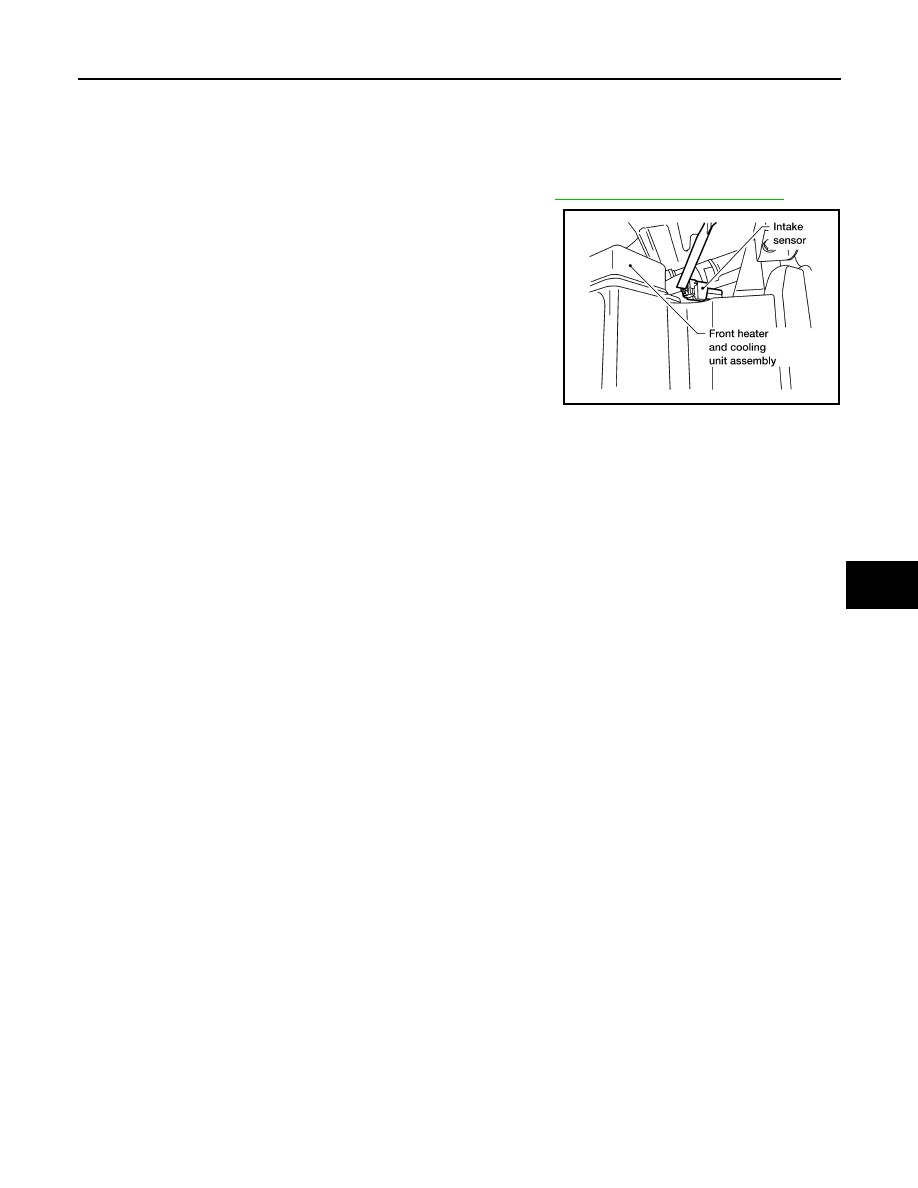

The intake sensor is located on the top of the front heater and

cooling unit assembly next to the A/C evaporator cover.

3. Pull up on the intake sensor to remove the intake sensor from

the front heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

LJIA0133E

VTL-12

< ON-VEHICLE REPAIR >

BLOWER MOTOR

BLOWER MOTOR

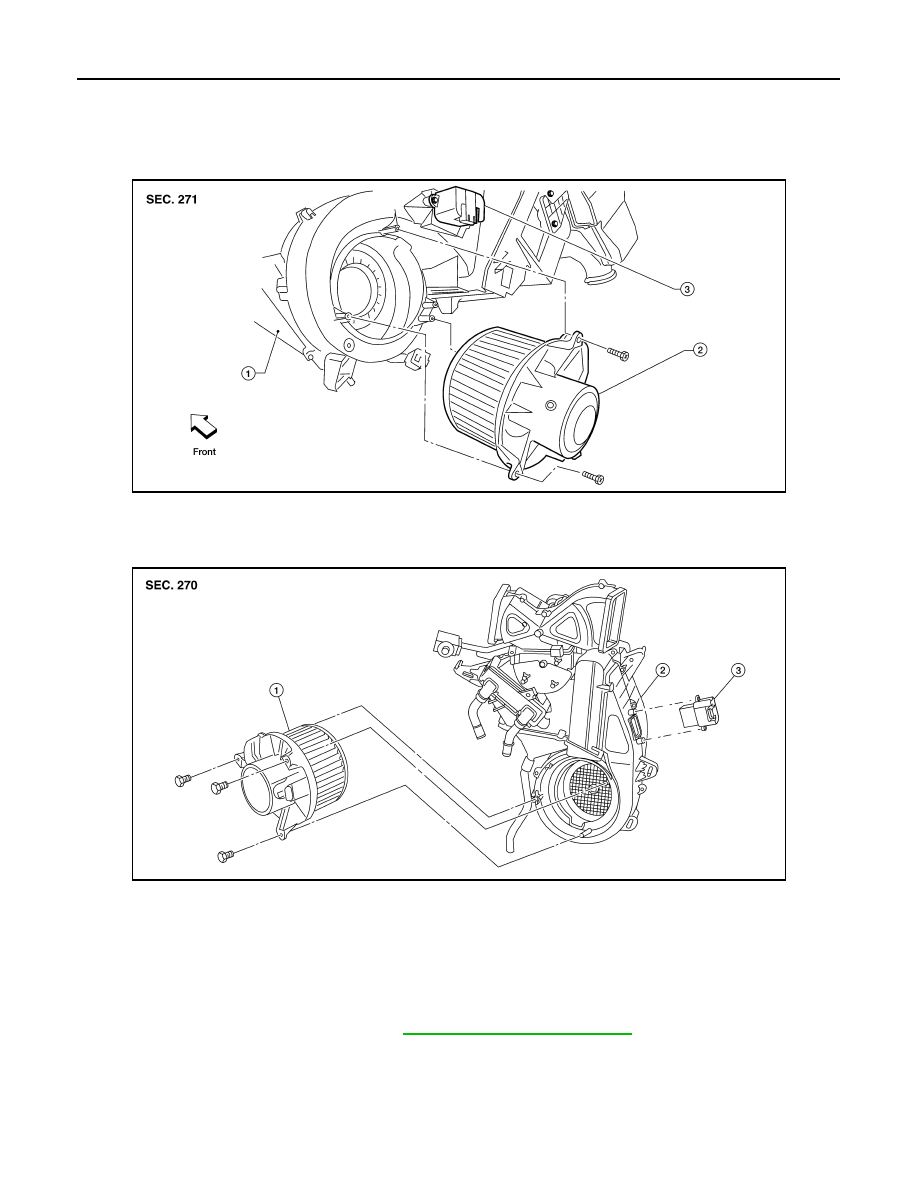

Component

INFOID:0000000005147609

Front Blower Motor

Rear Blower Motor

Removal and Installation

INFOID:0000000005147610

FRONT BLOWER MOTOR

Removal

1. Remove the glove box assembly. Refer to

IP-17, "Removal and Installation"

.

2. Disconnect the front blower motor electrical connector.
3. Remove the three screws and remove the front blower motor.
4. Remove the blower motor wheel as necessary to transfer to the new blower motor.

Installation

Installation is in the reverse order of removal.

LJIA0136E

1.

Front heater and cooling unit assembly

2.

Front blower motor

3.

Front variable blower control

AWIIA0085ZZ

1.

Rear blower motor

2.

Rear heater and cooling unit assembly

3.

Rear variable blower control

BLOWER MOTOR

VTL-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR BLOWER MOTOR

Removal

1. Remove the rear heater and cooling unit assembly. Refer to

VTL-17, "Removal and Installation"

.

2. Disconnect the rear blower motor electrical connector.
3. Remove the three screws and remove the rear blower motor.
4. Remove the blower motor wheel as necessary to transfer to the new blower motor.

Installation

Installation is in the reverse order of removal.

VTL-14

< ON-VEHICLE REPAIR >

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

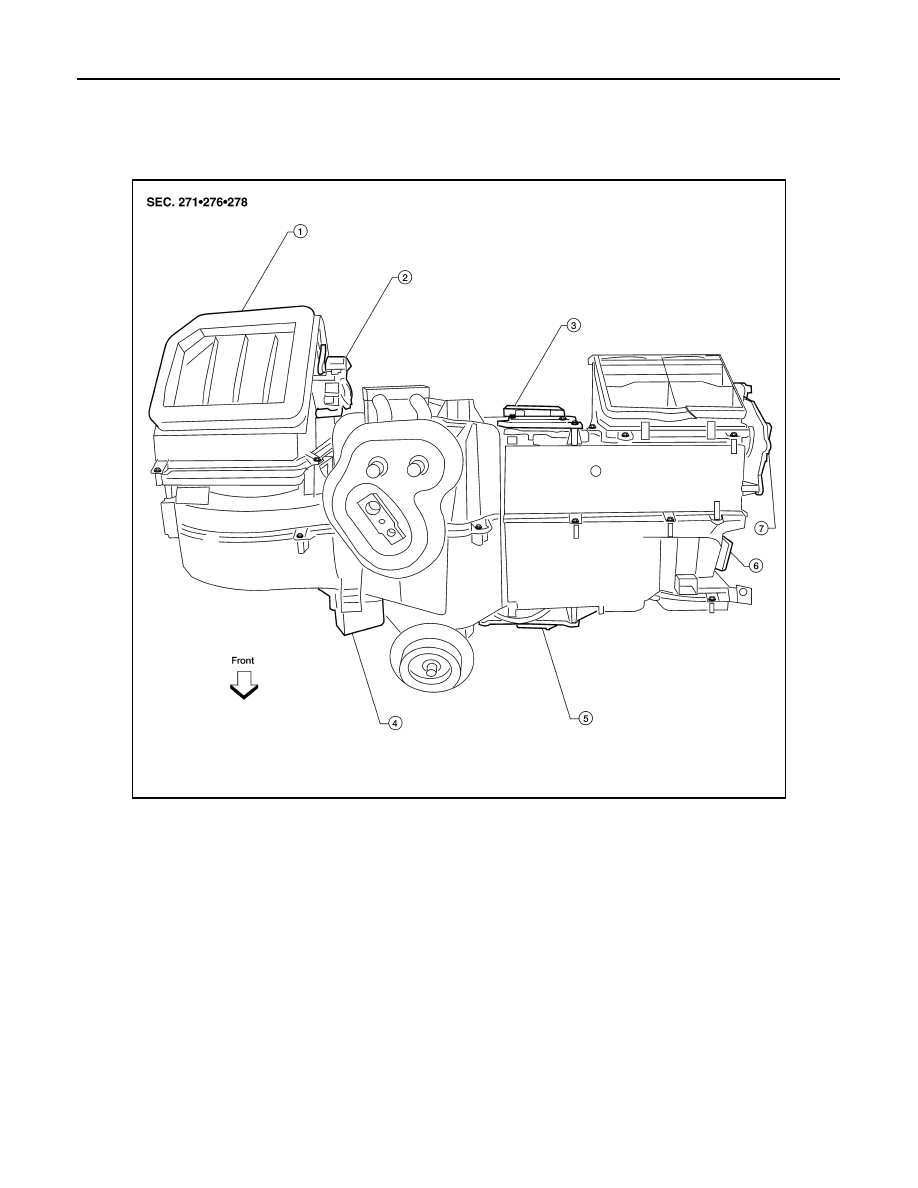

Components

INFOID:0000000005147622

Front Variable Blower Control - Front Heater and Cooling Unit Assembly

LJIA0139E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor
