Infiniti QX56 (JA60). Manual - part 990





TM-262

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

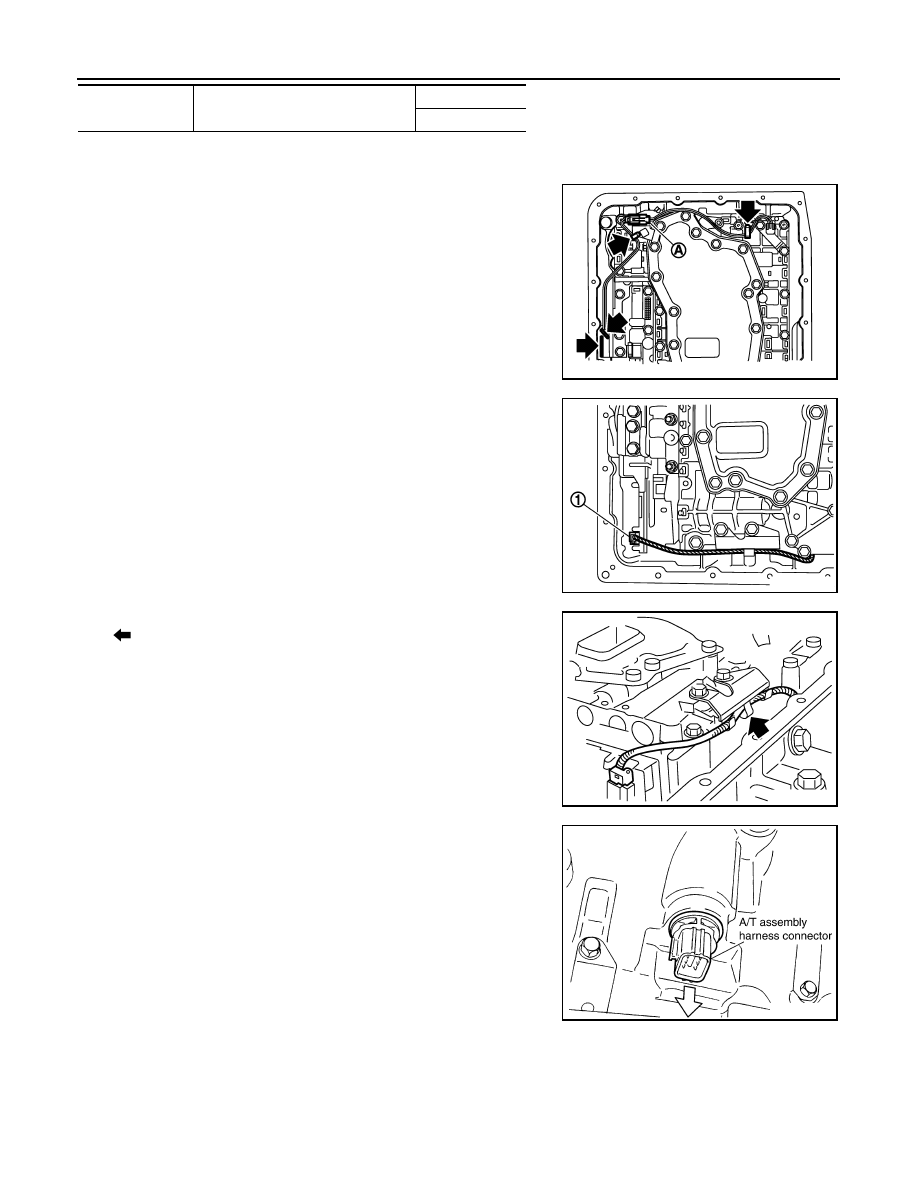

17. After installing the A/T fluid temperature sensor 2, connect the A/T fluid temperature sensor 2 connector

as shown below.

a. Connect A/T fluid temperature sensor 2 connector (A).
b. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

18. Connect output speed sensor connector (1).

19. Securely fasten output speed sensor harness with terminal clip

(

).

20. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8124E

JSDIA1319ZZ

JSDIA1320ZZ

SCIA5299E

ASSEMBLY

TM-263

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

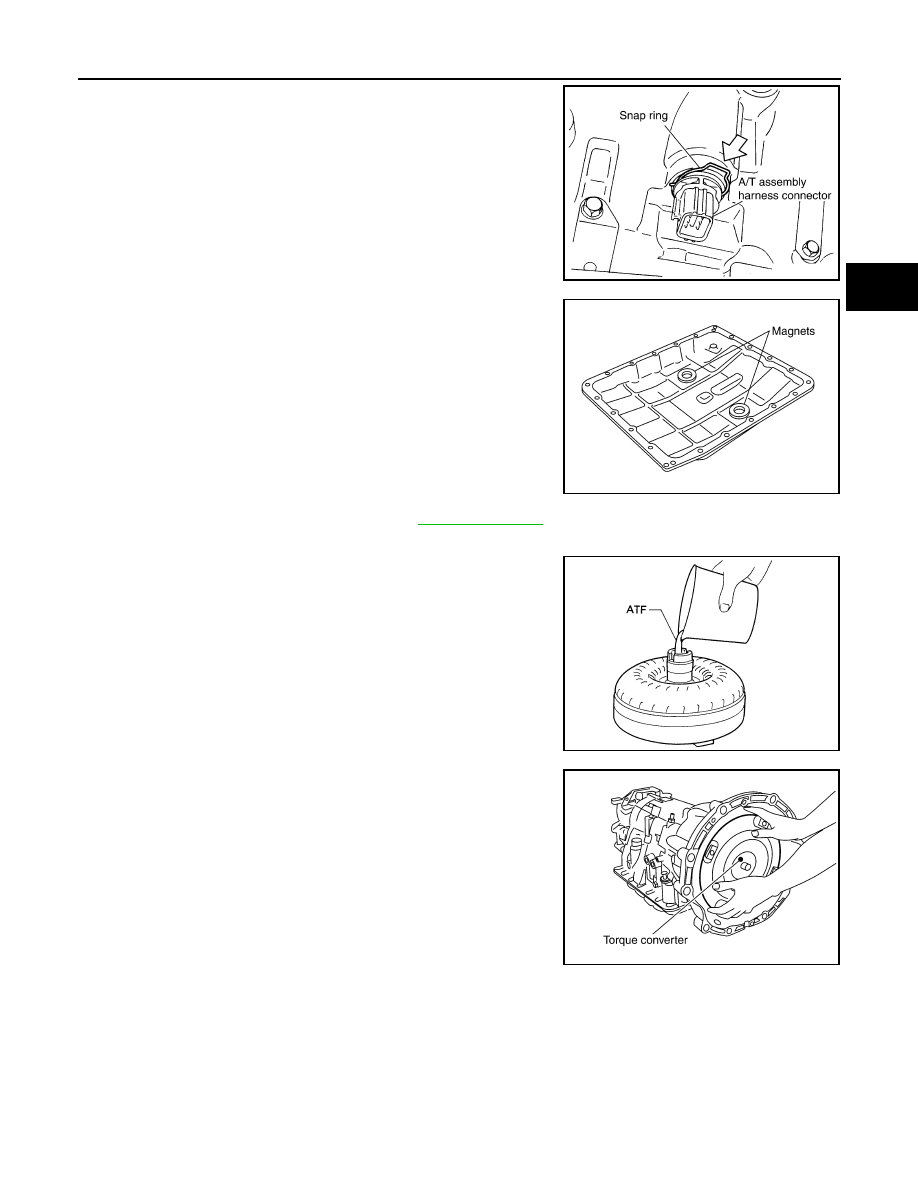

21. Install snap ring to A/T assembly harness connector.

22. Install magnets in oil pan.

23. Install oil pan to transmission case. Refer to

TM-170, "Oil Pan"

.

24. Install torque converter.
a. Pour ATF into torque converter.

NOTE:

• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

b. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA5300E

SCIA5200E

SAT428DA

SCIA5010E

TM-264

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

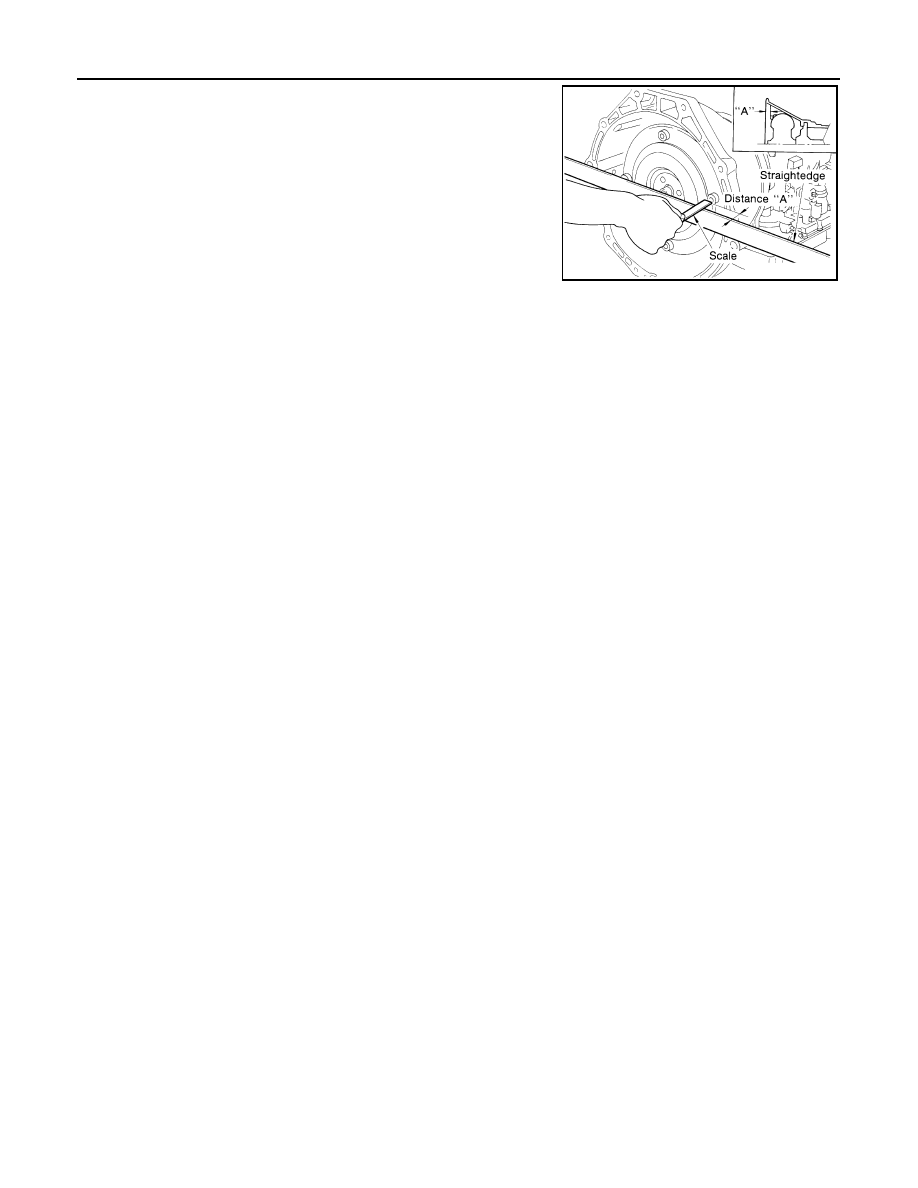

c.

Measure distance "A" to make sure that torque converter is in

proper position.

Distance "A" : 24.0 mm (0.94 in)

SCIA5694E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-265

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005148758

*1: Refer to

MA-13, "Fluids and Lubricants"

.

*2: The fluid capacity is the reference value. Check the fluid level with A/T fluid level gauge.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000005148759

NORMAL MODE

• At half throttle, the accelerator opening is 1/2 of the full opening.

TOW MODE

Applied model

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

94X3E

94X4A

Stall torque ratio

2.0 : 1

Transmission gear ratio

1st

3.827

2nd

2.368

3rd

1.520

4th

1.000

5th

0.834

Reverse

2.613

Recommended fluid

Genuine NISSAN Matic S ATF

*1

Fluid capacity

10.6 liter (11-1/4 US qt, 9-3/8 Imp qt)

*2

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using ATF other than Gen-

uine NISSAN Matic S ATF or  Matic J ATF will cause deterioration driveability and A/T durability, and may damage the A/T,
which is not covered by the NISSAN new vehicle limited warranty.

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

46 - 50

(28 - 31)

75 - 81

(47 - 50)

104 - 112

(65 - 70)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

75 - 83

(47 - 51)

44 - 50

(27 - 31)

11 - 15

(7 - 10)

3.357

Full throttle

61 - 65

(38 - 41)

97 - 105

(61 - 66)

153 - 163

(95 - 102)

236 - 246

(147 - 153)

232 - 242

 (144 - 151)

143 - 153

(89 - 95)

87 - 95

(54 - 59)

43 - 47

(27 - 29)

Half throttle

41 - 45

(26 - 28)

67 - 73

(42 - 45)

90 - 98

(56 - 61)

119 - 127

 (74 - 79)

97 - 105

(60 - 65)

65 - 73

(40 - 45)

39 - 45

(24 - 28)

11 - 15

(7 - 10)

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

50 - 54

(31 - 34)

82 - 88

(51 - 55)

114 - 122

(71 - 76)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

76 - 84

(47 - 52)

44 - 50

(27 - 31)

11 - 15

(7 - 10)
