Infiniti QX56 (JA60). Manual - part 987

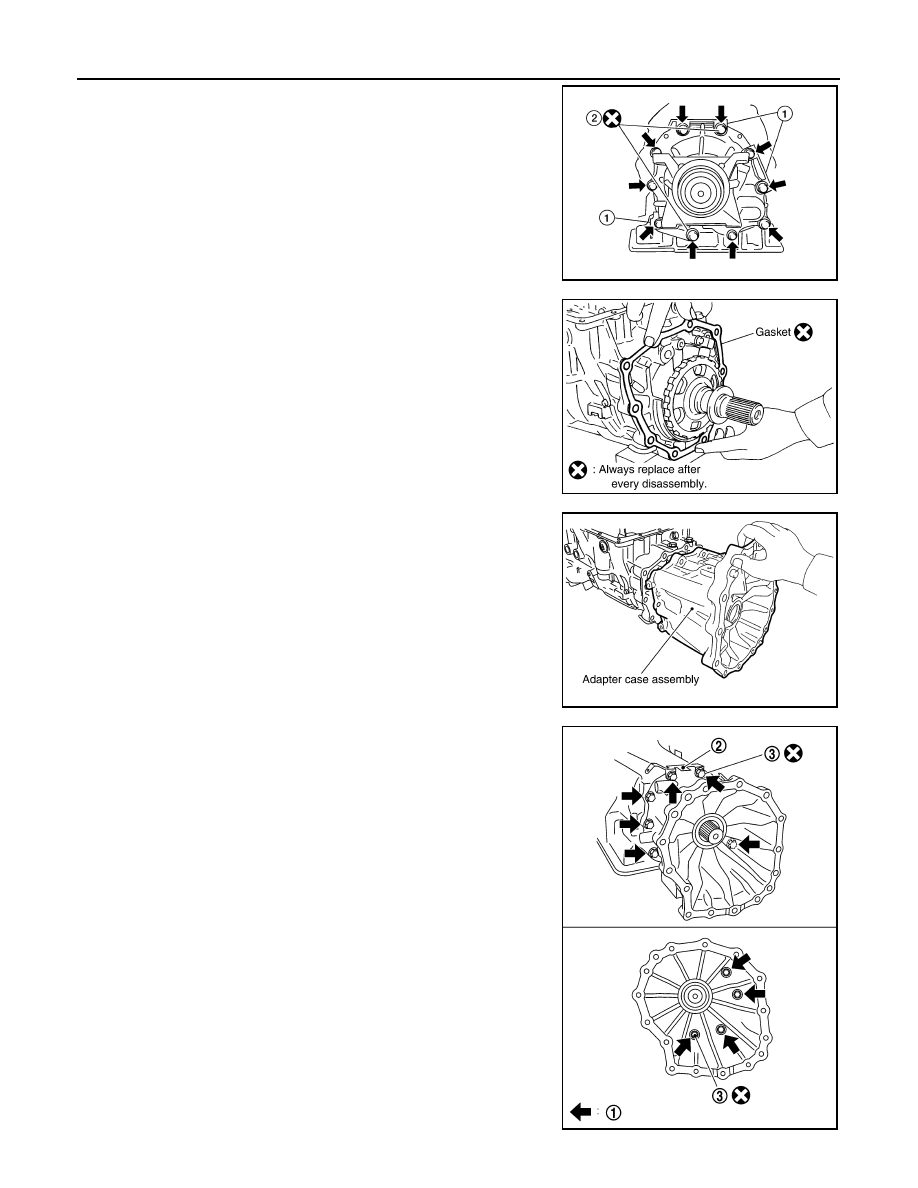

TM-250

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

iii. Install brackets (1) and tighten rear extension assembly bolts

and (2 self-sealing bolts) to specified torque.

CAUTION:

Do not reuse self-sealing bolt.

b. 4WD models
i.

Install gasket onto transmission case.

CAUTION:

• Completely remove all moisture, oil, old gasket and any

foreign material from the transmission case and adapter

case assembly mating surfaces.

• Do not reuse gasket.

ii.

Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and

the parking actuator support when assembling the rear

extension assembly.

iii. Install bracket (2) and tighen adapter case assembly bolts (1)

and (3) to specified torque.

CAUTION:

Do not reuse self-sealing bolt (3).

Rear extension
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt

: 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0562E

SCIA5231E

SCIA5186E

Adapter case
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt : 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA7220E

ASSEMBLY

TM-251

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

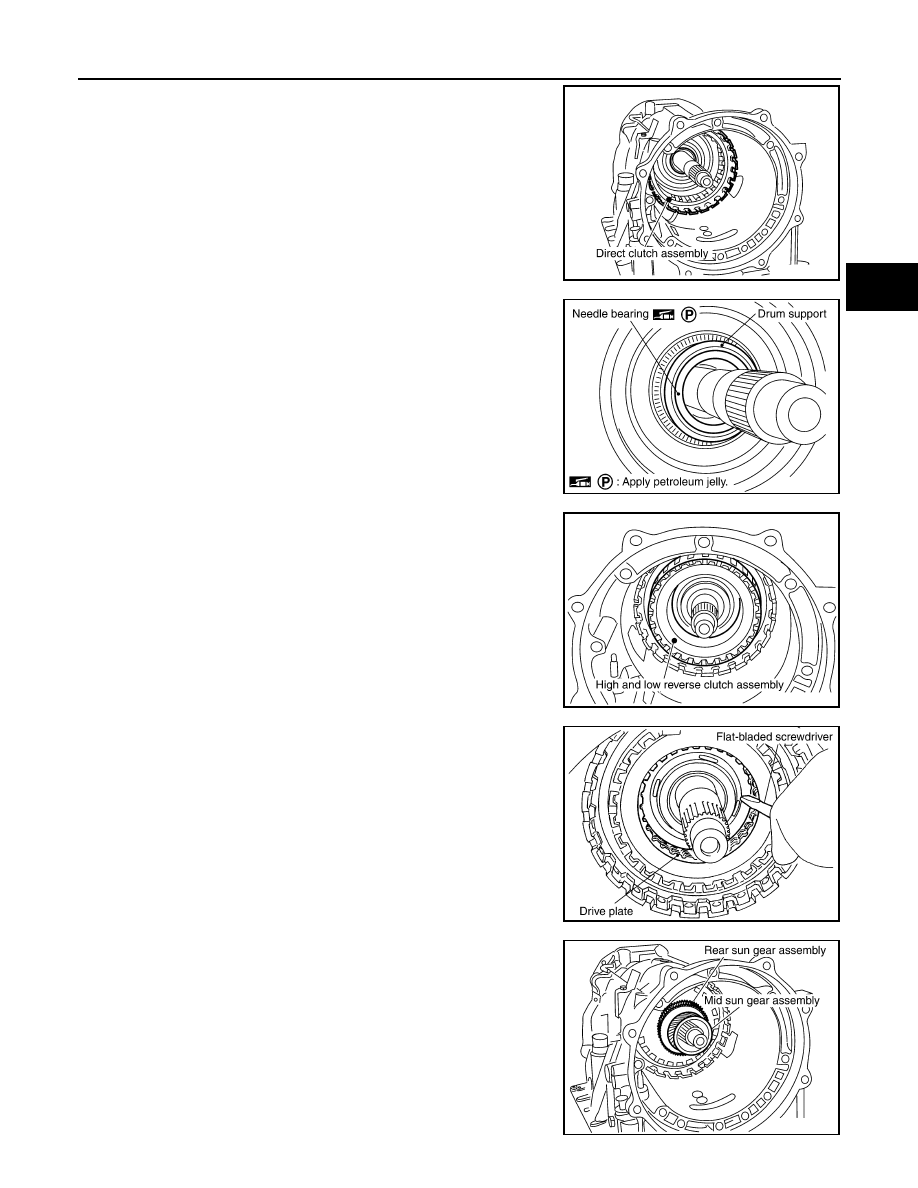

35. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch

inner boss edge surface come to almost same place.

36. Install needle bearing in drum support.

CAUTION:

Apply petroleum jelly to needle bearing.

37. Install high and low reverse clutch assembly in direct clutch.

38. Align the drive plate using suitable tool.

39. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5019E

SCIA5198E

SCIA2306E

SCIA3169E

SCIA5018E

TM-252

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

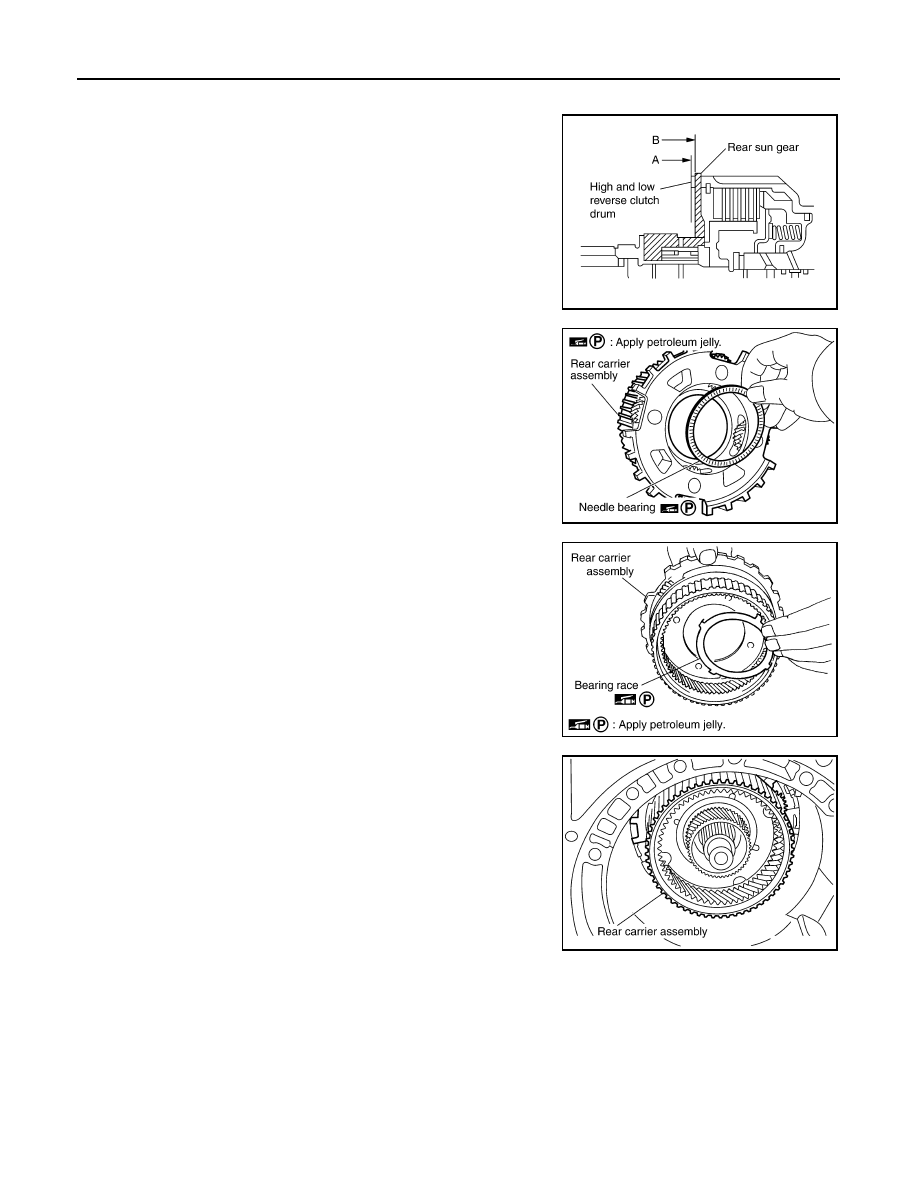

CAUTION:

Make sure that portion “A” of high and low reverse clutch

drum protrudes approximately 2 mm (0.08 in) beyond por-

tion “B” of rear sun gear.

40. Install needle bearing in rear carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

41. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

42. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

ASSEMBLY

TM-253

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

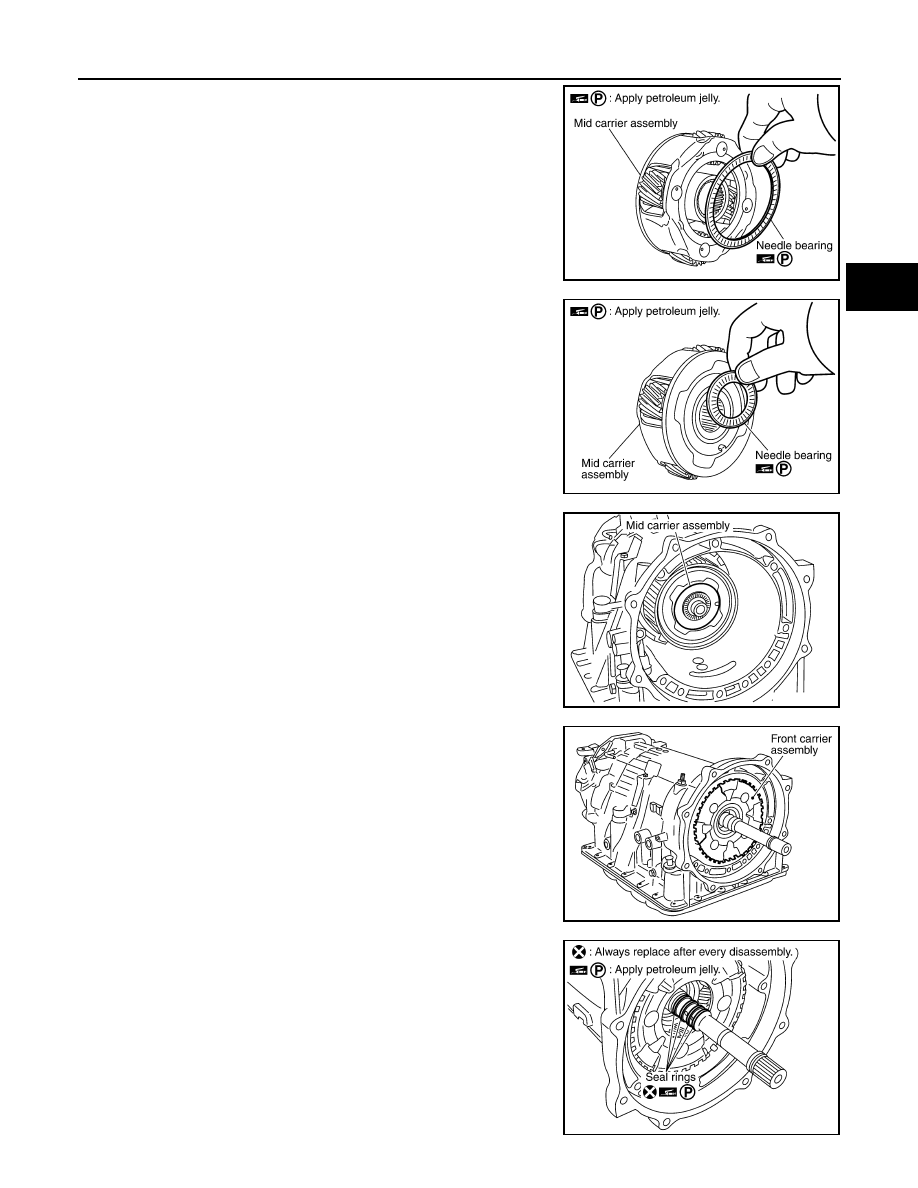

43. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

45. Install mid carrier assembly in rear carrier assembly.

46. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

47. Install seal rings in input clutch assembly.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E
