P0705 TRANSMISSION RANGE SWITCH A

3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each posi-

tion.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Perform TCM power supply and ground circuit. Refer to

TM-94, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following items:

• A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SUB-HARNESS

1. Remove control valve with TCM. Refer to

TM-172, "Control Valve with TCM and A/T Fluid Temperature

Sensor 2 and Plug"

.

2. Disconnect transmission range switch connector and TCM connector.

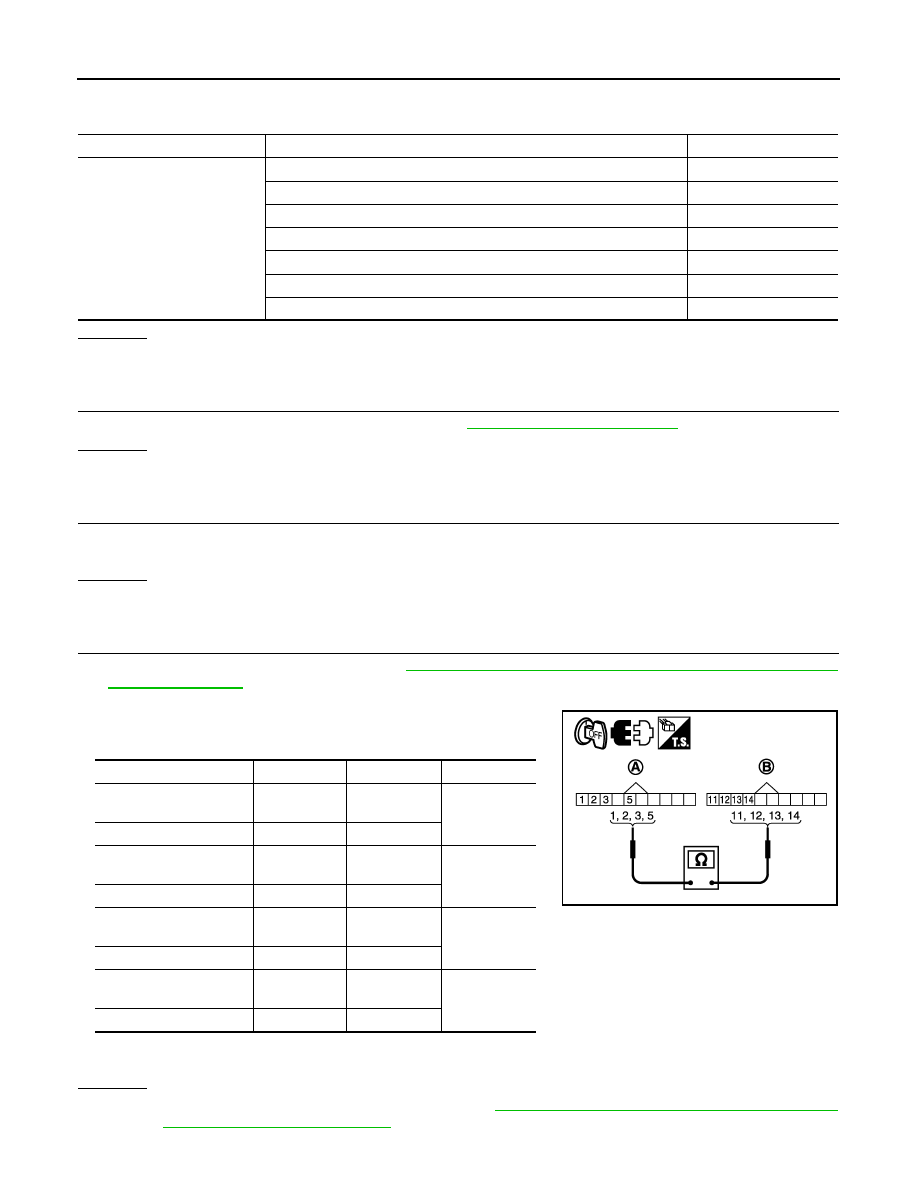

3. Check continuity between transmission range switch connector

(A) terminals and TCM connector (B) terminals.

4. If OK, check harness for short to ground and short to power.

5. Reinstall any part removed.
OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-172, "Control Valve with TCM and A/T Fluid

Temperature Sensor 2 and Plug"

.

Item name

Condition

Display value

SLCTLVR POSI

Selector lever in “N”,“P” positions.

N/P

Selector lever in “R” position.

R

Selector lever in “D” position.

D

Selector lever in “4” position.

4

Selector lever in “3” position.

3

Selector lever in “2” position.

2

Selector lever in “1” position.

1

Item

Connector Terminal  Continuity

Transmission range
switch connector

F505

1

Yes

TCM connector

F503

13

Transmission range
switch connector

F505

2

Yes

TCM connector

F503

11

Transmission range
switch connector

F505

3

Yes

TCM connector

F503

12

Transmission range
switch connector

F505

5

Yes

TCM connector

F503

14

JSDIA1328GB

P0705 TRANSMISSION RANGE SWITCH A

TM-47

< COMPONENT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

5.

CHECK DTC

Perform “DTC Confirmation Procedure”.

• Refer to

TM-45, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.
