TM-30

< FUNCTION DIAGNOSIS >

ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Introduction

INFOID:0000000005148521

The A/T system has two self-diagnostic systems.

The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination

with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC in

the ECM memory but not the TCM memory.

The second is the TCM original self-diagnosis indicated by the A/T CHECK indicator lamp. The malfunction is

stored in the TCM memory. The detected items are overlapped with OBD-II self-diagnostic items. For detail,

refer to

TM-32, "CONSULT-III Function (TRANSMISSION)"

.

OBD-II Function for A/T System

INFOID:0000000005148522

The ECM provides emission-related on board diagnostic (OBD-II) functions for the A/T system. One function

is to receive a signal from the TCM used with OBD-related parts of the A/T system. The signal is sent to the

ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a

diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel. Sensors, switches

and solenoid valves are used as sensing elements.

The MIL automatically illuminates in One or Two Trip Detection Logic when a malfunction is sensed in relation

to A/T system parts.

One or Two Trip Detection Logic of OBD-II

INFOID:0000000005148523

ONE TRIP DETECTION LOGIC

If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in

the ECM memory as a DTC. The TCM is not provided with such a memory function.

TWO TRIP DETECTION LOGIC

When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC

(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — 1st Trip

If the same malfunction as that experienced during the first test drive is sensed during the second test drive,

the MIL will illuminate. — 2nd Trip

The “Trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed

during vehicle operation.

OBD-II Diagnostic Trouble Code (DTC)

INFOID:0000000005148524

HOW TO READ DTC AND 1ST TRIP DTC

DTC and 1st trip DTC can be read by the following methods.
(  with CONSULT-III or   GST) CONSULT-III or GST (Generic Scan Tool) Examples: P0705, P0720 etc.

These DTC are prescribed by SAE J2012.

(CONSULT-III also displays the malfunctioning component or system.)

• 1st trip DTC No. is the same as DTC No.

• Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-

ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring or

occurred in the past and returned to normal.

CONSULT-III can identify them as shown below, therefore, CONSULT-III (if available) is recom-

mended.

Freeze Frame Data and 1st Trip Freeze Frame Data

The ECM has a memory function, which stores the driving condition such as fuel system status, calculated

load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle

speed at the moment the ECM detects a malfunction.

Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,

and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-III

or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-III screen, not on the GST. For

detail, refer to

TM-30

.

Only one set of freeze frame data (either 1st trip freeze frame data of freeze frame data) can be stored in the

ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority

for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once

freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no

ON BOARD DIAGNOSTIC (OBD) SYSTEM

TM-31

< FUNCTION DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-

lowing priorities to update the data.

Both 1st trip freeze frame data and freeze frame data (along with the DTC) are cleared when the ECM mem-

ory is erased.

HOW TO ERASE DTC

The diagnostic trouble code can be erased by CONSULT-III, GST or ECM DIAGNOSTIC TEST MODE as

described following.

• If the battery cable is disconnected, the diagnostic trouble code will be lost within 24 hours.

• When you erase the DTC, using CONSULT-III or GST is easier and quicker than switching the mode

selector on the ECM.

The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC

related to OBD-II. For details, refer to

EC-42, "Emission-related Diagnostic Information"

.

• Diagnostic trouble codes (DTC)

• 1st trip diagnostic trouble codes (1st trip DTC)

• Freeze frame data

• 1st trip freeze frame data

• System readiness test (SRT) codes

• Test values

 HOW TO ERASE DTC (WITH CONSULT-III)

1. The emission related diagnostic information in the TCM and ECM can be erased by selectioning "ALL

ERASE" in the "Description" of "FINAL CHECK" mode with CONSULT-III.

 HOW TO ERASE DTC (WITH GST)

1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait at least

10 seconds and then turn it “ON” (engine stopped) again.

2. Select Mode 4 with the Generic Scan Tool (GST). For details refer to

EC-72, "Generic Scan Tool (GST)

Function"

.

 HOW TO ERASE DTC (NO TOOLS)

1. Disconnect battery for 24 hours.
2. Reconnect battery.

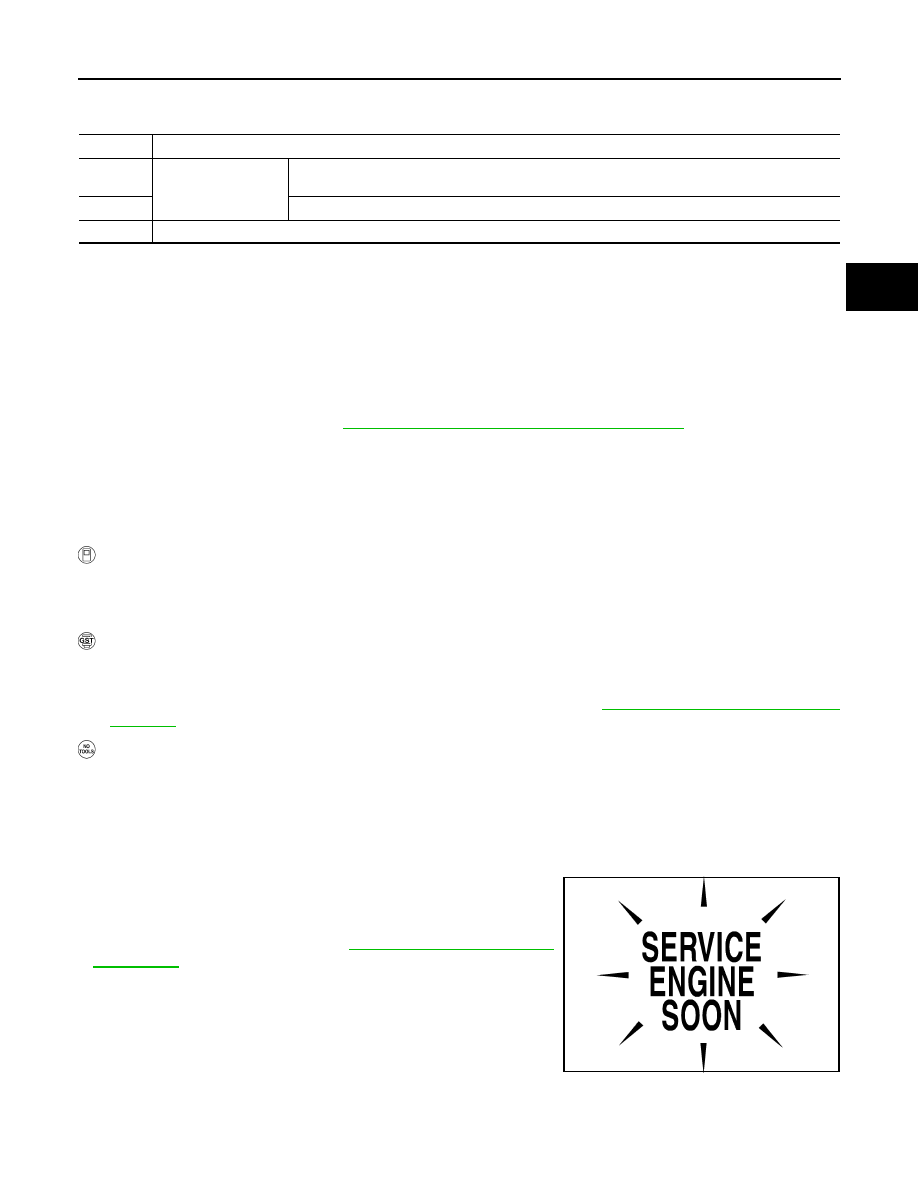

Malfunction Indicator Lamp (MIL)

INFOID:0000000005148525

DESCRIPTION

The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned “ON” with-

out the engine running. This is a bulb check.

• If the MIL does not light up, refer to

EC-55, "Malfunction Indicator

Lamp (MIL)"

.

2. When the engine is started, the MIL should go off.

If the MIL remains on, the on board diagnostic system has

detected an engine system malfunction.

Priority

Items

1

Freeze frame data

Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175

2

Except the above items (Includes A/T related items)

3

1st trip freeze frame data

SEF217U

TM-32

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

DIAGNOSIS SYSTEM (TCM)

CONSULT-III Function (TRANSMISSION)

INFOID:0000000005148526

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAGNOSTIC RESULT MODE

Display Items List

X: Applicable, —: Not applicable

TCM diagnostic mode

Description

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Self-Diagnostic Results

Retrieve DTC from ECU and display diagnostic items.

Data Monitor

Monitor the input/output signal of the control unit in real time.

CAN Diagnosis Support Monitor

It monitors the status of CAN communication.

DTC & SRT Confirmation

The status of system monitoring tests and the self-diagnosis status/result can be confirmed.

ECU Identification

Display the ECU identification number (part number etc.) of the selected system.

 Items (CONSULT-III

screen terms)

Malfunction is detected when...

TCM self-di-

agnosis

OBD (DTC)

Reference

“TRANSMIS-

SION” with

CONSULT-III

MIL indicator
lamp*1, “EN-

GINE” with

CONSULT-III or

GST

CAN COMM CIRCUIT

• When a malfunction is detected in CAN communica-

tions.

U1000

U1000

TM-40

STARTER RELAY

• If this signal is ON other than in “P” or “N” position, this

is judged to be a malfunction.
(And if it is OFF in “P” or “N” position, this too is judged
to be a malfunction.)

P0615

TM-41

TRANSMISSION CON-
TROL

• TCM is malfunctioning.

P0700

P0700

TM-44

T/M RANGE SWITCH A

• Transmission range switch 1-4 signals input with im-

possible pattern.

• “P” position is detected from “N” position without any

other position being detected in between.

P0705

P0705

TM-45

INPUT SPEED SEN-
SOR A

• TCM does not receive the proper voltage signal from

the sensor.

• TCM detects an irregularity only at position of 4GR for

input speed sensor 2.

P0717

P0717

TM-48

OUTPUT SPEED SEN-
SOR

• Signal from output speed not input due to cut line or

the like.

• Unexpected signal input during running.
• After ignition switch is turned ON, unexpected signal

input from vehicle speed signal before the vehicle
starts moving.

P0720

P0720

TM-51

ENGINE SPEED

• TCM does not receive the CAN communication signal

from the ECM.

P0725

TM-53

1GR INCORRECT RA-
TIO

• A/T cannot shift to 1GR.

P0731

P0731

TM-56

2GR INCORRECT RA-
TIO

• A/T cannot shift to 2GR.

P0732

P0732

TM-58

3GR INCORRECT RA-
TIO

• A/T cannot shift to 3GR.

P0733

P0733

TM-60

DIAGNOSIS SYSTEM (TCM)

TM-33

< FUNCTION DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4GR INCORRECT RA-
TIO

• A/T cannot shift to 4GR.

P0734

P0734

TM-62

5GR INCORRECT RA-
TIO

• A/T cannot shift to 5GR.

P0735

P0735

TM-64

TORQUE CONVERT-
ER

• Normal voltage not applied to solenoid due to cut line,

short, or the like.

P0740

P0740

TM-65

TORQUE CONVERT-
ER

• A/T cannot perform lock-up even if electrical circuit is

good.

• TCM detects as irregular by comparing difference val-

ue with slip rotation.

P0744

P0744*2

TM-68

PC SOLENOID A

• Normal voltage not applied to solenoid due to cut line,

short, or the like.

• TCM detects as irregular by comparing target value

with monitor value.

P0745

P0745

TM-69

TP SENSOR

• TCM does not receive the proper accelerator pedal po-

sition signals (input by CAN communication) from
ECM.

P1705

P1705

TM-71

FLUID TEMP SENSOR

•  During running, the ATF temperature sensor signal

voltage is excessively high or low.

P1710

P0710

TM-73

VEHICLE SPEED SIG-
NAL

• Signal (CAN communication) from vehicle speed sig-

nal not input due to cut line or the like.

• Unexpected signal input during running.

P1721

TM-76

INTERLOCK

• Except during shift change, the gear position and ATF

pressure switch states are monitored and comparative
judgement made.

P1730

P1730

TM-78

1GR E/BRAKING

• Each ATF pressure switch and solenoid current is

monitored and if a pattern is detected having engine
braking 1GR other than in the "1" position, a malfunc-
tion is detected.

P1731

TM-80

INPUT CLUTCH SOLE-
NOID

• Normal voltage not applied to solenoid due to function-

al malfunction, cut line, short, or the like.

• TCM detects as irregular by comparing target value

with monitor value.

P1752

P1752

TM-82

FR BRAKE SOLENOID

• Normal voltage not applied to solenoid due to function-

al malfunction, cut line, short, or the like.

• TCM detects as irregular by comparing target value

with monitor value.

P1757

P1757

TM-84

DRCT CLUTCH SOLE-
NOID

• Normal voltage not applied to solenoid due to cut line,

short, or the like.

• TCM detects as irregular by comparing target value

with monitor value.

P1762

P1762

TM-86

HLR CLUTCH SOLE-
NOID

• Normal voltage not applied to solenoid due to function-

al malfunction, cut line, short, or the like.

• TCM detects as irregular by comparing target value

with monitor value.

P1767

P1767

TM-88

L C BRAKE SOLENOID

• Normal voltage not applied to solenoid due to function-

al malfunction, cut line, short, or the like.

P1772

P1772

TM-90

 Items (CONSULT-III

screen terms)

Malfunction is detected when...

TCM self-di-

agnosis

OBD (DTC)

Reference

“TRANSMIS-

SION” with

CONSULT-III

MIL indicator
lamp*1, “EN-

GINE” with

CONSULT-III or

GST
