DIAGNOSIS AND REPAIR WORK FLOW

SRC-3

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000005147768

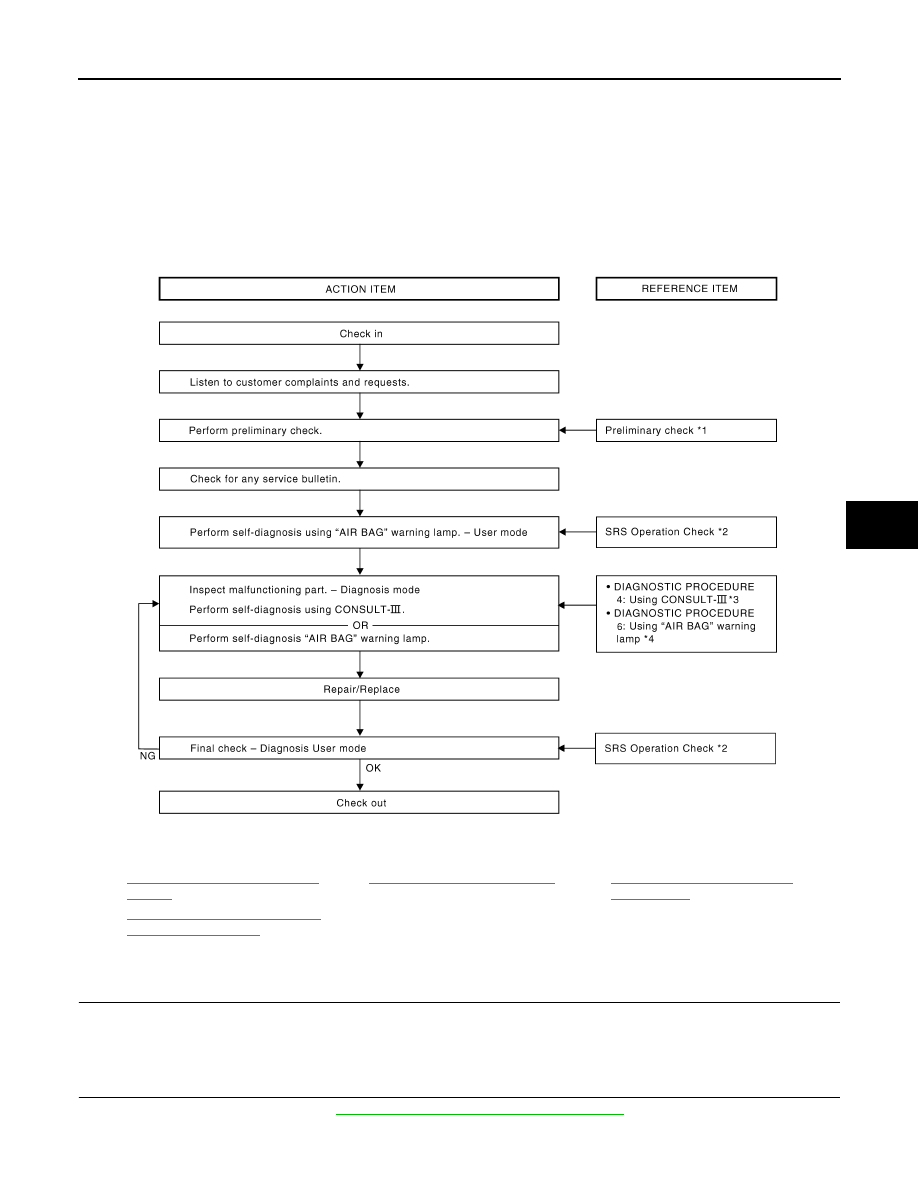

OVERALL SEQUENCE

DETAILED WORK FLOW

1.

CUSTOMER INFORMATION

Get detailed information from the customer about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SRC-13, "Trouble Diagnosis Introduction"

.

*1

SRC-13, "Trouble Diagnosis Intro-
duction"

*2

SRC-13, "SRS Operation Check"

*3

SRC-5, "Trouble Diagnosis with
CONSULT-III"

*4

SRC-15, "Self-Diagnosis Function
(Without CONSULT-III)"

WHIA0348E

SRC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode.  Refer to

SRC-13, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-5, "Trouble Diagnosis with CONSULT-III"

 (w/CONSULT-III) or

SRC-15, "Self-Diagnosis Function (Without CONSULT-III)"

 (w/o CONSULT- III).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 5

INTERMITTENTS INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENTS INCIDENT

Inspection Procedure

INFOID:0000000005147769

INTERMITTENT TROUBLE

An intermittent incident may have occured in the past but is not being detected currently.  This DTC will not be

detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT-III.

Trouble Diagnosis with CONSULT-III

INFOID:0000000005147770

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Go to "DIAGNOSTIC PROCEDURE 3".  Refer to

SRC-15, "Self-Diagnosis Function

(Without CONSULT-III)"

.

No

>> Go to "DIAGNOSTIC PROCEDURE 2".  Refer to

SRC-13, "SRS Operation Check"

.

SRC-6

< FUNCTION DIAGNOSIS >

SRS AIR BAG SYSTEM

FUNCTION DIAGNOSIS

SRS AIR BAG SYSTEM

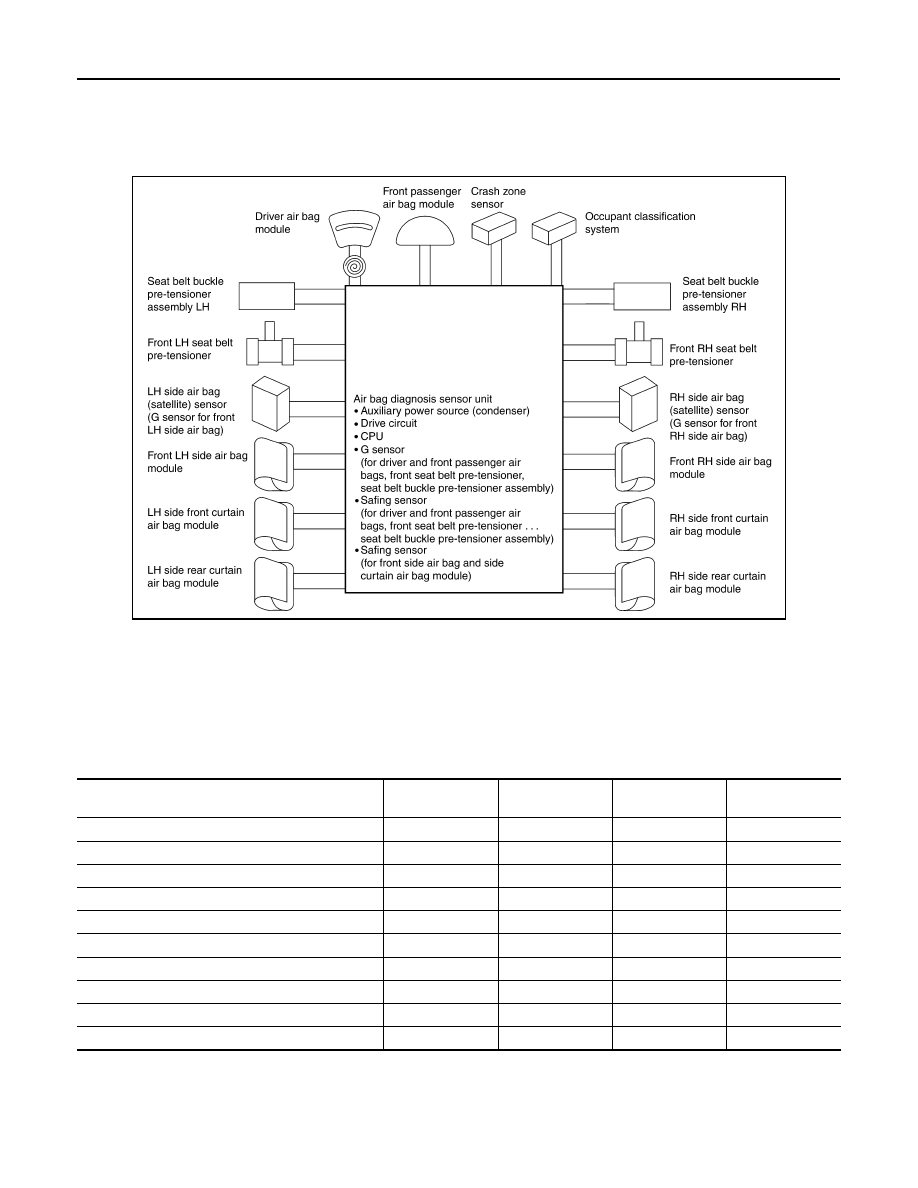

SRS Configuration

INFOID:0000000005147771

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or

START position.

The collision modes for which supplemental restraint systems are activated are different among the SRS sys-

tems. For example, the driver air bag module, front passenger air bag module, front seat belt pre-tensioners

and seat belt buckle pre-tensioner assemblies are activated in a frontal collision but not in a side collision.

SRS configurations for some collision modes are as follows:

WHIA0215E

SRS configuration

Frontal collision

Left side collision

Right side colli-

sion

Rollover

Driver air bag module

x

—

—

—

Front passenger air bag module

x

—

—

—

Front LH seat belt pre-tensioner

x

—

—

x

Front LH seat belt buckle pre-tensioner assembly

x

—

—

x

Front RH seat belt pre-tensioner

x

—

—

x

Front RH seat belt buckle pre-tensioner assembly

x

—

—

x

Front LH side air bag module

—

x

—

—

Front RH side air bag module

—

—

x

—

LH side curtain air bag module

—

x

—

x

RH side curtain air bag module

—

—

x

x
