Infiniti QX56 (JA60). Manual - part 862

SEC-94

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

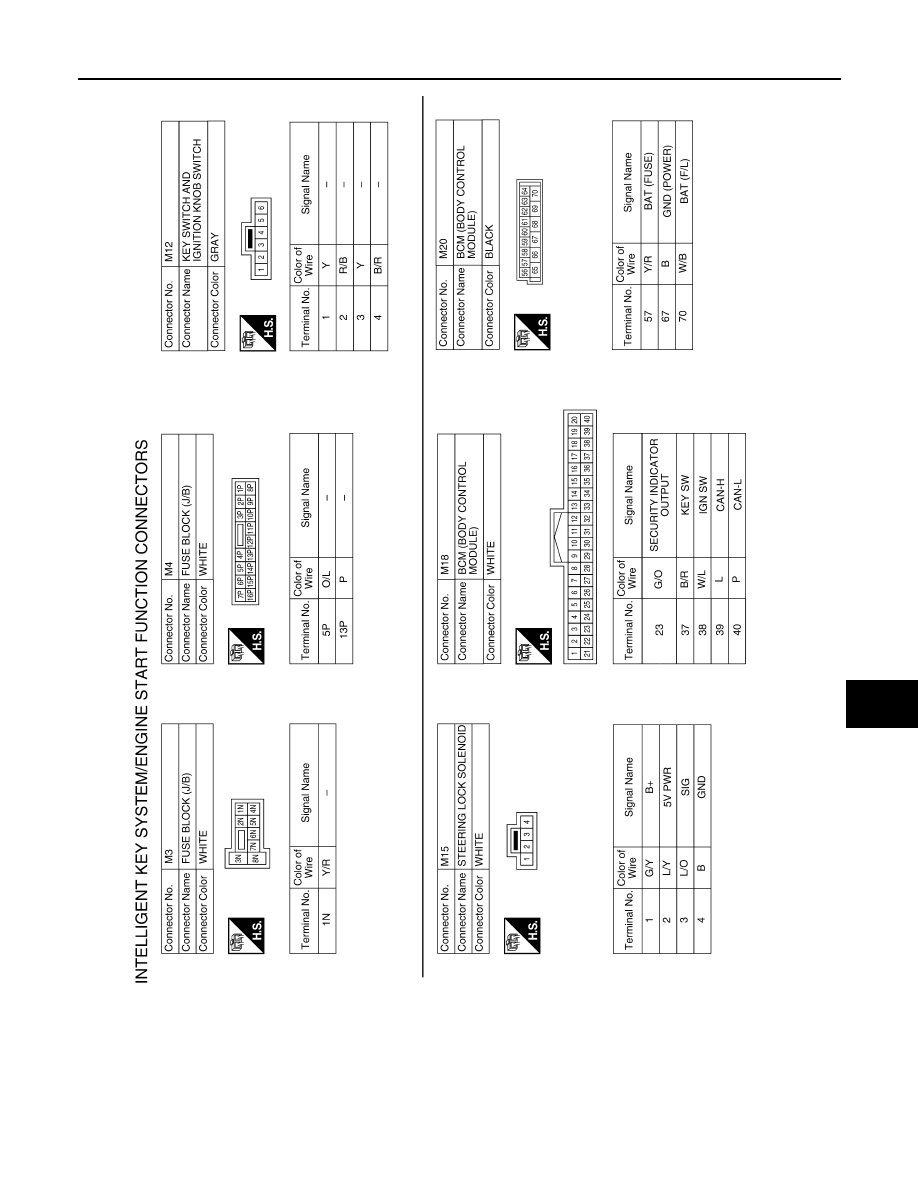

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

INFOID:0000000005147139

ABKWA0448GB

INTELLIGENT KEY UNIT
