SB-4

< ON-VEHICLE REPAIR >

SEAT BELTS

ON-VEHICLE REPAIR

SEAT BELTS

Removal and Installation of Front Seat Belt

INFOID:0000000005266528

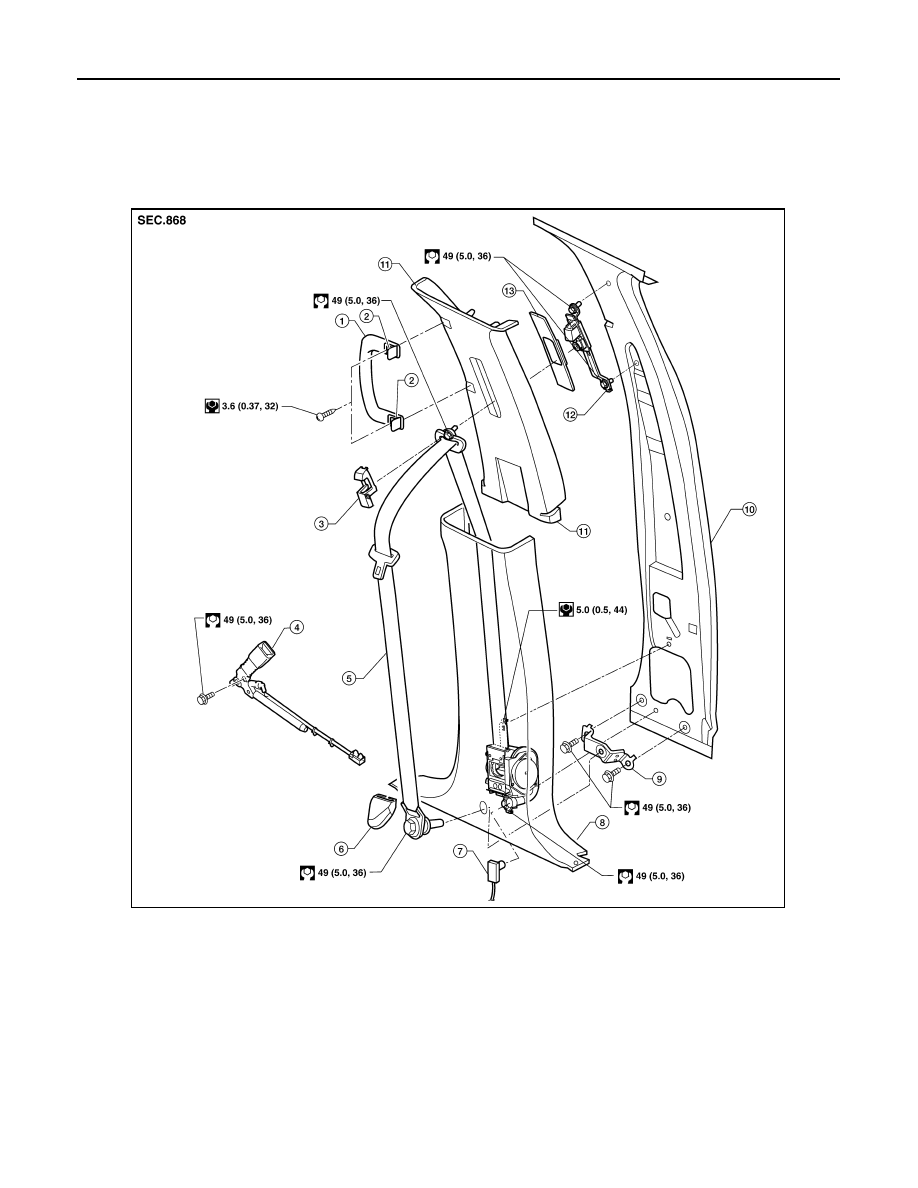

FRONT SEAT BELT RETRACTOR

Removal

CAUTION:

1.

Assist handle

2.

Assist handle screw cover

3.

 D-ring anchor bolt cover

4.

Seat belt buckle

5.

Seat belt retractor and belt assembly
LH

6.

Anchor cover

7.

Seat belt pre-tensioner connector

8.

Center pillar lower finisher

9.

Seat belt anchor bracket

10. Center pillar

11. Center pillar upper finisher

12. Seat belt height adjuster

13. Seat belt height adjuster finisher

AWHIA0231GB

SEAT BELTS

SB-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

1. Disconnect both battery terminals, then wait at least three minutes.
2. Remove the center pillar lower finisher. Refer to

INT-14, "Removal and Installation"

.

3. Remove the retractor anchor bolt, retractor bolt upper, then remove the retractor and belt assembly.

• On RH side, disconnect the seat belt tension sensor.

4. Disconnect the seat belt pre-tensioner electrical connector.

CAUTION:

• For removing pre-tensioner connector, insert a thin

screwdriver (1) wrapped in tape (3) into the notch. Lift the

locking tab to unlock (2), then remove the connector.

• Install the pre-tensioner connector with the locking tab

raised, then push the locking tab into the connector to

lock (4).

Installation

 Installation is in the reverse order of removal.

• Install the seat belt retractor and belt assembly bolt upper first.

• Make sure that seat belt height adjuster is locked in the lowest position during installation.

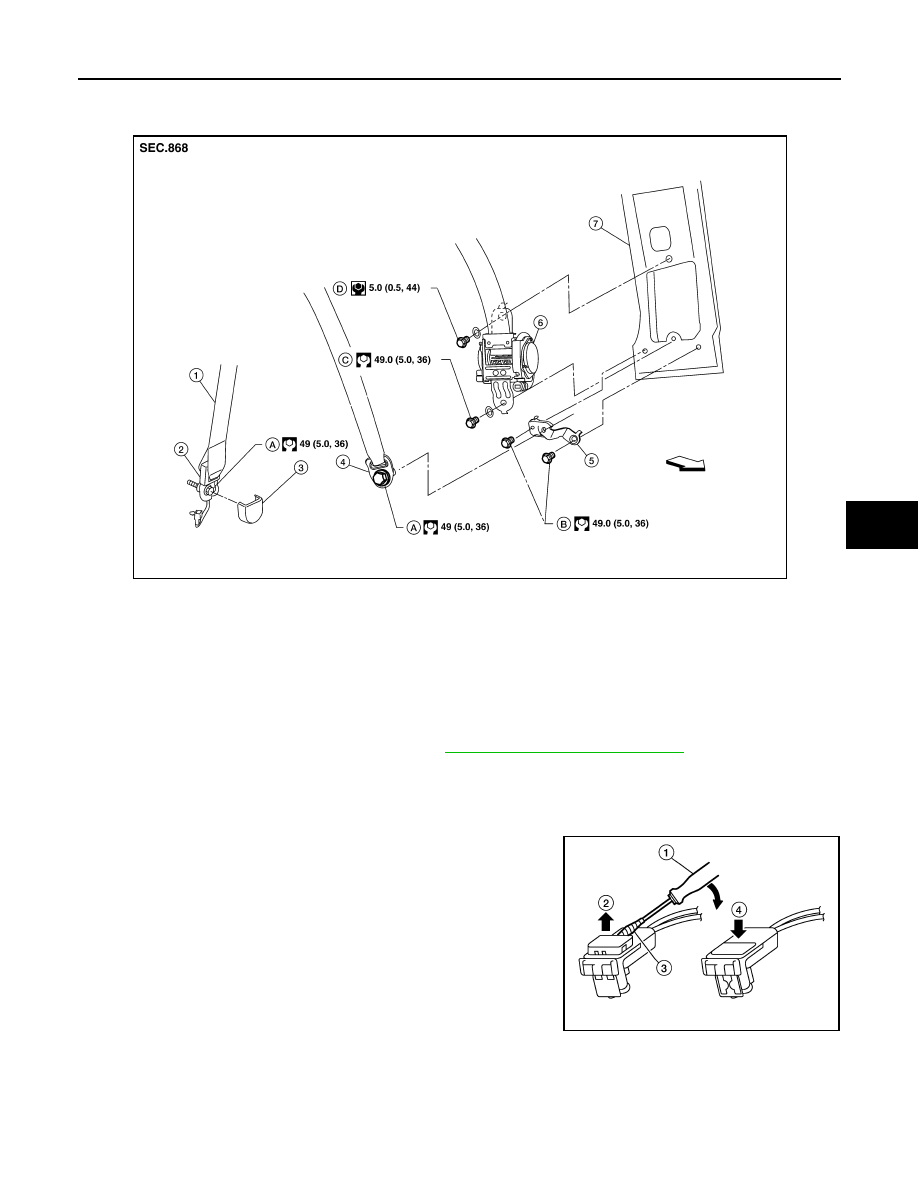

FRONT SEAT BELT BUCKLE

1.

Seat belt retractor and belt assembly
RH

2.

Seat belt lower anchor RH (seat belt
tension sensor)

3.

Anchor cover RH (LH similar)

4.

Seat belt lower anchor LH

5.

Seat belt anchor bracket

6.

Seat belt retractor and belt assembly
LH

7.

Center pillar

A.

Lower anchor bolt

B.

Anchor bracket bolt

C.

Retractor anchor bolt

D.

Retractor bolt upper

Vehicle front

WHIA0346E

WHIA0279E

SB-6

< ON-VEHICLE REPAIR >

SEAT BELTS

Removal

1. Remove the front seat. Refer to

SE-51, "Removal and Installation"

.

2. Remove the seat cushion. Refer to

SE-69, "Disassembly and Assembly"

.

3. Disconnect the seat belt buckle pre-tensioner electrical connector.

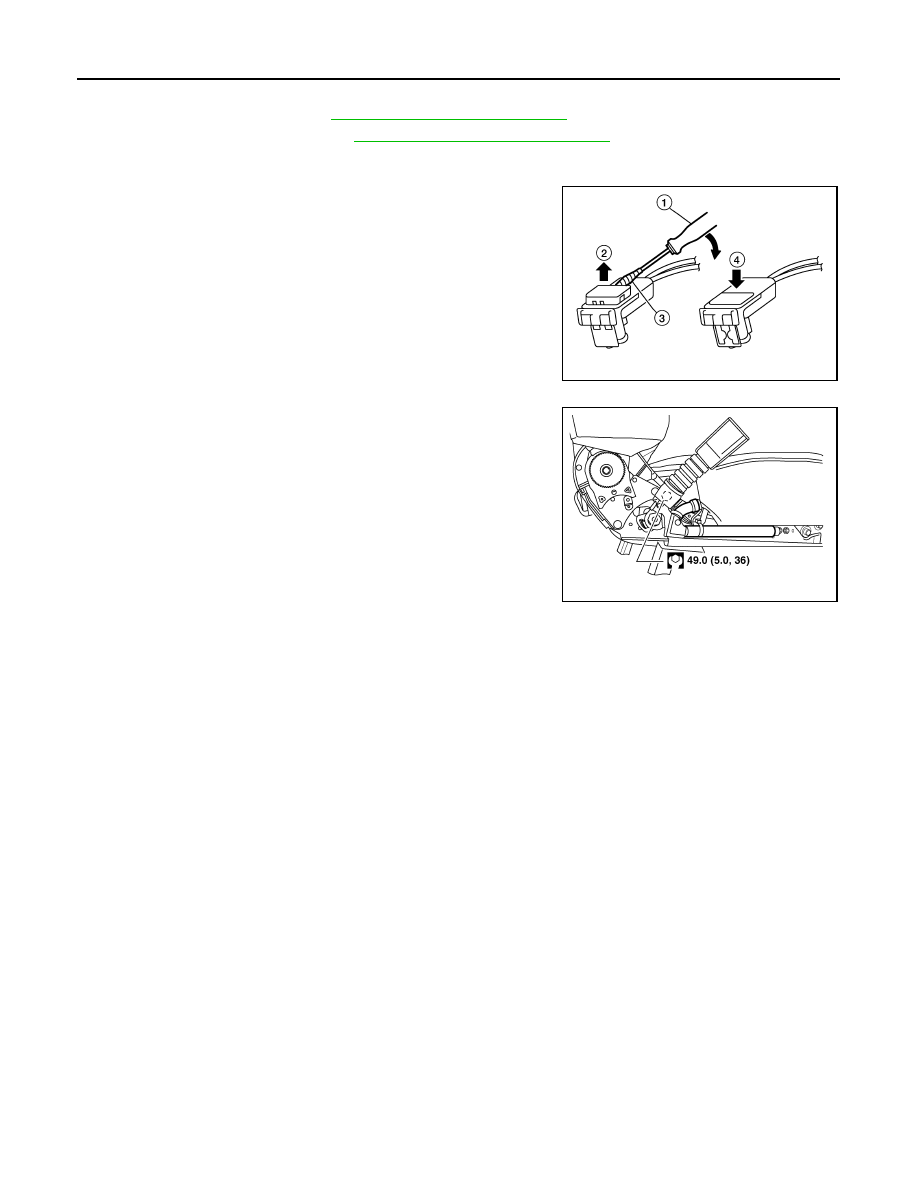

CAUTION:

• For removing pre-tensioner connector, insert a thin

screwdriver (1) wrapped in tape (3) into the notch. Lift the

locking tab to unlock (2), then remove the connector.

• Install the pre-tensioner connector with the locking tab

raised, then push the locking tab into the connector to

lock (4).

4. Remove screw and seat cushion inner finisher.

5. Remove the anchor bolt, then remove front seat belt buckle from

the seat frame.

Installation

 Installation is in the reverse order of removal.

CAUTION:

• Front passenger seat is equipped with Occupant Classification System sensor and control module.

Do not disassemble front passenger seat cushion assembly or remove trim, this will affect the Occu-

pant Classification System calibration.

• On the passenger seat during installation, the wire harness clips must be installed in the holes they

were originally in. Do not add additional clips.

WHIA0279E

WHIA0280E

SEAT BELTS

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Removal and Installation of Second Row Seat Belt

INFOID:0000000005266529

SECOND ROW SEAT BELT RETRACTOR - OUTBOARD

Removal

1. Remove seat belt lower anchor cover and bolt.
2. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
3. Remove the lower luggage area trim. Refer to

INT-19, "Removal and Installation"

.

4. Remove the seat belt guide bolt.
5. Remove seat belt retractor anchor bolt and the seat belt assembly.

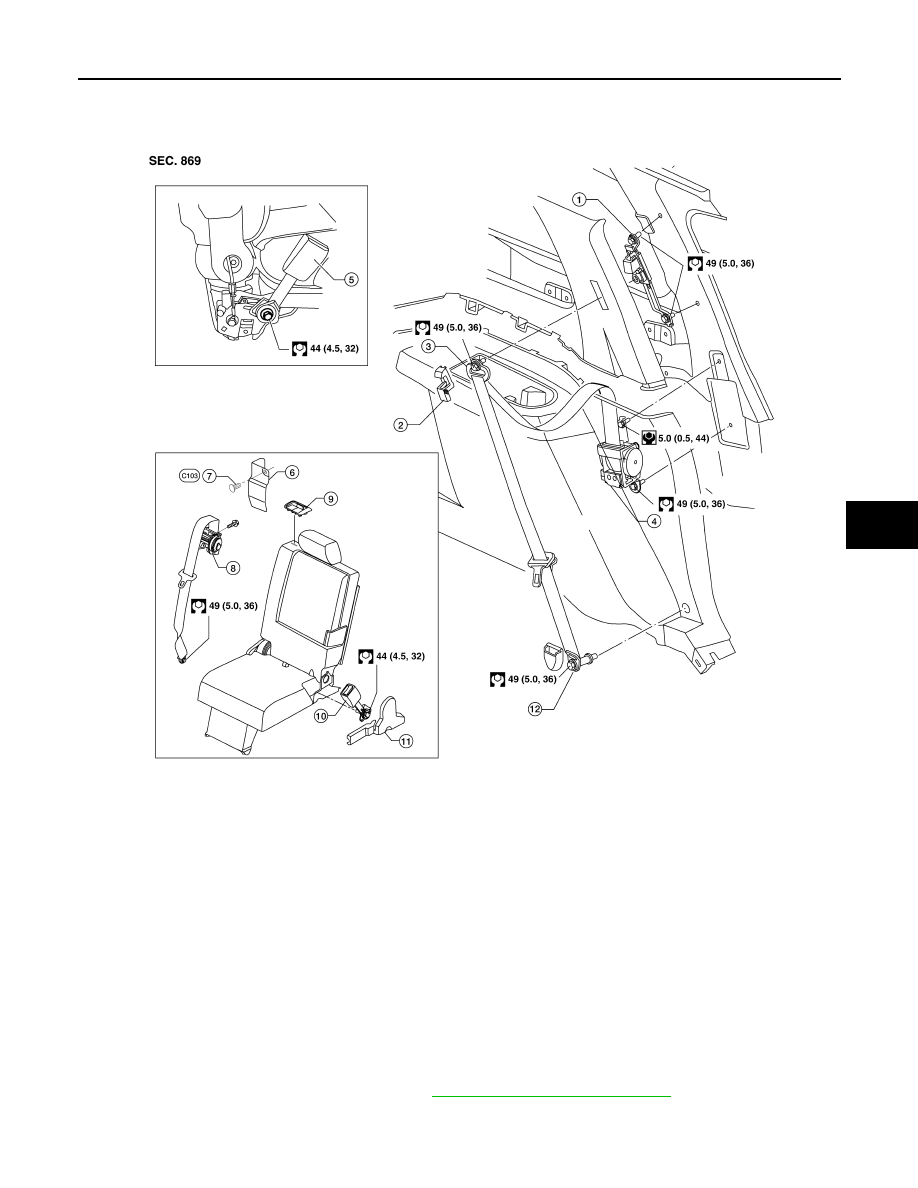

1.

Seat belt height adjuster assembly

2.

D-ring anchor bolt cover

3.

D-ring anchor

4.

Seat belt retractor and belt assembly
(outboard)

5.

Seat belt buckle (outboard)

6.

Seat belt retractor cover

7.

Push pin C103

8.

Seat belt retractor and belt assembly
(center)

9.

Seat belt bezel

10. Seat belt buckle (center)

11. Seat cushion finisher

12. Seat belt lower anchor

AWHIA0221GB
